DESCRIPTION
EAU10410

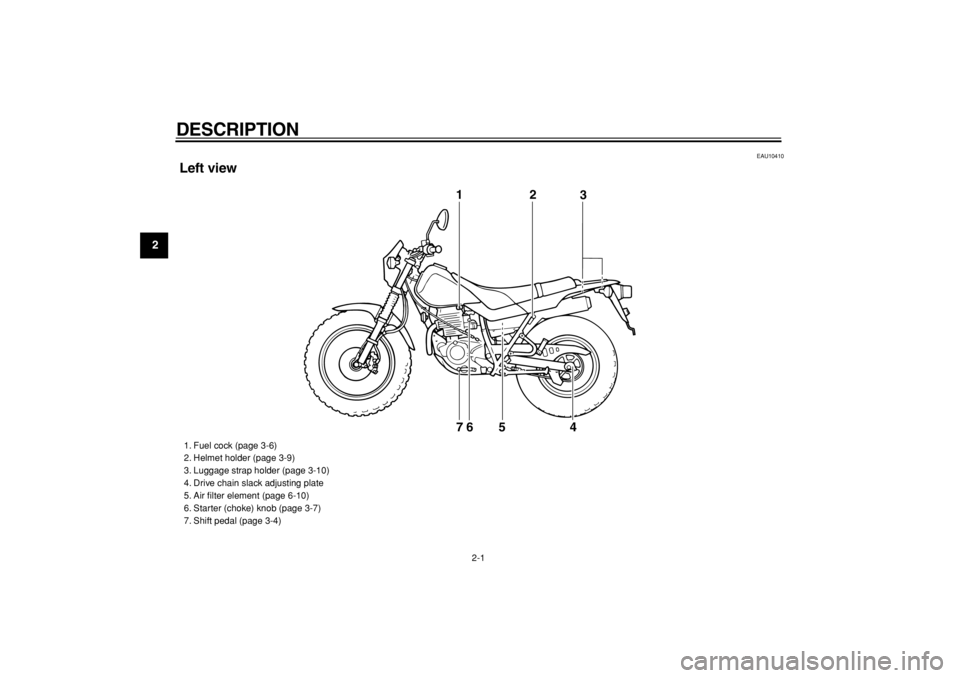

Left view
1
2
3
4 5 76

1. Fuel cock (page 3-6)
2. Helmet holder (page 3-9)
3. Luggage strap holder (page 3-10)
4. Drive chain slack adjusting plate
5. Air filter element (page 6-10)
6. Starter (choke) knob (page 3-7)
7. Shift pedal (page 3-4)

DESCRIPTION
2-2
2
3
4
5
6
7
8
9

EAU10420
Right view
12
654 3
7
8
9

1. Carrier
2. Battery (page 6-27)
3. Kickstarter (page 3-8)
4. Engine oil filter element (page 6-7)
5. Engine oil level check window (page 6-7)
6. Brake pedal (page 3-5)
7. Owner’s tool kit (page 6-1)
8. Fuse (page 6-29)9. Luggage strap holder (page 3-10)

DESCRIPTION
2-3
1
2
3
4
5
6
7
8
9

EAU10430
Controls and instruments
12 3 4
567
8
9

1. Clutch lever (page 3-4)
2. Left handlebar switches (page 3-3)
3. Speedometer unit (page 3-2)
4. Main switch/steering lock (page 3-1)
5. Indicator lights (page 3-2)
6. Right handlebar switches (page 3-3)
7. Brake lever (page 3-4)
8. Throttle grip (page 6-13)9. Fuel tank cap (page 3-5)

INSTRUMENT AND CONTROL FUNCTIONS
3-1
2
34
5
6
7
8
9

EAU10460
Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU10510
ON
All electrical systems are supplied with
power, and the headlight, meter light-
ing, taillight and position lights come
on, and the engine can be started. The
key cannot be removed.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10710
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering
Turn the handlebars all the way to the
left or right.
1. Push the key in from the “OFF” po-
sition, release it, and then turn it to
“LOCK”.
2. Remove the key.To unlock the steering
Insert the key and turn it to “OFF”.
WARNING

EWA10070
Never turn the key to “LOCK” while
the motorcycle is moving.
LOCKOFFON
1. Push.
2. Release.
3. Turn.
12
3

INSTRUMENT AND CONTROL FUNCTIONS
3-2
1
2
3
4
5
6
7
8
9

EAU10980
Indicator lights
EAU11020
Turn signal indicator light “”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11630
Speedometer unit
The speedometer unit is equipped with
a speedometer, an odometer and a
tripmeter. The speedometer shows
riding speed. The odometer shows the
total distance traveled. The tripmeter
shows the distance traveled since it
was last set to zero with the reset knob.
The tripmeter can be used to estimate
the distance that can be traveled with a
full tank of fuel. This information will en-
able you to plan future fuel stops.
1. Turn signal indicator light “ ”
2. High beam indicator light “ ”
3. Neutral indicator light “ ”
3
12

1. Speedometer
2. Odometer
3. Tripmeter
4. Reset knob
4
23 1

INSTRUMENT AND CONTROL FUNCTIONS
3-3
2
34
5
6
7
8
9

EAU12341
Handlebar switches
LeftRight
EAU12400
Dimmer switch “/”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12710
Start switch “”
Push this switch to crank the engine
with the starter.
CAUTION:

ECA10050
See page 5-1 for starting instruc-
tions prior to starting the engine.
1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “ ”
1
2
3

1. Engine stop switch “ / ”
2. Start switch “ ”
12

INSTRUMENT AND CONTROL FUNCTIONS
3-4
1
2
3
4
5
6
7
8
9

EAU12820
Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See
page 3-11.)
EAU12870
Shift pedal
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU12890
Brake lever
The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
1. Clutch lever
1

1. Shift pedal
1

1. Brake lever
1

INSTRUMENT AND CONTROL FUNCTIONS
3-5
2
34
5
6
7
8
9

EAU12941
Brake pedal
The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU32280
Fuel tank cap
To remove the fuel tank cap
1. Insert the key into the lock and turn
it 1/3 turn counterclockwise.
2. Turn the fuel tank cap 1/3 turn
counterclockwise and pull it off.
To install the fuel tank cap
1. Insert the fuel tank cap into the
tank opening with the key inserted
in the lock, and then turn the cap 1/
3 turn clockwise.
2. Turn the key 1/3 turn clockwise,
and then remove it.
NOTE:

The fuel tank cap cannot be installedunless the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly installed and locked.
WARNING

EWA10120
Make sure that the fuel tank cap is
properly closed and locked before
riding.
1. Brake pedal
1

1. Fuel tank cap
2. Unlock.
1
2

INSTRUMENT AND CONTROL FUNCTIONS
3-6
1
2
3
4
5
6
7
8
9

EAU13210
Fuel
Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
WARNING

EWA10880

Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.

Avoid spilling fuel on the hot en-
gine.
CAUTION:

ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, sincefuel may deteriorate painted surfac-
es or plastic parts.
EAU13241EAU13560
Fuel cock
The fuel cock supplies fuel from the
tank to the carburetor while filtering it al-
so.
The fuel cock has three positions:
OFF
With the lever in this position, fuel will
not flow. Always return the lever to this
position when the engine is not running.
1. Fuel tank filler tube
2. Fuel level
1
2

Recommended fuel:
Regular unleaded gasoline
only
Fuel tank capacity:
7.0 L (1.85 US gal)
(1.54 Imp.gal)
Fuel reserve amount:
1.7 L (0.45 US gal)
(0.37 Imp.gal)
1. Arrow mark positioned over “OFF”
RES
ONFUEL
OFF
1

INSTRUMENT AND CONTROL FUNCTIONS
3-7
2
34
5
6
7
8
9 ON
With the lever in this position, fuel flows
to the carburetor. Normal riding is done
with the lever in this position.
RES
This indicates reserve. If you run out offuel while riding, move the lever to this
position. Fill the tank at the first oppor-
tunity. Be sure to set the lever back to
“ON” after refueling!

EAU13600
Starter (choke) knob “”
Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the knob in direction (a) to turn on
the starter (choke).
Move the knob in direction (b) to turn off
the starter (choke).
1. Arrow mark positioned over “ON”
1. Arrow mark positioned over “RES”
ON
FUEL
RES
OFF
1
ON
OFF
ONFUEL RES
1
RES

1. Starter (choke) knob “”
1(a) (b)
