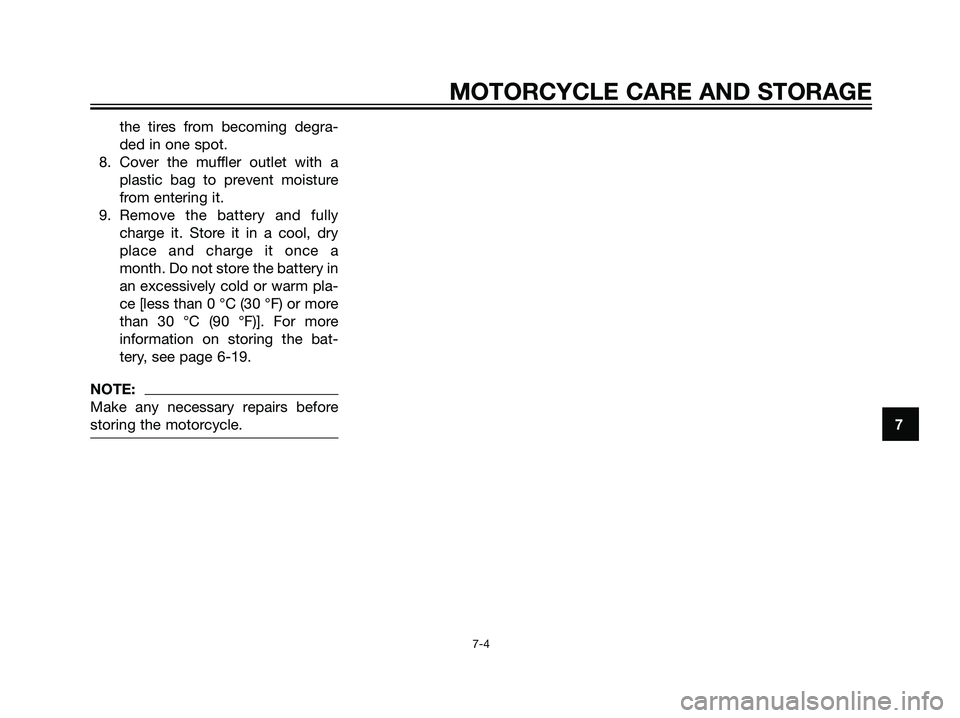

the tires from becoming degra-
ded in one spot.
8. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
9. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a
month. Do not store the battery in
an excessively cold or warm pla-
ce [less than 0 °C (30 °F) or more
than 30 °C (90 °F)]. For more
information on storing the bat-
tery, see page 6-19.
NOTE:
Make any necessary repairs before
storing the motorcycle.
7
MOTORCYCLE CARE AND STORAGE
7-4
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 61

EAU26339
Dimensions
Overall length
2007 mm
Overall width
675 mm
Overall height
1065 mm
Seat height
815 mm
Wheelbase
1330 mm
Ground clearance
144 mm
Minimum turning radius
2900 mm
Weight
With oil and fuel
124.2 kg
Engine
Engine type
Liquid cooled 2-stroke
Cylinder arrangement
Forward-inclined single cylinder
Displacement
49.7 cm
3
Bore x stroke
40.3 x 39.0 mm
Compression ratio
6.85 :1
Starting system
Electric starter
Lubrication system
Separate lubrication (Yamaha autolube)
Transmission oil
Oil change quantity
0.75 L
Coolant reservoir capacity (up to the maxi-
mum level mark)
0.71 L
Radiator capacity (including all routes)
0.70 L
Air filter element
Wet element
Fuel
Fuel tank capacity
13.8 L
Fuel reserve amount
2.2 L
Carburetor
Manufacturer
Dell’Orto
Type x quantity
PHBN 16 NS / 1
Spark plug (s)
Manufacturer/model
NGK/BR9ES
Spark plug gap
0.6-0.7 mm
Clutch type
Wet, multiple-disc
Transmission
Primary reduction system
Helical gear
Primary reduction ratio
71 x 20 (3.550)
Secondary reduction system
Chain driveSecondary reduction ratio
47 x 11 (4.270)
Transmission type
Constant mesh 6-speed
Gear ratio
1st
36 x 12 (3.000)
2nd
33 x 16 (2.062)
3rd
29 x 19 (1.526)
4th
27 x 22 (1.227)
5th
25 x 24 (1.041)
6th
24 x 25 (0.960)
Chassis
Frame type
Double cradle
Caster angle
25.00 degree
Trail
92.0 mm
Front tire
Type
Tubeless
Size
100/80-17 52H
Manufacturer/model
PIRELLI
Rear tire
Type
Tubeless
8
SPECIFICATIONS
8-1
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 62

Size
130/70-17 62H
Manufacturer/model
PIRELLI
Maximum load
195 kg
Tire air pressure (measured on cold
tires)
Loading condition
0-90 kg
Front
180 kPa
Rear
200 kPa
Loading condition
90-180 kg
Front
190 kPa
Rear
230 kPa
Front wheelWheel type
Cast wheel
Rim size
MT 2.75x17”
Rear wheelWheel type
Cast wheel
Rim size
MT 3.50x17”
Front brakeType
Single disc brakeRecommended fluid
DOT 4
Rear brakeType
Single disc brake
Recommended fluid
DOT 4
Front suspensionType
Telescopic fork
Spring/shock absorber type
Coil spring/oil damper
Wheel travel
130.0 mm
Rear suspension
Type
Swingarm
Spring/shock absorber type
Coil-gas spring/oil damper
Wheel travel
102.0 mm
Electrical systemIgnition system
DC. CDI
Charging system
CDI magneto
Model
YT4L-BS
Voltage, capacity
12 V, 3.0 Ah
Bulb type
Incandescence
Bulb voltage, wattage x quantityHeadlight
12 V, 25 W/25.0 W x 2
Tail/brake light
12 V, 5.0 W/21.0 W x 1
Front turn signal light
12 V, 16.0 W
Rear turn signal light
12 V, 10.0 W x 2
Neutral indicator light
LED
Oil level warning light
LED
Turn signal indicator light
LED
Coolant temperature warning light
LED
Main fuse
10.0 A
8
SPECIFICATIONS
8-2
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 63

EAU26351

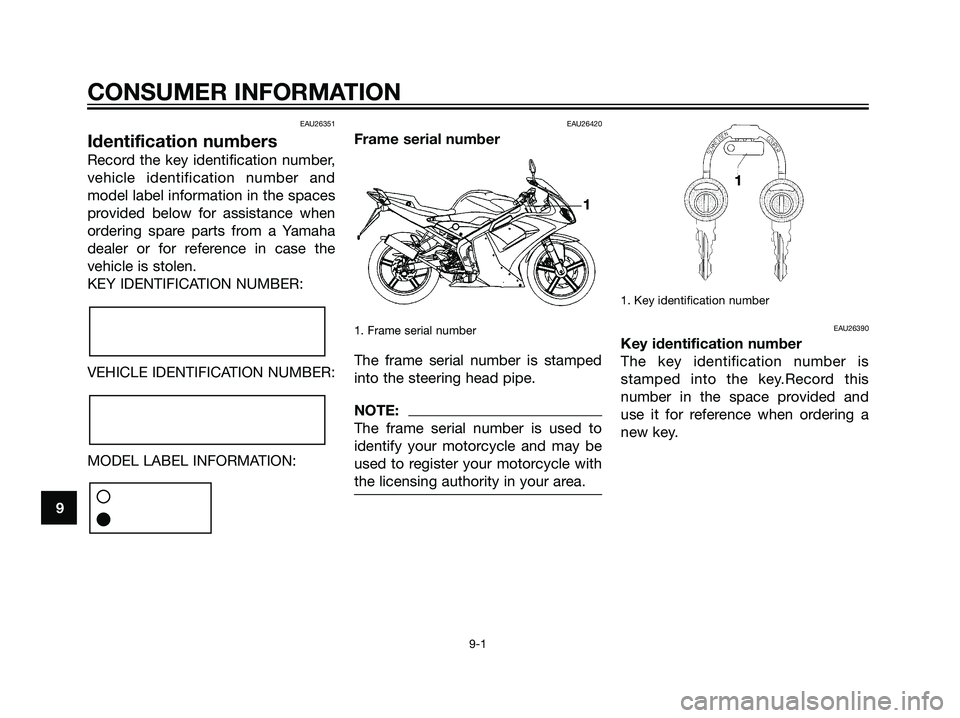

Identification numbers
Record the key identification number,
vehicle identification number and
model label information in the spaces
provided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the
vehicle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EAU26420
Frame serial number
1. Frame serial number
The frame serial number is stamped
into the steering head pipe.
NOTE:
The frame serial number is used to
identify your motorcycle and may be
used to register your motorcycle with
the licensing authority in your area.
1. Key identification number
EAU26390
Key identification number
The key identification number is
stamped into the key.Record this
number in the space provided and
use it for reference when ordering a
new key.
9
CONSUMER INFORMATION
9-1
11
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 64

EAU26480

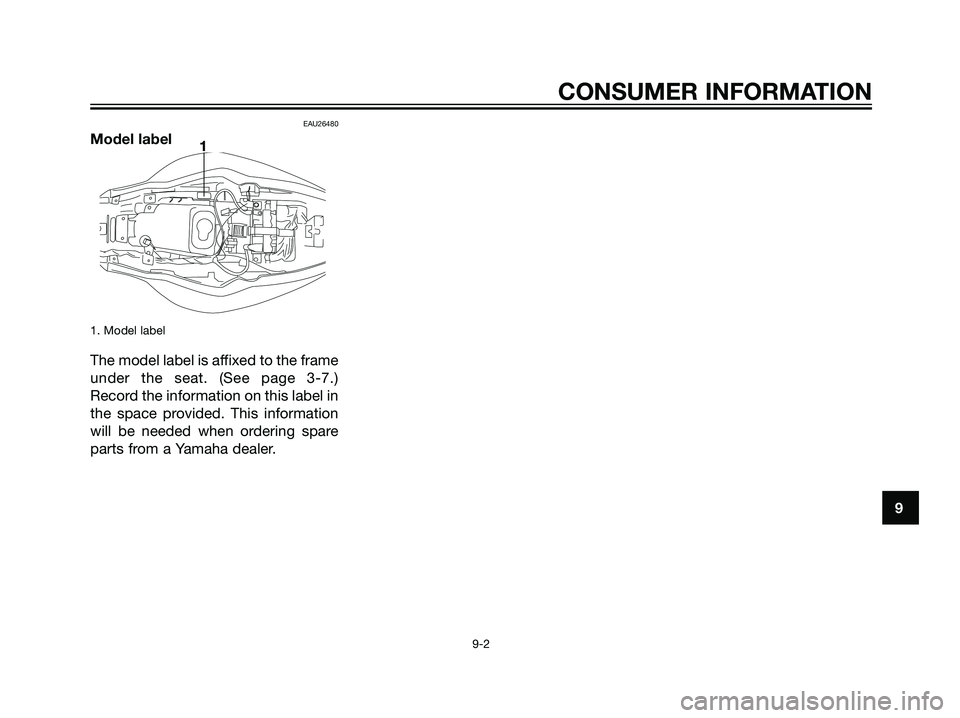

Model label
1. Model label
The model label is affixed to the frame
under the seat. (See page 3-7.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
9
CONSUMER INFORMATION
9-2
1
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 65

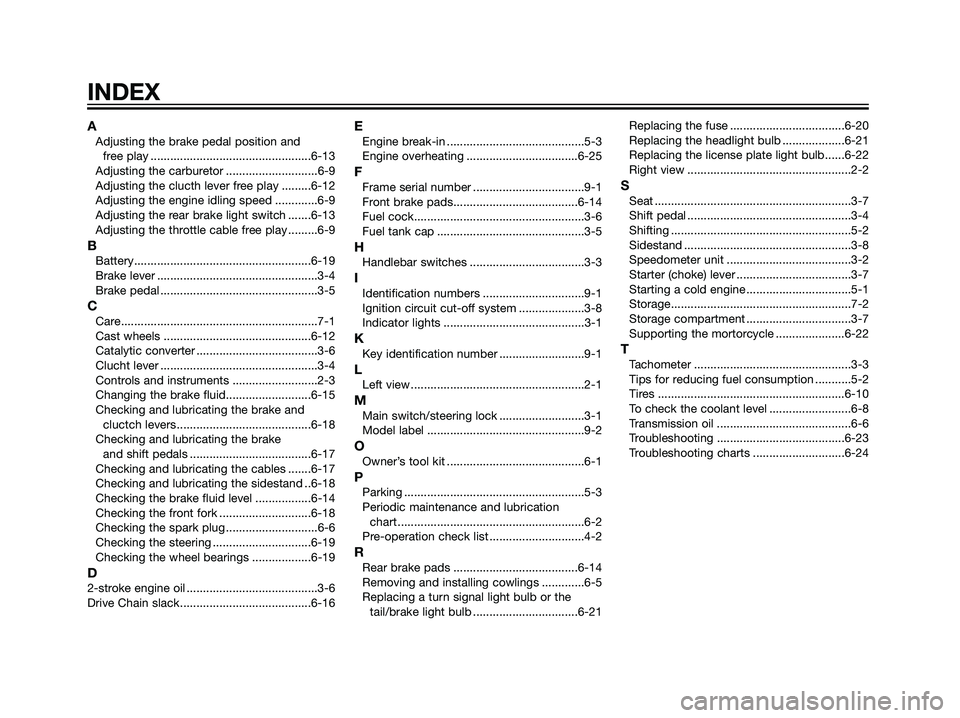

AAdjusting the brake pedal position and
free play .................................................6-13
Adjusting the carburetor ............................6-9
Adjusting the clucth lever free play .........6-12
Adjusting the engine idling speed .............6-9
Adjusting the rear brake light switch .......6-13
Adjusting the throttle cable free play .........6-9
BBattery......................................................6-19
Brake lever .................................................3-4
Brake pedal ................................................3-5
CCare............................................................7-1
Cast wheels .............................................6-12
Catalytic converter .....................................3-6
Clucht lever ................................................3-4
Controls and instruments ..........................2-3
Changing the brake fluid..........................6-15
Checking and lubricating the brake and
cluctch levers.........................................6-18
Checking and lubricating the brake
and shift pedals .....................................6-17
Checking and lubricating the cables .......6-17
Checking and lubricating the sidestand ..6-18
Checking the brake fluid level .................6-14
Checking the front fork ............................6-18
Checking the spark plug ............................6-6
Checking the steering ..............................6-19
Checking the wheel bearings ..................6-19
D2-stroke engine oil ........................................3-6
Drive Chain slack........................................6-16
EEngine break-in ..........................................5-3
Engine overheating ..................................6-25
FFrame serial number ..................................9-1
Front brake pads......................................6-14
Fuel cock....................................................3-6
Fuel tank cap .............................................3-5
HHandlebar switches ...................................3-3
IIdentification numbers ...............................9-1
Ignition circuit cut-off system ....................3-8
Indicator lights ...........................................3-1
KKey identification number ..........................9-1
LLeft view .....................................................2-1
MMain switch/steering lock ..........................3-1
Model label ................................................9-2
OOwner’s tool kit ..........................................6-1
PParking .......................................................5-3
Periodic maintenance and lubrication
chart .........................................................6-2
Pre-operation check list .............................4-2
RRear brake pads ......................................6-14
Removing and installing cowlings .............6-5
Replacing a turn signal light bulb or the
tail/brake light bulb ................................6-21Replacing the fuse ...................................6-20
Replacing the headlight bulb ...................6-21
Replacing the license plate light bulb......6-22
Right view ..................................................2-2
SSeat ............................................................3-7
Shift pedal ..................................................3-4
Shifting .......................................................5-2
Sidestand ...................................................3-8
Speedometer unit ......................................3-2
Starter (choke) lever ...................................3-7
Starting a cold engine ................................5-1
Storage.......................................................7-2
Storage compartment ................................3-7
Supporting the mortorcycle .....................6-22
TTachometer ................................................3-3
Tips for reducing fuel consumption ...........5-2
Tires .........................................................6-10
To check the coolant level .........................6-8
Transmission oil .........................................6-6
Troubleshooting .......................................6-23
Troubleshooting charts ............................6-24
INDEX
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 66

YAMAHA MOTOR ESPAÑA, S.A.
PRINTED IN SPAIN
2005.1-Bengar Gràfiques, S.L.
