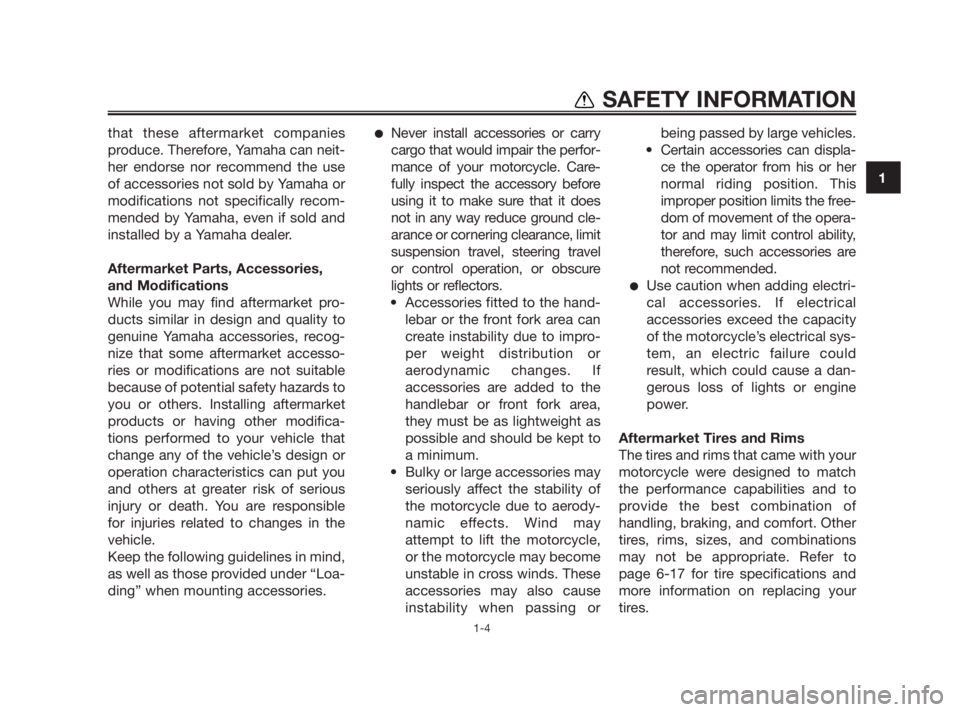

SAFETY INFORMATION
1-4
that these aftermarket companies
produce. Therefore, Yamaha can neit-
her endorse nor recommend the use
of accessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Aftermarket Parts, Accessories,
and Modifications
While you may find aftermarket pro-
ducts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accesso-
ries or modifications are not suitable
because of potential safety hazards to
you or others. Installing aftermarket
products or having other modifica-
tions performed to your vehicle that
change any of the vehicle’s design or
operation characteristics can put you
and others at greater risk of serious
injury or death. You are responsible
for injuries related to changes in the
vehicle.
Keep the following guidelines in mind,
as well as those provided under “Loa-
ding” when mounting accessories.●Never install accessories or carry
cargo that would impair the perfor-
mance of your motorcycle. Care-
fully inspect the accessory before
using it to make sure that it does
not in any way reduce ground cle-
arance or cornering clearance, limit
suspension travel, steering travel
or control operation, or obscure
lights or reflectors.
• Accessories fitted to the hand-
lebar or the front fork area can
create instability due to impro-
per weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
• Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may
attempt to lift the motorcycle,
or the motorcycle may become
unstable in cross winds. These
accessories may also cause
instability when passing orbeing passed by large vehicles.
• Certain accessories can displa-
ce the operator from his or her
normal riding position. This
improper position limits the free-
dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.
●Use caution when adding electri-
cal accessories. If electrical
accessories exceed the capacity
of the motorcycle’s electrical sys-
tem, an electric failure could
result, which could cause a dan-
gerous loss of lights or engine
power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match
the performance capabilities and to
provide the best combination of
handling, braking, and comfort. Other
tires, rims, sizes, and combinations
may not be appropriate. Refer to
page 6-17 for tire specifications and
more information on replacing your
tires.
5WX-F8199-E3 7/11/08 16:50 Página 11

EAU10410

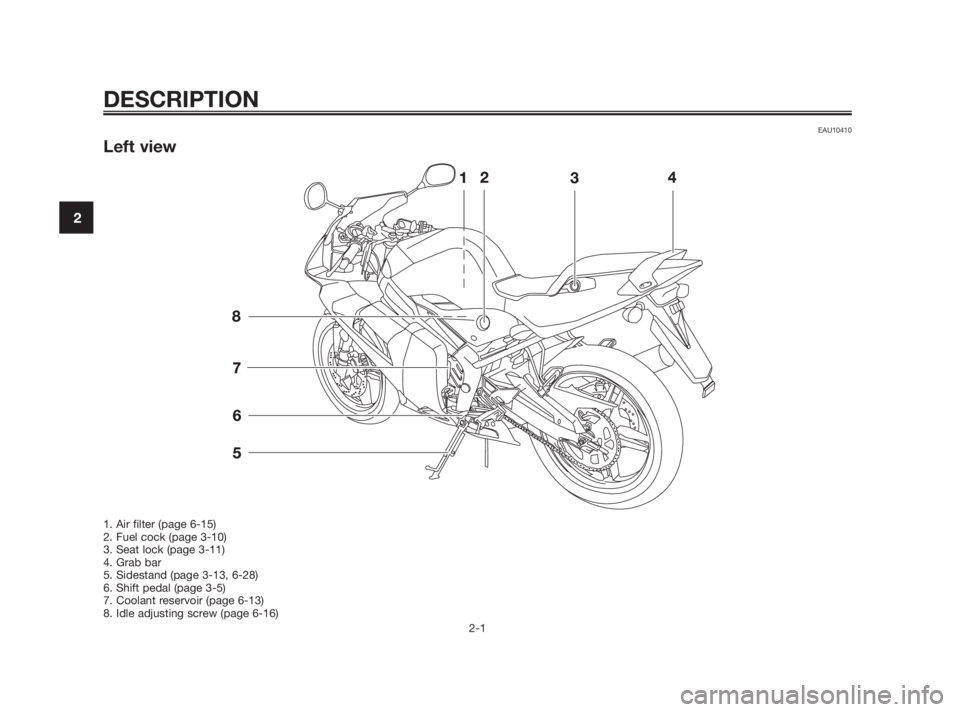

Left view
DESCRIPTION
2-1
2
1. Air filter (page 6-15)
2. Fuel cock (page 3-10)
3. Seat lock (page 3-11)
4. Grab bar
5. Sidestand (page 3-13, 6-28)
6. Shift pedal (page 3-5)
7. Coolant reservoir (page 6-13)
8. Idle adjusting screw (page 6-16)
5WX-F8199-E3 7/11/08 16:50 Página 12

EAU10420

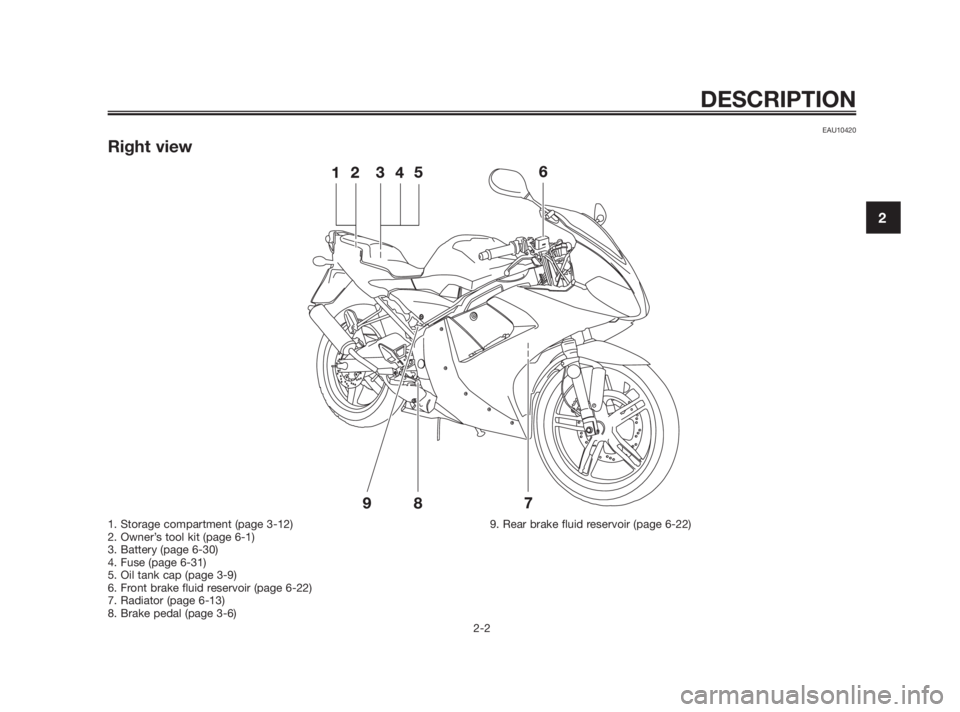

Right view
DESCRIPTION
2-2
2
1. Storage compartment (page 3-12)
2. Owner’s tool kit (page 6-1)
3. Battery (page 6-30)
4. Fuse (page 6-31)
5. Oil tank cap (page 3-9)
6. Front brake fluid reservoir (page 6-22)
7. Radiator (page 6-13)
8. Brake pedal (page 3-6)9. Rear brake fluid reservoir (page 6-22)
5WX-F8199-E3 7/11/08 16:50 Página 13

EAU10430

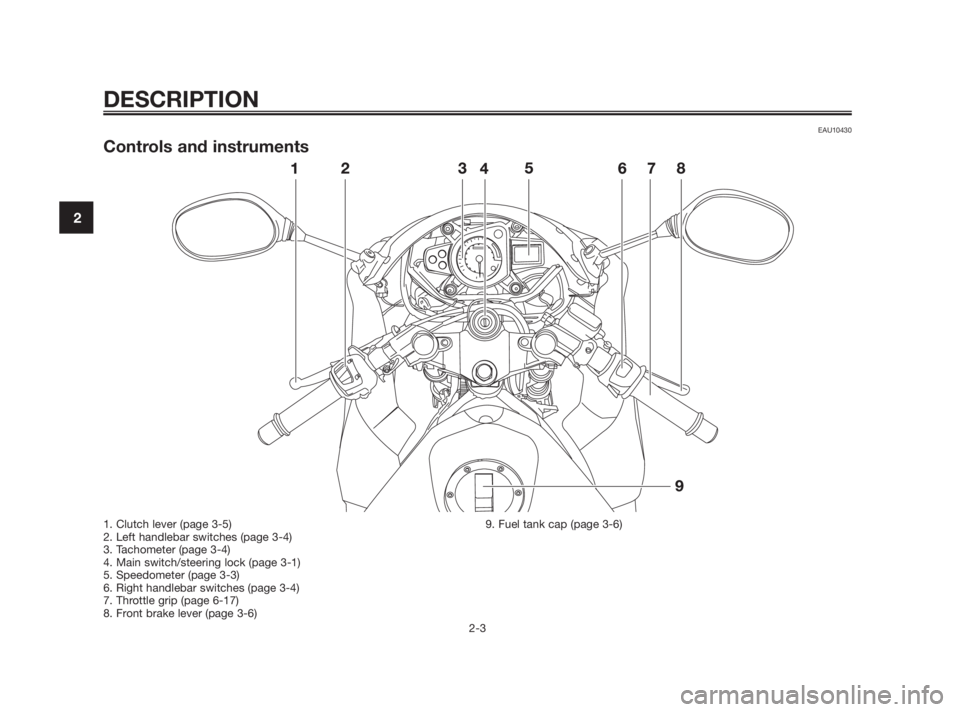

Controls and instruments
DESCRIPTION
2-3
2
1. Clutch lever (page 3-5)
2. Left handlebar switches (page 3-4)
3. Tachometer (page 3-4)
4. Main switch/steering lock (page 3-1)
5. Speedometer (page 3-3)
6. Right handlebar switches (page 3-4)
7. Throttle grip (page 6-17)
8. Front brake lever (page 3-6)9. Fuel tank cap (page 3-6)
5WX-F8199-E3 14/11/08 15:10 Página 14

EAU10460

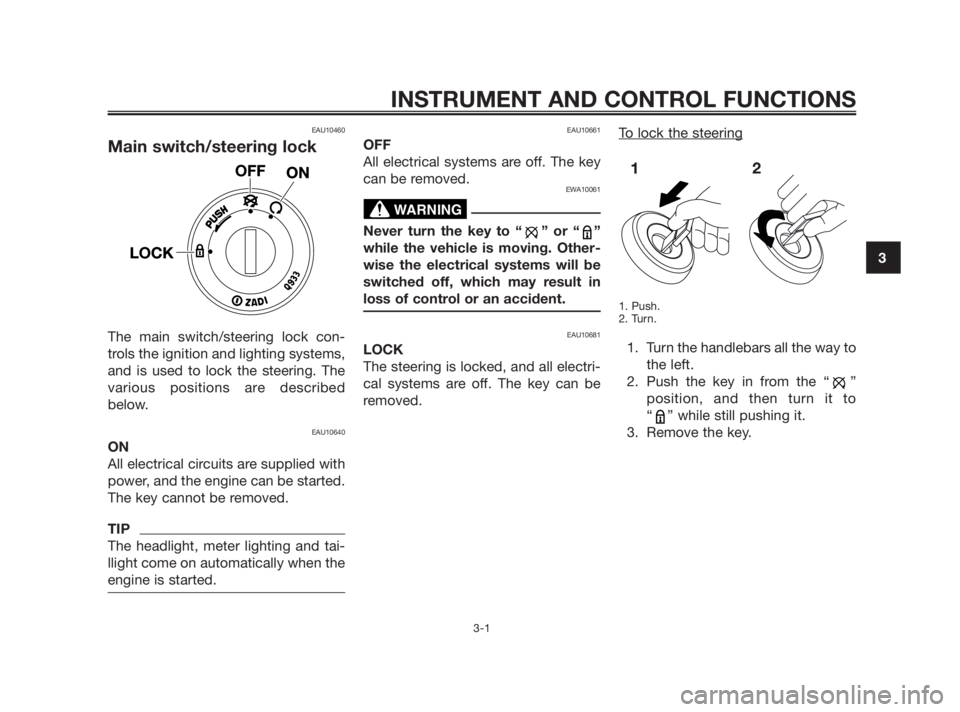

Main switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering. The
various positions are described
below.
EAU10640
ON
All electrical circuits are supplied with
power, and the engine can be started.
The key cannot be removed.
TIP
The headlight, meter lighting and tai-
llight come on automatically when the
engine is started.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
EWA10061
Never turn the key to “ ” or “ ”
while the vehicle is moving. Other-
wise the electrical systems will be
switched off, which may result in
loss of control or an accident.
EAU10681
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.T
o lock the steering
1. Push.
2. Turn.
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “ ”
position, and then turn it to
“ ” while still pushing it.
3. Remove the key.
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
5WX-F8199-E3 7/11/08 16:50 Página 15

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
To unlock the steering
1. Push.
2. Turn.
Push the key in, and then turn it to
“ ” while still pushing it.
EAU11004

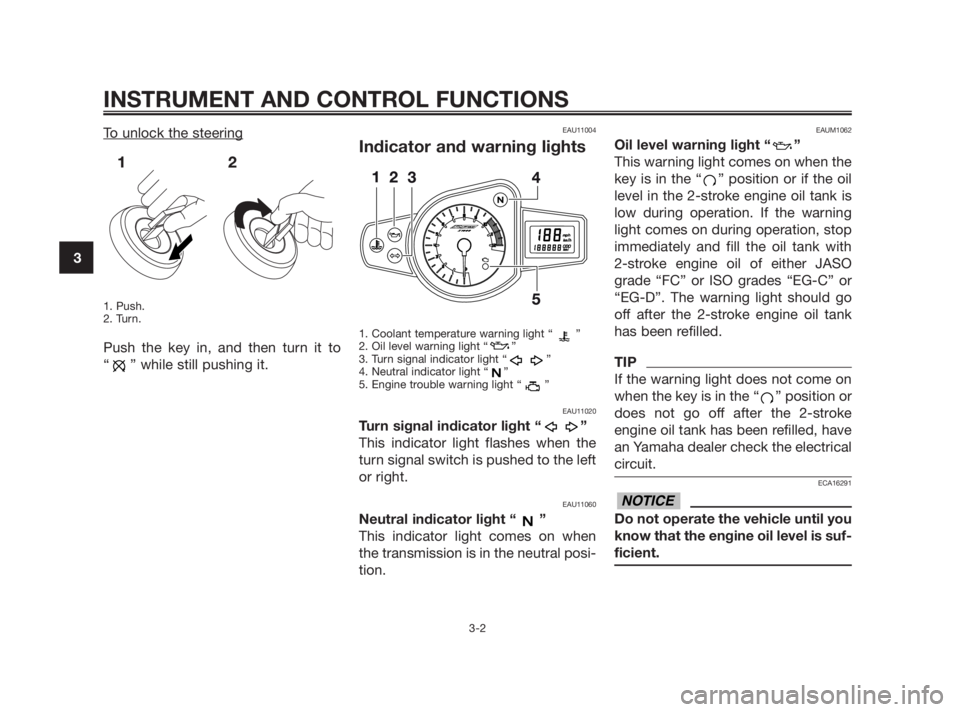

Indicator and warning lights
1. Coolant temperature warning light “ ”
2. Oil level warning light “ ”
3. Turn signal indicator light “ ”
4. Neutral indicator light “ ”
5. Engine trouble warning light “ ”
EAU11020
Turn signal indicator light “ ”
This indicator light flashes when the
turn signal switch is pushed to the left
or right.
EAU11060
Neutral indicator light “ ”
This indicator light comes on when
the transmission is in the neutral posi-
tion.
EAUM1062
Oil level warning light “ ”
This warning light comes on when the
key is in the “ ” position or if the oil
level in the 2-stroke engine oil tank is
low during operation. If the warning
light comes on during operation, stop
immediately and fill the oil tank with
2-stroke engine oil of either JASO
grade “FC” or ISO grades “EG-C” or
“EG-D”. The warning light should go
off after the 2-stroke engine oil tank
has been refilled.
TIP
If the warning light does not come on
when the key is in the “ ” position or
does not go off after the 2-stroke
engine oil tank has been refilled, have
an Yamaha dealer check the electrical
circuit.
ECA16291
Do not operate the vehicle until you
know that the engine oil level is suf-
ficient.
NOTICE
5WX-F8199-E3 7/11/08 16:50 Página 16

EAU11444

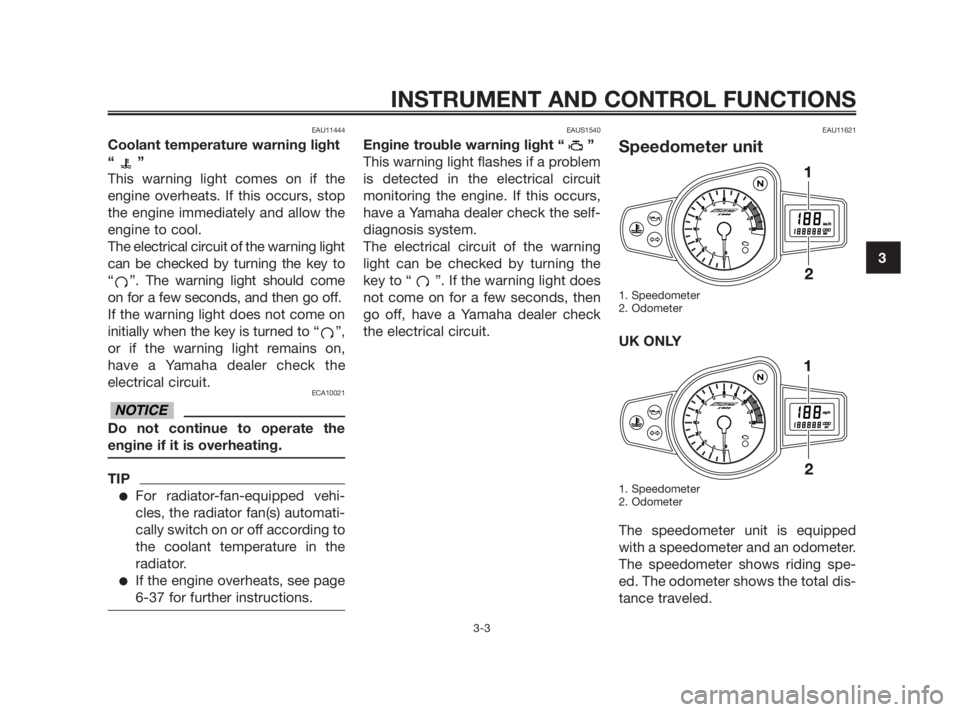

Coolant temperature warning light
“”
This warning light comes on if the
engine overheats. If this occurs, stop
the engine immediately and allow the
engine to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ ”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ ”,
or if the warning light remains on,
have a Yamaha dealer check the
electrical circuit.
ECA10021
Do not continue to operate the
engine if it is overheating.
TIP
●For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the
radiator.
●If the engine overheats, see page
6-37 for further instructions.
EAUS1540
Engine trouble warning light “ ”
This warning light flashes if a problem
is detected in the electrical circuit
monitoring the engine. If this occurs,
have a Yamaha dealer check the self-
diagnosis system.
The electrical circuit of the warning
light can be checked by turning the
key to “ ”. If the warning light does
not come on for a few seconds, then
go off, have a Yamaha dealer check
the electrical circuit.
EAU11621
Speedometer unit
1. Speedometer
2. Odometer
UK ONLY
1. Speedometer
2. Odometer
The speedometer unit is equipped
with a speedometer and an odometer.
The speedometer shows riding spe-
ed. The odometer shows the total dis-
tance traveled.
NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
5WX-F8199-E3 7/11/08 16:50 Página 17

EAU11851

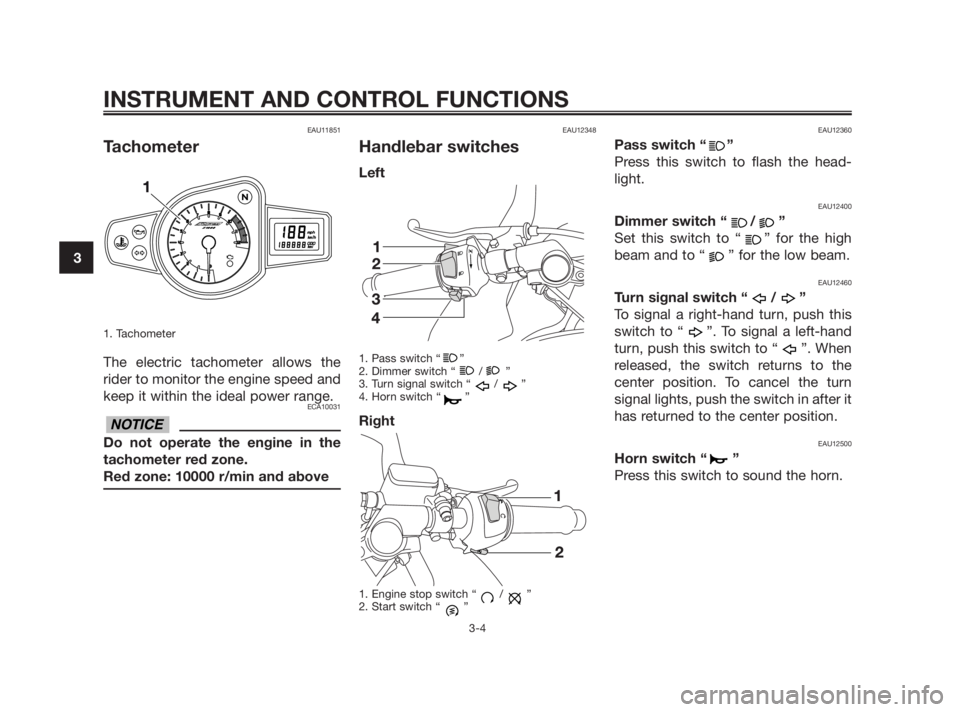

Tachometer
1. Tachometer
The electric tachometer allows the
rider to monitor the engine speed and
keep it within the ideal power range.
ECA10031
Do not operate the engine in the
tachometer red zone.
Red zone: 10000 r/min and above
EAU12348
Handlebar switches
Left
1. Pass switch “ ”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “ ”
Right
1. Engine stop switch “ / ”
2. Start switch “ ”
EAU12360
Pass switch “ ”
Press this switch to flash the head-
light.
EAU12400
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “ ”
Press this switch to sound the horn.
NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
5WX-F8199-E3 7/11/08 16:50 Página 18

EAU12660
Engine stop switch “ / ”
Set this switch to “ ” before star-
ting the engine. Set this switch to
“ ” to stop the engine in case of an
emergency, such as when the vehicle
overturns or when the throttle cable is
stuck.
EAU12711
Start switch “ ”
Push this switch to crank the engine
with the starter. See page 5-1 for star-
ting instructions prior to starting the
engine.

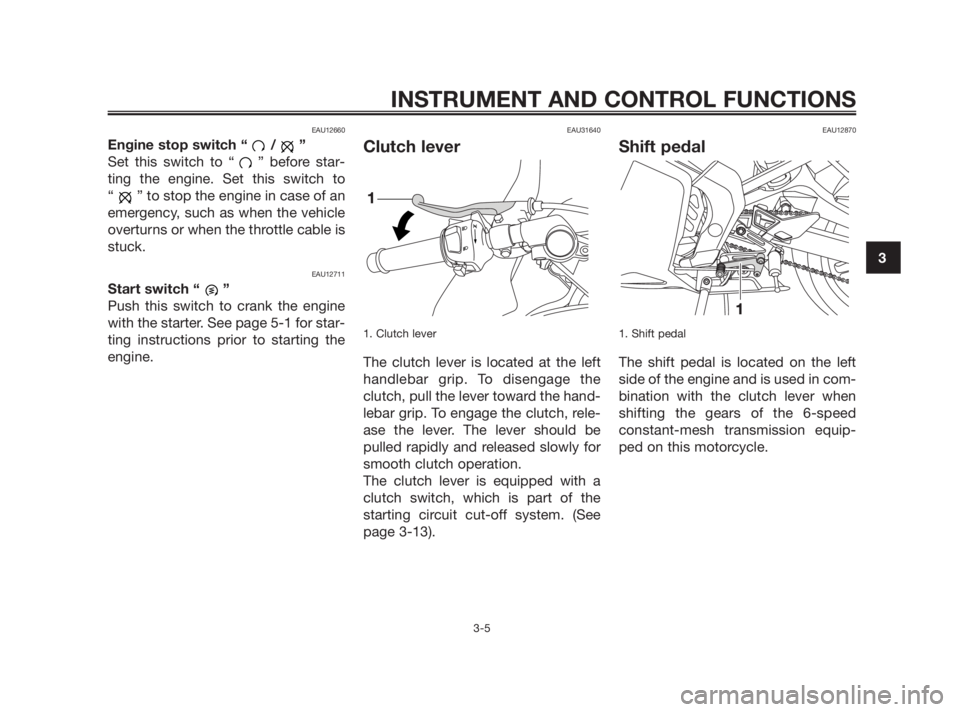

EAU31640
Clutch lever
1. Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the hand-
lebar grip. To engage the clutch, rele-
ase the lever. The lever should be
pulled rapidly and released slowly for
smooth clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the
starting circuit cut-off system. (See
page 3-13).
EAU12870
Shift pedal
1. Shift pedal
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 6-speed
constant-mesh transmission equip-
ped on this motorcycle.
INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
5WX-F8199-E3 7/11/08 16:50 Página 19

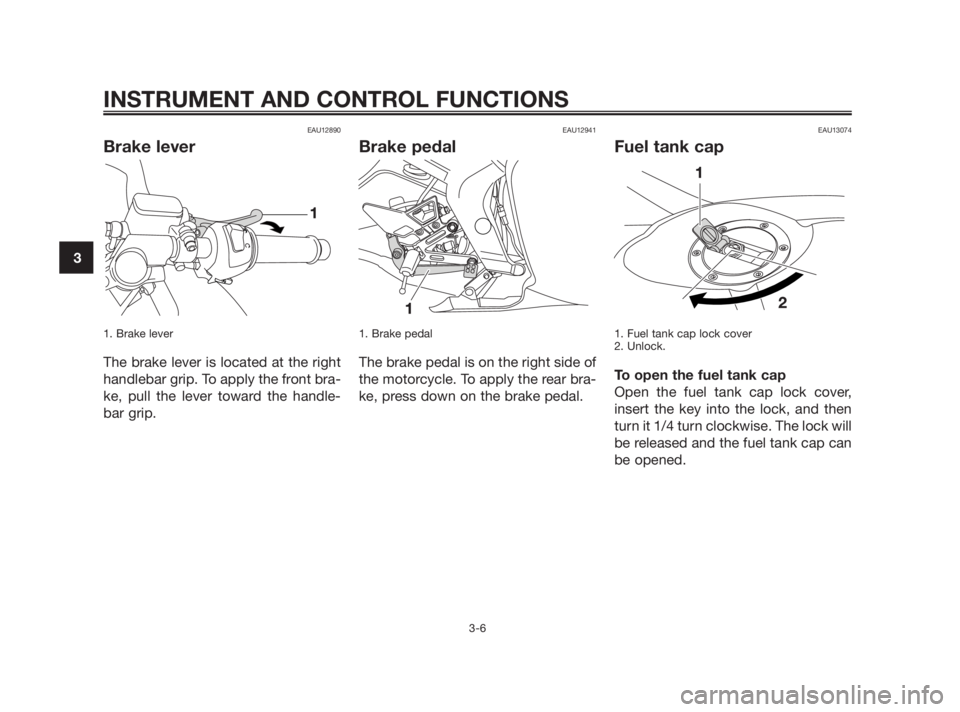

EAU12890
Brake lever
1. Brake lever
The brake lever is located at the right
handlebar grip. To apply the front bra-
ke, pull the lever toward the handle-
bar grip.
EAU12941
Brake pedal
1. Brake pedal
The brake pedal is on the right side of
the motorcycle. To apply the rear bra-
ke, press down on the brake pedal.
EAU13074
Fuel tank cap
1. Fuel tank cap lock cover
2. Unlock.
To open the fuel tank cap
Open the fuel tank cap lock cover,
insert the key into the lock, and then
turn it 1/4 turn clockwise. The lock will
be released and the fuel tank cap can
be opened.
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
5WX-F8199-E3 7/11/08 16:50 Página 20
