YAMAHA TZR50 2010 Repair Manual

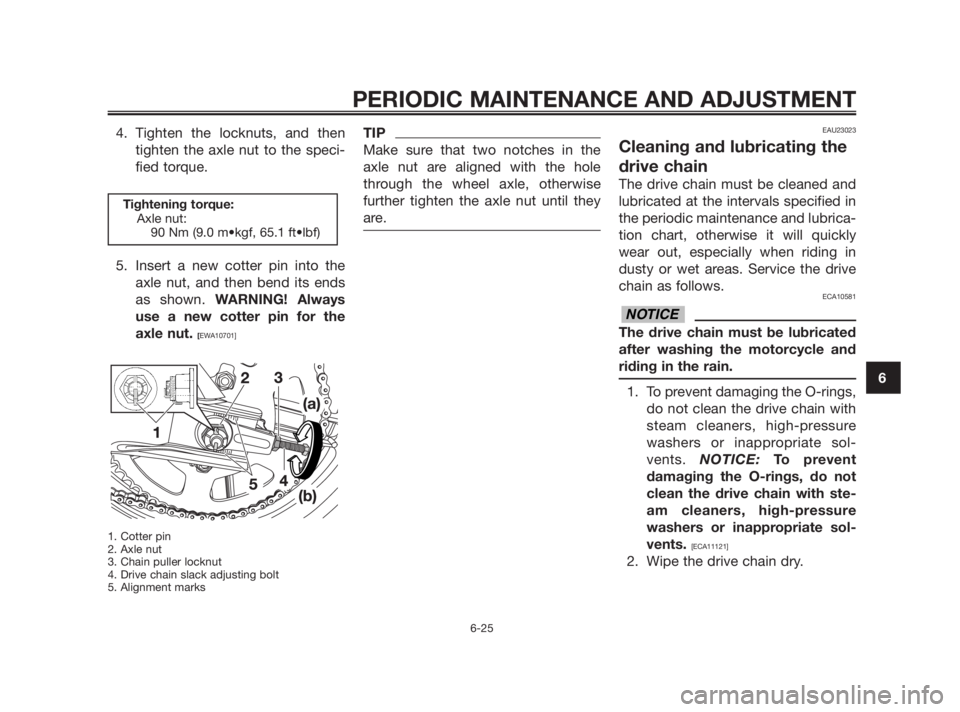

4. Tighten the locknuts, and then
tighten the axle nut to the speci-
fied torque.
5. Insert a new cotter pin into the
axle nut, and then bend its ends
as shown. WARNING! Always
use a new cotter pin for the
axle nut.
[EWA10701]
1. Cotter pin
2. Axle nut
3. Chain puller locknut
4. Drive chain slack adjusting bolt
5. Alignment marks
TIP
Make sure that two notches in the
axle nut are aligned with the hole
through the wheel axle, otherwise
further tighten the axle nut until they
are.EAU23023
Cleaning and lubricating the
drive chain
The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly
wear out, especially when riding in
dusty or wet areas. Service the drive
chain as follows.
ECA10581
The drive chain must be lubricated
after washing the motorcycle and
riding in the rain.
1. To prevent damaging the O-rings,
do not clean the drive chain with
steam cleaners, high-pressure
washers or inappropriate sol-
vents. NOTICE: To prevent
damaging the O-rings, do not
clean the drive chain with ste-
am cleaners, high-pressure
washers or inappropriate sol-
vents.
[ECA11121]
2. Wipe the drive chain dry.
NOTICE
Tightening torque:
Axle nut:
90 Nm (9.0 m•kgf, 65.1 ft•lbf)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
6
5WX-F8199-E3 7/11/08 16:51 Página 61

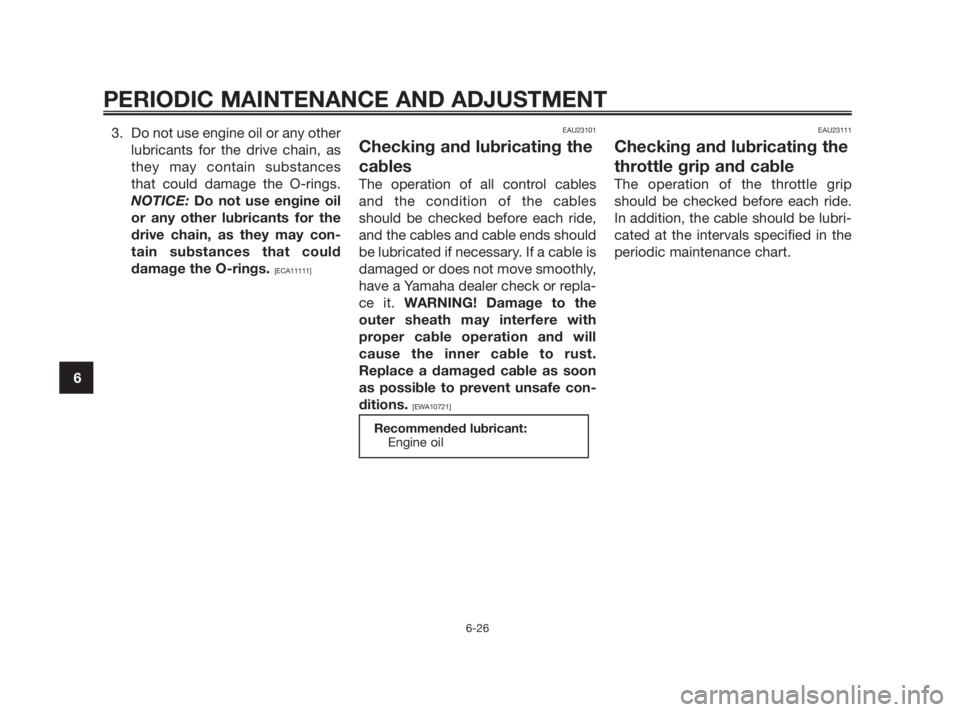

3. Do not use engine oil or any other
lubricants for the drive chain, as
they may contain substances
that could damage the O-rings.
NOTICE: Do not use engine oil
or any other lubricants for the
drive chain, as they may con-
tain substances that could
damage the O-rings.
[ECA11111]EAU23101
Checking and lubricating the
cables
The operation of all control cables
and the condition of the cables
should be checked before each ride,
and the cables and cable ends should
be lubricated if necessary. If a cable is
damaged or does not move smoothly,
have a Yamaha dealer check or repla-
ce it. WARNING! Damage to the
outer sheath may interfere with
proper cable operation and will
cause the inner cable to rust.
Replace a damaged cable as soon
as possible to prevent unsafe con-
ditions.
[EWA10721]EAU23111
Checking and lubricating the
throttle grip and cable
The operation of the throttle grip
should be checked before each ride.
In addition, the cable should be lubri-
cated at the intervals specified in the
periodic maintenance chart.
Recommended lubricant:
Engine oil
PERIODIC MAINTENANCE AND ADJUSTMENT
6-26
6
5WX-F8199-E3 7/11/08 16:51 Página 62

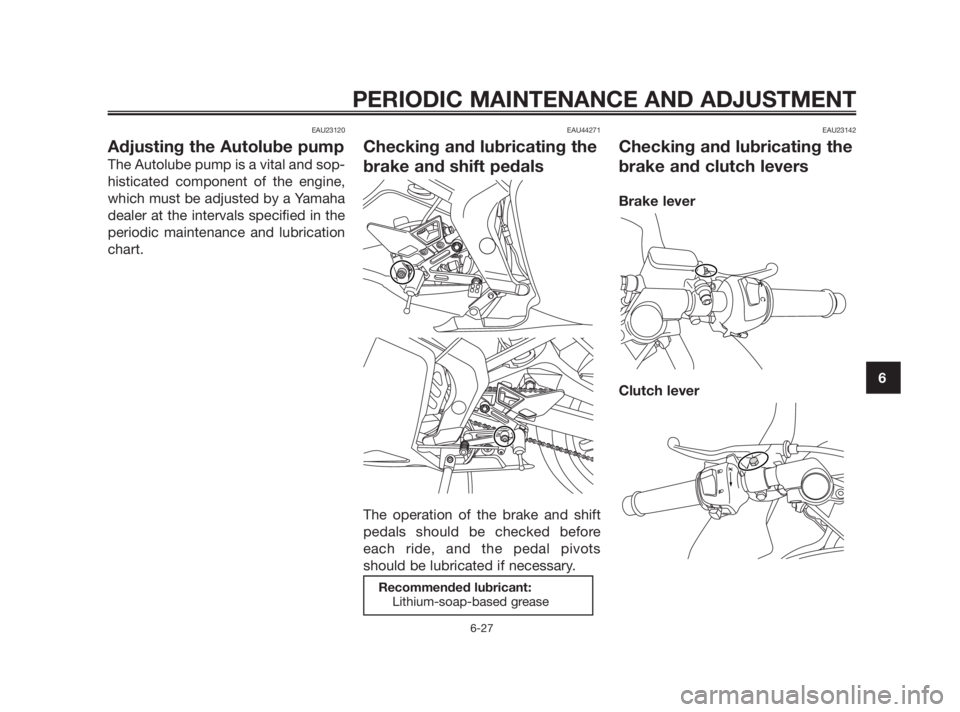

EAU23120
Adjusting the Autolube pump
The Autolube pump is a vital and sop-
histicated component of the engine,
which must be adjusted by a Yamaha
dealer at the intervals specified in the
periodic maintenance and lubrication
chart.
EAU44271
Checking and lubricating the
brake and shift pedals
The operation of the brake and shift
pedals should be checked before
each ride, and the pedal pivots
should be lubricated if necessary.
EAU23142
Checking and lubricating the
brake and clutch levers
Brake lever
Clutch lever
Recommended lubricant:
Lithium-soap-based grease
PERIODIC MAINTENANCE AND ADJUSTMENT
6-27
6
5WX-F8199-E3 7/11/08 16:51 Página 63

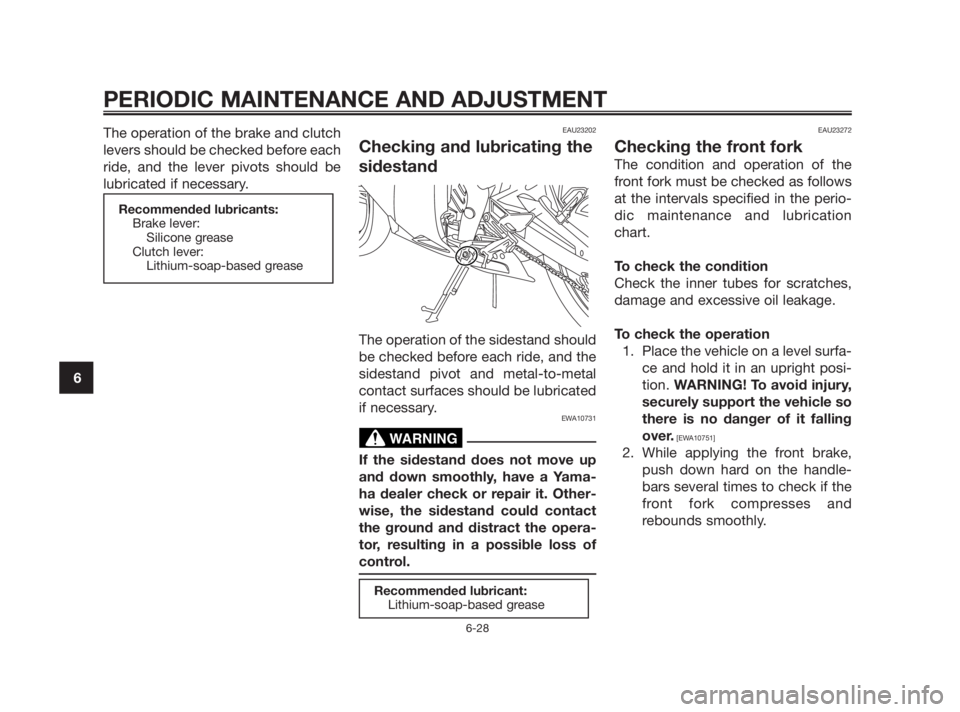

The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be
lubricated if necessary.EAU23202
Checking and lubricating the
sidestand
The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated
if necessary.
EWA10731
If the sidestand does not move up
and down smoothly, have a Yama-
ha dealer check or repair it. Other-
wise, the sidestand could contact
the ground and distract the opera-
tor, resulting in a possible loss of
control.
EAU23272
Checking the front fork
The condition and operation of the
front fork must be checked as follows
at the intervals specified in the perio-
dic maintenance and lubrication
chart.
To check the condition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion. WARNING! To avoid injury,
securely support the vehicle so
there is no danger of it falling
over.
[EWA10751]
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and
rebounds smoothly.
Recommended lubricant:
Lithium-soap-based grease
WARNING
Recommended lubricants:
Brake lever:
Silicone grease
Clutch lever:
Lithium-soap-based grease
PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
6
5WX-F8199-E3 7/11/08 16:51 Página 64

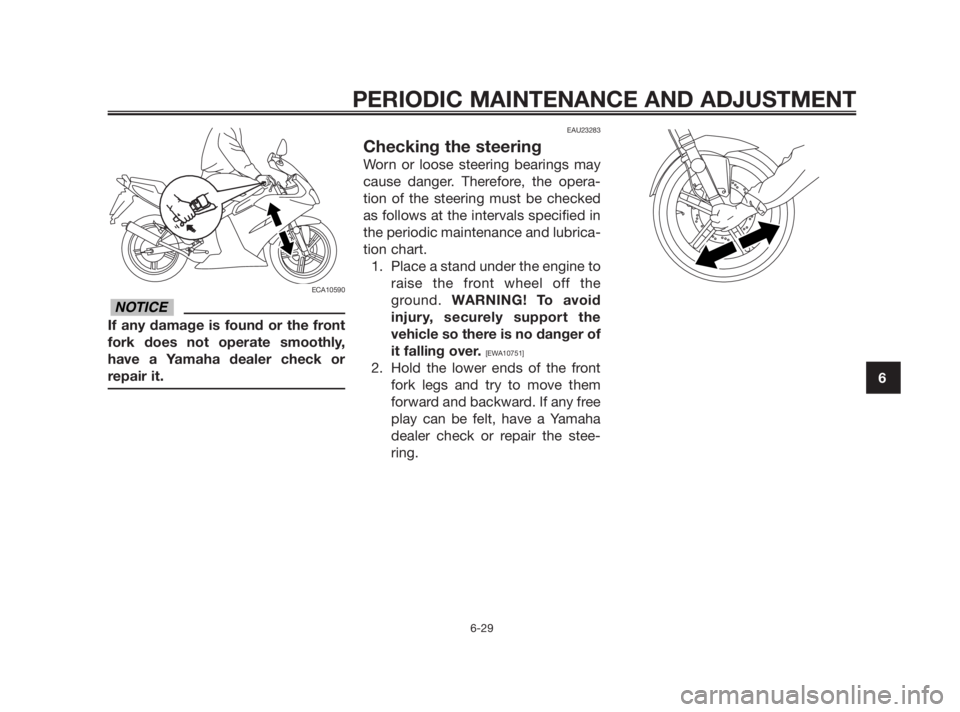

ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or
repair it.
EAU23283
Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the opera-
tion of the steering must be checked
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart.
1. Place a stand under the engine to
raise the front wheel off the
ground. WARNING! To avoid
injury, securely support the
vehicle so there is no danger of
it falling over.
[EWA10751]
2. Hold the lower ends of the front
fork legs and try to move them
forward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the stee-
ring.
NOTICE
PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6
5WX-F8199-E3 7/11/08 16:51 Página 65

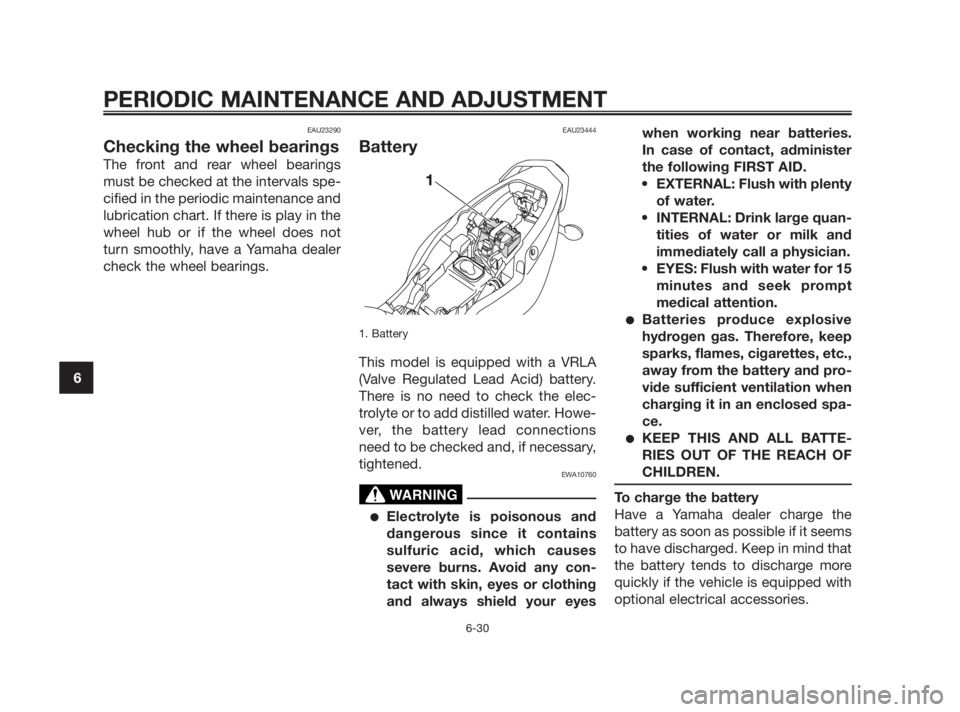

EAU23290
Checking the wheel bearings
The front and rear wheel bearings
must be checked at the intervals spe-
cified in the periodic maintenance and
lubrication chart. If there is play in the
wheel hub or if the wheel does not
turn smoothly, have a Yamaha dealer
check the wheel bearings.
EAU23444
Battery
1. Battery
This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the elec-
trolyte or to add distilled water. Howe-
ver, the battery lead connections
need to be checked and, if necessary,
tightened.
EWA10760
●Electrolyte is poisonous and
dangerous since it contains
sulfuric acid, which causes
severe burns. Avoid any con-
tact with skin, eyes or clothing
and always shield your eyeswhen working near batteries.
In case of contact, administer
the following FIRST AID.
• EXTERNAL: Flush with plenty
of water.
• INTERNAL: Drink large quan-
tities of water or milk and
immediately call a physician.
• EYES: Flush with water for 15
minutes and seek prompt
medical attention.
●Batteries produce explosive
hydrogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed spa-
ce.
●KEEP THIS AND ALL BATTE-
RIES OUT OF THE REACH OF
CHILDREN.
To charge the battery
Have a Yamaha dealer charge the
battery as soon as possible if it seems
to have discharged. Keep in mind that
the battery tends to discharge more
quickly if the vehicle is equipped with
optional electrical accessories.WARNING
PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6
5WX-F8199-E3 7/11/08 16:51 Página 66

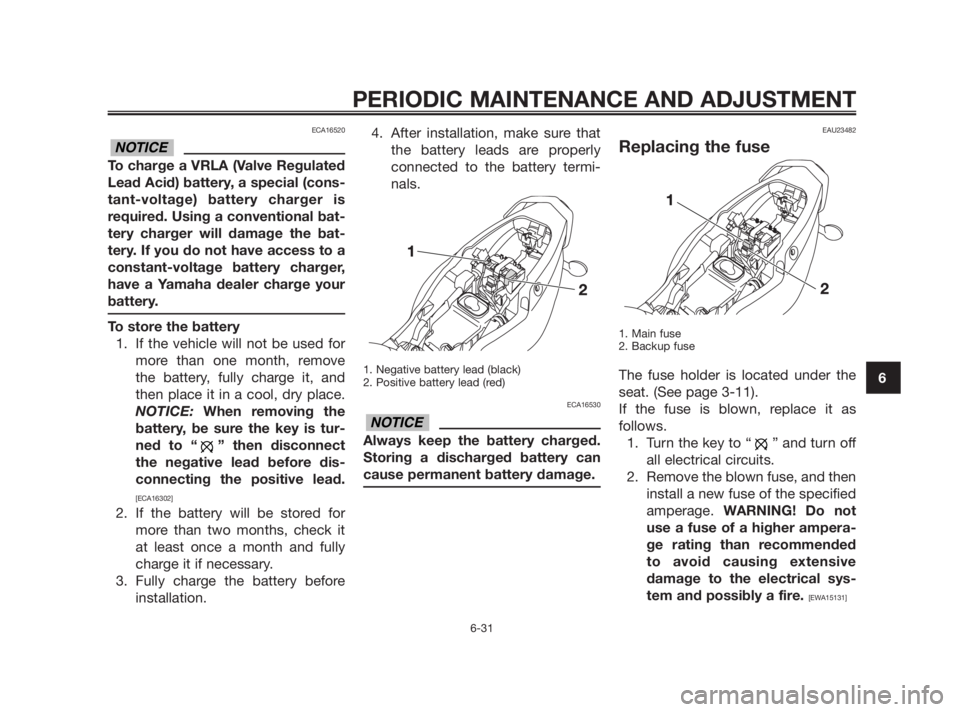

ECA16520
To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (cons-
tant-voltage) battery charger is
required. Using a conventional bat-
tery charger will damage the bat-
tery. If you do not have access to a
constant-voltage battery charger,
have a Yamaha dealer charge your
battery.
To store the battery
1. If the vehicle will not be used for
more than one month, remove
the battery, fully charge it, and
then place it in a cool, dry place.
NOTICE: When removing the
battery, be sure the key is tur-
ned to “ ” then disconnect
the negative lead before dis-
connecting the positive lead.
[ECA16302]
2. If the battery will be stored for
more than two months, check it
at least once a month and fully
charge it if necessary.
3. Fully charge the battery before
installation.4. After installation, make sure that
the battery leads are properly
connected to the battery termi-
nals.
1. Negative battery lead (black)
2. Positive battery lead (red)
ECA16530
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
EAU23482
Replacing the fuse
1. Main fuse
2. Backup fuse
The fuse holder is located under the
seat. (See page 3-11).
If the fuse is blown, replace it as
follows.
1. Turn the key to “ ” and turn off
all electrical circuits.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher ampera-
ge rating than recommended
to avoid causing extensive
damage to the electrical sys-
tem and possibly a fire.
[EWA15131]
NOTICE
NOTICE
PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6
5WX-F8199-E3 7/11/08 16:51 Página 67

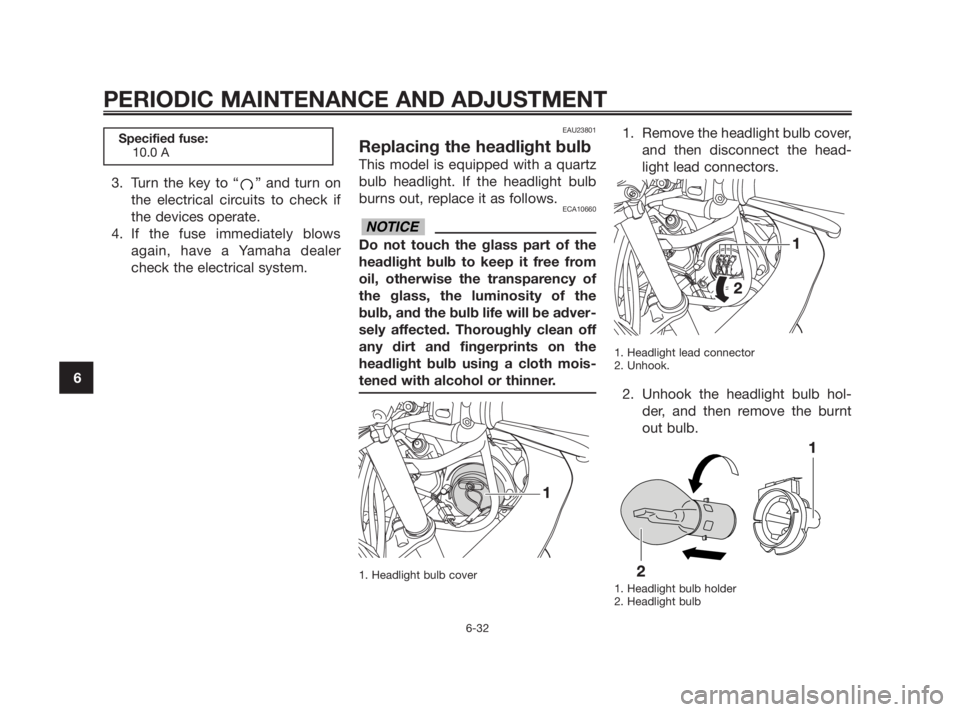

3. Turn the key to “ ” and turn on
the electrical circuits to check if
the devices operate.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU23801
Replacing the headlight bulb
This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
ECA10660
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the
bulb, and the bulb life will be adver-
sely affected. Thoroughly clean off
any dirt and fingerprints on the
headlight bulb using a cloth mois-
tened with alcohol or thinner.
1. Headlight bulb cover
1. Remove the headlight bulb cover,
and then disconnect the head-
light lead connectors.
1. Headlight lead connector
2. Unhook.
2. Unhook the headlight bulb hol-
der, and then remove the burnt
out bulb.
1. Headlight bulb holder
2. Headlight bulb
NOTICE
Specified fuse:
10.0 A
PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6
5WX-F8199-E3 7/11/08 16:51 Página 68

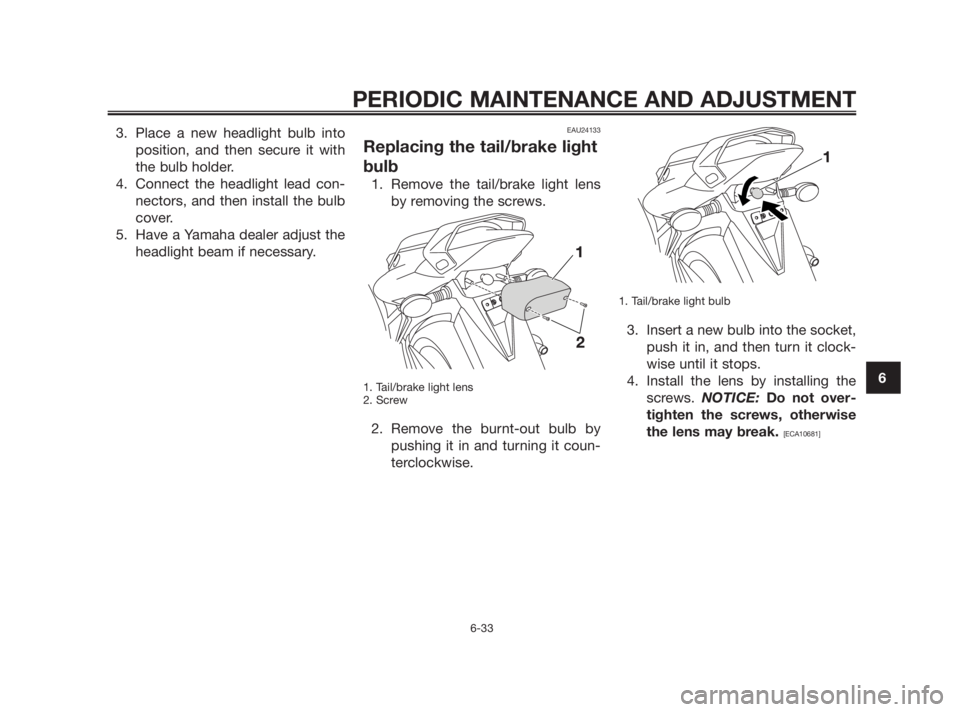

3. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
4. Connect the headlight lead con-
nectors, and then install the bulb
cover.
5. Have a Yamaha dealer adjust the
headlight beam if necessary.EAU24133
Replacing the tail/brake light
bulb
1. Remove the tail/brake light lens
by removing the screws.
1. Tail/brake light lens
2. Screw
2. Remove the burnt-out bulb by
pushing it in and turning it coun-
terclockwise.
1. Tail/brake light bulb
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws. NOTICE: Do not over-
tighten the screws, otherwise
the lens may break.
[ECA10681]
PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6
5WX-F8199-E3 7/11/08 16:51 Página 69

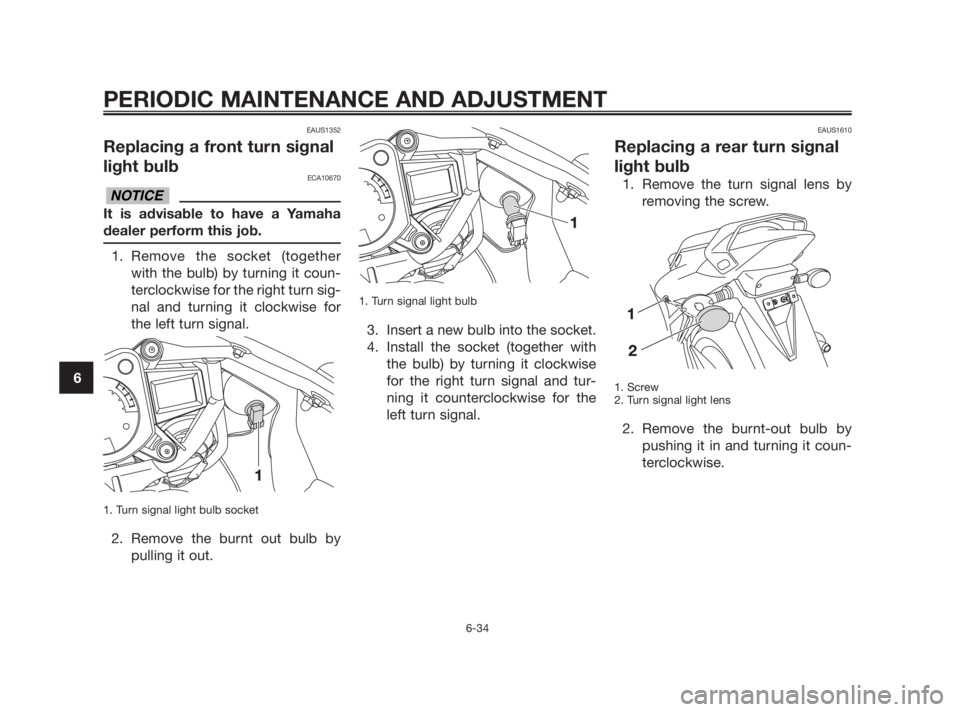

EAUS1352
Replacing a front turn signal
light bulb
ECA10670
It is advisable to have a Yamaha
dealer perform this job.
1. Remove the socket (together
with the bulb) by turning it coun-
terclockwise for the right turn sig-
nal and turning it clockwise for
the left turn signal.
1. Turn signal light bulb socket
2. Remove the burnt out bulb by
pulling it out.
1. Turn signal light bulb
3. Insert a new bulb into the socket.
4. Install the socket (together with
the bulb) by turning it clockwise
for the right turn signal and tur-
ning it counterclockwise for the
left turn signal.
EAUS1610
Replacing a rear turn signal
light bulb
1. Remove the turn signal lens by
removing the screw.
1. Screw
2. Turn signal light lens
2. Remove the burnt-out bulb by
pushing it in and turning it coun-
terclockwise.
NOTICE
PERIODIC MAINTENANCE AND ADJUSTMENT
6-34
6
5WX-F8199-E3 7/11/08 16:51 Página 70
