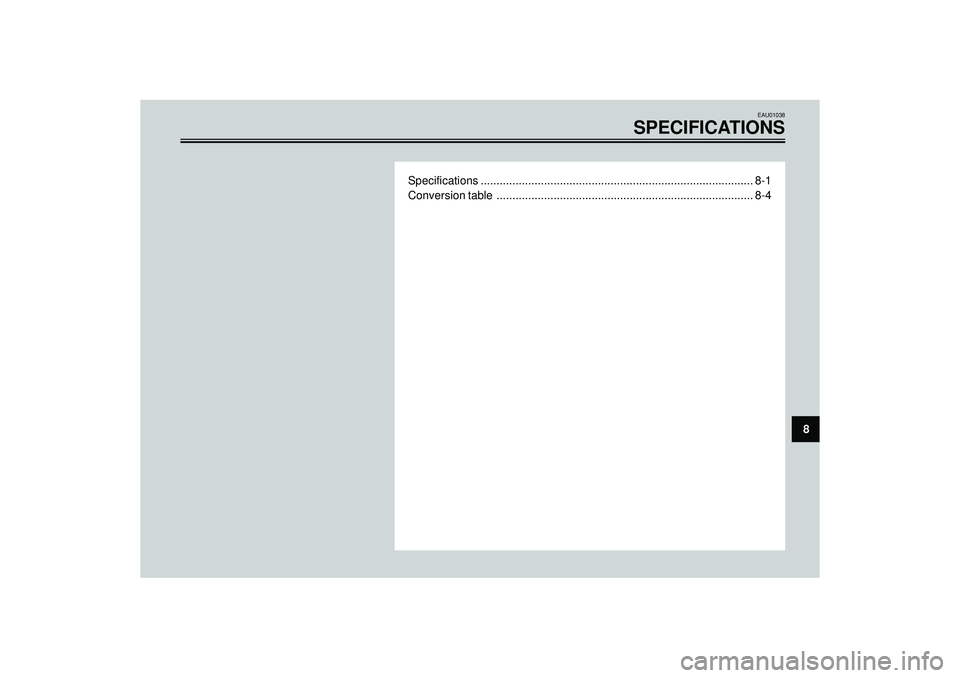

SPECIFICATIONS
Specifications ...................................................................................... 8-1
Conversion table ................................................................................. 8-4
8
Page 92 of 104
SPECIFICATIONS
8
Model VP300
Dimensions:
Overall length 2,170 mm
Overall width 765 mm
Overall height 1,465 mm
Seat height 805 mm
Wheelbase 1,480 mm
Minimum ground clearance 155 mm
Minimum turning radius 1,706 mm
Weight:
Wet (with oil and a full fuel tank) 174 kg
Engine:
Engine type Liquid cooled, 4 strokes SOHC
Cylinder arrangementSingle cylinder, Forward inclined
Displacement 264 cm
3
Bore x stroke 71.0 x 66.8
Compression ratio 10:1
Starting system type Electric starter
Lubrication system Wet sump
Specifications
Engine oil:
Type
-20°-10°10°20°30°40°50°C
0°
SAE 10W/30
SAE 10W/40
SAE 15W/40
SAE 20W/40
SAE 20W/50
Recommended engine oil API Service SE, SF, SG type
Classification or higher
CAUTION:
8-1
Be sure to use motor oils that do not contain anti-fric-
tion modifiers. Passenger car motor oils (often labeled
“Energy Conserving II”) contain anti-friction additives
which will cause clutch and/or starter cluth slippage,
resulting in reduced component life and poor engine
performance.
Quantity
Periodic oil change 1.2 L
Total amount (dry engine) 1.4 L
Page 93 of 104
SPECIFICATIONS
8

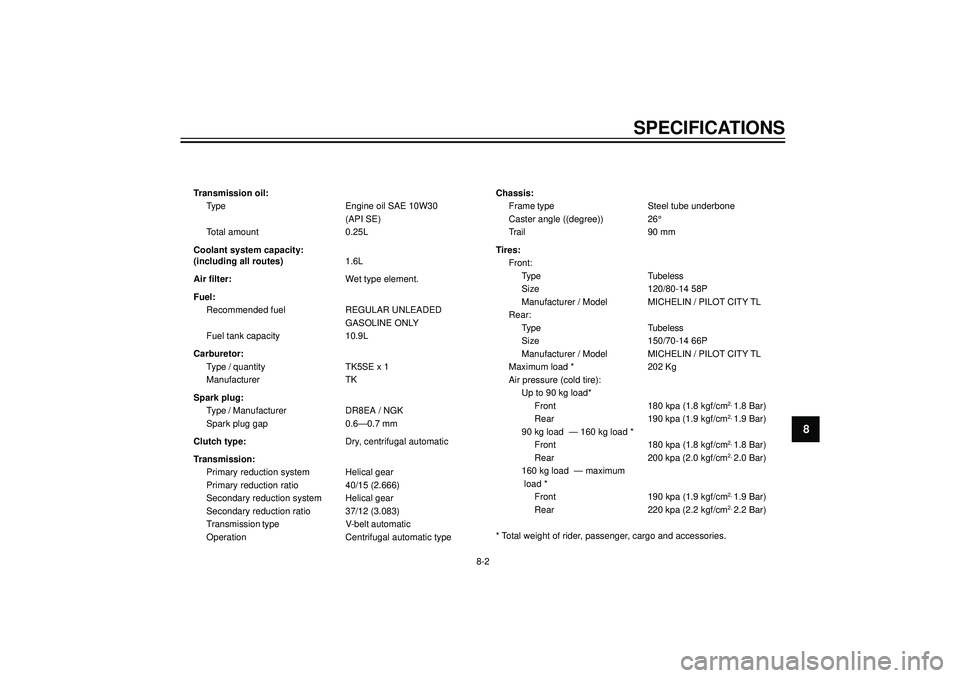

Transmission oil:
Type Engine oil SAE 10W30
(API SE)
Total amount 0.25L
Coolant system capacity:
(including all routes)1.6L
Air filter:Wet type element.
Fuel:
Recommended fuel REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity 10.9L
Carburetor:
Type / quantity TK5SE x 1
Manufacturer TK
Spark plug:
Type / Manufacturer DR8EA / NGK
Spark plug gap 0.6—0.7 mm
Clutch type:Dry, centrifugal automatic
Transmission:
Primary reduction system Helical gear
Primary reduction ratio 40/15 (2.666)
Secondary reduction system Helical gear
Secondary reduction ratio 37/12 (3.083)
Transmission type V-belt automatic
Operation Centrifugal automatic typeChassis:
Frame type Steel tube underbone
Caster angle ((degree)) 26°
Trail 90 mm
Tires:
Front:
Type Tubeless
Size 120/80-14 58P
Manufacturer / Model MICHELIN / PILOT CITY TL
Rear:
Type Tubeless
Size 150/70-14 66P
Manufacturer / Model MICHELIN / PILOT CITY TL
Maximum load * 202 Kg
Air pressure (cold tire):
Up to 90 kg load*
Front 180 kpa (1.8 kgf/cm
2, 1.8 Bar)
Rear 190 kpa (1.9 kgf/cm2, 1.9 Bar)
90 kg load — 160 kg load *
Front 180 kpa (1.8 kgf/cm
2, 1.8 Bar)
Rear 200 kpa (2.0 kgf/cm2, 2.0 Bar)
160 kg load — maximum
load *
Front 190 kpa (1.9 kgf/cm
2, 1.9 Bar)
Rear 220 kpa (2.2 kgf/cm2, 2.2 Bar)
* Total weight of rider, passenger, cargo and accessories.
8-2
Page 94 of 104
SPECIFICATIONS
8

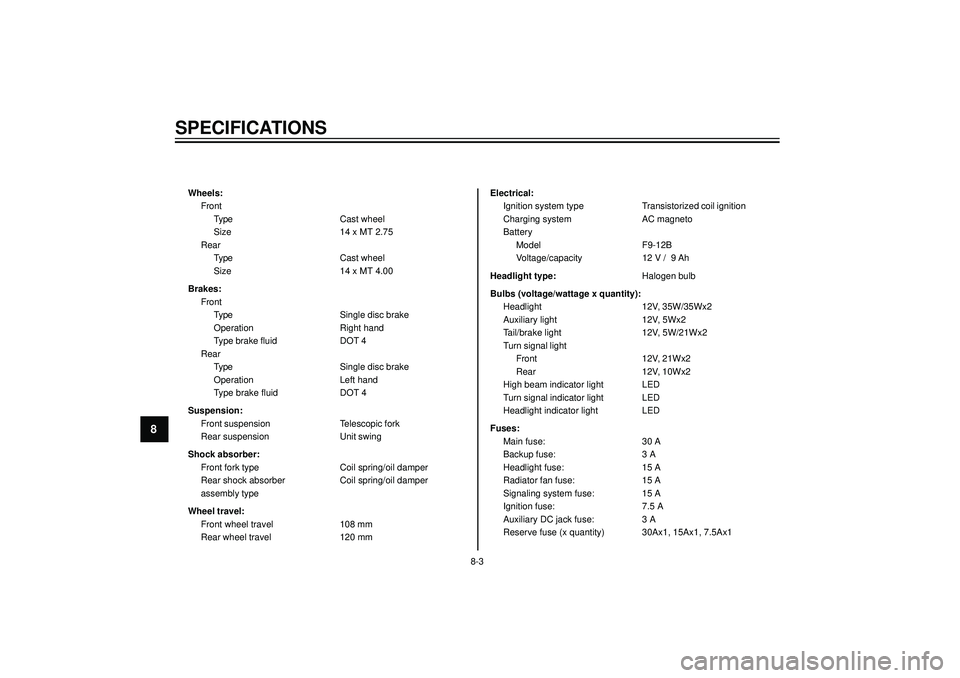

Wheels:
Front
Type Cast wheel
Size 14 x MT 2.75
Rear
Type Cast wheel
Size 14 x MT 4.00
Brakes:
Front
Type Single disc brake
Operation Right hand
Type brake fluid DOT 4
Rear
Type Single disc brake
Operation Left hand
Type brake fluid DOT 4
Suspension:
Front suspension Telescopic fork
Rear suspension Unit swing
Shock absorber:
Front fork type Coil spring/oil damper
Rear shock absorber Coil spring/oil damper
assembly type
Wheel travel:
Front wheel travel 108 mm
Rear wheel travel 120 mmElectrical:
Ignition system type Transistorized coil ignition
Charging system AC magneto
Battery
Model F9-12B
Voltage/capacity 12 V / 9 Ah
Headlight type:Halogen bulb
Bulbs (voltage/wattage x quantity):
Headlight 12V, 35W/35Wx2
Auxiliary light 12V, 5Wx2
Tail/brake light 12V, 5W/21Wx2
Turn signal light
Front 12V, 21Wx2
Rear 12V, 10Wx2
High beam indicator light LED
Turn signal indicator light LED
Headlight indicator light LED
Fuses:
Main fuse: 30 A
Backup fuse: 3 A
Headlight fuse: 15 A
Radiator fan fuse: 15 A
Signaling system fuse: 15 A
Ignition fuse: 7.5 A
Auxiliary DC jack fuse: 3 A
Reserve fuse (x quantity) 30Ax1, 15Ax1, 7.5Ax1
8-3
Page 95 of 104
SPECIFICATIONS
8
EAU04513

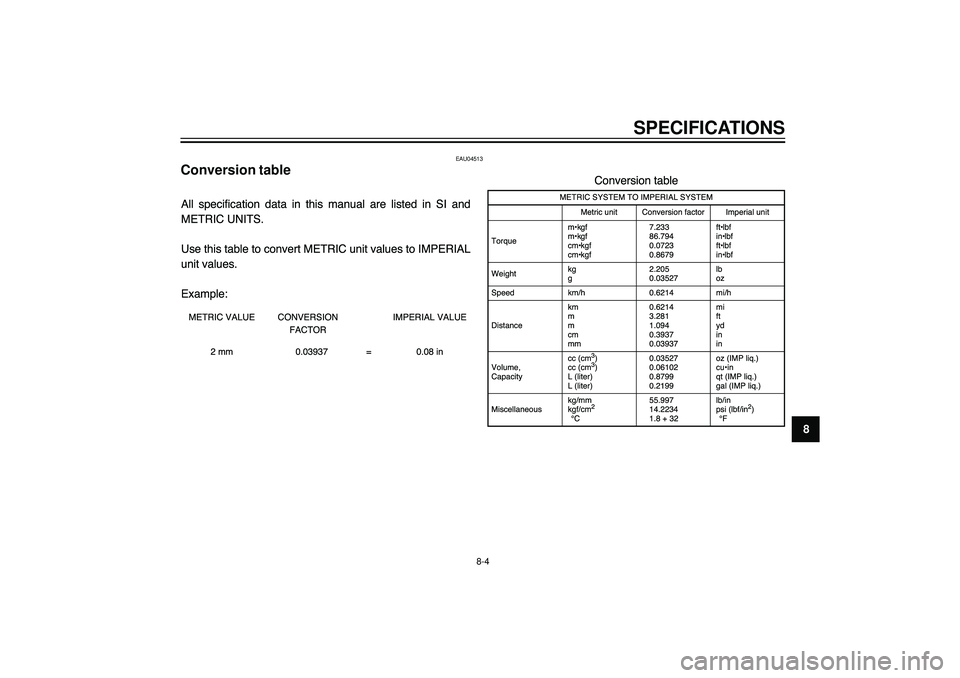

Conversion table
8-4
Page 96 of 104
Page 97 of 104
9
EAU01039

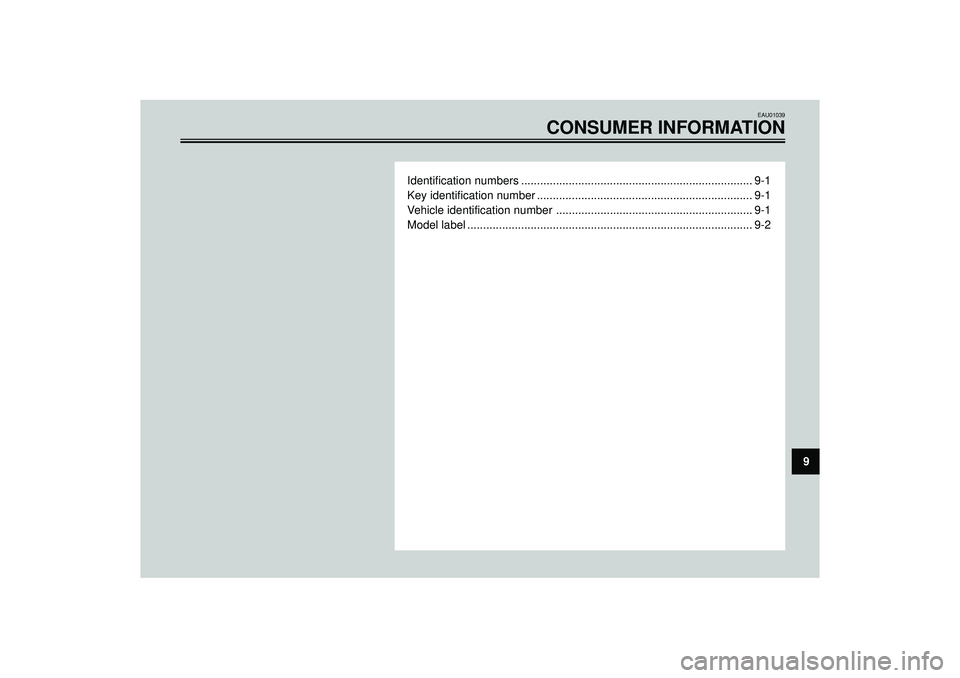

CONSUMER INFORMATION
Identification numbers ......................................................................... 9-1
Key identification number .................................................................... 9-1
Vehicle identification number .............................................................. 9-1
Model label .......................................................................................... 9-2
Page 98 of 104
CONSUMER INFORMATION
9
EAU02944

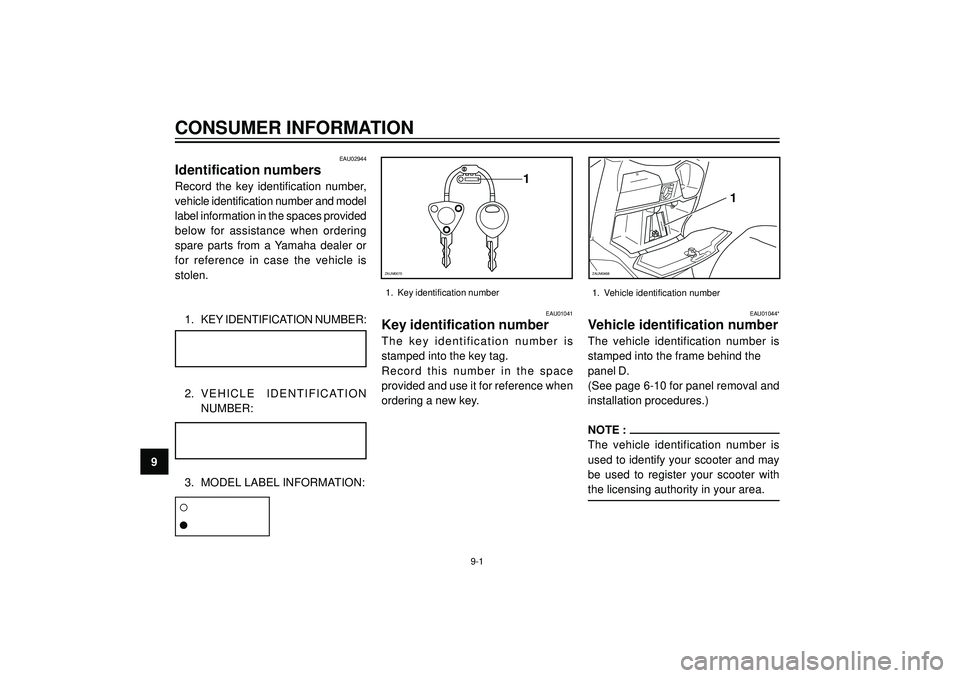

Identification numbers
Record the key identification number,
vehicle identification number and model
label information in the spaces provided
below for assistance when ordering
spare parts from a Yamaha dealer or
for reference in case the vehicle is
stolen.
1. KEY IDENTIFICATION NUMBER:
2. VEHICLE IDENTIFICATION
NUMBER:
3. MODEL LABEL INFORMATION:
EAU01041
Key identification number
The key identification number is
stamped into the key tag.
Record this number in the space
provided and use it for reference when
ordering a new key.
EAU01044*
Vehicle identification number
The vehicle identification number is
stamped into the frame behind the
panel D.
(See page 6-10 for panel removal and
installation procedures.)
NOTE :
The vehicle identification number is
used to identify your scooter and may
be used to register your scooter with
the licensing authority in your area.
9-1
1
ZAUM0070
1. Key identification number
x
xxxxxxxxx
1
ZAUM0468
1. Vehicle identification number
Page 99 of 104
CONSUMER INFORMATION
9
EAU01278

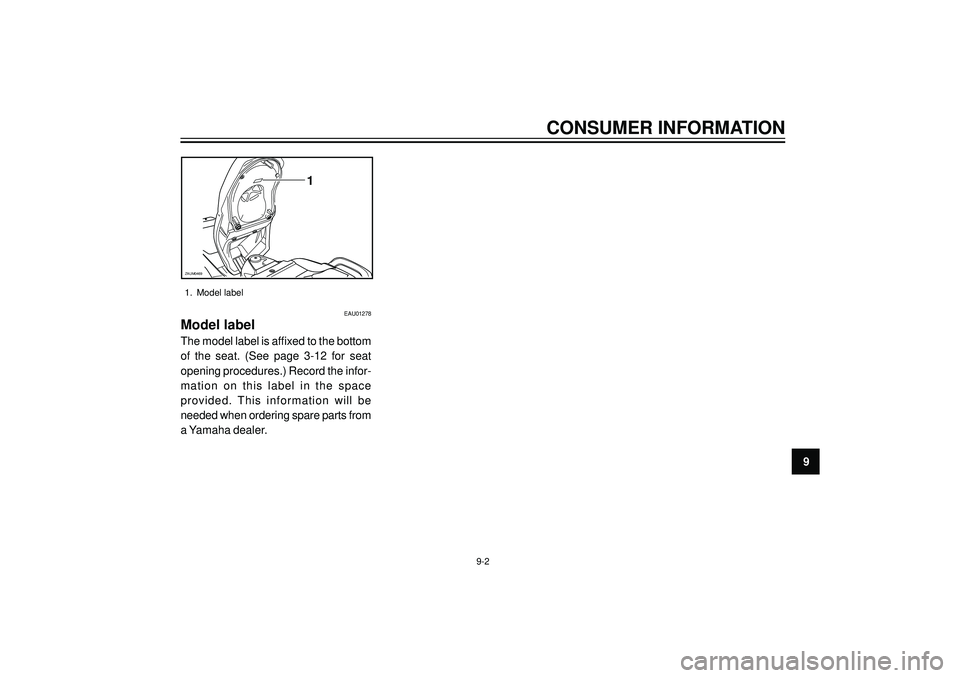

Model label
The model label is affixed to the bottom
of the seat. (See page 3-12 for seat
opening procedures.) Record the infor-
mation on this label in the space
provided. This information will be
needed when ordering spare parts from
a Yamaha dealer.
9-2
1
ZAUM0469
1. Model label
Page 100 of 104

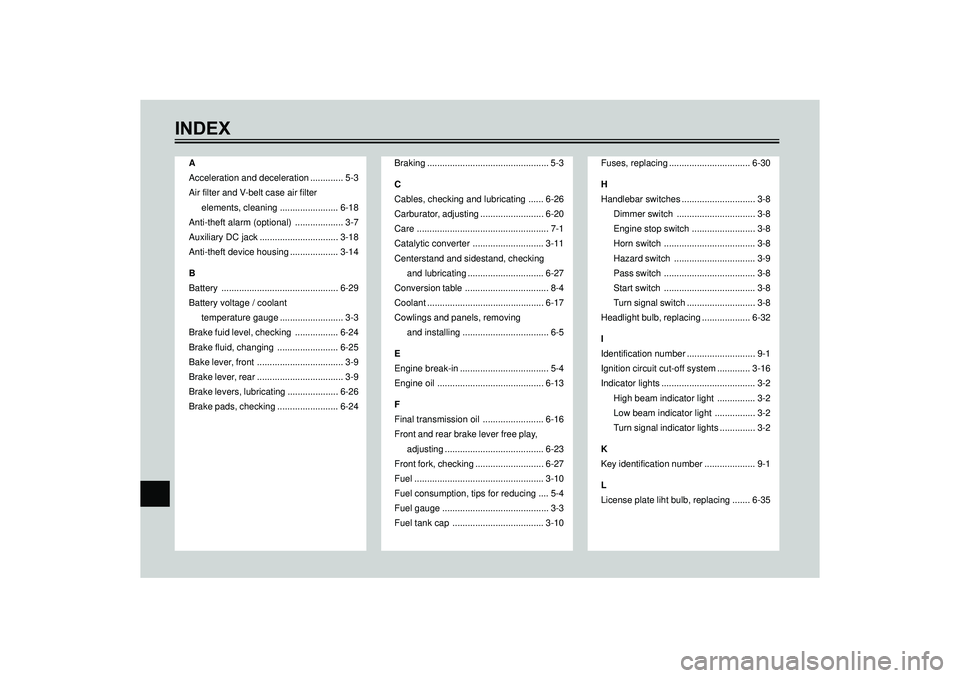

INDEX
