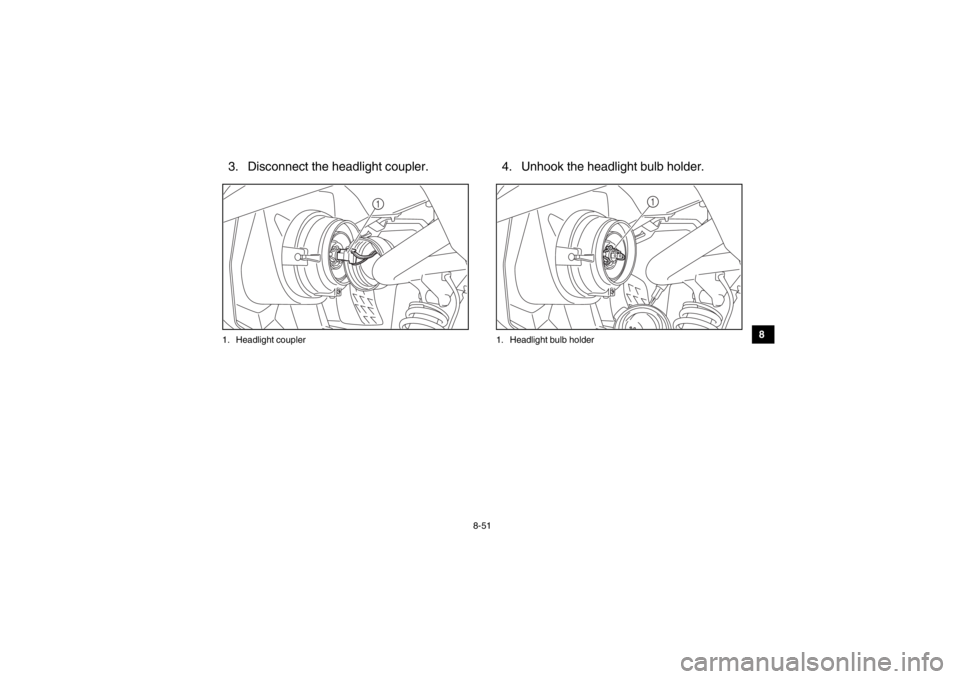

3. Disconnect the headlight coupler.1. Headlight coupler
4. Unhook the headlight bulb holder.1. Headlight bulb holder
1
1
1XP7C_EE.book Page 51 Monday, June 9, 2014 5:17 PM
Page 162 of 182
8-52
8
9
10
11
12
13
14
5. Wait for the headlight bulb to cool before touching or removing it. Remove the
burnt-out bulb by pulling it out.
6. Place a new headlight bulb into position, and then secure it with the bulb holder.
NOTICE: Do not touch the glass part
of the headlight bulb to keep it free
from oil, otherwise the transparency
of the glass, the luminosity of the
bulb, and the bulb life will be adverse-
ly affected. Thoroughly clean off any
dirt and fingerprints on the headlight
bulb using a cloth moistened with al-
cohol or thinner.
1. Do not touch the glass part of the bulb.7. Connect the headlight coupler.
8. Install the bulb cover and the cover at the rear of the headlight. NOTICE: Make
sure the headlight bulb cover is se-
curely fitted over the bulb holder and
seated properly.
9. Adjust the headlight beam if necessary.
1XP7C_EE.book Page 52 Monday, June 9, 2014 5:17 PM
Page 163 of 182
8-53
1
2
3
4
5
6
78
9
10
11
12
13
14

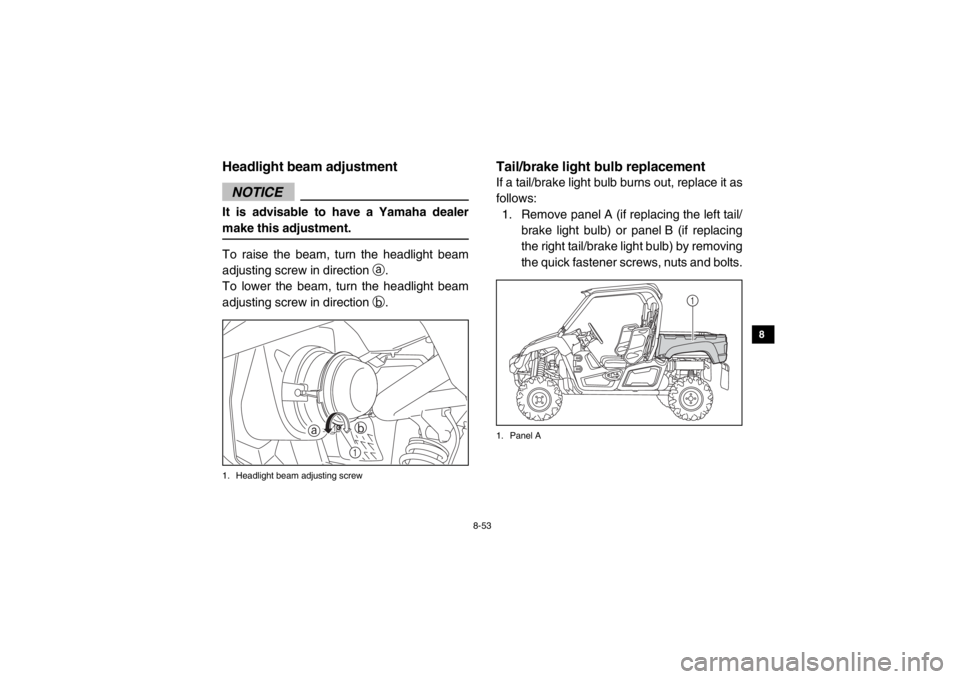

EVU00990Headlight beam adjustmentNOTICEIt is advisable to have a Yamaha dealer
make this adjustment.To raise the beam, turn the headlight beam
adjusting screw in directiona.
To lower the beam, turn the headlight beam
adjusting screw in direction b.1. Headlight beam adjusting screw
EVU01000Tail/brake light bulb replacementIf a tail/brake light bulb burns out, replace it as
follows:
1. Remove panel A (if replacing the left tail/ brake light bulb) or panel B (if replacing
the right tail/brake light bulb) by removing
the quick fastener screws, nuts and bolts.1. Panel A
1
a
b
1
1XP7C_EE.book Page 53 Monday, June 9, 2014 5:17 PM
Page 164 of 182
8-54
8
9
10
11
12
13
14

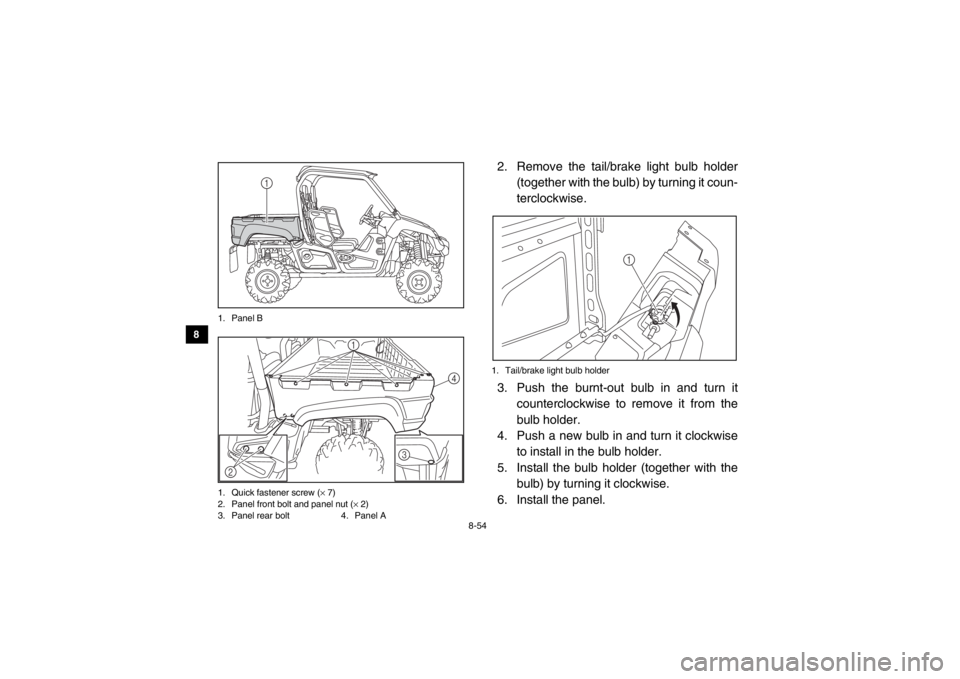

1. Panel B
1. Quick fastener screw ( × 7)
2. Panel front bolt and panel nut ( × 2)
3. Panel rear bolt 4. Panel A
2. Remove the tail/brake light bulb holder
(together with the bulb) by turning it coun-
terclockwise.1. Tail/brake light bulb holder3. Push the burnt-out bulb in and turn itcounterclockwise to remove it from the
bulb holder.
4. Push a new bulb in and turn it clockwise to install in the bulb holder.
5. Install the bulb holder (together with the bulb) by turning it clockwise.
6. Install the panel.
1
3
4
2 1
1
1XP7C_EE.book Page 54 Monday, June 9, 2014 5:17 PM
Page 165 of 182
8-55
1
2
3
4
5
6
78
9
10
11
12
13
14
7. Install the quick fastener screws, bolts,and nuts, and then tighten the panel nuts
and the panel rear bolt to the specified
torques.
EVU01010TroubleshootingAlthough Yamaha vehicles receive an inspec-
tion before shipment from the factory, trouble
may occur during operation. Any problem in
the fuel, compression, or ignition systems can
cause poor starting and loss of power. The
troubleshooting chart describes a quick, easy
procedure for making checks. If your vehicle
requires any repair, take it to a Yamaha deal-
er.
The skilled technicians at a Yamaha dealer-
ship have the tools, experience, and know-
how to properly service your vehicle. Use only
genuine Yamaha parts on your vehicle. Imita-
tion parts may look like Yamaha parts, but
they are often inferior. Consequently, they
have a shorter service life and can lead to ex-
pensive repair bills.
Tightening torques:
Panel nut: 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Panel rear bolt: 4.0 Nm (0.40 m·kgf, 2.9 ft·lbf)
1XP7C_EE.book Page 55 Monday, June 9, 2014 5:17 PM
Page 166 of 182
8-56
8
9
10
11
12
13
14
WARNING
When checking the fuel system, do not
smoke and make sure there are no open
flames or sparks in the area, including pi-
lot lights from water heaters or furnaces.
Gasoline or gasoline vapors can ignite or
explode, causing severe injury or property
damage.1XP7C_EE.book Page 56 Monday, June 9, 2014 5:17 PM
Page 167 of 182
8-57
1
2
3
4
5
6
78
9
10
11
12
13
14

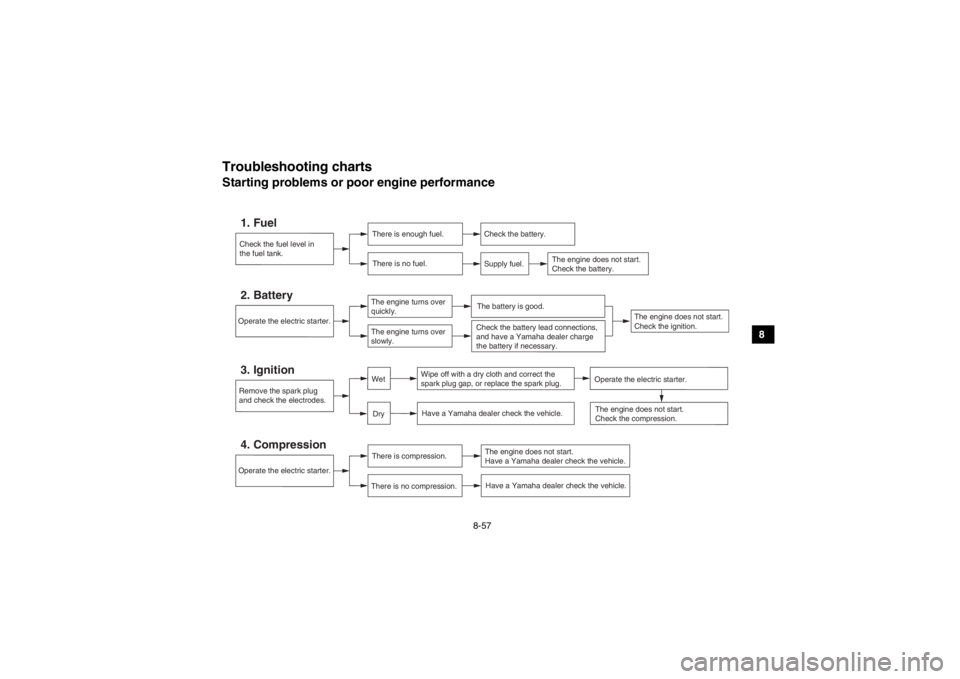

5B410024Troubleshooting chartsStarting problems or poor engine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.There is no fuel.
Check the battery.
Supply fuel.
The engine does not start.
Check the battery.
Operate the electric starter.4. Compression
There is compression.
There is no compression.
The engine does not start.
Have a Yamaha dealer check the vehicle.Have a Yamaha dealer check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug. Have a Yamaha dealer check the vehicle.
The engine does not start.
Check the compression.
Operate the electric starter.2. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.
DryWet
Operate the electric starter.
Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
The engine does not start.
Check the ignition.
1XP7C_EE.book Page 57 Monday, June 9, 2014 5:17 PM
Page 168 of 182
8-58
8
9
10
11
12
13
14

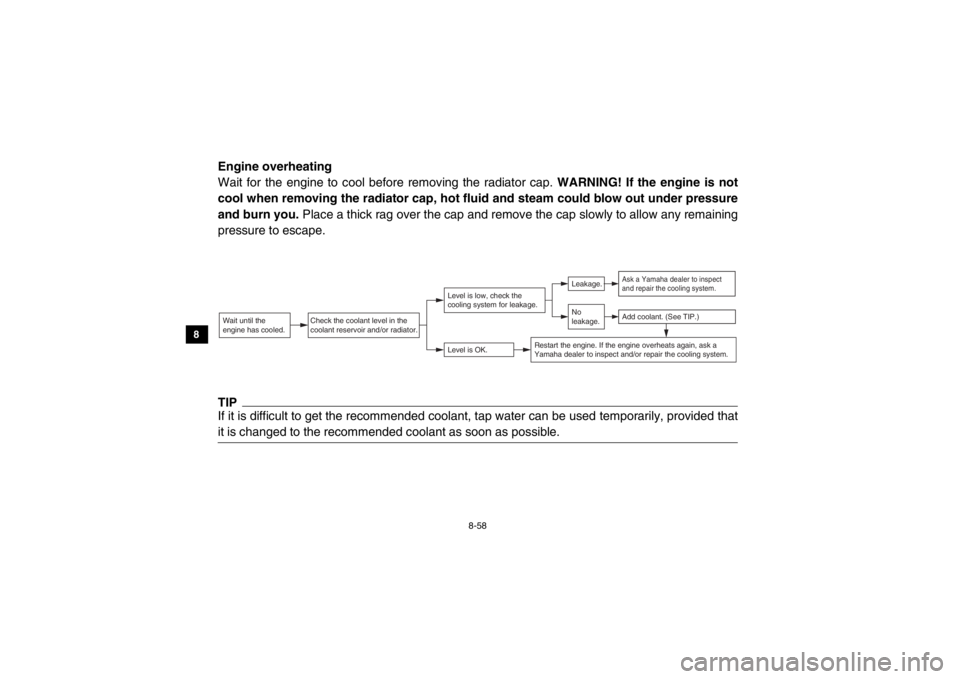

Engine overheating
Wait for the engine to cool before removing the radiator cap. WARNING! If the engine is not
cool when removing the radiator cap, hot fluid and steam could blow out under pressure
and burn you. Place a thick rag over the cap and remove the cap slowly to allow any remaining
pressure to escape.TIPIf it is difficult to get the recommended coolant , tap water can be used temporarily, provided that
it is changed to the recommended coolant as soon as possible.Wait until the
engine has cooled.
Check the coolant level in the
coolant reservoir and/or radiator.
Level is OK.Level is low, check the
cooling system for leakage.
No
leakage.Leakage.
Ask a Yamaha dealer to inspect
and repair the cooling system.Add coolant. (See TIP.)
Restart the engine. If the engine overheats again, ask a
Yamaha dealer to inspect and/or repair the cooling system.
1XP7C_EE.book Page 58 Monday, June 9, 2014 5:17 PM
Page 169 of 182
9-1
1
2
3
4
5
6
7
89
10
11
12
13
14
EVU01030
1-CLEANING AND STORAGE
CleaningFrequent, thorough cleaning of your vehicle
will not only enhance its appearance but will
improve its general performance and extend
the useful life of many components.1. Before cleaning the vehicle:
a. Block off the end of the exhaust pipeto prevent water entry. A plastic bag
and strong rubber band may be used.
b. Make sure the spark plug and all filler caps are properly installed.
2. If the engine case is excessively greasy,
apply degreaser with a paint brush. Do
not apply degreaser to the wheel axles. 3. Rinse the dirt and degreaser off with a
garden hose. Use only enough pressure
to do the job. WARNING! Test the
brakes after washing. Apply the
brakes several times at slow speeds
to let friction dry out the linings. Wet
brakes may have reduced stopping
ability, increasing the chance of an ac-
cident. NOTICE: Excessive water
pressure may cause water seepage
and deterioration of wheel bearings,
brakes, transmission seals and elec-
trical devices. Many expensive repair
bills have resulted from improper
high-pressure detergent applications,
such as those available in coin-oper-
ated car washers.1XP7C_EE.book Page 1 Monday, June 9, 2014 5:17 PM
Page 170 of 182
9-2
9
10
11
12
13
14
TIPThe tailgate can be removed to make it easier
to clean the cargo bed. To separate the tail-
gate from the cargo bed, unhook the latches,
lift the left side of the tailgate and pull the tail-
gate to the left.4. Once the majority of the dirt has been hosed off, wash all surfaces with warm
water and mild, detergent-type soap. An
old toothbrush or bottle brush is handy for
hard-to-get-at places.
5. Rinse the vehicle off immediately with clean water and dry all surfaces with a
clean chamois towel or soft, absorbent
cloth.
6. Clean the seats with a vinyl upholstery cleaner to keep the covers pliable and
glossy. 7. Automotive-type wax may be applied to
all painted and chrome-plated surfaces.
Avoid combination cleaner-waxes. Many
contain abrasives which may scratch the
paint or protective finish. When finished,
start the engine and let it idle for several
minutes.1XP7C_EE.book Page 2 Monday, June 9, 2014 5:17 PM
