EBU31380Multi-function meter unitThe multi-function meter unit is equipped with
the following:
a speedometer
 an odometer
 two tripmeters (which show the distance
traveled since they were last set to zero) 
a clock
 an hour meter (which shows the total time
the engine has been running)
 a voltage display (which shows the battery
voltage)
 a fuel meter
 a self-diagnosis device

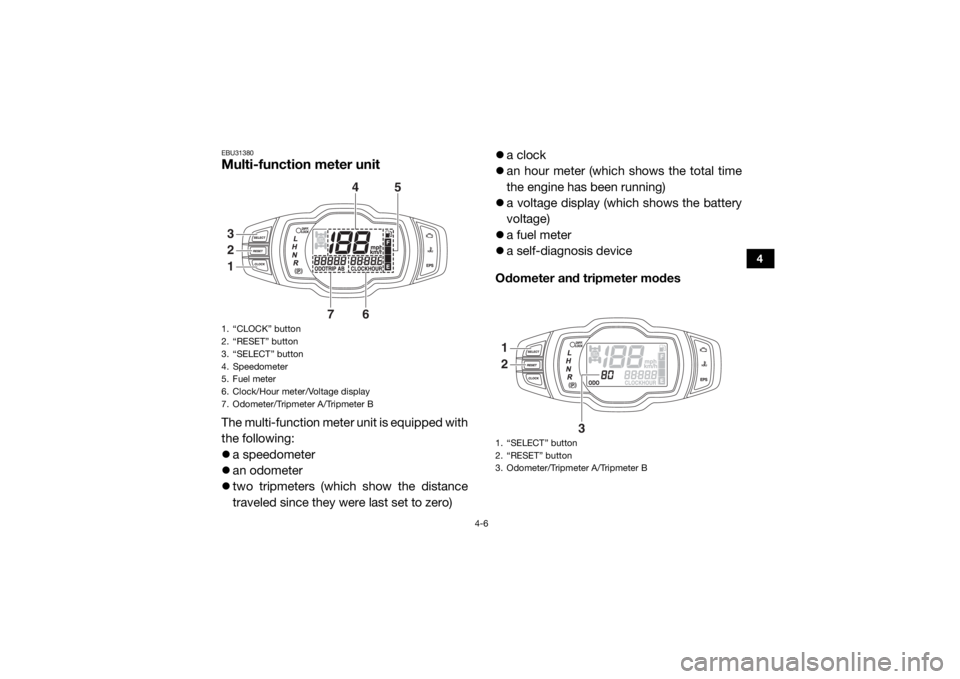

Odometer and tripmeter modes1. “CLOCK” button
2. “RESET” button
3. “SELECT” button
4. Speedometer
5. Fuel meter
6. Clock/Hour meter/Voltage display
7. Odometer/Tripmeter A/Tripmeter B321
4
5
6
7
1. “SELECT” button
2. “RESET” button
3. Odometer/Tripmeter A/Tripmeter B12
3
UB427AE0.book Page 6 Monday, May 18, 2015 9:17 AM

4-7
4
Pushing the “SELECT” button switches the
display between the odometer mode “ODO”
and the tripmeter modes “TRIP A” and “TRIP
B” in the following order:
ODO → TRIP A → TRIP B → ODO
To reset a tripmeter, select it by pushing the
“SELECT” button, and then push the “RE-
SET” button for at least three seconds. The
tripmeters can be used to estimate the dis-
tance that can be traveled with a full tank of
fuel. This information enables you to plan fu-
ture fuel stops.TIPTo switch the display between “mph” and
“km/h”, turn the key to “ ” (off), then push
and hold the “SELECT” button while turning
the key to “ ” (on).
Clock, hour meter and voltage display
modes
Pushing the “CLOCK” button switches the
display between the clock mode “CLOCK”,
the hour meter mode “HOUR”, and the volt-
age display mode “ ” in the following or-
der:

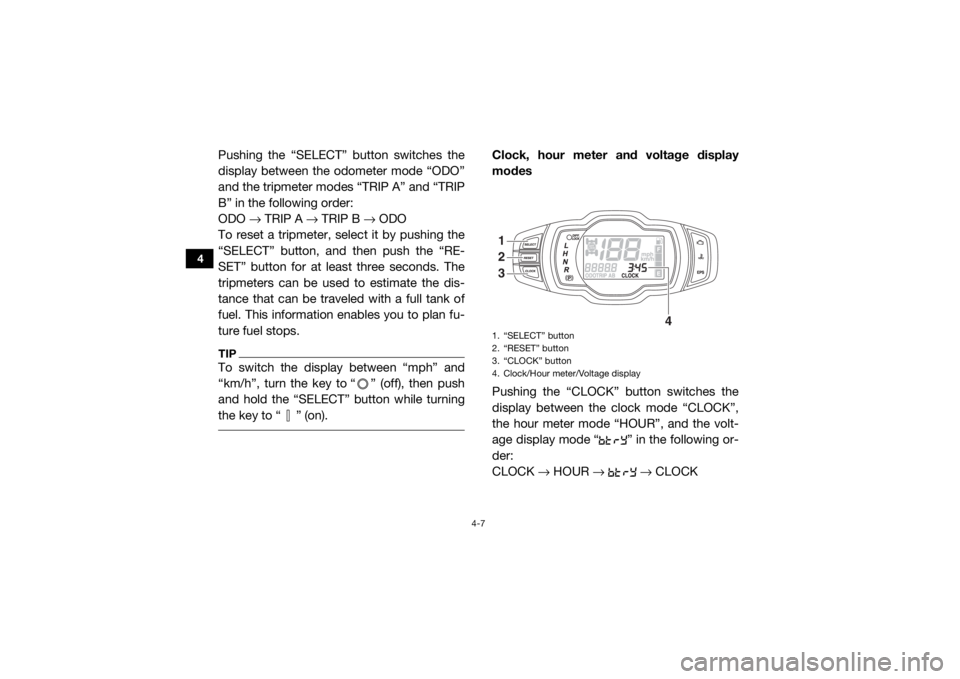

CLOCK → HOUR → → CLOCK1. “SELECT” button
2. “RESET” button
3. “CLOCK” button
4. Clock/Hour meter/Voltage display
4
123
UB427AE0.book Page 7 Monday, May 18, 2015 9:17 AM

4-8
4
To set the clock1. Set the display to the clock mode.
2. Push the “SELECT” button and “RESET”button together for at least three sec-
onds.
3. When the hour digits start flashing, push the “RESET” button to set the hours.
4. Push the “SELECT” button, and the min-
ute digits will start flashing.
5. Push the “RESET” button to set the min- utes.
6. Push the “SELECT” button, and then re- lease it to start the clock. Voltage display mode

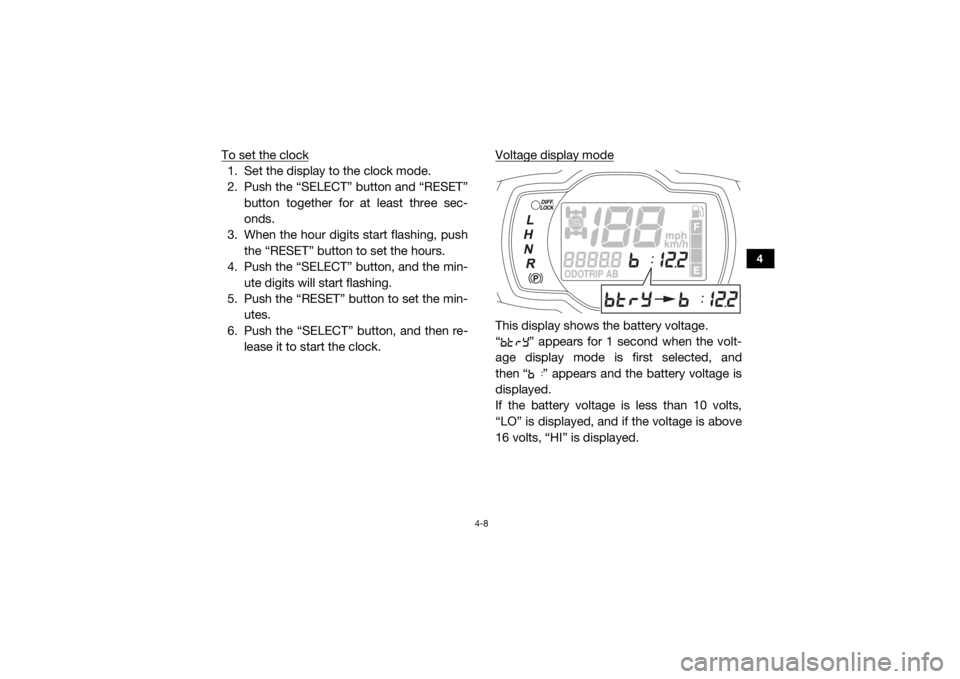

This display shows the battery voltage.
“ ” appears for 1 second when the volt-
age display mode is first selected, and
then “ ” appears and the battery voltage is
displayed.
If the battery voltage is less than 10 volts,
“LO” is displayed, and if the voltage is above
16 volts, “HI” is displayed.
UB427AE0.book Page 8 Monday, May 18, 2015 9:17 AM

4-9
4
NOTICEECB02050If the voltage display indicates “LO” or
“HI”, there may be trouble with the battery
charging circuit or the battery may be
faulty. If this occurs, have a Yamaha dealer
check or repair the vehicle. Fuel meterThe fuel meter indicates the amount of fuel in
the fuel tank. The display segments of the fuel
meter disappear from “F” (full) towards “E”
(empty) as the fuel level decreases. When the
“E” segment disappears and the fuel level
warning indicator flashes, refuel as soon as
possible.
TIPThis fuel meter is equipped with a self-diag-
nosis system. If a problem is detected in an
electrical circuit, all the display segments and
fuel level warning indicator start flashing. If
this occurs, have a Yamaha dealer check the
electrical circuit.

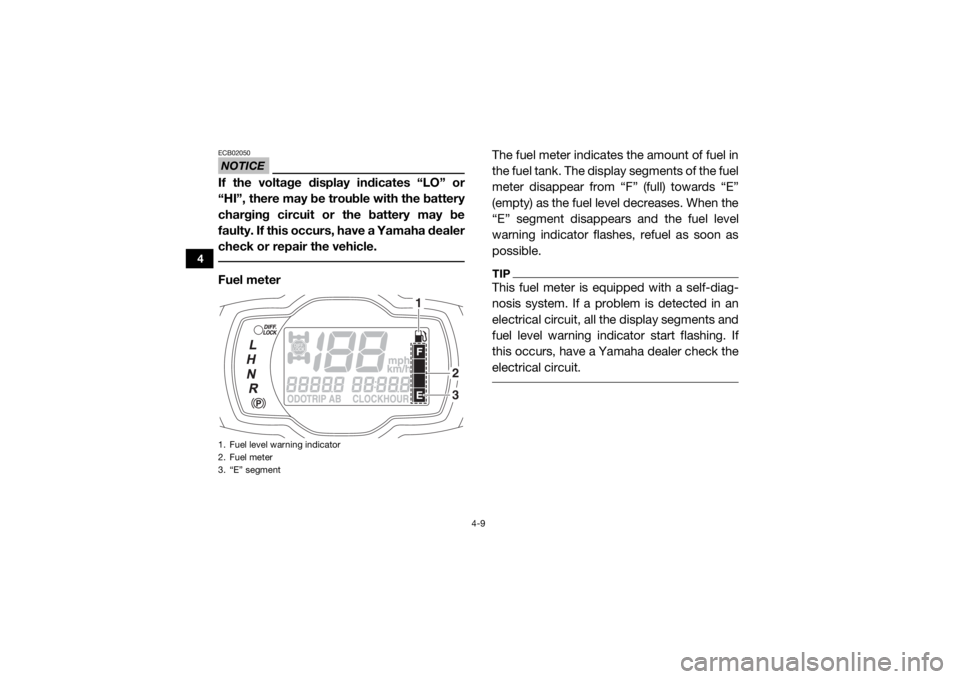

1. Fuel level warning indicator
2. Fuel meter
3. “E” segment
1
23
UB427AE0.book Page 9 Monday, May 18, 2015 9:17 AM

4-10
4
Self-diagnosis device
This model is equipped with a self-diagnosis
device for various electrical circuits.
If a problem is detected in any of those cir-
cuits, the engine trouble warning light comes
on or flashes, and the multi-function display
indicates an error code.
If the multi-function display indicates an error
code, note the code number, and then have a
Yamaha dealer check the vehicle.
NOTICEECB00812If the multi-function display indicates an
error code, the vehicle should be checked
as soon as possible in order to avoid en-
gine damage. EBU31390Light switch “ / / ”Set the switch to “ ” to turn on the low
beam and the taillights.
Set the switch to “ ” to turn on the high
beam and the taillights.

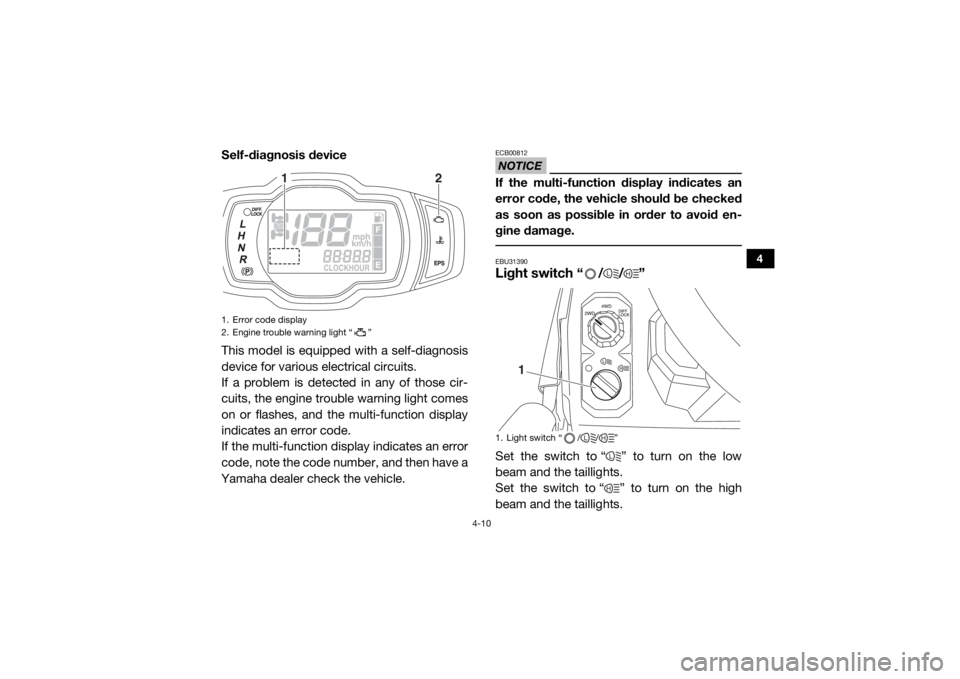

1. Error code display
2. Engine trouble warning light “ ”
2
1
1. Light switch “ / / ”
L
H
1
L
HLH
UB427AE0.book Page 10 Monday, May 18, 2015 9:17 AM

4-11
4
Set the switch to “ ” to turn off the head-
lights and taillights.NOTICEECB02060Do not use the headlights with the engine
turned off for an extended period of time.
The battery may discharge to the point
that the starter motor will not operate
properly. If this should happen, remove the
battery and recharge it.
EBU31400On-Command drive knob
“2WD/4WD/DIFF LOCK”This vehicle is equipped with an On-Com-
mand drive knob to select the drive mode.
The knob has three positions: “2WD”, “4WD”,
and “DIFF LOCK”. Select the appropriate
drive according to terrain and conditions.
“2WD” (two-wheel drive): Power is supplied
to the rear wheels only.
 “4WD” (four-wheel drive): Power is sup-

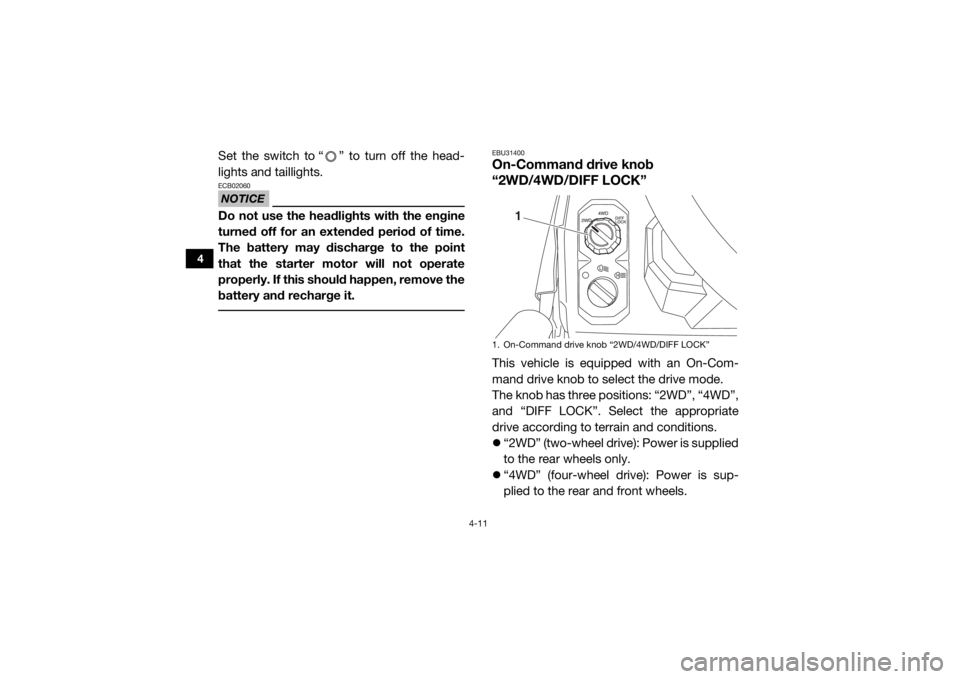

plied to the rear and front wheels.1. On-Command drive knob “2WD/4WD/DIFF LOCK”
1
UB427AE0.book Page 11 Monday, May 18, 2015 9:17 AM

4-12
4
“DIFF LOCK” (four-wheel drive with the dif-
ferential gear locked): Power is supplied to
the rear and front wheels with the differen-
tial gear locked. Unlike the “4WD” mode, all
wheels turn at the same speed regardless
of traction.EBU33192Horn switch “ ”Press the switch to sound the horn.
EBU31410Accelerator pedalPress the accelerator pedal down to increase
engine speed. Spring tension returns the ped-
al to the rest position when released. Always
check that the accelerator pedal returns nor-
mally before starting the engine.EBU31420Brake pedalPress the brake pedal to slow or stop the ve-
hicle.

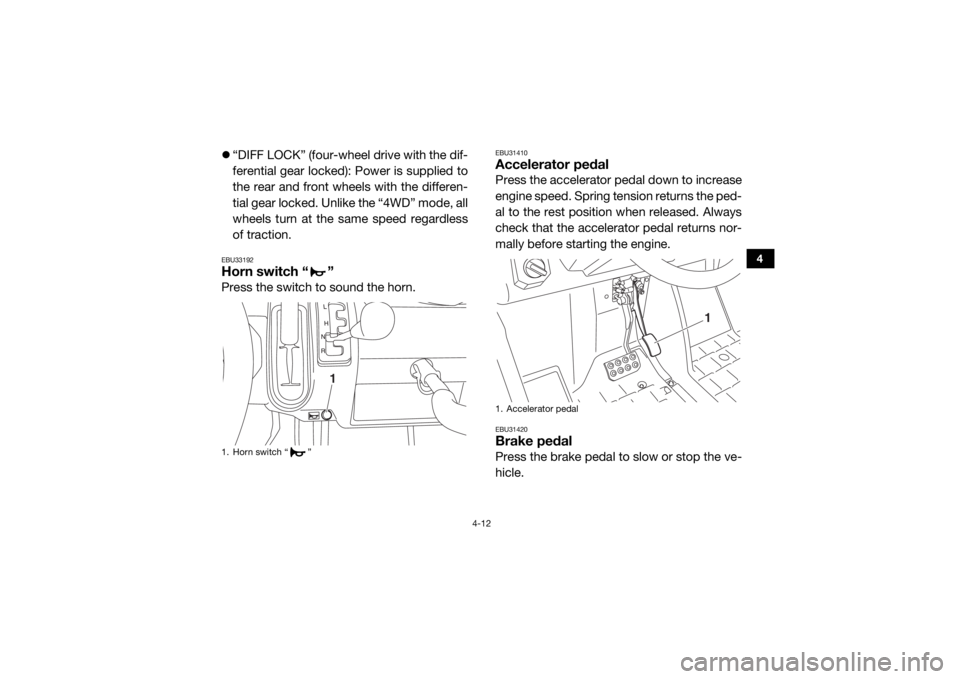

1. Horn switch “ ”
1
1. Accelerator pedal
1
UB427AE0.book Page 12 Monday, May 18, 2015 9:17 AM

4-13
4
EBU34750Parking brake leverThe parking brake lever is located at the right
side of the steering wheel. Setting the parking
brake lever will help keep the vehicle from
moving while parked.
To set the parking brake, pull the lever rear-
ward completely.
To release the parking brake, pull rearward on
the lever, press the release button, and then
push the lever all the way forward.
TIPSpring tension helps return the lever to the
released position.
 If you drive the vehicle with the parking
brake engaged, a buzzer will sound.

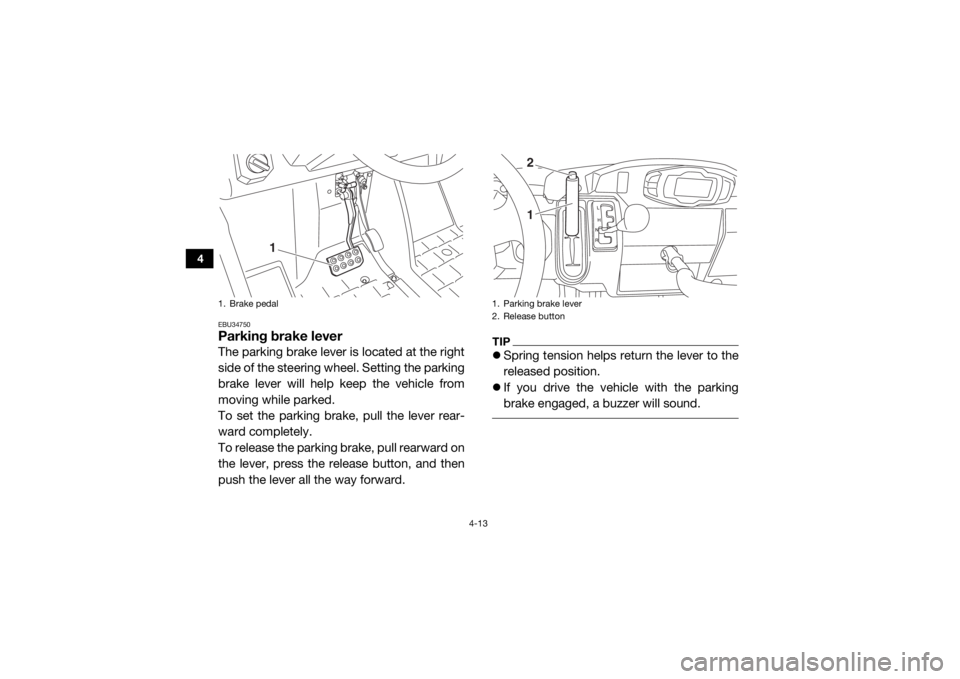

1. Brake pedal
1
1. Parking brake lever
2. Release button
12
UB427AE0.book Page 13 Monday, May 18, 2015 9:17 AM

4-14
4
EBU31440Drive select leverThe drive select lever is used to shift the vehi-
cle into the low, high, neutral, and reverse po-
sitions. (Refer to page 6-3 for the drive select
lever operation.)
EBU31450Fuel tank capTo openRemove the fuel tank cap by turning it coun-
terclockwise.
To closeInstall the fuel tank cap by turning it clock-
wise.

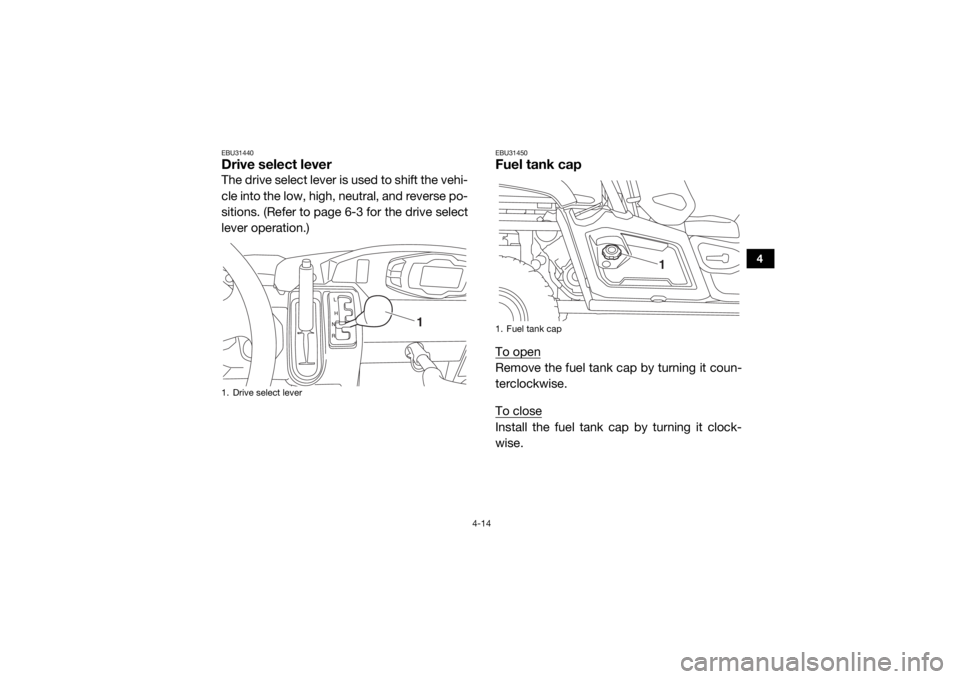

1. Drive select lever
1
1. Fuel tank cap
1
UB427AE0.book Page 14 Monday, May 18, 2015 9:17 AM

4-15
4
EBU31460DoorsTo open a door, pull the latch outward. To
close a door, push or pull the door inward un-
til it is securely latched. Be sure the door is
SECURELY LATCHED AFTER CLOSING IT.EBU31470SeatsTo remove a seat cushion, lift the front of the
cushion, and then pull the cushion off.To install a seat cushion, insert the projec-
tions on the rear of the seat cushion under the
seat frame, and then insert the projection on
the front of the cushion into the grommet
while pushing the cushion downward. Make
sure the seats are properly secured before
riding.
WARNING! A loose seat could cause
the operator to lose control, or cause the
operator or passengers to fall.
[EWB03220]

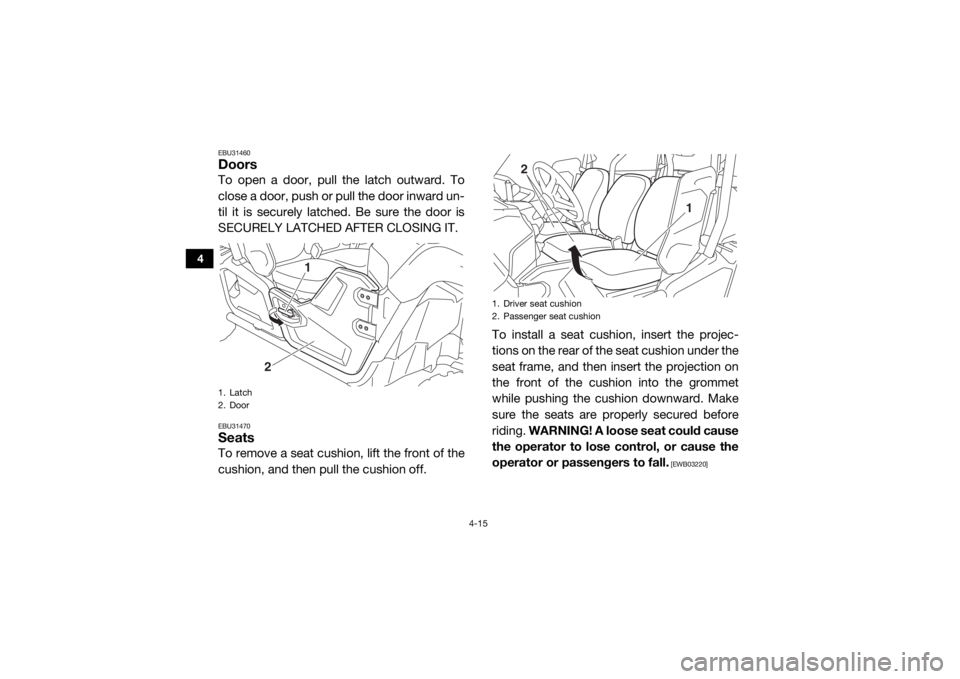

1. Latch
2. Door
1
2
1. Driver seat cushion
2. Passenger seat cushion
