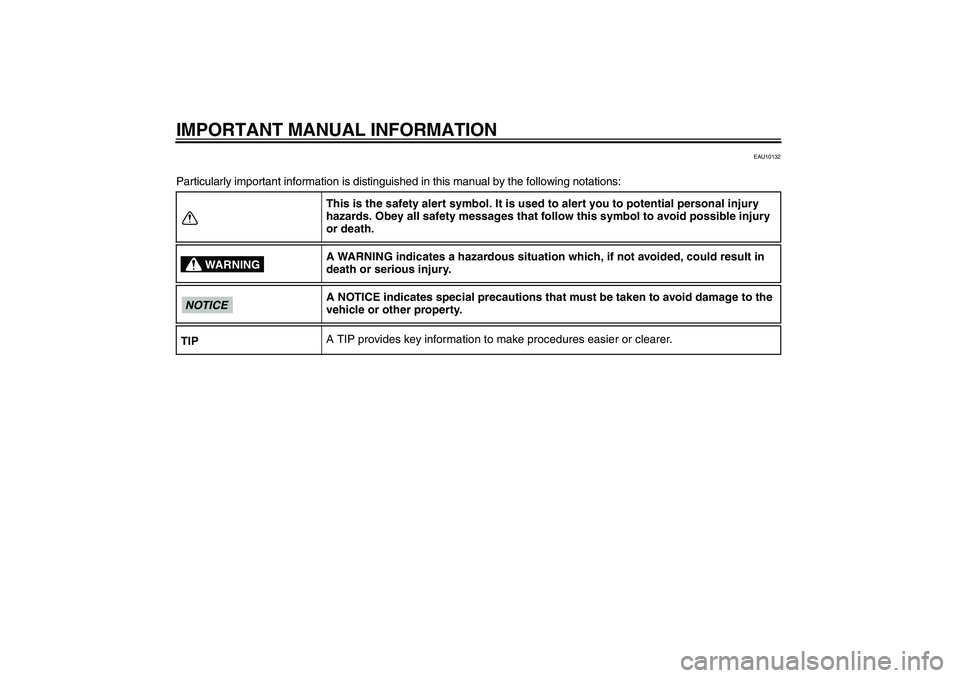

IMPORTANT MANUAL INFORMATION
EAU10132
Particularly important information is distinguished in this manual by the following notations:
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
A WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid damage to the
vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICETIP
U4P7E2E0.book Page 1 Thursday, August 20, 2009 9:44 AM

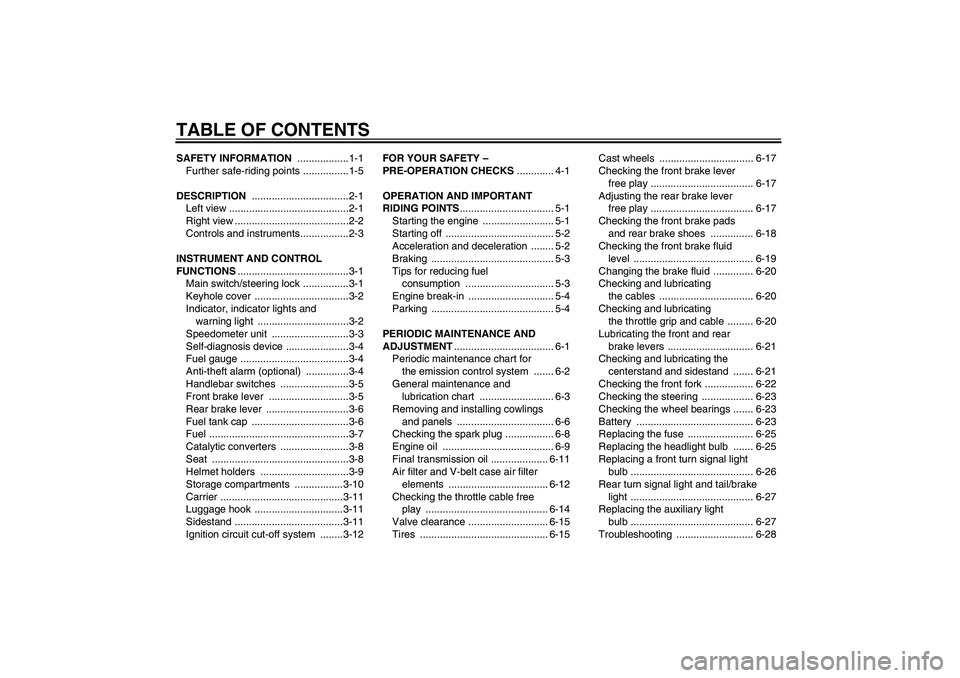

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
Further safe-riding points ................1-5
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Main switch/steering lock ................3-1
Keyhole cover .................................3-2
Indicator, indicator lights and
warning light ................................3-2
Speedometer unit ...........................3-3
Self-diagnosis device ......................3-4
Fuel gauge ......................................3-4
Anti-theft alarm (optional) ...............3-4
Handlebar switches ........................3-5
Front brake lever ............................3-5
Rear brake lever .............................3-6
Fuel tank cap ..................................3-6
Fuel .................................................3-7
Catalytic converters ........................3-8
Seat ................................................3-8
Helmet holders ...............................3-9
Storage compartments .................3-10
Carrier ...........................................3-11
Luggage hook ...............................3-11
Sidestand ......................................3-11
Ignition circuit cut-off system ........3-12FOR YOUR SAFETY –
PRE-OPERATION CHECKS............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Starting off ...................................... 5-2
Acceleration and deceleration ........ 5-2
Braking ........................................... 5-3
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-4
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT................................... 6-1
Periodic maintenance chart for
the emission control system ....... 6-2
General maintenance and
lubrication chart .......................... 6-3
Removing and installing cowlings
and panels .................................. 6-6
Checking the spark plug ................. 6-8
Engine oil ....................................... 6-9
Final transmission oil .................... 6-11
Air filter and V-belt case air filter
elements ................................... 6-12
Checking the throttle cable free
play ........................................... 6-14
Valve clearance ............................ 6-15
Tires ............................................. 6-15Cast wheels ................................. 6-17
Checking the front brake lever
free play .................................... 6-17
Adjusting the rear brake lever
free play .................................... 6-17
Checking the front brake pads
and rear brake shoes ............... 6-18
Checking the front brake fluid
level .......................................... 6-19
Changing the brake fluid .............. 6-20
Checking and lubricating
the cables ................................. 6-20
Checking and lubricating
the throttle grip and cable ......... 6-20
Lubricating the front and rear
brake levers .............................. 6-21
Checking and lubricating the
centerstand and sidestand ....... 6-21
Checking the front fork ................. 6-22
Checking the steering .................. 6-23
Checking the wheel bearings ....... 6-23
Battery ......................................... 6-23
Replacing the fuse ....................... 6-25
Replacing the headlight bulb ....... 6-25
Replacing a front turn signal light
bulb ........................................... 6-26
Rear turn signal light and tail/brake
light ........................................... 6-27
Replacing the auxiliary light
bulb ........................................... 6-27
Troubleshooting ........................... 6-28U4P7E2E0.book Page 1 Thursday, August 20, 2009 9:44 AM

DESCRIPTION
2-3
2
EAU10430

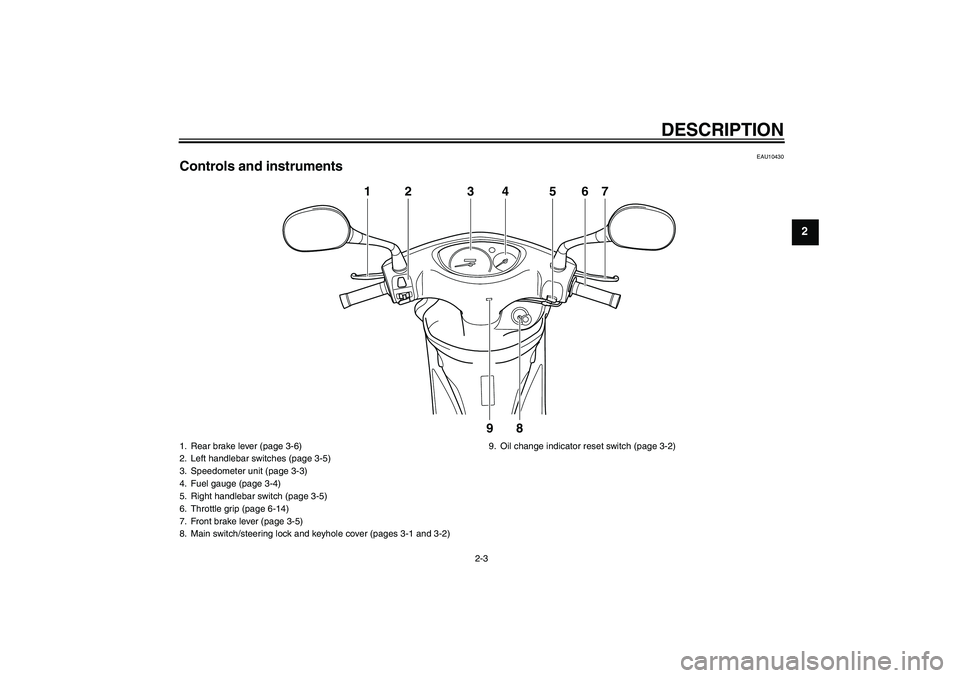

Controls and instruments
1
2
3
9
8
4
5
6
7
1. Rear brake lever (page 3-6)
2. Left handlebar switches (page 3-5)
3. Speedometer unit (page 3-3)
4. Fuel gauge (page 3-4)
5. Right handlebar switch (page 3-5)
6. Throttle grip (page 6-14)
7. Front brake lever (page 3-5)
8. Main switch/steering lock and keyhole cover (pages 3-1 and 3-2)9. Oil change indicator reset switch (page 3-2)
U4P7E2E0.book Page 3 Thursday, August 20, 2009 9:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU45440

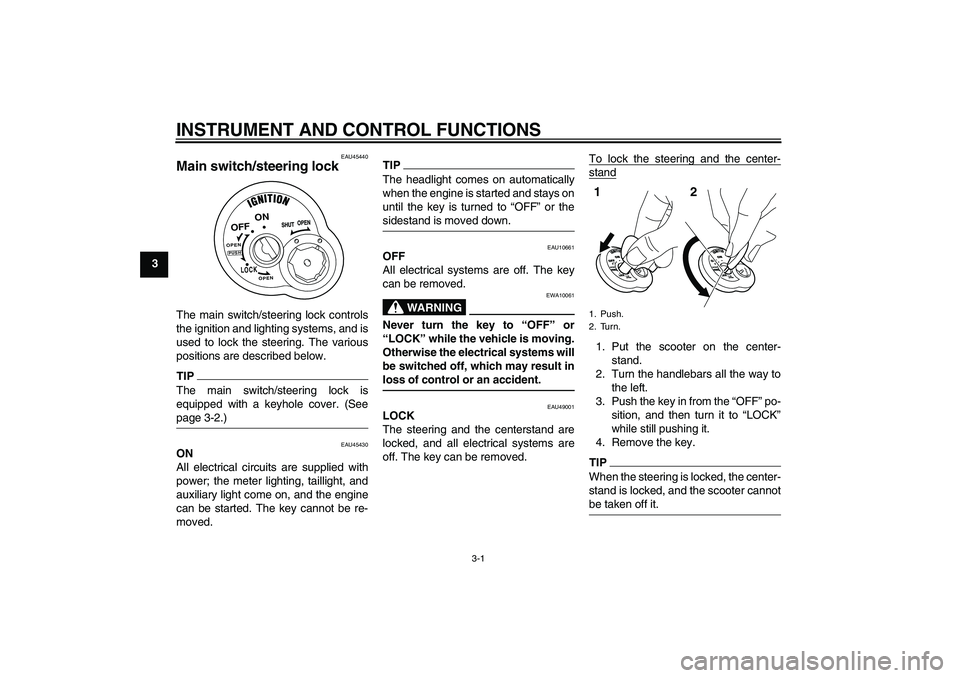

Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.TIPThe main switch/steering lock is
equipped with a keyhole cover. (See
page 3-2.)
EAU45430
ON
All electrical circuits are supplied with
power; the meter lighting, taillight, and
auxiliary light come on, and the engine
can be started. The key cannot be re-
moved.
TIPThe headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF” or the
sidestand is moved down.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10061
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident.
EAU49001
LOCK
The steering and the centerstand are
locked, and all electrical systems are
off. The key can be removed.To lock the steering and the center-
stand1. Put the scooter on the center-
stand.
2. Turn the handlebars all the way to
the left.
3. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
4. Remove the key.TIPWhen the steering is locked, the center-
stand is locked, and the scooter cannot
be taken off it.
ON
OPEN
OPENPUSH
LOCKOFF
1. Push.
2. Turn.12
chapter3 Page 1 Thursday, September 17, 2009 1:19 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3 To unlock the steering and the center-
standPush the key in, and then turn it to
“OFF” while still pushing it.
EAUT2121
Keyhole cover To close the keyhole cover
Insert the key bow into the keyhole cov-
er receptacle as shown, and then turn
the key to “SHUT” to close the cover.
To open the keyhole cover
Insert the key bow into the keyhole cov-
er receptacle as shown, and then turn
the key to “OPEN” to open the cover.
EAU45380
Indicator, indicator lights and
warning light
EAU11020
Turn signal indicator light“”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
1. Push.
2. Turn.12
ON
OPEN
OPENPUSH
LOCK
OFF
1. Engine trouble warning light“”
2. High beam indicator light“”
3. Turn signal indicator light“”
4. Oil change indicator
OIL
CHANGE
12 3 4
chapter3 Page 2 Thursday, September 17, 2009 1:19 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU45401

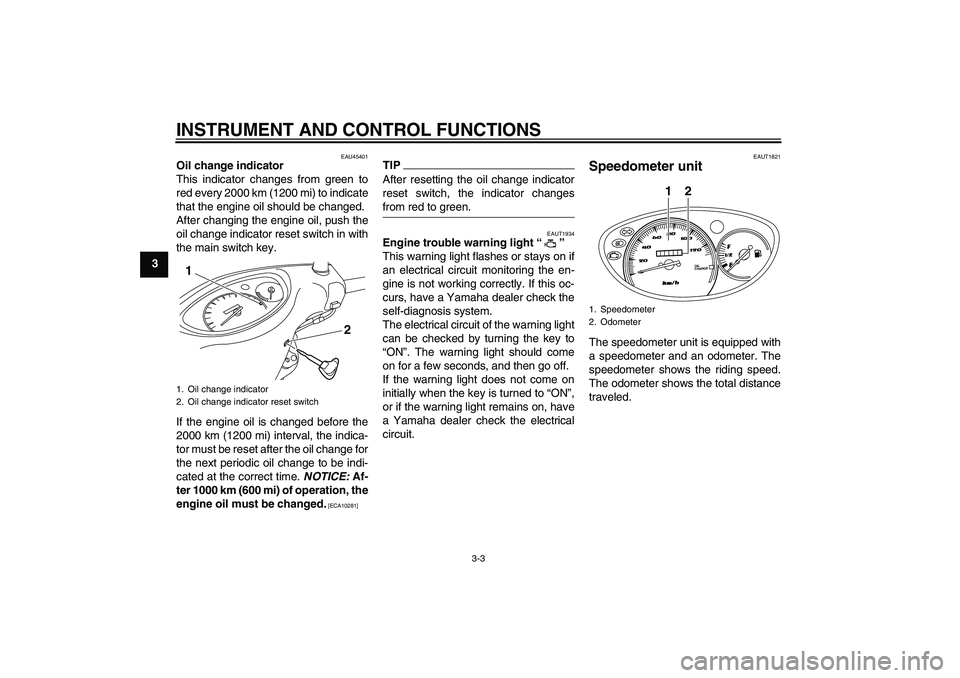

Oil change indicator
This indicator changes from green to
red every 2000 km (1200 mi) to indicate
that the engine oil should be changed.
After changing the engine oil, push the
oil change indicator reset switch in with
the main switch key.
If the engine oil is changed before the
2000 km (1200 mi) interval, the indica-
tor must be reset after the oil change for
the next periodic oil change to be indi-
cated at the correct time. NOTICE: Af-
ter 1000 km (600 mi) of operation, the
engine oil must be changed.
[ECA10281]
TIPAfter resetting the oil change indicator
reset switch, the indicator changes
from red to green.
EAUT1934
Engine trouble warning light“”
This warning light flashes or stays on if
an electrical circuit monitoring the en-
gine is not working correctly. If this oc-
curs, have a Yamaha dealer check the
self-diagnosis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAUT1821
Speedometer unit The speedometer unit is equipped with
a speedometer and an odometer. The
speedometer shows the riding speed.
The odometer shows the total distance
traveled.
1. Oil change indicator
2. Oil change indicator reset switch1
2
1. Speedometer
2. Odometer
OIL
CHANGE2 1
U4P7E2E0.book Page 3 Thursday, August 20, 2009 9:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU12092

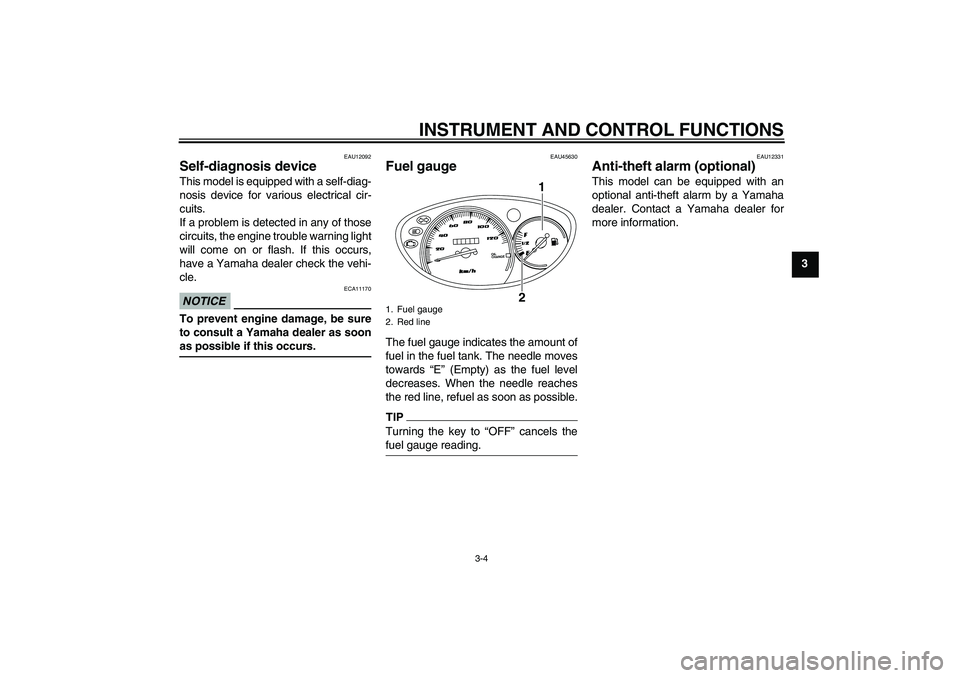

Self-diagnosis device This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If a problem is detected in any of those
circuits, the engine trouble warning light
will come on or flash. If this occurs,
have a Yamaha dealer check the vehi-
cle.NOTICE
ECA11170
To prevent engine damage, be sure
to consult a Yamaha dealer as soon
as possible if this occurs.
EAU45630
Fuel gauge The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the needle reaches
the red line, refuel as soon as possible.TIPTurning the key to “OFF” cancels the
fuel gauge reading.
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
1. Fuel gauge
2. Red line
OIL
CHANGE
1
2
U4P7E2E0.book Page 4 Thursday, August 20, 2009 9:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU13445

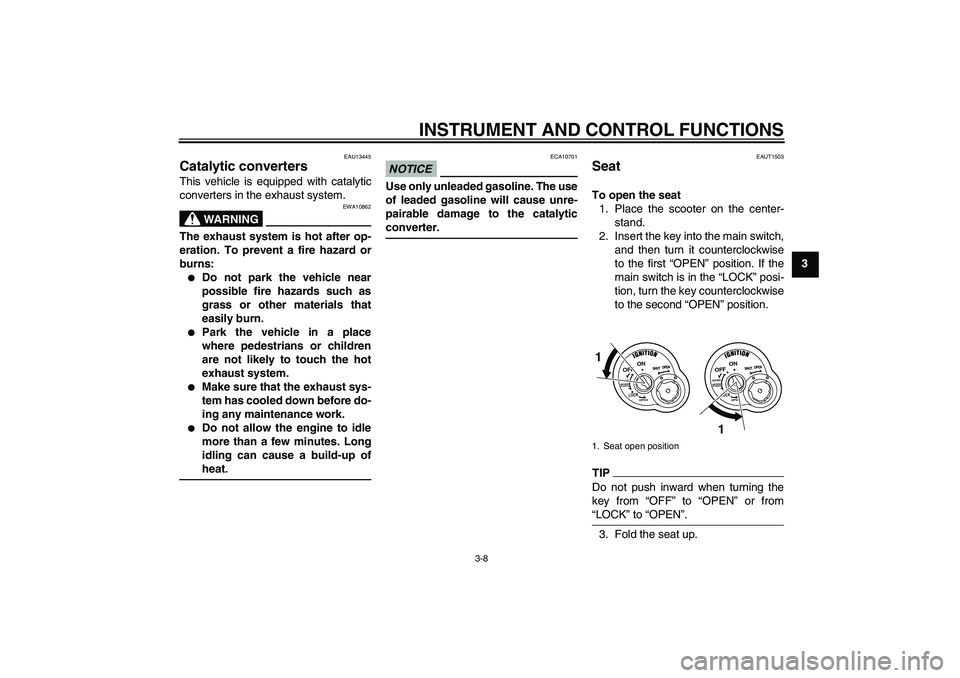

Catalytic converters This vehicle is equipped with catalytic
converters in the exhaust system.
WARNING
EWA10862
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:

Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.


Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.


Make sure that the exhaust sys-
tem has cooled down before do-
ing any maintenance work.


Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
NOTICE
ECA10701
Use only unleaded gasoline. The use
of leaded gasoline will cause unre-
pairable damage to the catalytic
converter.
EAUT1503
Seat To open the seat
1. Place the scooter on the center-
stand.
2. Insert the key into the main switch,
and then turn it counterclockwise
to the first “OPEN” position. If the
main switch is in the “LOCK” posi-
tion, turn the key counterclockwise
to the second “OPEN” position.TIPDo not push inward when turning the
key from “OFF” to “OPEN” or from
“LOCK” to “OPEN”.3. Fold the seat up.1. Seat open position
ON
OPEN
OPENP
U
S
HLOCKOFF
ON
OPEN
OPENP
U
S
HLOCKOFF
1
1
U4P7E2E0.book Page 8 Thursday, August 20, 2009 9:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3To close the seat
1. Fold the seat down, and then push
it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left un-
attended.
TIPMake sure that the seat is properly se-
cured before riding.
EAU37481
Helmet holders The helmet holders are located under
the seat.
To secure a helmet to a helmet hold-
er
1. Open the seat. (See page 3-8.)
2. Attach a helmet to a helmet holder,
and then securely close the seat.
WARNING! Never ride with a
helmet attached to the helmet
holder, since the helmet may hit
objects, causing loss of control
and possibly an accident.
[EWA10161]
To release a helmet from a helmet
holder
Open the seat, remove the helmet from
the helmet holder, and then close the
seat.
1. Helmet holder
1
U4P7E2E0.book Page 9 Thursday, August 20, 2009 9:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
Turn the key on.

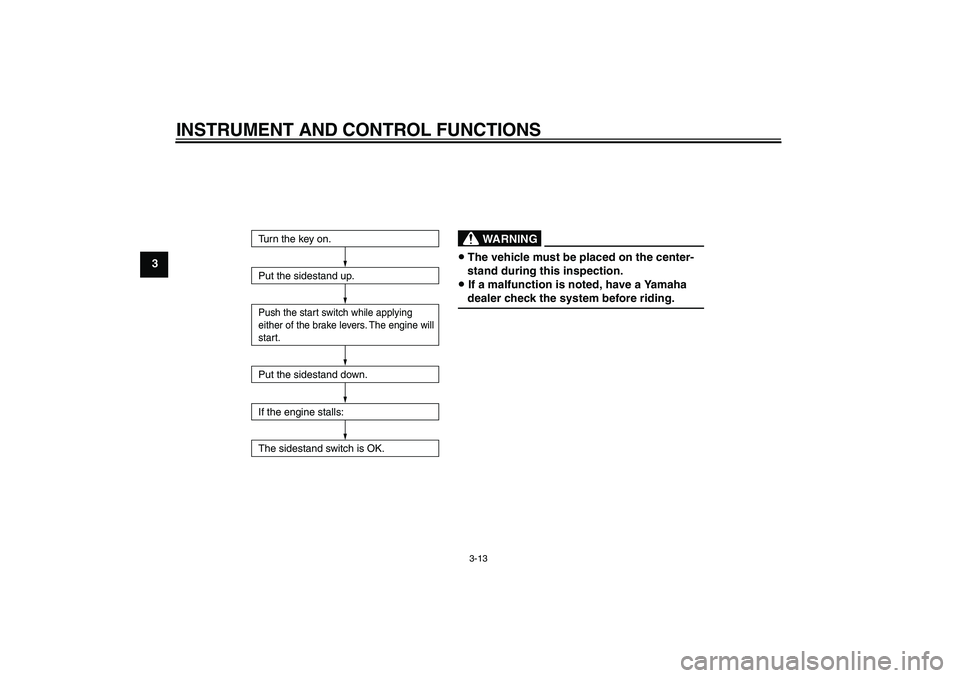

Put the sidestand up.Push the start switch while applying
either of the brake levers. The engine will
start.Put the sidestand down.
If the engine stalls:
The sidestand switch is OK.
• The vehicle must be placed on the center-
stand during this inspection.• If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
U4P7E2E0.book Page 13 Thursday, August 20, 2009 9:44 AM
