2-1
2
EAU00026

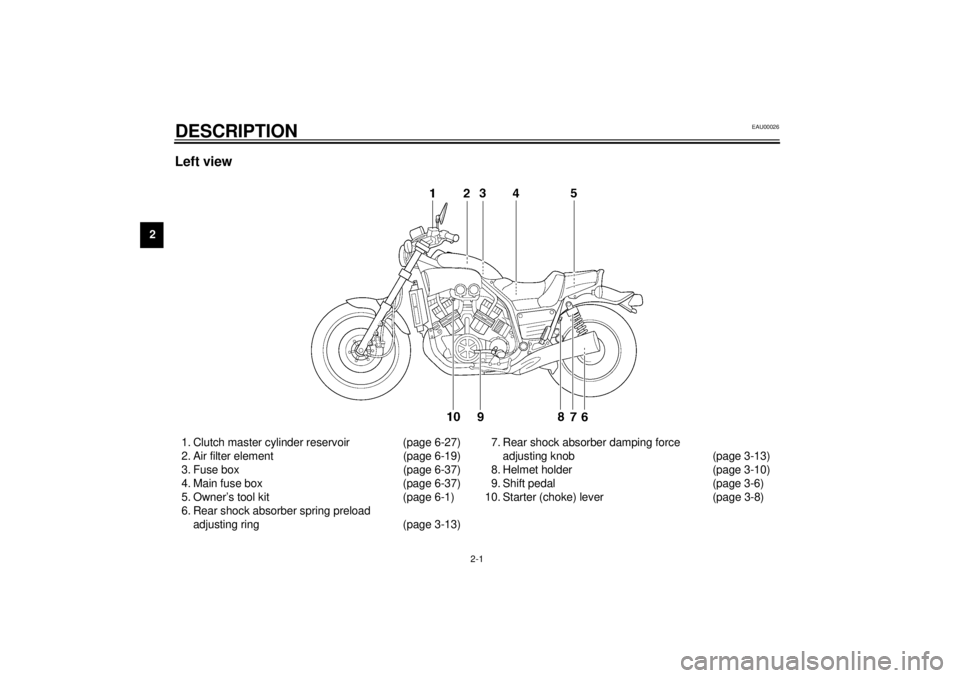

2-DESCRIPTION Left view1. Clutch master cylinder reservoir (page 6-27)
2. Air filter element (page 6-19)
3. Fuse box (page 6-37)
4. Main fuse box (page 6-37)
5. Owner’s tool kit (page 6-1)
6. Rear shock absorber spring preload
adjusting ring (page 3-13)7. Rear shock absorber damping force
adjusting knob (page 3-13)
8. Helmet holder (page 3-10)
9. Shift pedal (page 3-6)
10. Starter (choke) lever (page 3-8)
E_3lr.book Page 1 Wednesday, November 22, 2000 4:10 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-37
6
EAU01664
Replacing the fuses The main fuse box is located under the
rider seat. (See page 3-9 for rider seat
removal and installation procedures.)
The fuse box, which contains the fuses
for the individual circuits, is located un-
der cowling A. (See page 6-6 for cowl-
ing removal and installation proce-
dures.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
EC000103
CAUTION:@ Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire. @3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Main fuse
2. Spare main fuse
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Radiator fan fuse
5. Spare fuse (´ 2)
Specified fuses:
Main fuse: 30 A
Headlight fuse: 15 A
Signaling system fuse: 10 A
Radiator fan fuse: 10 A
Ignition fuse: 10 A
