INSTRUMENT AND CONTROL FUNCTIONS
3-3
2
34
5
6
7
8
9
To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.

EAU34341
(Parking)
The steering is locked, and the taillight,
license plate light and auxiliary light are
on. The hazard lights and turn signal
lights can be turned on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “ ”.
NOTICE

ECA11020
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
EAU11003
Indicator and warning lights
EAU11030
Turn signal indicator lights “” and
“”
The corresponding indicator light flash-es when the turn signal switch is
pushed to the left or right.
EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU46562
Oil level warning light “”
This warning light comes on if the en-
gine oil level is low. To check the elec-
trical circuit of the warning light, place
the vehicle on a level surface, set the
engine stop switch to “ ” and turn the
key from “OFF” to “ON”.
If the warning light does not come on
and then go off, have a Yamaha dealer
check the electrical circuit.
If the warning light stays on, proceed as
follows.
1. Set the engine stop switch to “ ”.
2. Turn the key to “OFF”, wait two
1. Fuel level warning light “ ”
2. Right turn signal indicator light “ ”
3. Coolant temperature warning light “ ”
4. Neutral indicator light “ ”
5. High beam indicator light “ ”
6. Engine trouble warning light “ ”
7. Left turn signal indicator light “ ”
8. Immobilizer system indicator light
9. Anti-lock Brake System (ABS) warning
light “ ”
10. Oil level warning light “ ”
10
9
8
7
6
54321
ABS

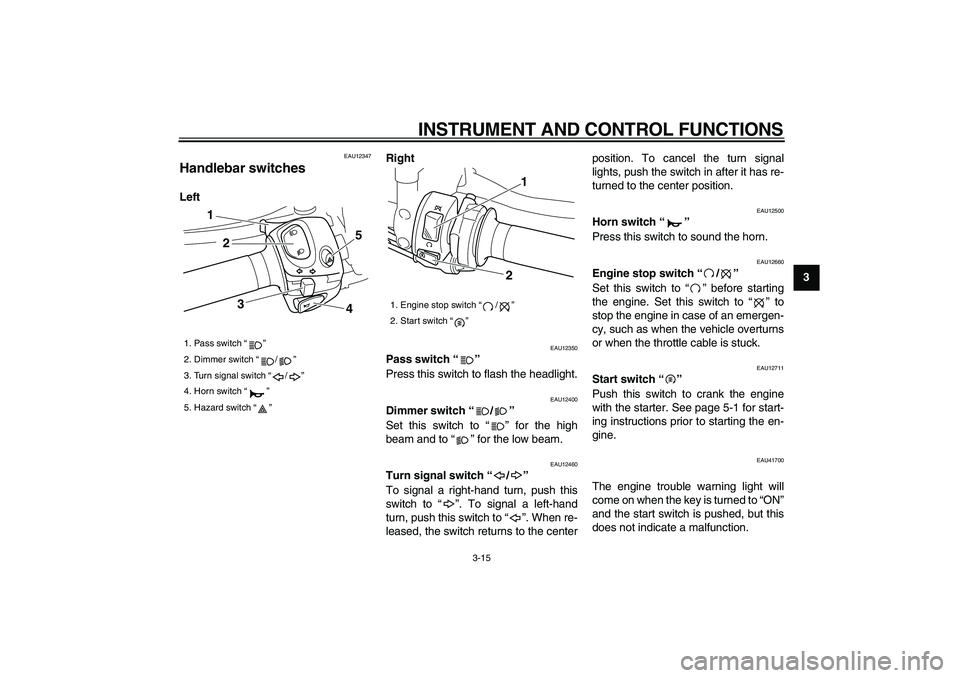

INSTRUMENT AND CONTROL FUNCTIONS
3-15
2
34
5
6
7
8
9

EAU12347
Handlebar switches
LeftRight
EAU12350
Pass switch “”
Press this switch to flash the headlight.
EAU12400
Dimmer switch “/”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch “”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU41700
The engine trouble warning light will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
1. Pass switch “”
2. Dimmer switch “/”
3. Turn signal switch “/”
4. Horn switch “”
5. Hazard switch “”
2
3
45
1

1. Engine stop switch “/”
2. Start switch “”
1
2

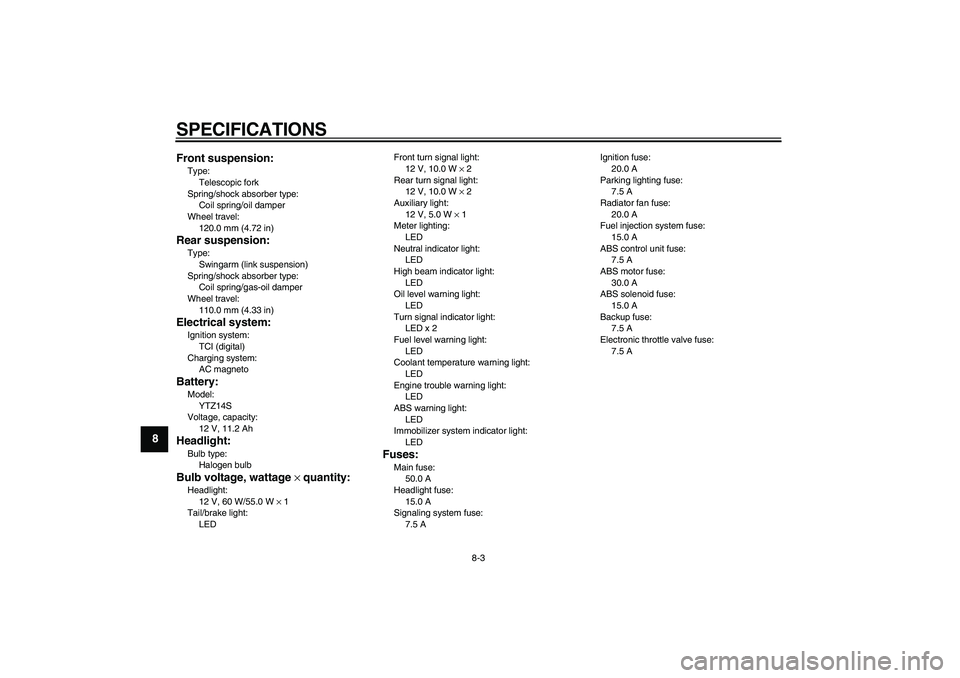

SPECIFICATIONS
8-3
1
2
3
4
5
6
7
8
9Front suspension:

Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)
Rear suspension:
Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
110.0 mm (4.33 in)
Electrical system:
Ignition system:
TCI (digital)
Charging system:
AC magneto
Battery:
Model:
YTZ14S
Voltage, capacity:
12 V, 11.2 Ah
Headlight:
Bulb type:
Halogen bulb
Bulb voltage, wattage
×
quantity:
Headlight:
12 V, 60 W/55.0 W
×
1
Tail/brake light:
LEDFront turn signal light:
12 V, 10.0 W
×
2
Rear turn signal light:
12 V, 10.0 W
×
2
Auxiliary light:
12 V, 5.0 W
×
1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LED
Turn signal indicator light:
LED x 2
Fuel level warning light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
ABS warning light:
LED
Immobilizer system indicator light:
LED

Fuses:
Main fuse:
50.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
7.5 AIgnition fuse:
20.0 A
Parking lighting fuse:
7.5 A
Radiator fan fuse:
20.0 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
7.5 A
ABS motor fuse:
30.0 A
ABS solenoid fuse:
15.0 A
Backup fuse:
7.5 A
Electronic throttle valve fuse:
7.5 A

INDEX
A
ABS ......................................................... 3-18
ABS warning light ...................................... 3-5
Air filter element....................................... 6-17
Anti-theft alarm (optional) ........................ 3-14
Auxiliary light bulb, replacing ................... 6-36
B
Battery ..................................................... 6-28
Brake and clutch fluids, changing ............ 6-24
Brake and clutch levers, checking and
lubricating .............................................. 6-25
Brake fluid level, checking ....................... 6-23
Brake lever .............................................. 3-17
Brake pedal ............................................. 3-18
Brake pedal, checking and lubricating ..... 6-25
C
Cables, checking and lubricating ............. 6-24
Care ........................................................... 7-1
Catalytic converters ................................. 3-22
Clutch lever.................................... 3-16
,
6-21
Coolant .................................................... 6-14
Coolant temperature warning light............. 3-4
Cowling and panels, removing and
installing .................................................. 6-6
D
Dimmer switch ......................................... 3-15
E
Engine break-in ......................................... 5-3
Engine idling speed, checking ................. 6-17
Engine oil and oil filter cartridge ................ 6-9
Engine stop switch................................... 3-15
Engine trouble warning light ...................... 3-4
EXUP system .......................................... 3-28
F
Final gear oil ............................................ 6-12
Front and rear brake pads, checking....... 6-22
Front brake lever free play, checking ...... 6-21
Front fork, adjusting................................. 3-24
Front fork, checking ................................. 6-26
Fuel ......................................................... 3-20
Fuel level warning light .............................. 3-4
Fuel tank cap ........................................... 3-19
Fuses, replacing ...................................... 6-31
H
Handlebar switches ................................. 3-15
Hazard switch .......................................... 3-16
Headlight bulb, replacing ......................... 6-32
High beam indicator light ........................... 3-3
Horn switch.............................................. 3-15
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-29
Immobilizer system.................................... 3-1
Immobilizer system indicator light ............. 3-5
Indicator and warning lights....................... 3-3
K
Key identification number .......................... 9-1
L
License plate light bulb, replacing ........... 6-35
Luggage strap holders............................. 3-28
M
Main switch/steering lock .......................... 3-2
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function display ................................. 3-6
N
Neutral indicator light................................. 3-3
O
Oil level warning light ................................ 3-3
P
Parking ...................................................... 5-3
Part locations ............................................ 2-1
Pass switch ............................................. 3-15
Periodic maintenance and lubrication
chart ........................................................ 6-2
R
Rear brake light switch, adjusting ........... 6-22
S
Safety information ..................................... 1-1
Seats ....................................................... 3-22
Shifting ...................................................... 5-2
Shift pedal ............................................... 3-17
Shift pedal, checking and lubricating ...... 6-26
Shock absorber assembly, adjusting ...... 3-26
Sidestand ................................................ 3-29
Sidestand, checking and lubricating ....... 6-26
Spark plugs, checking ............................... 6-8
Specifications ............................................ 8-1
Speedometer unit...................................... 3-5
Starting the engine .................................... 5-1
Start switch ............................................. 3-15
Steering, checking .................................. 6-27
Storage ..................................................... 7-4
Supporting the motorcycle ...................... 6-36
T
Tail/brake light......................................... 6-34
Throttle cable free play, checking ........... 6-17
Throttle grip and cable, checking and
lubricating ............................................. 6-24
Tires ........................................................ 6-18
Tool kit ...................................................... 6-1
