DESCRIPTION
2-3
1
2
3
4
5
6
7
8
9

EAU10430
Controls and instruments
123 4 67 8
9 10 11
5

1. Clutch lever (page 3-16)
2. Left handlebar switches (page 3-15)
3. Clutch fluid reservoir (page 6-23)
4. Speedometer unit (page 3-5)
5. Shift timing indicator light
6. Front brake fluid reservoir (page 6-23)
7. Right handlebar switches (page 3-15)
8. Brake lever (page 3-17)9. Throttle grip (page 6-17)
10. Multi-function display (page 3-6)
11. Main switch/steering lock (page 3-2)

INSTRUMENT AND CONTROL FUNCTIONS
3-2
1
2
3
4
5
6
7
8
9as they may cause signal inter-

ference.
EAU10460

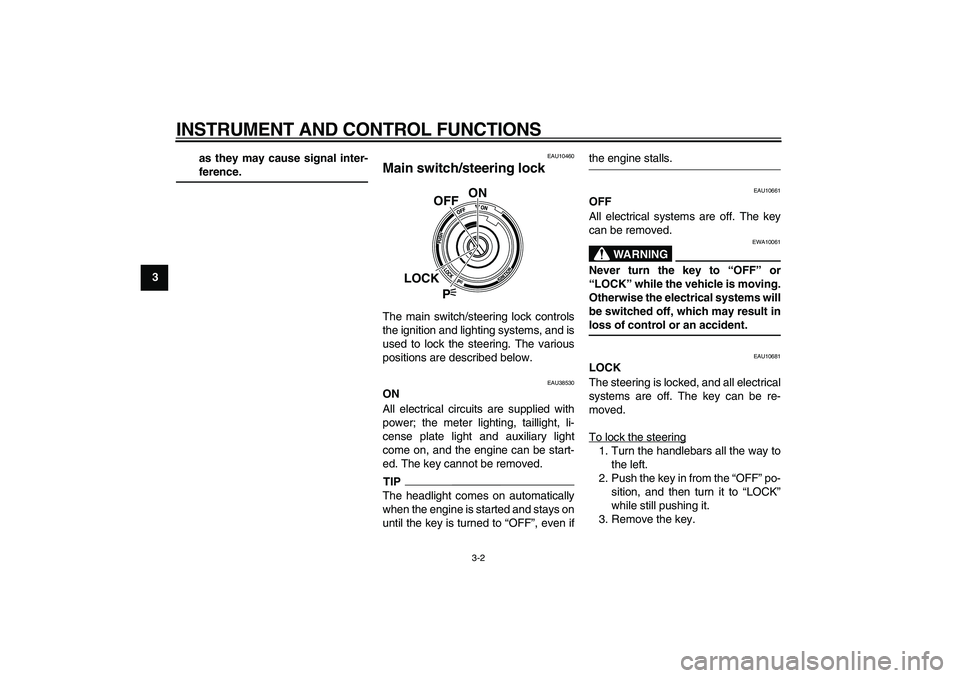

Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU38530
ON
All electrical circuits are supplied with
power; the meter lighting, taillight, li-
cense plate light and auxiliary light
come on, and the engine can be start-
ed. The key cannot be removed.
TIP

The headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF”, even if
the engine stalls.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
WARNING

EWA10061
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident.
EAU10681
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
ON
OFF
LOCK
P

INSTRUMENT AND CONTROL FUNCTIONS
3-3
2
34
5
6
7
8
9
To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.

EAU34341
(Parking)
The steering is locked, and the taillight,
license plate light and auxiliary light are
on. The hazard lights and turn signal
lights can be turned on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “ ”.
NOTICE

ECA11020
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
EAU11003
Indicator and warning lights
EAU11030
Turn signal indicator lights “” and
“”
The corresponding indicator light flash-es when the turn signal switch is
pushed to the left or right.
EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU46562
Oil level warning light “”
This warning light comes on if the en-
gine oil level is low. To check the elec-
trical circuit of the warning light, place
the vehicle on a level surface, set the
engine stop switch to “ ” and turn the
key from “OFF” to “ON”.
If the warning light does not come on
and then go off, have a Yamaha dealer
check the electrical circuit.
If the warning light stays on, proceed as
follows.
1. Set the engine stop switch to “ ”.
2. Turn the key to “OFF”, wait two
1. Fuel level warning light “ ”
2. Right turn signal indicator light “ ”
3. Coolant temperature warning light “ ”
4. Neutral indicator light “ ”
5. High beam indicator light “ ”
6. Engine trouble warning light “ ”
7. Left turn signal indicator light “ ”
8. Immobilizer system indicator light
9. Anti-lock Brake System (ABS) warning
light “ ”
10. Oil level warning light “ ”
10
9
8
7
6
54321
ABS

INSTRUMENT AND CONTROL FUNCTIONS
3-5
2
34
5
6
7
8
9

EAU39501
ABS warning light “”
If this warning light comes on or flashes
while riding, the ABS may not work cor-
rectly. If this occurs, have a Yamaha
dealer check the system as soon as
possible. (See page 3-18.)
WARNING

EWA10081
If the ABS warning light comes on or
flashes while riding, the brake sys-
tem reverts to conventional braking.
Therefore, be careful not to cause
the wheels to lock during emergen-
cy braking. If the warning light
comes on or flashes while riding,
have a Yamaha dealer check the
brake system as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
EAU38621
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the keyto “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
This model is also equipped with a
self-diagnosis device for the immobiliz-
er system. (See page 3-13 for an expla-
nation of the self-diagnosis device.)
EAU46622
Speedometer unit
Speedometer
The speedometer shows the riding speed.
TIP

For the U.K.
The speedometer display can be
switched between kilometers and
miles. (See page 3-6 for details.)
Tachometer
The tachometer allows the rider to
monitor the engine speed and keep it
ABS

1. Tachometer
2. Shift timing indicator light
3. Tachometer red zone
4. Speedometer
12
4
3

INSTRUMENT AND CONTROL FUNCTIONS
3-6
1
2
3
4
5
6
7
8
9
within the ideal power range. When the
key is turned to “ON”, the tachometer
needle will sweep once across the r/
min range and then return to zero r/min
in order to test the electrical circuit.
NOTICE

ECA10031
Do not operate the engine in the ta-
chometer red zone.
Red zone: 9500 r/min and above
Shift timing indicator light
See page 3-7 for an explanation and
settings for this indicator light.
EAU46583
Multi-function display
WARNING

EWA12312
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
A “SELECT” button and a “RESET”
button are located on the handlebar
holder. These buttons allow you to con-
trol or change the settings in the
multi-function display.The multi-function display is set to the
Normal mode every time the key is
turned to “ON”.
Normal mode
The following functions are available in
the Normal mode:


an odometer (which shows the to-
tal distance traveled)

a clock

two tripmeters (which show the
distance traveled since they were
last set to zero)

a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning indicator
1. Multi-function display1

1. “SELECT” button
2. “RESET” button
12

INSTRUMENT AND CONTROL FUNCTIONS
3-7
2
34
5
6
7
8
9
started flashing)


a fuel meter

a transmission gear indicator

a coolant temperature display

a self-diagnosis device
TIP

For the U.K. only:
The speedometer and odometer/trip-
meter displays can be switched be-
tween miles and kilometers. To switch
the speedometer and odometer/tripme-
ter displays, press “SELECT” for at
least two seconds.
Tripmeters
Turn the key to “ON”. Push “SELECT”
to switch the display between the trip-
meters “TRIP-1” and “TRIP-2” in the fol-
lowing order.
TRIP-1
→
TRIP-2
→
TRIP-1
When the fuel amount in the fuel tank
decreases to 3.9 L (1.03 US gal, 0.86
Imp.gal), the fuel warning indicator
starts flashing, and the tripmeter auto-
matically changes to the fuel reserve
tripmeter “TRIP-F” and starts counting
the distance traveled from that point. In
that case, push “SELECT” to switch the
display between the various tripmeters
in the following order:
TRIP-F
→
TRIP-1
→
TRIP-2
→
TRIP-F
To reset a tripmeter, select it by push-
ing “SELECT”, and then push “RESET”
for at least one second. If you do not re-
set the fuel reserve tripmeter manually,
it resets itself automatically and the dis-
play returns to the prior meter after re-
fueling and traveling 5 km (3 mi).
Select mode
The various functions of this multi-func-
tion display are adjusted in the Select
mode.
TIP


The transmission must be in neu-
tral to change settings in this
mode.

Shifting the transmission into gear
saves all settings made, then can-
cels the Select mode and displays
the Normal mode in all screens.

Depending on the screen, pushing
“RESET” saves settings or can-
cels the Select mode to display the
Normal mode.
Push and hold “SELECT” and “RESET”
for at least three seconds to enter the
Select mode.
The following items can be set/adjusted
in this mode:

brightness

shift timing indicator light
1. Odometer
2. Clock
3. Tripmeters/fuel reserve tripmeter
4. Fuel meter
5. Transmission gear indicator
6. Coolant temperature display
1
23
4
56

INSTRUMENT AND CONTROL FUNCTIONS
3-8
1
2
3
4
5
6
7
8
9


clock

stopwatch

countdown clock

system status

maintenance counters
TIP

To return to the Normal mode, push
“SELECT” to scroll to “”, then push
“RESET”.
Adjusting the brightness
This function allows you to adjust the
brightness of the tachometer unit panel
(“Meter panel”), the tachometer needle
(“Needle”), and the speedometer and
multi-function displays (“Display”) to
suit the outside lighting conditions.
1. Push “SELECT” to highlight
“Brightness”.
2. Push “RESET”, then push “SE-
LECT” to scroll through the func-
tions and to highlight an item.3. Push “RESET”; the brightness lev-
el segments for the selected item
starts flashing.
4. Push “SELECT” to highlight the
desired brightness level.
5. Push “RESET” to set the bright-
ness level.
6. Push “SELECT” to scroll to “”,
then push “RESET” to return to the
previous menu.
Selecting the shift timing indicator light
settings
This function allows you to choose
whether or not the shift timing indicator
light is activated and whether it flashes
or stays on when activated.
1. Push “SELECT” to highlight “Shift
light”.
2. Push “RESET”.
3. Push “SELECT” to highlight “Oper-
ation selection”.
4. Push “RESET”.
Push “SELECT” and highlight “On”
to activate the indicator light; the
indicator light comes on and stays
on when activated.
Push “SELECT” and highlight

1. Shift timing indicator light
1

INSTRUMENT AND CONTROL FUNCTIONS
3-10
1
2
3
4
5
6
7
8
9
2. Push “RESET” and the r/min digits
for the highlighted gear start flash-
ing, then perform steps 4–8 under
“To set all gears to the same r/
min:” in order to set the r/min for
the individual gears.
TIP

After setting r/min for individual gears, if
“All” is chosen, all previously set r/min
for individual gears return to the default
settings of 9000 (activation) and 11000
(deactivation).
3. Push “SELECT” to scroll to “”,
then push “RESET” to return to the
previous menu.
Setting the shift timing indicator light
brightnessThis function allows you to adjust the
brightness of the shift timing indicator
light.
1. Push “SELECT” to highlight
“Brightness”.2. Push “RESET” and the brightness
level segments start flashing.
3. Push “SELECT” to highlight the
desired brightness level.
4. Push “RESET” to set the selected
brightness level.
5. Push “RESET” to return to the pre-
vious menu.
6. Push “SELECT” to scroll to “”,
then push “RESET”. This allows
you to select another item in the
menu.
Setting the clock
1. Push “SELECT” to highlight “Dis-
play”.2. Push “RESET”; the following
screen is displayed.
3. Push “RESET” and the hour digits
start flashing.
4. Push “SELECT” to increment the
hours.
5. Push “RESET”, and the minute
digits start flashing.
6. Push “SELECT” to increment the
minutes.
7. Push “RESET” to start the clock.
8. Push “RESET” again to return to
the previous menu.
Resetting all the brightness and shift
timing indicator light functions:This resets ALL settings made to the
brightness and shift timing indicator
light functions.
1. Push “SELECT” to highlight “Dis-
play”.

INSTRUMENT AND CONTROL FUNCTIONS
3-11
2
34
5
6
7
8
9
2. Push “RESET”.
3. Push “SELECT” to highlight “All re-
set”.
4. Push “RESET”, then push “SE-
LECT” to highlight “Yes”.
5. Push “RESET” to reset the bright-
ness and shift timing light indicator
values to the factory setting. The
display returns to the Normal
mode.
TIP

To perform further multi-function dis-
play settings, enter the Select mode
again by pushing and holding “SE-
LECT” and “RESET” for at least three
seconds.
Using the stopwatch
The stopwatch can be activated as fol-
lows.
1. Push “SELECT” to highlight “Stop-
watch”.
2. Push “RESET”.
3. Push “SELECT” to highlight “Stop-
watch”.
4. Push “RESET”.
The multi-function display chang-
es to the Normal mode and the
stopwatch is displayed in place of
the clock.5. Push “SELECT” to start the stop-
watch.
6. Push “SELECT” or the start switch
“” to stop the stopwatch.
7. Push “RESET” to reset the stop-
watch.
TIP


If neither “SELECT” or “RESET”
are pushed for one minute, the
screen automatically changes to
the Normal mode.

Pushing “RESET” for at least two
seconds changes the screen to
the Normal mode.

To perform further multi-function
display settings, enter the Select
mode again by pushing and hold-
ing “SELECT” and “RESET” for at
least three seconds.
Using the countdown clock:
The countdown clock can be activated
as follows.
1. Push “SELECT” to highlight “Stop-
watch”.
2. Push “RESET”.
3. Push “SELECT” to highlight
“Countdown”.
