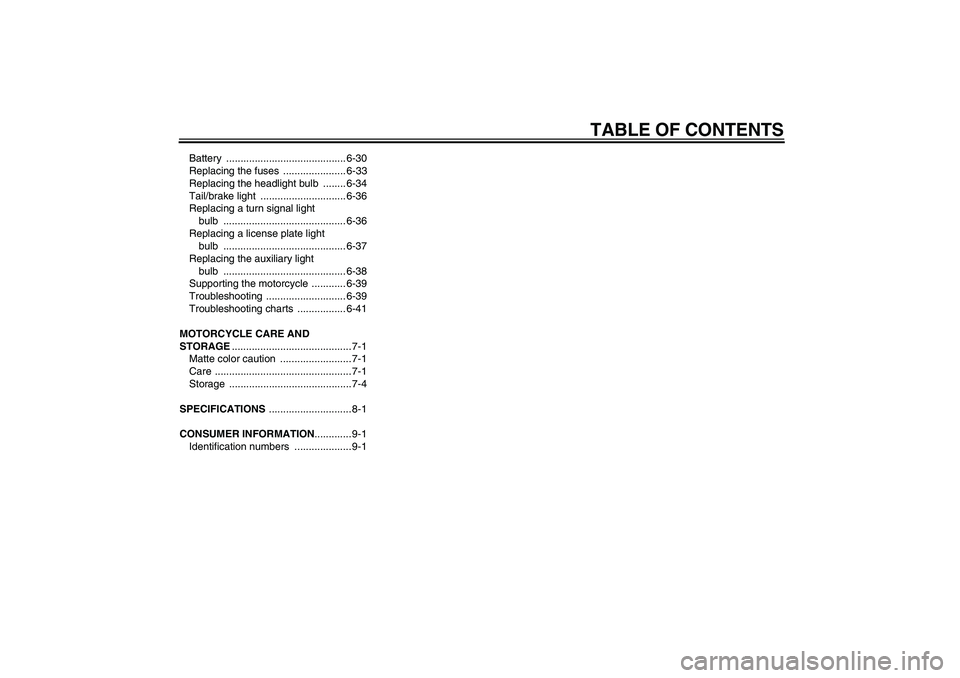

TABLE OF CONTENTS
Battery .......................................... 6-30
Replacing the fuses ...................... 6-33
Replacing the headlight bulb ........ 6-34
Tail/brake light .............................. 6-36
Replacing a turn signal light
bulb ........................................... 6-36
Replacing a license plate light
bulb ........................................... 6-37
Replacing the auxiliary light
bulb ........................................... 6-38
Supporting the motorcycle ............ 6-39
Troubleshooting ............................ 6-39
Troubleshooting charts ................. 6-41
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Matte color caution ......................... 7-1
Care ................................................ 7-1
Storage ...........................................7-4
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
U2S3E2E0.book Page 2 Tuesday, September 21, 2010 10:43 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6
EAU46453

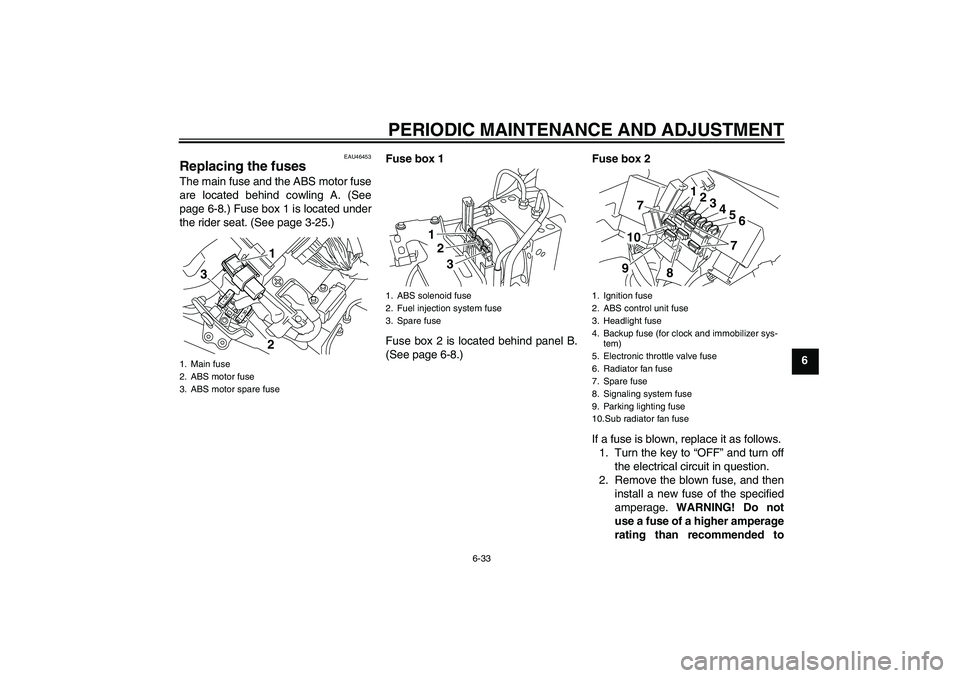

Replacing the fuses The main fuse and the ABS motor fuse
are located behind cowling A. (See
page 6-8.) Fuse box 1 is located under
the rider seat. (See page 3-25.)Fuse box 1
Fuse box 2 is located behind panel B.
(See page 6-8.)Fuse box 2
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to1. Main fuse
2. ABS motor fuse
3. ABS motor spare fuse
1
3
2
1. ABS solenoid fuse
2. Fuel injection system fuse
3. Spare fuse
123
1. Ignition fuse
2. ABS control unit fuse
3. Headlight fuse
4. Backup fuse (for clock and immobilizer sys-
tem)
5. Electronic throttle valve fuse
6. Radiator fan fuse
7. Spare fuse
8. Signaling system fuse
9. Parking lighting fuse
10.Sub radiator fan fuse
1
2
3
4
5
6
7
8 107
9
U2S3E2E0.book Page 33 Tuesday, September 21, 2010 10:43 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-34
6avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.

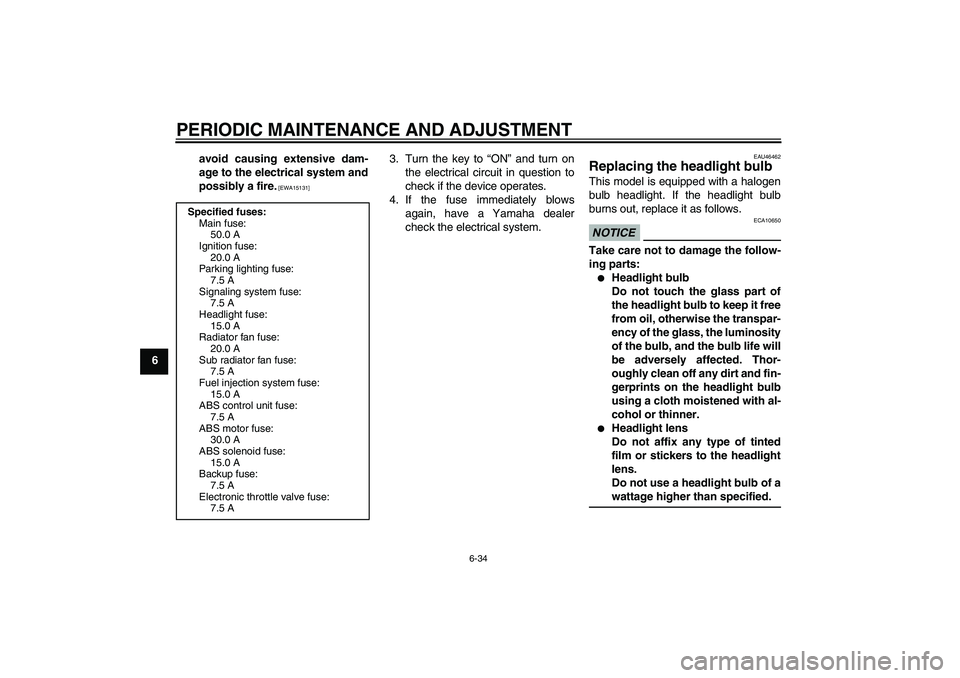

EAU46462
Replacing the headlight bulb This model is equipped with a halogen
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of a
wattage higher than specified.
Specified fuses:
Main fuse:
50.0 A
Ignition fuse:
20.0 A
Parking lighting fuse:
7.5 A
Signaling system fuse:
7.5 A
Headlight fuse:
15.0 A
Radiator fan fuse:
20.0 A
Sub radiator fan fuse:
7.5 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
7.5 A
ABS motor fuse:
30.0 A
ABS solenoid fuse:
15.0 A
Backup fuse:
7.5 A
Electronic throttle valve fuse:
7.5 A
U2S3E2E0.book Page 34 Tuesday, September 21, 2010 10:43 AM

SPECIFICATIONS
8-3
8

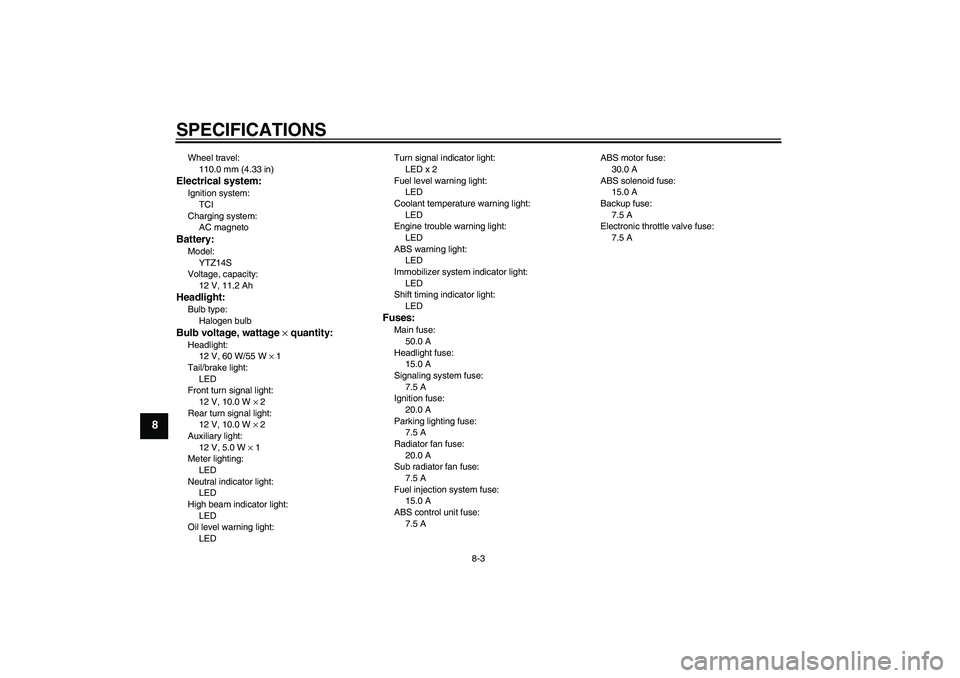

Wheel travel:
110.0 mm (4.33 in)Electrical system:Ignition system:
TCI
Charging system:
AC magnetoBattery:Model:
YTZ14S
Voltage, capacity:
12 V, 11.2 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55 W × 1
Tail/brake light:
LED
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LEDTurn signal indicator light:
LED x 2
Fuel level warning light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
ABS warning light:
LED
Immobilizer system indicator light:
LED
Shift timing indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
7.5 A
Ignition fuse:
20.0 A
Parking lighting fuse:
7.5 A
Radiator fan fuse:
20.0 A
Sub radiator fan fuse:
7.5 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
7.5 AABS motor fuse:
30.0 A
ABS solenoid fuse:
15.0 A
Backup fuse:
7.5 A
Electronic throttle valve fuse:
7.5 A
