INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU49391
Indicator lights and warning
lights
EAU11030
Turn signal indicator lights“”
and“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11060
Neutral indicator light“”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU46565
Oil level warning light“”
This warning light comes on if the en-
gine oil level is low.
To check the electrical circuit of the
warning light, place the vehicle on a
level surface, set the engine stop
switch to“” and turn the key from
“OFF” to “ON”.
If the warning light does not come on
for a few seconds and then go off, have
a Yamaha dealer check the electrical
circuit.If the warning light stays on, proceed as
follows.
1. Set the engine stop switch to“”.
2. Turn the key to “OFF”, wait two
minutes, and then turn the key to
“ON”.
3. If the warning light comes on and
does not go off, check the engine
oil level. (See page 6-11.) If the
warning light still stays on after
confirming the oil level is correct,
have a Yamaha dealer check the
vehicle.
TIP

This warning light will not come
on:
when the engine is idling
when riding
if the engine has stalled and the
key has not been turned from
“ON” to “OFF” and then back to
“ON”
However, if the warning light is on
when the engine is started, it will
stay on until the key is turned to
“OFF”.
1. Shift timing indicator light
2. Fuel level warning light“”
3. Right turn signal indicator light“”
4. Coolant temperature warning light“”
5. Neutral indicator light“”
6. High beam indicator light“”
7. Engine trouble warning light“”
8. Left turn signal indicator light“”
9. Immobilizer system indicator light
10.Anti-lock Brake System (ABS) warning
light“”
11.Oil level warning light“”11
102
1
9
3
4
5
8
7
6
ABS
U2S3E2E0.book Page 4 Tuesday, September 21, 2010 10:43 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3 If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU39502
ABS warning light“”
If this warning light comes on or flashes
while riding, the ABS may not work cor-
rectly. If this occurs, have a Yamaha
dealer check the system as soon as
possible. (See page 3-20.)
WARNING
EWA10081
If the ABS warning light comes on or
flashes while riding, the brake sys-
tem reverts to conventional braking.
Therefore, be careful not to cause
the wheels to lock during emergen-
cy braking. If the warning light
comes on or flashes while riding,
have a Yamaha dealer check the
brake system as soon as possible.The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU48520
Shift timing indicator light
This indicator light can be set to come
on and go off at the desired engine
speeds and is used to inform the rider
when it is time to shift to the next higher
gear.
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off.
If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit. (See page 3-9 for a detailed ex-
planation of the function of this indicator
light and on how to set it.)
EAU38624
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off.
If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
The self-diagnosis device also detects
problems in the immobilizer system cir-
cuits. (See page 3-16 for an explana-
tion of the self-diagnosis device.)
ABS
U2S3E2E0.book Page 6 Tuesday, September 21, 2010 10:43 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3Tripmeters
Turn the key to “ON”. Push “SELECT”
to switch the display between the trip-
meters “TRIP-1” and “TRIP-2” in the fol-
lowing order:
TRIP-1 → TRIP-2 → TRIP-1
When the fuel amount in the fuel tank
decreases to 3.9 L (1.03 US gal,
0.86 Imp.gal), the fuel level warning
light comes on, and the tripmeter auto-
matically changes to the fuel reserve
tripmeter “TRIP-F” and starts counting
the distance traveled from that point. In
that case, push “SELECT” to switch the
display between the various tripmeters
in the following order:
TRIP-F → TRIP-1 → TRIP-2 → TRIP-F
If you continue to ride the vehicle after
the fuel reserve tripmeter “TRIP-F” ap-
pears, the fuel meter and fuel level
warning indicator“” start flashing.
To reset a tripmeter, select it by push-
ing “SELECT”, and then push “RESET”
for at least one second. If you do not re-
set the fuel reserve tripmeter manually,
it resets itself automatically and the dis-
play returns to the prior meter after re-
fueling and traveling 5 km (3 mi).Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The fuel level dis-
played decreases towards “E” (Empty)
as the fuel tank level decreases. When
the fuel amount in the fuel tank de-
creases to 3.9 L (1.03 US gal,
0.86 Imp.gal), the fuel level warning
light comes on. If this occurs, refuel as
soon as possible.
If you continue to ride the vehicle after
the fuel reserve tripmeter “TRIP-F” ap-
pears, the fuel meter and fuel level
warning indicator“” start flashing.
Transmission gear indicatorThis indicator shows the selected gear.
The neutral position is indicated by“”
and by the neutral indicator light.
Coolant temperature meterWith the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. The
coolant temperature varies with chang-
es in the weather and engine load. If
the coolant temperature warning light
comes on, and the top segment and thecoolant temperature warning indicator
flash, stop the vehicle and let the en-
gine cool. (See page 6-41.)
NOTICE
ECA10021
Do not continue to operate the en-
gine if it is overheating.Select mode
The various functions of this multi-func-
tion display are adjusted in the Select
mode.TIP

The transmission must be in neu-
tral to change settings in this
mode.


Shifting the transmission into gear
saves all settings made, then can-
cels the Select mode and displays
the Normal mode in all screens.


Depending on the screen, pushing
“RESET” saves settings or can-
cels the Select mode to display the
Normal mode.
Push and hold “SELECT” and “RESET”
for at least three seconds to enter the
Select mode.
U2S3E2E0.book Page 9 Tuesday, September 21, 2010 10:43 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3 The following items can be set/adjusted
in this mode:


brightness


shift timing indicator light


clock


stopwatch


countdown clock


system status


maintenance counters
TIPTo return to the Normal mode, push
“SELECT” to scroll to“”, then push
“RESET”.Adjusting the brightnessThis function allows you to adjust the
brightness of the tachometer panel and
speedometer (“Meter panel”), the ta-
chometer needle (“Needle”), and the
multi-function display (“Display”) to suit
the outside lighting conditions.
1. Push “SELECT” to highlight
“Brightness”.2. Push “RESET”, then push “SE-
LECT” to scroll through the func-
tions and to highlight an item.
3. Push “RESET”; the brightness lev-
el segments for the selected item
starts flashing.
4. Push “SELECT” to highlight the
desired brightness level.
5. Push “RESET” to set the bright-
ness level.
6. Push “SELECT” to scroll to“”,
then push “RESET” to return to the
previous menu.Selecting the shift timing indicator light
settingsThis function allows you to choose
whether or not the shift timing indicator
light is activated and whether it flashes
or stays on when activated.
1. Push “SELECT” to highlight “Shift
light”.
2. Push “RESET”.
3. Push “SELECT” to highlight “Oper-
ation selection”.1. Shift timing indicator light
1
U2S3E2E0.book Page 10 Tuesday, September 21, 2010 10:43 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
35. Push “RESET”, and the minute
digits start flashing.
6. Push “SELECT” to increment the
minutes.
7. Push “RESET” to start the clock.
8. Push “RESET” again to return to
the previous menu.
Resetting all the brightness and shift
timing indicator light functionsThis resets all settings made to the
brightness and shift timing indicator
light functions.
1. Push “SELECT” to highlight “Dis-
play”.
2. Push “RESET”.
3. Push “SELECT” to highlight “All re-
set”.
4. Push “RESET”, then push “SE-
LECT” to highlight “Yes”.5. Push “RESET” to reset the bright-
ness and shift timing light indicator
values to the factory setting. The
display returns to the Normal
mode.
TIPTo perform further multi-function dis-
play settings, enter the Select mode
again by pushing and holding “SE-
LECT” and “RESET” for at least three
seconds.Using the stopwatchThe stopwatch can be activated as fol-
lows.
1. Push “SELECT” to highlight “Stop-
watch”.
2. Push “RESET”.3. Push “SELECT” to highlight “Stop-
watch”.
4. Push “RESET”.
The multi-function display chang-
es to the Normal mode and the
stopwatch is displayed in place of
the clock.
5. Push “SELECT” to start the stop-
watch.
6. Push the start switch“” or “SE-
LECT” to stop the stopwatch.
7. Push “RESET” to reset the stop-
watch.
TIP

If neither “SELECT” nor “RESET”
are pushed for one minute, the
screen automatically changes to
the Normal mode.
U2S3E2E0.book Page 13 Tuesday, September 21, 2010 10:43 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3


Pushing “RESET” for at least two
seconds changes the screen to
the Normal mode.


To perform further multi-function
display settings, enter the Select
mode again by pushing and hold-
ing “SELECT” and “RESET” for at
least three seconds.
Using the countdown clockThe countdown clock can be activated
as follows.
1. Push “SELECT” to highlight “Stop-
watch”.
2. Push “RESET”.
3. Push “SELECT” to highlight
“Countdown”.
4. Push “RESET”. The multi-function
display changes to the Normal
mode, the stopwatch is displayed
in place of the clock, and the trans-
mission gear indicator changes to
the countdown clock.5. Push “SELECT” or shift into gear
and the countdown clock starts
counting down from “5”. Simulta-
neously, the shift timing indicator
light flashes according to the num-
ber displayed (i.e., when “5” is dis-
played, the indicator light flashes
five times, when “4” is displayed,
the indicator light flashes four
times, etc.). The stopwatch starts
counting when the countdown
clock finishes counting.
6. Push the start switch“” or “SE-
LECT” to stop the countdown
clock.
7. Push “RESET” to reset the count-
down clock and stopwatch.
8. Repeat steps 5–7, or push “RE-
SET” again for at least two sec-
onds to enter the Normal mode.
TIPTo perform further multi-function dis-
play settings, be sure the transmis-
sion is in neutral, then enter theSelect mode again by pushing and
holding “SELECT” and “RESET” for at
least three seconds.
Checking and resetting the system sta-tusThe status/readings of the following
items are displayed, and the tripmeters
can be reset.

tripmeters and odometer


fuel consumption


air intake temperature


throttle opening position
TIP

The “System status” menu cannot
be entered if the fuel level warning
light or coolant temperature warn-
ing light is on.


If, when the engine is running
while the system status menu is
displayed, the fuel level warning
light or coolant temperature warn-
ing light comes on, the Normal
mode is automatically displayed.
1. Push “SELECT” to highlight “Sys-
tem status”, then push “RESET”.
U2S3E2E0.book Page 14 Tuesday, September 21, 2010 10:43 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12348
Handlebar switches LeftRight
EAU12350
Pass switch“”
Press this switch to flash the headlight.
EAU12400
Dimmer switch“/”
Set this switch to“” for the high
beam and to“” for the low beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the center
1. Pass switch“”
2. Dimmer switch“/”
3. Hazard switch“”
4. Horn switch“”
5. Turn signal switch“/”
5
43
2
1
1. Engine stop switch“/”
2. Start switch“”
1
2
U2S3E2E0.book Page 17 Tuesday, September 21, 2010 10:43 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-18
3 position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch“”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU42340
The engine trouble warning light and
ABS warning light will come on when
the key is turned to “ON” and the start
switch is pushed, but this does not indi-
cate a malfunction.
EAU12733
Hazard switch“”
With the key in the “ON” or“” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-
tery may discharge.
EAU12830
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch lever position adjusting dial. To
adjust the distance between the clutch
lever and the handlebar grip, turn the
adjusting dial while holding the lever
pushed away from the handlebar grip.1. Clutch lever
2. Clutch lever position adjusting dial
3. Arrow mark
4. Distance between clutch lever and handlebar
grip
4
1
2
3
U2S3E2E0.book Page 18 Tuesday, September 21, 2010 10:43 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-32
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NO
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
”.
U2S3E2E0.book Page 32 Tuesday, September 21, 2010 10:43 AM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5

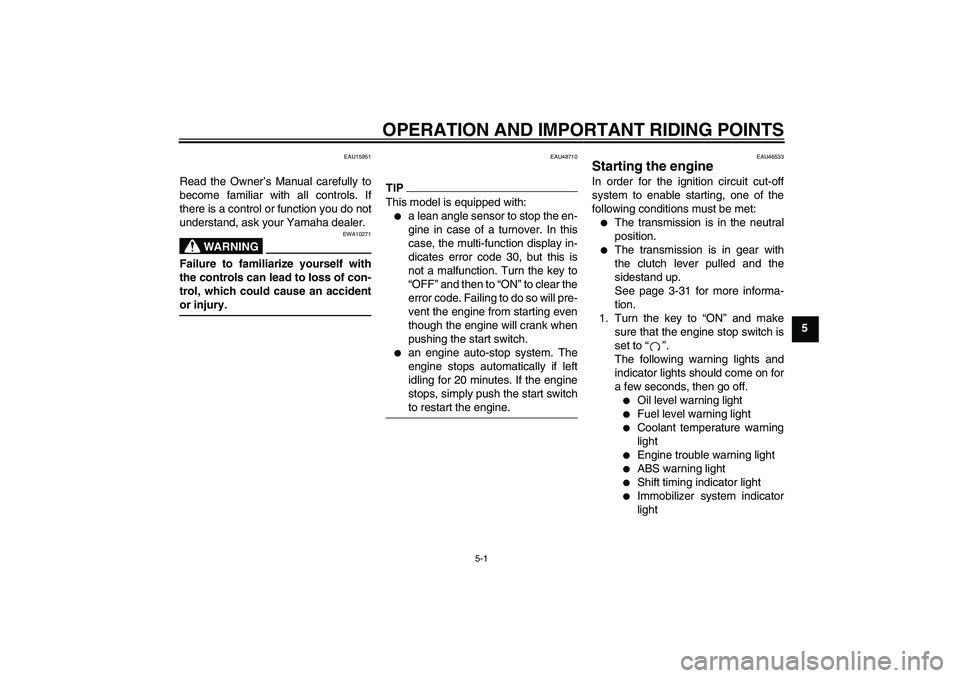

EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU48710
TIPThis model is equipped with:

a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the multi-function display in-
dicates error code 30, but this is
not a malfunction. Turn the key to
“OFF” and then to “ON” to clear the
error code. Failing to do so will pre-
vent the engine from starting even
though the engine will crank when
pushing the start switch.


an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. If the engine
stops, simply push the start switch
to restart the engine.
EAU46533
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the
sidestand up.
See page 3-31 for more informa-
tion.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to“”.
The following warning lights and
indicator lights should come on for
a few seconds, then go off.

Oil level warning light


Fuel level warning light


Coolant temperature warning
light


Engine trouble warning light


ABS warning light


Shift timing indicator light


Immobilizer system indicator
light
U2S3E2E0.book Page 1 Tuesday, September 21, 2010 10:43 AM
