YAMAHA VMAX 2012 Owner's Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU51661
ABS warning light “ ”
In normal operation, the ABS warning
light comes on when the key is turned
to “ON”, and goes off after traveling at a
speed of 10 km/h (6 mi/h) or higher.
If the ABS warning light:●
does not come on when the key is
turned to “ON”
●
comes on or flashes while riding
●
does not go off after traveling at a
speed of 10 km/h (6 mi/h) or higher
The ABS may not work correctly. If any
of the above occurs, have a Yamaha
dealer check the system as soon as
possible. (See page 3-21 for an expla-
nation of the ABS.)WARNING
EWA16040
If the ABS warning light does not go
off after traveling at a speed of 10
km/h (6 mi/h) or higher, or if the
warning light comes on or flashes while riding, the brake system re-
verts to conventional braking. If ei-
ther of the above occurs, or if the
warning light does not come on at
all, use extra caution to avoid possi-
ble wheel lock during emergency
braking. Have a Yamaha dealer
check the brake system and electri-
cal circuits as soon as possible.
TIPIf the start switch is pushed while the
engine is running, the ABS warning
light will come on, but this is not a mal-
function.
EAU48520
Shift timing indicator light
This indicator light can be set to come
on and go off at the desired engine
speeds and is used to inform the rider
when it is time to shift to the next higher
gear.
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off.
If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit. (See page 3-10 for a detailed
explanation of the function of this indi-
cator light and on how to set it.)
EAU38624
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off.
If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
ABS
U2S3E3E0.book Page 6 Monday, September 19, 2011 8:42 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3The self-diagnosis device also detects
problems in the immobilizer system cir-
cuits. (See page 3-16 for an explana-
tion of the self-diagnosis device.)
EAU46624
Speedometer unit SpeedometerTIPFor the U.K.
The speedometer can be switched be-
tween kilometers and miles. To switch
the speedometer, press the “SELECT”
button for at least two seconds.A “SELECT” button and a “RESET”
button are located on the handlebar
holder. Tachometer
The tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range. When the
key is turned to “ON”, the tachometer
needle will sweep once across the
r/min range and then return to zero
r/min in order to test the electrical cir-
cuit.
NOTICE
ECA10031
Do not operate the engine in the ta-
chometer red zone.
Red zone: 9500 r/min and above
1. Tachometer
2. Shift timing indicator light
3. Tachometer red zone
4. Speedometer
1
2
4
3
1. “SELECT” button
2. “RESET” button
12
U2S3E3E0.book Page 7 Monday, September 19, 2011 8:42 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
Shift timing indicator light
See page 3-10 for an explanation and
settings for this indicator light.
EAU4658C
Multi-function display
WARNING
EWA12312
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of an
accident.A “SELECT” button and a “RESET”
button are located on the handlebar
holder. These buttons allow you to con-
trol or change the settings in the multi-
function display. The multi-function display is set to the
Normal mode every time the key is
turned to “ON”.
Normal mode
The following functions are available in
the Normal mode:
●
an odometer
●
a clock
●
two tripmeters (which show the
distance traveled since they were
last set to zero)
●
a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)
●
a fuel meter
1. Multi-function display
1
1. “SELECT” button
2. “RESET” button
12
U2S3E3E0.book Page 8 Monday, September 19, 2011 8:42 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
●
a transmission gear indicator
●
a coolant temperature meter
●
a self-diagnosis device
TIPFor the U.K. only:
The speedometer and odometer/trip-
meter displays can be switched be-
tween kilometers and miles. To switch
the speedometer and odometer/tripme-
ter displays, press “SELECT” for at
least two seconds.
TripmetersTurn the key to “ON”. Push “SELECT”
to switch the display between the trip-
meters “TRIP-1” and “TRIP-2” in the fol-
lowing order:
TRIP-1 → TRIP-2 → TRIP-1
When the fuel amount in the fuel tank
decreases to 3.9 L (1.03 US gal,
0.86 Imp.gal), the fuel level warning
light comes on, and the tripmeter auto-
matically changes to the fuel reserve
tripmeter “TRIP-F” and starts counting
the distance traveled from that point. In
that case, push “SELECT” to switch the
display between the various tripmeters
in the following order:
TRIP-F → TRIP-1 → TRIP-2 → TRIP-F
If you continue to ride the vehicle after
the fuel reserve tripmeter “TRIP-F” ap-
pears, the fuel meter and fuel level
warning indicator “ ” start flashing.
To reset a tripmeter, select it by push-
ing “SELECT”, and then push “RESET”
for at least one second. If you do not re-
set the fuel reserve tripmeter manually,
it resets itself automatically and the dis-
play returns to the prior meter after re-
fueling and traveling 5 km (3 mi). Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The fuel level dis-
played decreases towards “E” (Empty)
as the fuel tank level decreases. When
the fuel amount in the fuel tank de-
creases to 3.9 L (1.03 US gal,
0.86 Imp.gal), the fuel level warning
light comes on. If this occurs, refuel as
soon as possible.
If you continue to ride the vehicle after
the fuel reserve tripmeter “TRIP-F” ap-
pears, the fuel meter and fuel level
warning indicator “ ” start flashing.
Transmission gear indicatorThis indicator shows the selected gear.
The neutral position is indicated by “ ”
and by the neutral indicator light.
Coolant temperature meterWith the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. The
coolant temperature varies with chang-
es in the weather and engine load. If
the coolant temperature warning light
comes on, and the top segment and the
1. Odometer
2. Clock
3. Tripmeter/fuel reserve tripmeter
4. Coolant temperature warning indicator “ ”
5. Coolant temperature meter
6. Transmission gear indicator
7. Fuel level warning indicator “ ”
8. Fuel meter
123
865
7
4
U2S3E3E0.book Page 9 Monday, September 19, 2011 8:42 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
coolant temperature warning indicator
flash, stop the vehicle and let the en-
gine cool. (See page 6-42.)
NOTICE
ECA10021
Do not continue to operate the en-
gine if it is overheating.Select mode
The various functions of this multi-func-
tion display are adjusted in the Select
mode.TIP●
The transmission must be in neu-
tral to change settings in this
mode.
●
Shifting the transmission into gear
saves all settings made, then can-
cels the Select mode and displays
the Normal mode in all screens.
●
Depending on the screen, pushing
“RESET” saves settings or can-
cels the Select mode to display the
Normal mode.
Push and hold “SELECT” and “RESET”
for at least three seconds to enter the
Select mode. The following items can be set/adjusted
in this mode:
●
brightness
●
shift timing indicator light
●
clock
●
stopwatch
●
countdown clock
●
system status
●
maintenance counters
TIPTo return to the Normal mode, push
“SELECT” to scroll to “ ”, then push
“RESET”.Adjusting the brightnessThis function allows you to adjust the
brightness of the tachometer panel and
speedometer (“Meter panel”), the ta-
chometer needle (“Needle”), and the
multi-function display (“Display”) to suit
the outside lighting conditions.
1. Push “SELECT” to highlight “Brightness”. 2. Push “RESET”, then push “SE-
LECT” to scroll through the func-
tions and to highlight an item.
3. Push “RESET”; the brightness lev- el segments for the selected item
starts flashing.
4. Push “SELECT” to highlight the desired brightness level.
5. Push “RESET” to set the bright- ness level.
6. Push “SELECT” to scroll to “ ”, then push “RESET” to return to the
previous menu.
U2S3E3E0.book Page 10 Monday, September 19, 2011 8:42 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-11

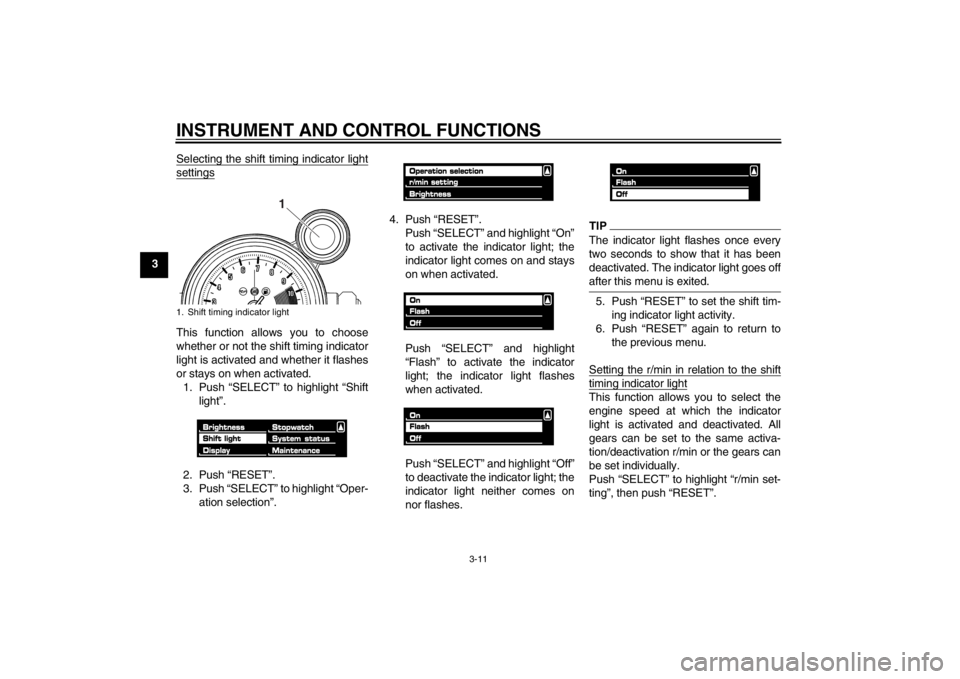

3Selecting the shift timing indicator light
settingsThis function allows you to choose
whether or not the shift timing indicator
light is activated and whether it flashes
or stays on when activated.
1. Push “SELECT” to highlight “Shift light”.
2. Push “RESET”.
3. Push “SELECT” to highlight “Oper- ation selection”. 4. Push “RESET”.
Push “SELECT” and highlight “On”
to activate the indicator light; the
indicator light comes on and stays
on when activated.
Push “SELECT” and highlight
“Flash” to activate the indicator
light; the indicator light flashes
when activated.
Push “SELECT” and highlight “Off”
to deactivate the indicator light; the
indicator light neither comes on
nor flashes.
TIPThe indicator light flashes once every
two seconds to show that it has been
deactivated. The indicator light goes off
after this menu is exited.5. Push “RESET” to set the shift tim-ing indicator light activity.
6. Push “RESET” again to return to the previous menu.
Setting the r/min in relation to the shifttiming indicator lightThis function allows you to select the
engine speed at which the indicator
light is activated and deactivated. All
gears can be set to the same activa-
tion/deactivation r/min or the gears can
be set individually.
Push “SELECT” to highlight “r/min set-
ting”, then push “RESET”.
1. Shift timing indicator light
1
U2S3E3E0.book Page 11 Monday, September 19, 2011 8:42 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
TIPThe shift timing indicator light can be
set to activate between 3000 r/min and
10500 r/min and deactivate between
3500 r/min and 11000 r/min in incre-
ments of 500 r/min.To set all gears to the same r/min:1. Push “SELECT” to highlight “All”.
2. Push “RESET”; “On” is displayed.
3. Push “RESET” and the r/min digits start flashing.
4. Push “SELECT” to highlight the engine speed at which the shift
timing indicator light is activated. 5. Push “RESET” to set the selected
engine speed. “Off” is highlighted
and the r/min digits start flashing.
6. Push “SELECT” to highlight the engine speed at which the shift
timing indicator light is deactivat-
ed.
7. Push “RESET” to set the selected engine speed.
8. Push “RESET” again to return to the previous menu.
To set individual gear r/min: 1. Push “SELECT” to highlight gears from “1st” through “5th”, then push
“RESET”.
2. Push “RESET” and the r/min digits for the highlighted gear start flash-
ing, then perform steps 4–8 under
“To set all gears to the same
r/min:” in order to set the r/min for
the individual gears.
TIPAfter setting r/min for individual gears, if
“All” is chosen, all previously set r/min
for individual gears return to the default
settings of 9000 (activation) and 11000
(deactivation).3. Push “SELECT” to scroll to “ ”,then push “RESET” to return to the
previous menu.
Setting the shift timing indicator lightbrightnessThis function allows you to adjust the
brightness of the shift timing indicator
light. 1. Push “SELECT” to highlight “Brightness”.
2. Push “RESET” and the brightness level segments start flashing.
U2S3E3E0.book Page 12 Monday, September 19, 2011 8:42 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
33. Push “SELECT” to highlight the
desired brightness level.
4. Push “RESET” to set the selected brightness level.
5. Push “RESET” to return to the pre- vious menu.
6. Push “SELECT” to scroll to “ ”, then push “RESET”. This allows
you to select another item in the
menu.
Setting the clock
1. Push “SELECT” to highlight “Dis- play”.
2. Push “RESET”; the following screen is displayed.
3. Push “RESET” and the hour digits start flashing.
4. Push “SELECT” to increment the hours. 5. Push “RESET”, and the minute
digits start flashing.
6. Push “SELECT” to increment the minutes.
7. Push “RESET” to start the clock.
8. Push “RESET” again to return to the previous menu.
Resetting all the brightness and shift
timing indicator light functionsThis resets all settings made to the
brightness and shift timing indicator
light functions. 1. Push “SELECT” to highlight “Dis- play”.
2. Push “RESET”.
3. Push “SELECT” to highlight “All re- set”.
4. Push “RESET”, then push “SE- LECT” to highlight “Yes”. 5. Push “RESET” to reset the bright-
ness and shift timing light indicator
values to the factory setting. The
display returns to the Normal
mode.
TIPTo perform further multi-function dis-
play settings, enter the Select mode
again by pushing and holding “SE-
LECT” and “RESET” for at least three
seconds.Using the stopwatchThe stopwatch can be activated as fol-
lows.1. Push “SELECT” to highlight “Stop- watch”.
2. Push “RESET”.
U2S3E3E0.book Page 13 Monday, September 19, 2011 8:42 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
3. Push “SELECT” to highlight “Stop-
watch”.
4. Push “RESET”. The multi-function display chang-
es to the Normal mode and the
stopwatch is displayed in place of
the clock.
5. Push “SELECT” to start the stop- watch.
6. Push the start switch “ ” or “SE- LECT” to stop the stopwatch.
7. Push “RESET” to reset the stop- watch.
TIP●
If neither “SELECT” nor “RESET”
are pushed for one minute, the
screen automatically changes to
the Normal mode.
●
Pushing “RESET” for at least two
seconds changes the screen to
the Normal mode.
●
To perform further multi-function
display settings, enter the Select
mode again by pushing and hold-
ing “SELECT” and “RESET” for at
least three seconds.
Using the countdown clockThe countdown clock can be activated
as follows.1. Push “SELECT” to highlight “Stop- watch”.
2. Push “RESET”.
3. Push “SELECT” to highlight “Countdown”.
4. Push “RESET”. The multi-function display changes to the Normal
mode, the stopwatch is displayed
in place of the clock, and the trans-
mission gear indicator changes to
the countdown clock. 5. Push “SELECT” or shift into gear
and the countdown clock starts
counting down from “5”. Simulta-
neously, the shift timing indicator
light flashes according to the num-
ber displayed (i.e., when “5” is dis-
played, the indicator light flashes
five times, when “4” is displayed,
the indicator light flashes four
times, etc.). The stopwatch starts
counting when the countdown
clock finishes counting.
6. Push the start switch “ ” or “SE- LECT” to stop the countdown
clock.
7. Push “RESET” to reset the count- down clock and stopwatch.
8. Repeat steps 5–7, or push “RE-
SET” again for at least two sec-
onds to enter the Normal mode.
TIPTo perform further multi-function dis-
play settings, be sure the transmis-
sion is in neutral, then enter the
U2S3E3E0.book Page 14 Monday, September 19, 2011 8:42 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-15
3Select mode again by pushing and
holding “SELECT” and “RESET” for at
least three seconds.
Checking and resetting the system sta-tusThe status/readings of the following
items are displayed, and the tripmeters
can be reset.●
tripmeters and odometer
●
fuel consumption
●
air intake temperature
●
throttle opening position
TIP●
The “System status” menu cannot
be entered if the fuel level warning
light or coolant temperature warn-
ing light is on.
●
If, when the engine is running
while the system status menu is
displayed, the fuel level warning
light or coolant temperature warn-
ing light comes on, the Normal
mode is automatically displayed.
1. Push “SELECT” to highlight “Sys-
tem status”, then push “RESET”. 2. Push “SELECT” to highlight “Yes”,
then push “RESET”. (Highlighting
“No” and pushing “RESET” returns
to the previous menu.)
The display changes to the status
screen. Push “SELECT” and the various trip-
meters and the odometer are displayed
in the following order:
(TRIP-F) → TRIP-1 → TRIP-2 → ODO
→ (TRIP-F)
Push “RESET” to reset a tripmeter.
TIP●
For the U.K. only: Push “SELECT”
for at least two seconds to switch
between kilometers and miles.
1. Odometer/tripmeter/fuel reserve tripmeter
2. Clock
3. Instantaneous fuel consumption
4. Throttle opening position display
5. Transmission gear indicator
6. Air intake temperature display
12 3
654
U2S3E3E0.book Page 15 Monday, September 19, 2011 8:42 AM
