Instrument and control functions
3-27
3
The spring preload setting is deter-
mined by measuring distance A,
shown in the illustration. The shorter
distance A is, the higher the spring pre-
load; the longer distance A is, the lower
the spring preload. Re
boun d d ampin g force
To increase the rebound damping for-
ce and thereby harden the rebound
damping, turn the adjusting knob on
each fork leg in direction (a). To de-
crease the rebound damping force and
thereby soften the rebound damping,
turn the adjusting knob on each fork
leg in direction (b). Compression
dampin g force
To increase the compression damping
force and thereby harden the com-
pression damping, turn the adjusting
screw on each fork leg in direction (a).
To decrease the compression damp-
ing force and thereby soften the com-
pression damping, turn the adjusting
screw on each fork leg in direction (b).

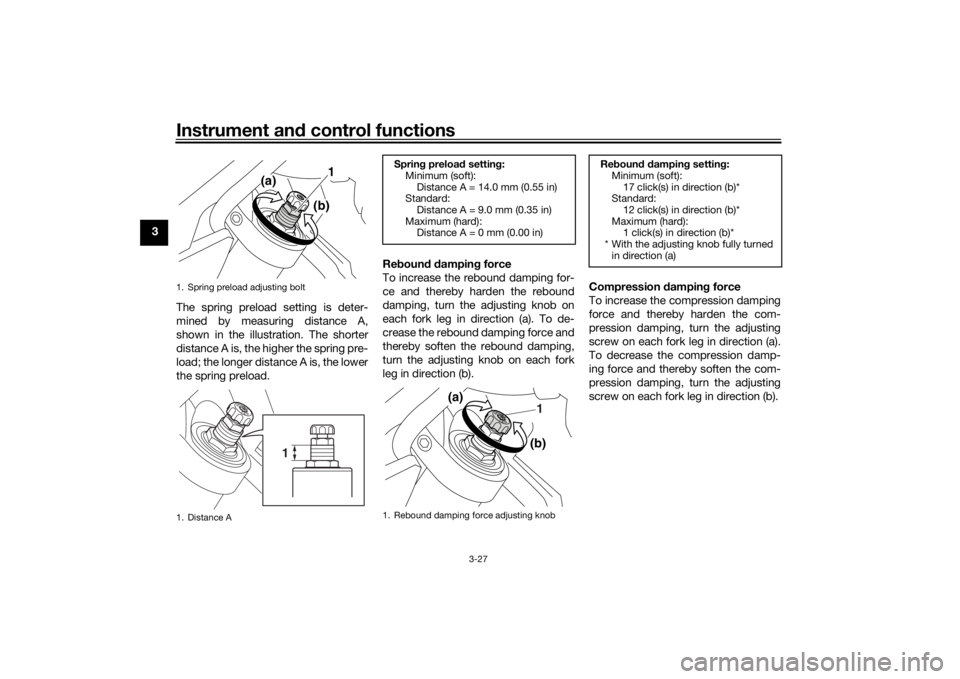

1. Spring preload adjusting bolt
1. Distance A
(a)
(b)
1
1
Spring preloa d setting :
Minimum (soft):
Distance A = 14.0 mm (0.55 in)
Standard:
Distance A = 9.0 mm (0.35 in)
Maximum (hard): Distance A = 0 mm (0.00 in)1. Rebound damping force adjusting knob
(a)
(b)1
Re boun d d ampin g setting :
Minimum (soft):
17 click(s) in direction (b)*
Standard:
12 click(s) in direction (b)*
Maximum (hard): 1 click(s) in direction (b)*
* With the adjusting knob fully turned in direction (a)
U2CEE1E0.book Page 27 Thursday, November 19, 2015 10:32 AM

Periodic maintenance an d a djustment
6-40
6
a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
EAU25872
Trou
bleshootin gAlthough Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition systems,
for example, can cause poor starting
and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWA15142
When checkin g the fuel system, d o
not smoke, an d make sure there are
no open flames or sparks in the ar-
ea, inclu din g pilot li ghts from water heaters or furnaces. Gasoline or
g
asoline vapors can i gnite or ex-
plo de, causin g severe injury or prop-
erty damag e.
U2CEE1E0.book Page 40 Thursday, November 19, 2015 10:32 AM

Specifications
8-1
8
Dimensions:Overall length:2395 mm (94.3 in)
Overall width:
820 mm (32.3 in)
Overall height: 1190 mm (46.9 in)
Seat height: 775 mm (30.5 in)
Wheelbase:
1700 mm (66.9 in)
Ground clearance: 140 mm (5.51 in)
Minimum turning radius: 3.5 m (11.48 ft)Wei ght:Curb weight:
310 kg (683 lb)Engine:Combustion cycle:
4-stroke
Cooling system: Liquid cooled
Valve train: DOHC
Cylinder arrangement:
V-type
Number of cylinders: 4-cylinder
Displacement: 1679 cm³
Bore × stroke:
90.0 × 66.0 mm (3.54 × 2.60 in) Compression ratio:
11.3 : 1
Starting system: Electric starter
Lubrication system:
Wet sump
Engine oil:Recommended brand:
YAMALUBE
SAE viscosity grades:
10W-40
Recommended engine oil grade: API service SG type or higher, JASO
standard MA
Engine oil quantity: Oil change:
4.30 L (4.55 US qt, 3.78 Imp.qt)
With oil filter removal: 4.70 L (4.97 US qt, 4.14 Imp.qt)Final gear oil:Type:
Yamaha genuine shaft drive gear oil SAE 80W-90 API GL-5
Quantity:
0.30 L (0.32 US qt, 0.26 Imp.qt)Coolant quantity:Coolant reservoir (up to the maximum level
mark):0.27 L (0.29 US qt, 0.24 Imp.qt)
Radiator (including all routes): 3.75 L (3.96 US qt, 3.30 Imp.qt)Air filter:Air filter element:Oil-coated paper element
Fuel:Recommended fuel:Premium unleaded gasoline (Gasohol [E10]
acceptable)
Fuel tank capacity: 15 L (4.0 US gal, 3.3 Imp.gal)
Fuel reserve amount:
3.9 L (1.03 US gal, 0.86 Imp.gal)Fuel injection:Throttle body:ID mark:2S31 00Spark plu g(s):Manufacturer/model:
NGK/CR9EIA
Manufacturer/model: DENSO/IU27D
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:Wet, multiple-discDrivetrain:Primary reduction ratio:
1.509 (86/57)
Final drive: Shaft
Secondary reduction ratio: 3.082 (22/23 x 29/9)
Transmission type:
Constant mesh 5-speed
Gear ratio: 1st:
2.375 (38/16)
