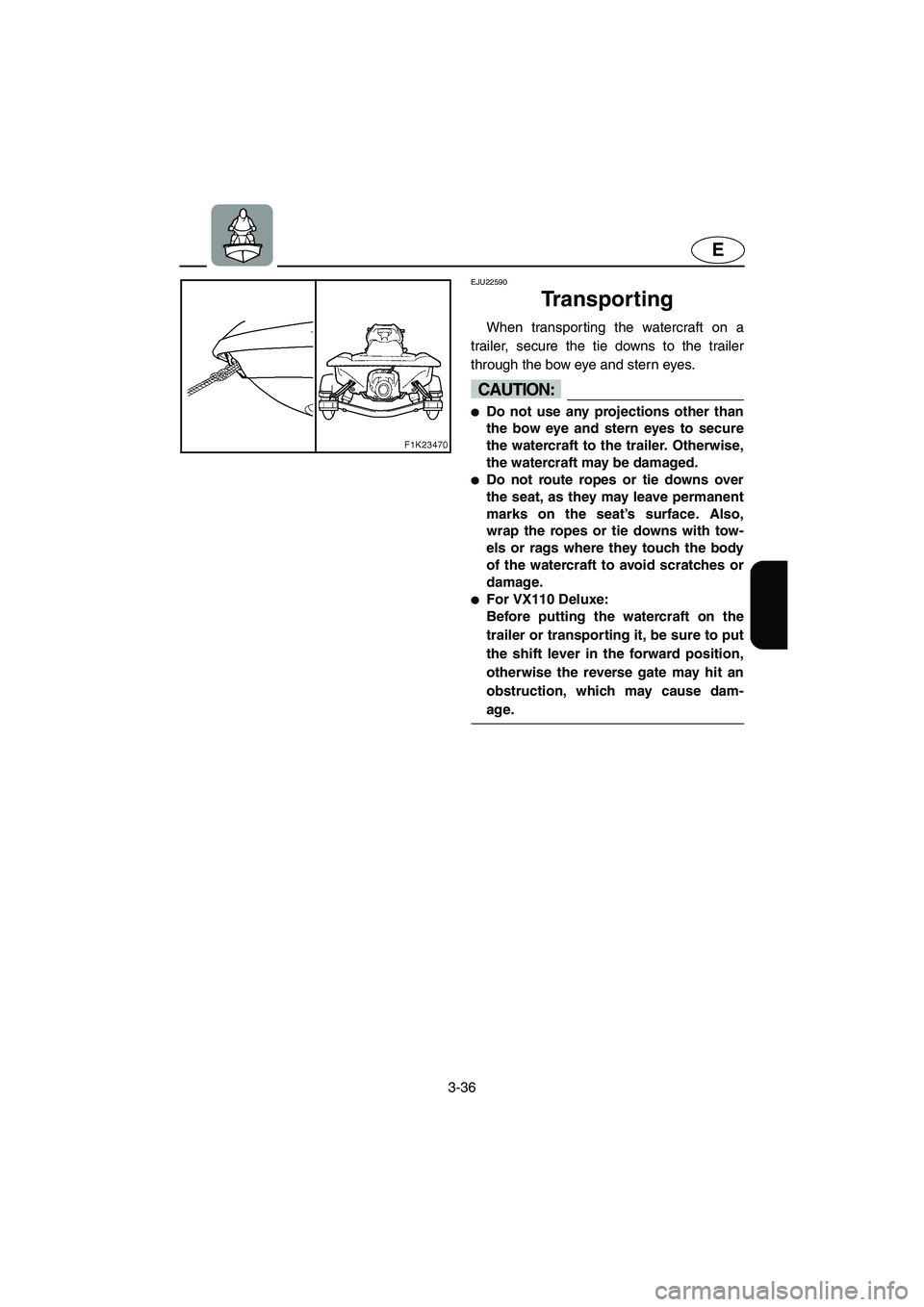

Transporting
When transporting the watercraft on a
trailer, secure the tie downs to the trailer
through the bow eye and stern eyes.
CAUTION:@
Do not use any projections other than
the bow eye and stern eyes to secure
the watercraft to the trailer. Otherwise,
the watercraft may be damaged.

Do not route ropes or tie downs over
the seat, as they may leave permanent
marks on the seat’s surface. Also,
wrap the ropes or tie downs with tow-
els or rags where they touch the body
of the watercraft to avoid scratches or
damage.

For VX110 Deluxe:
Before putting the watercraft on the
trailer or transporting it, be sure to put
the shift lever in the forward position,
otherwise the reverse gate may hit an
obstruction, which may cause dam-
age.
@
E_F1K-70.book Page 36 Thursday, October 20, 2005 1:30 PM

E

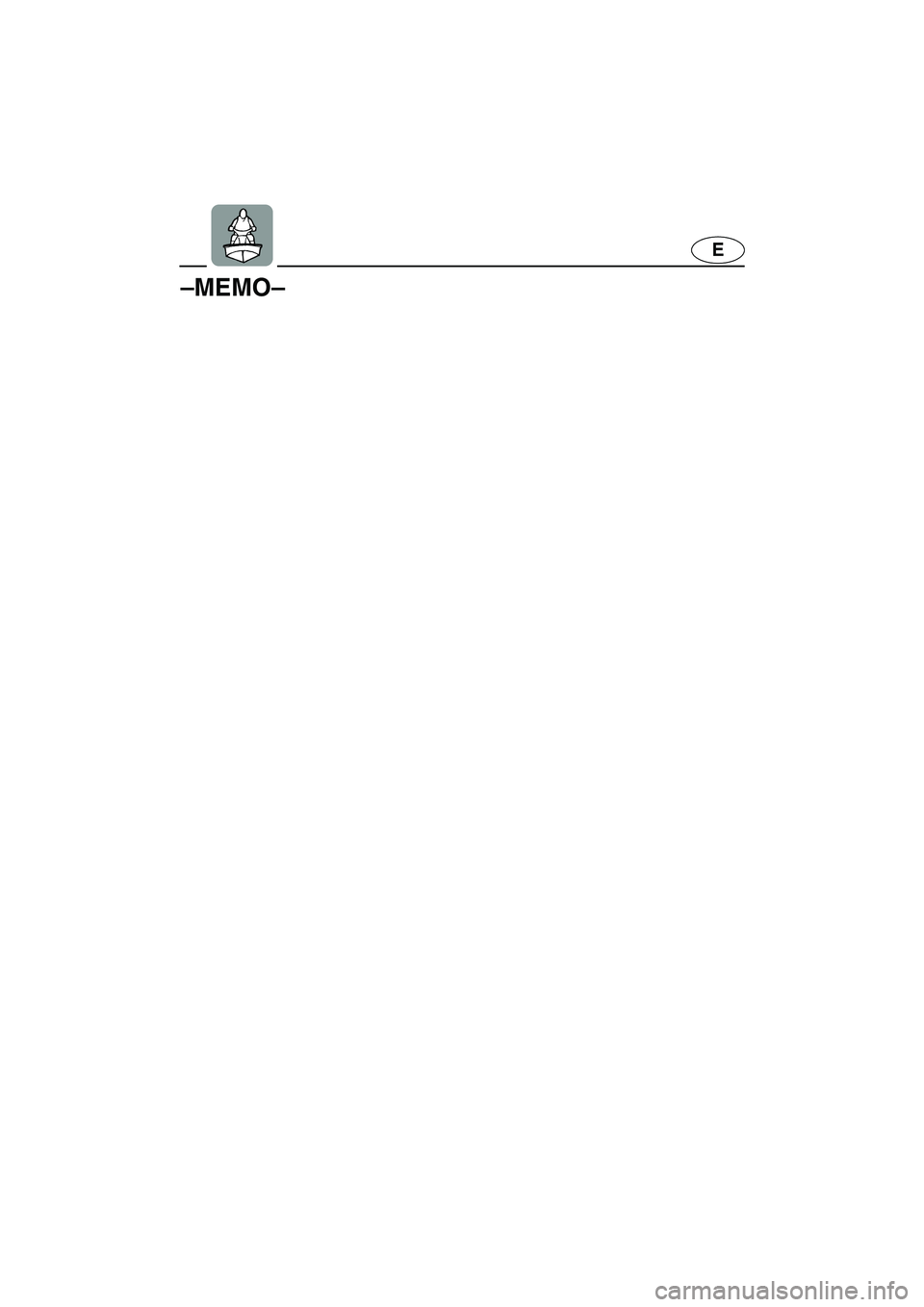

–MEMO–
E_F1K-70.book Page 37 Thursday, October 20, 2005 1:30 PM

E
4
EJU10860
MAINTENANCE AND
CARE
Storage ...................................................... 4-1
Flushing the cooling system .................. 4-1
Lubrication .............................................. 4-3
Fuel system ............................................ 4-4
Battery .................................................... 4-5
Cleaning the watercraft .......................... 4-6
Maintenance and adjustments .............. 4-7
Owner’s/Operator’s Manual and
tool kit ..................................................... 4-9
Periodic maintenance chart ................. 4-10
Inspecting the fuel system ................... 4-11
Changing the engine oil ....................... 4-12
Checking the air filter element ............. 4-14
Inspecting the jet thrust nozzle
angle ..................................................... 4-14
Inspecting the shift cable
(for VX110 Deluxe) .............................. 4-14
Inspecting and adjusting the
throttle cable ......................................... 4-15
Cleaning and adjusting the
spark plugs ........................................... 4-16
Lubrication points ................................. 4-18
Inspecting the battery .......................... 4-20
Adjusting the fuel injection system ...... 4-22
Replacing the fuses ............................. 4-23
Specifications ........................................ 4-24
E_F1K-70.book Page 1 Thursday, October 20, 2005 1:30 PM

4-1
E
EJU18121
Storage
WARNING@ Always place the watercraft upright in a
horizontal position when storing it, oth-
erwise fuel could leak out into the engine
or engine compartment, which could
result in a fire hazard.
@
Storage for prolonged periods of time,
such as winter storage, requires preventa-
tive maintenance to ensure against deterio-
ration. It is advisable to have the watercraft
serviced by a Yamaha dealer prior to stor-
age. However, the following procedures can
be performed by the owner.
EJU21261
Flushing the cooling system
Flushing the cooling system is essential
to prevent the cooling system from being
clogged with salt, sand, or dirt.
CAUTION:@
Do not supply water to the cooling
water passages when the engine is not
running. The water could flow back
through the muffler into the crankcase
causing severe engine damage.

Do not run the engine of the watercraft
for more than 15 seconds without sup-
plying water, otherwise the engine may
overheat.
@
E_F1K-70.book Page 1 Thursday, October 20, 2005 1:30 PM

4-2
E
1. Put the watercraft on land in a horizontal
position.
2. Remove the seat. (See page 2-5 for seat
removal and installation procedures.)
3. Remove the flushing hose connector
cap1, and then insert the garden hose
adapter 2 into the flushing hose con-
nector 3 and turn it until it is securely
connected.
4. Connect the garden hose adapter to a
water tap using a hose.
NOTE:@ The garden hose is not included and must
be purchased separately.
@
5. Start the engine, and then immediately
turn the water supply on until water flows
out continually from the jet nozzle.
6. Run the engine at idling speed for about
3 minutes watching the engine condition.
If the engine stops while flushing, turn
the water supply off immediately and
repeat the above steps.
7. Turn the water supply off, and then force
the remaining water out from the cooling
water passages by alternately squeezing
and releasing the throttle lever for 10 to
15 seconds.
8. Stop the engine.
9. Remove the garden hose adapter and
install the cap.
E_F1K-70.book Page 2 Thursday, October 20, 2005 1:30 PM

4-3
E
EJU21270
Lubrication
WARNING@ Do not spray flammable rust inhibitor
products on engine surfaces while the
engine is hot. The sprayed substance or
propellants could catch fire.
@
1. Remove the seat. (See page 2-5 for seat
removal and installation procedures.)
2. Loosen the clamp screw 1 and discon-
nect the air intake duct 2.
3. Spray a rust inhibitor into the intake
opening 3 for 3 seconds.
4. Connect the air intake duct and tighten
the clamp screw.
5. Start the engine in a well-ventilated area
and let it run at idle for 15 seconds.
CAUTION:@ Do not run the engine for more than
15 seconds. The engine could overheat.
@
6. Lubricate all cables such as the throttle
and steering cables.
NOTE:@ Use a suitable marine grease applicator to
pressure lubricate the cables and purge out
any moisture between the inner and outer
cables.
@
7. Lubricate the areas of the watercraft
specified under Lubrication points on
page 4-18.
E_F1K-70.book Page 3 Thursday, October 20, 2005 1:30 PM

4-4
E
EJU19652
Fuel system
WARNING@ GASOLINE AND ITS VAPORS ARE
HIGHLY FLAMMABLE AND EXPLOSIVE!

Do not smoke when refueling, and
keep away from sparks, flames, or
other sources of ignition.

Stop engine before refueling.

Refuel in a well-ventilated area with
the watercraft in a horizontal position.

Do not stand or sit on the watercraft
while refueling in case of fire.

Take care not to spill gasoline. If gaso-
line spills, wipe it up immediately with
dry rags. Always properly dispose of
gasoline-soaked rags.

Avoid overfilling the fuel tank. Stop fill-
ing when the fuel level reaches approx-
imately 50 mm (2 in) from the top of the
fuel tank. Fuel expands as it warms up
and could overflow if the fuel tank has
been overfilled. If temporarily leaving
the watercraft with a full fuel tank, do
not leave it in direct sunlight. Leave it
in a well-ventilated area with the water-
craft in a horizontal position.

Tighten the filler cap securely after
refueling.

If you should swallow some gasoline,
inhale a lot of gasoline vapor, or get
gasoline in your eyes, get immediate
medical attention.

If any gasoline spills onto your skin,
immediately wash with soap and
water. Change clothing if gasoline
spills on it.
@
Top off the fuel tank with fresh gasoline
and add fuel stabilizer and conditioner to the
fuel tank by following the manufacturer’s
instructions carefully.
E_F1K-70.book Page 4 Thursday, October 20, 2005 1:30 PM

4-5
E
EJU19700

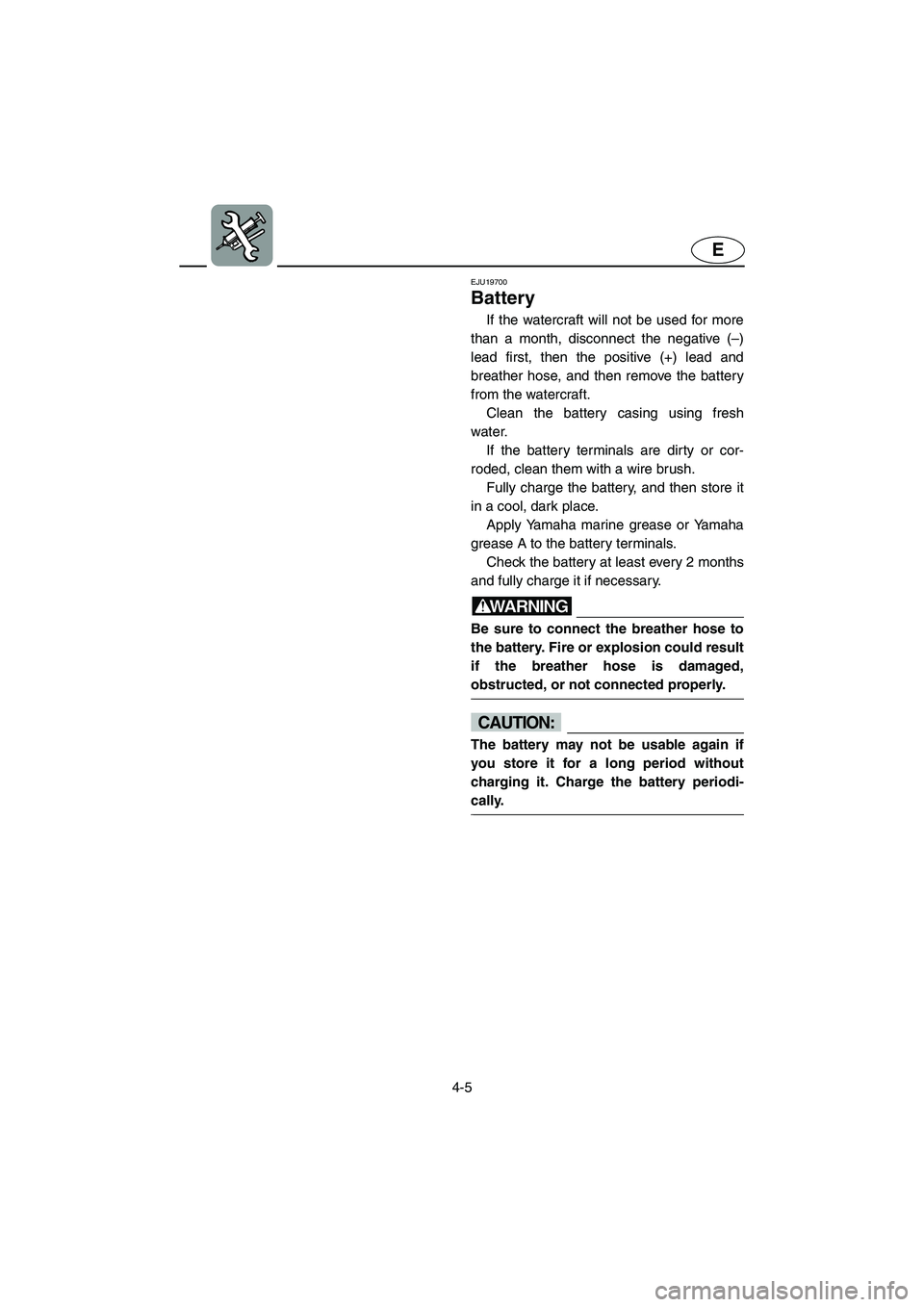

Battery
If the watercraft will not be used for more
than a month, disconnect the negative (–)
lead first, then the positive (+) lead and
breather hose, and then remove the battery
from the watercraft.
Clean the battery casing using fresh
water.
If the battery terminals are dirty or cor-
roded, clean them with a wire brush.
Fully charge the battery, and then store it
in a cool, dark place.
Apply Yamaha marine grease or Yamaha
grease A to the battery terminals.
Check the battery at least every 2 months
and fully charge it if necessary.
WARNING@ Be sure to connect the breather hose to
the battery. Fire or explosion could result
if the breather hose is damaged,
obstructed, or not connected properly.
@
CAUTION:@ The battery may not be usable again if
you store it for a long period without
charging it. Charge the battery periodi-
cally.
@
E_F1K-70.book Page 5 Thursday, October 20, 2005 1:30 PM

4-6
E
NOTE:@ The condition of the battery can be known
by checking the specific gravity of the elec-
trolyte. However, you can also know the con-
dition of the battery by measuring the
voltage at both battery terminals. Charge
the battery if the voltage is less than
12 volts.
It is recommended to have a Yamaha dealer
check the specific gravity and to charge the
battery. If you maintain the battery yourself,
be sure to read and follow the instructions
provided with the battery tester and charger
you use.
@
EJU10930
Cleaning the watercraft
Clean the watercraft before storing it for a
long period.
1. Wash down the hull, handlebars, and
drive unit with fresh water.
2. Rinse the engine and bilge area with
fresh water. Drain off all water and wipe
up remaining moisture with clean, dry
rags.
3. Spray the engine’s exterior with a rust
inhibitor and lubricant.
4. Wax the hull with a non-abrasive wax.
5. Wipe all vinyl and rubber components,
such as the seat and engine compart-
ment seals, with a vinyl protectant. Specific gravity (for reference):
1.28 at 20 °C (68 °F)
E_F1K-70.book Page 6 Thursday, October 20, 2005 1:30 PM

4-7
E
EJU21751
Maintenance and
adjustments
Periodic inspection, adjustment, and lubri-
cation will keep your watercraft in the safest
and most efficient condition possible. Safety
is an obligation of the watercraft owner.
Proper maintenance must be carried out to
keep the exhaust emission and sound levels
within the regulated limits. The most impor-
tant points of watercraft inspection, adjust-
ment, and lubrication are explained on the
following pages.
See your Yamaha dealer for genuine
Yamaha replacement parts and optional
accessories designed for your watercraft.
Remember that failures that are the result
of the installation of parts or accessories
which are not qualitatively equivalent to gen-
uine Yamaha parts are not covered by the
limited warranty.
Maintenance, replacement, or repair of
the emission control devices and system
may be performed by any marine SI
engine repair establishment or individ-
ual. Warranty repair, however, must be
performed at an authorized Yamaha
marine dealership.
