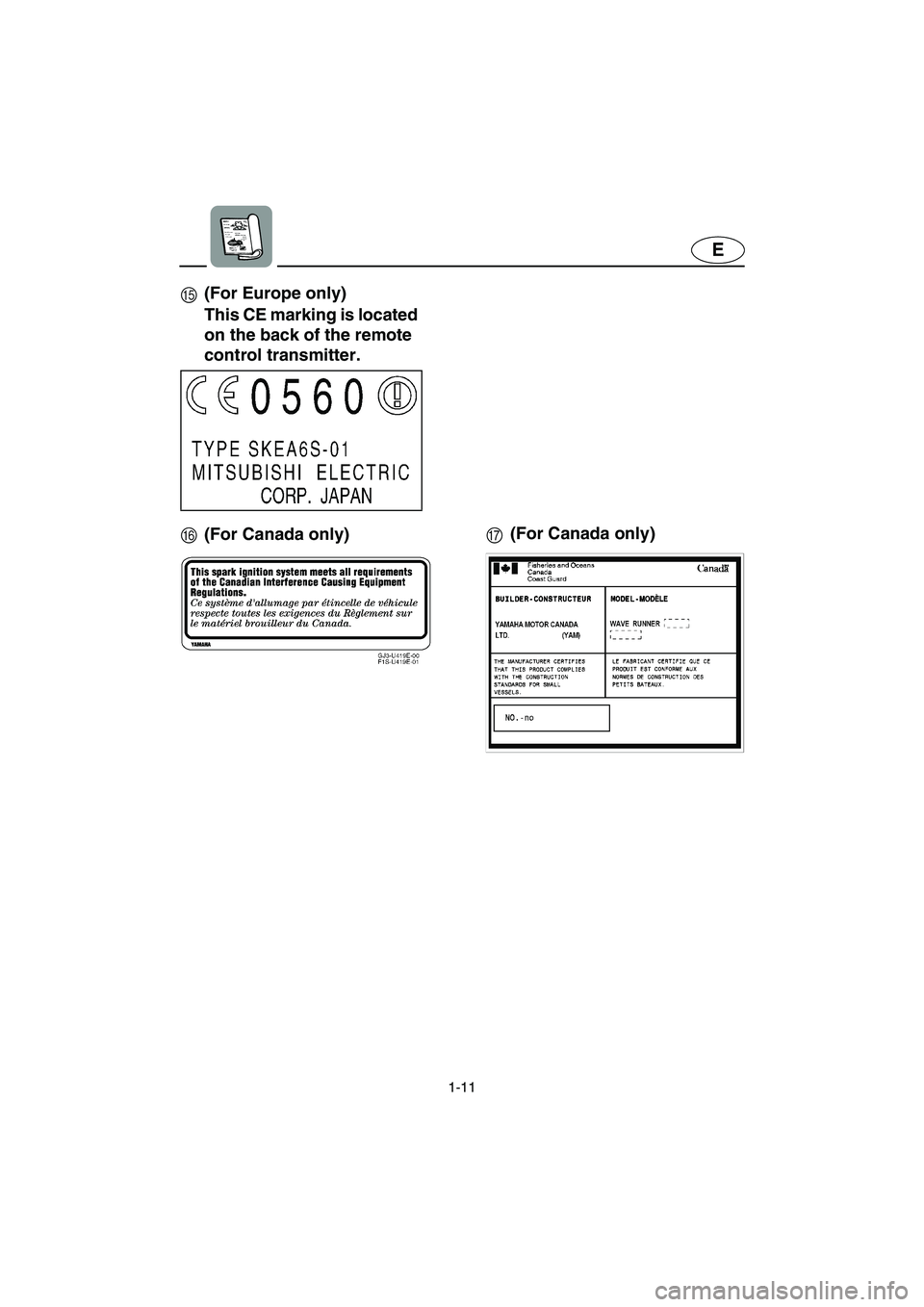

FG (For Canada only)(For Canada only) This CE marking is located
on the back of the remote
control transmitter.
E_F1K-70.book Page 11 Thursday, October 20, 2005 1:30 PM

E
2
EJU10070
FEATURES AND
FUNCTIONS
Location of main components .............. 2-1
Operation of controls and other
functions ................................................... 2-5
Seat ........................................................ 2-5
Hood ....................................................... 2-6
Fuel tank filler cap .................................. 2-6
Remote control transmitter
(for VX110 Deluxe) ................................ 2-7
Engine stop switch ................................. 2-9
Engine shut-off switch ............................ 2-9
Start switch ........................................... 2-10
Throttle lever ........................................ 2-10
Cooling water pilot outlet ..................... 2-11
Steering system ................................... 2-12
Shift lever (for VX110 Deluxe) ............. 2-13
Handgrip ............................................... 2-14
Yamaha Engine Management System
(YEMS) ................................................. 2-15
Yamaha Security System/Low-RPM
mode (for VX110 Deluxe) .................... 2-15
Multifunction meter ............................... 2-18
Storage compartments ........................ 2-24
E_F1K-70.book Page 1 Thursday, October 20, 2005 1:30 PM

2-3
E
1Start switch
Push to start the engine.
2Engine shut-off switch
Remove the clip to stop the engine and dis-
able it from starting.
3Clip
Insert into the engine shut-off switch to enable
starting of the engine.
Remove to stop the engine or prevent acci-
dental star ting of the engine or unauthorized
use of the watercraft.
4Multifunction meter
Use to check watercraft operation.
5Rearview mirrors (VX110 Deluxe)6Shift lever (VX110 Deluxe)
Use to put the watercraft into forward or
reverse.
7Throttle lever
Use to accelerate and decelerate.
8Glove compartment
9Remote control transmitter (VX110 Deluxe)
0Engine stop switch
Push to stop the engine normally.
AEngine shut-off cord (lanyard)
Attach to wrist so that the engine stops if the
operator falls off the watercraft.
E_F1K-70.book Page 3 Thursday, October 20, 2005 1:30 PM

2-7
E
EJU21111

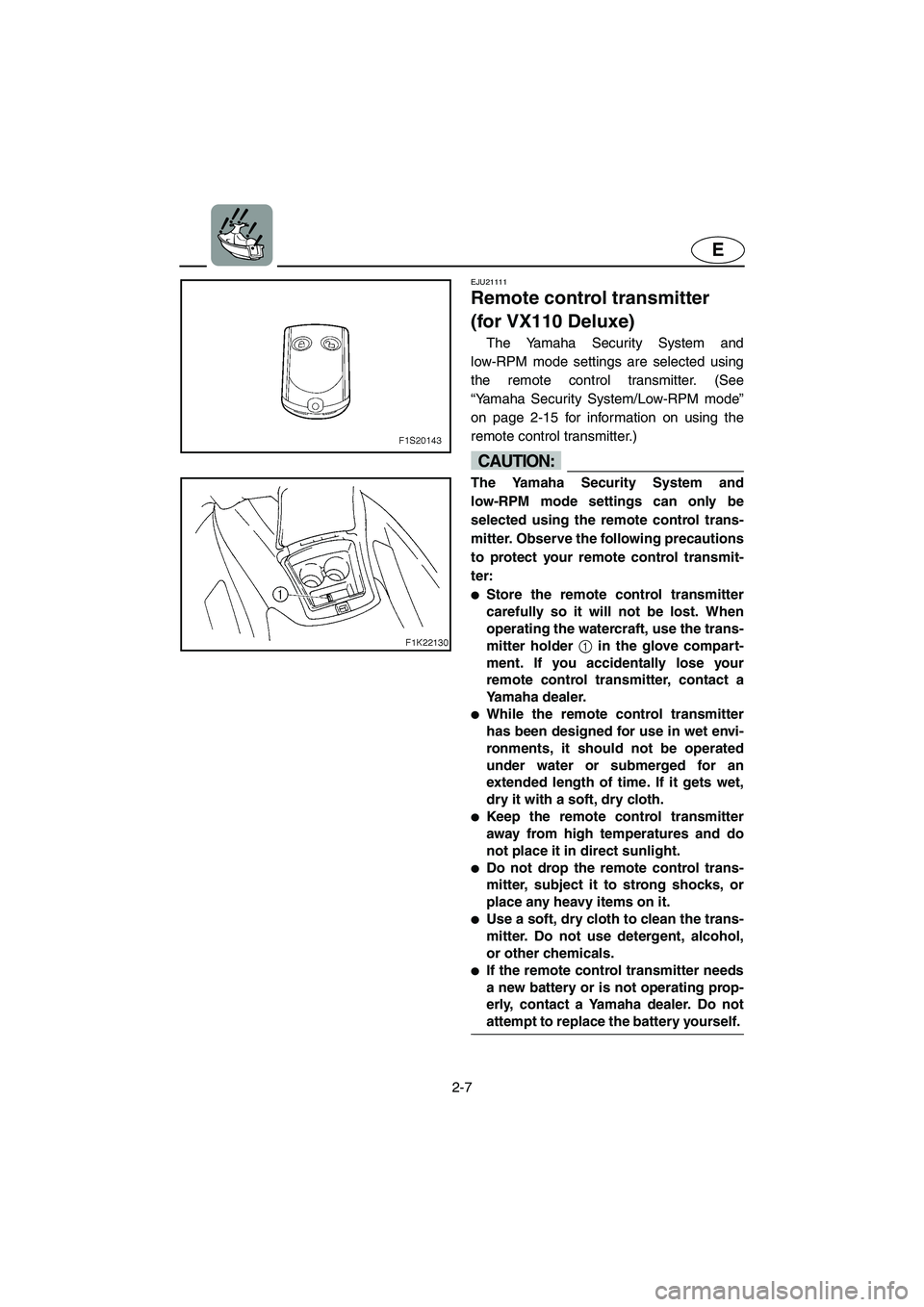

Remote control transmitter
(for VX110 Deluxe)
The Yamaha Security System and
low-RPM mode settings are selected using
the remote control transmitter. (See
“Yamaha Security System/Low-RPM mode”
on page 2-15 for information on using the
remote control transmitter.)
CAUTION:@ The Yamaha Security System and
low-RPM mode settings can only be
selected using the remote control trans-
mitter. Observe the following precautions
to protect your remote control transmit-
ter:

Store the remote control transmitter
carefully so it will not be lost. When
operating the watercraft, use the trans-
mitter holder 1 in the glove compart-
ment. If you accidentally lose your
remote control transmitter, contact a
Yamaha dealer.

While the remote control transmitter
has been designed for use in wet envi-
ronments, it should not be operated
under water or submerged for an
extended length of time. If it gets wet,
dry it with a soft, dry cloth.

Keep the remote control transmitter
away from high temperatures and do
not place it in direct sunlight.

Do not drop the remote control trans-
mitter, subject it to strong shocks, or
place any heavy items on it.

Use a soft, dry cloth to clean the trans-
mitter. Do not use detergent, alcohol,
or other chemicals.

If the remote control transmitter needs
a new battery or is not operating prop-
erly, contact a Yamaha dealer. Do not
attempt to replace the battery yourself.
@
E_F1K-70.book Page 7 Thursday, October 20, 2005 1:30 PM

2-8
E
NOTE:@ While the engine is running, input from the
remote control transmitter is not received.
@
For Canada only
IC (Industry Canada) rules:
Operation is subject to the following two
conditions; (1) this device may not cause
interference, and (2) this device must accept
any interference received including interfer-
ence that may cause undesired operation of
the device.
E_F1K-70.book Page 8 Thursday, October 20, 2005 1:30 PM

2-15
E
EJU19940
Yamaha Engine Management
System (YEMS)
This model is equipped with an inte-
grated, computerized management system
that controls and adjusts ignition timing, fuel
injection, engine diagnostics, and the Off-
Throttle Steering (OTS) system.
EJU20723
Yamaha Security System/
Low-RPM mode (for VX110
Deluxe)
This watercraft is equipped with a remote
control transmitter 1 that is used to select
the security system and low-RPM mode set-
tings. Since the watercraft is programmed to
recognize the internal code from this trans-
mitter only, the security system setting can
only be changed with this transmitter. If you
lose the remote control transmitter or it does
not operate properly, contact a Yamaha
dealer.
EJU21561
Yamaha Security System (for
VX110 Deluxe)
The Yamaha Security System functions to
help prevent unauthorized use or theft of the
watercraft. The engine cannot be started if
the security system is in the lock mode. The
engine can only be started in the unlock
mode.
E_F1K-70.book Page 15 Thursday, October 20, 2005 1:30 PM

2-17
E
EJU21583
Selecting the normal mode/
low-RPM mode (for VX110 Deluxe)
The normal mode and low-RPM mode
can only be selected when the engine is
stopped in the unlock mode. Press the
unlock button for more than 4 seconds to
select the normal mode or low-RPM mode.
Normal mode
If the beeper sounds twice, the normal
mode is activated.
The watercraft can be ridden normally.
Low-RPM mode
If the beeper sounds three times, the
low-RPM mode is activated and the
“L-MODE” indicator light 1 comes on.
Maximum engine speed (r/min) in the
low-RPM mode is limited to approximately
90% of the maximum engine speed in the
normal mode.
NOTE:@
If neither the start switch nor the remote
control transmitter is operated within
25 seconds after the unlock button is
pressed to select the unlock mode, the
multifunction meter display and the
“L-MODE” indicator light will go off. If this
occurs, press the lock button briefly to
select the lock mode, press the unlock
button briefly to select the unlock mode,
and then press the unlock button again for
more than 4 seconds to select the normal
mode or low-RPM mode.

While the engine is running, input from
the remote control transmitter is not
received.
@
CAUTION:@ If the remote control transmitter does not
operate when its buttons are pressed,
the battery may be low. Have a Yamaha
dealer replace the battery.
@
E_F1K-70.book Page 17 Thursday, October 20, 2005 1:30 PM

2-25
E
EJU20821

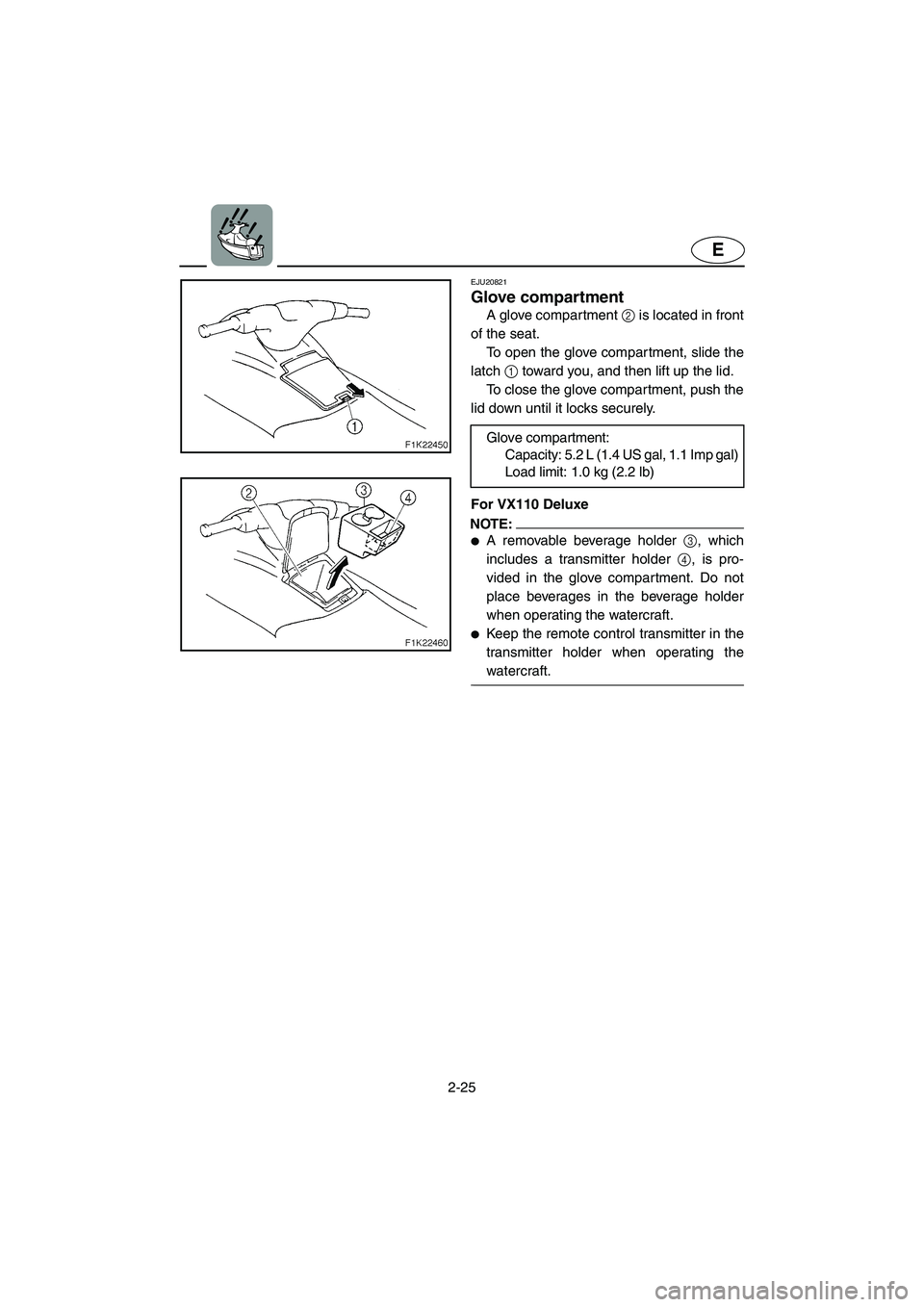

Glove compartment
A glove compartment 2 is located in front
of the seat.
To open the glove compartment, slide the
latch 1 toward you, and then lift up the lid.
To close the glove compartment, push the
lid down until it locks securely.
For VX110 Deluxe
NOTE:@
A removable beverage holder 3, which
includes a transmitter holder 4, is pro-
vided in the glove compartment. Do not
place beverages in the beverage holder
when operating the watercraft.

Keep the remote control transmitter in the
transmitter holder when operating the
watercraft.
@
Glove compartment:
Capacity: 5.2 L (1.4 US gal, 1.1 Imp gal)
Load limit: 1.0 kg (2.2 lb)
E_F1K-70.book Page 25 Thursday, October 20, 2005 1:30 PM

3-16
E

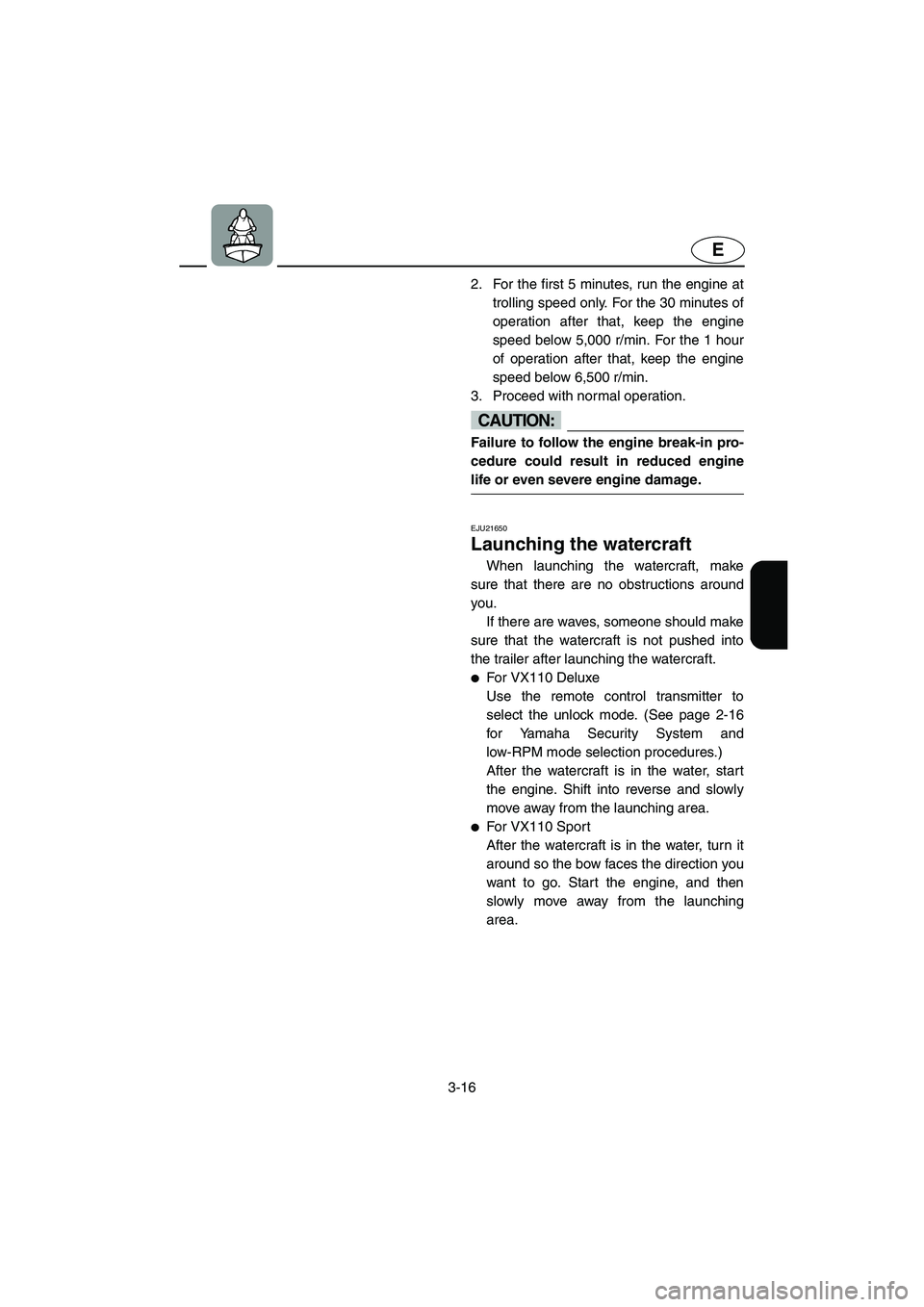

2. For the first 5 minutes, run the engine at
trolling speed only. For the 30 minutes of
operation after that, keep the engine
speed below 5,000 r/min. For the 1 hour
of operation after that, keep the engine
speed below 6,500 r/min.
3. Proceed with normal operation.
CAUTION:@ Failure to follow the engine break-in pro-
cedure could result in reduced engine
life or even severe engine damage.
@
EJU21650
Launching the watercraft
When launching the watercraft, make
sure that there are no obstructions around
you.
If there are waves, someone should make
sure that the watercraft is not pushed into
the trailer after launching the watercraft.

For VX110 Deluxe
Use the remote control transmitter to
select the unlock mode. (See page 2-16
for Yamaha Security System and
low-RPM mode selection procedures.)
After the watercraft is in the water, start
the engine. Shift into reverse and slowly
move away from the launching area.

For VX110 Sport
After the watercraft is in the water, turn it
around so the bow faces the direction you
want to go. Start the engine, and then
slowly move away from the launching
area.
E_F1K-70.book Page 16 Thursday, October 20, 2005 1:30 PM

3-17
E
EJU20841

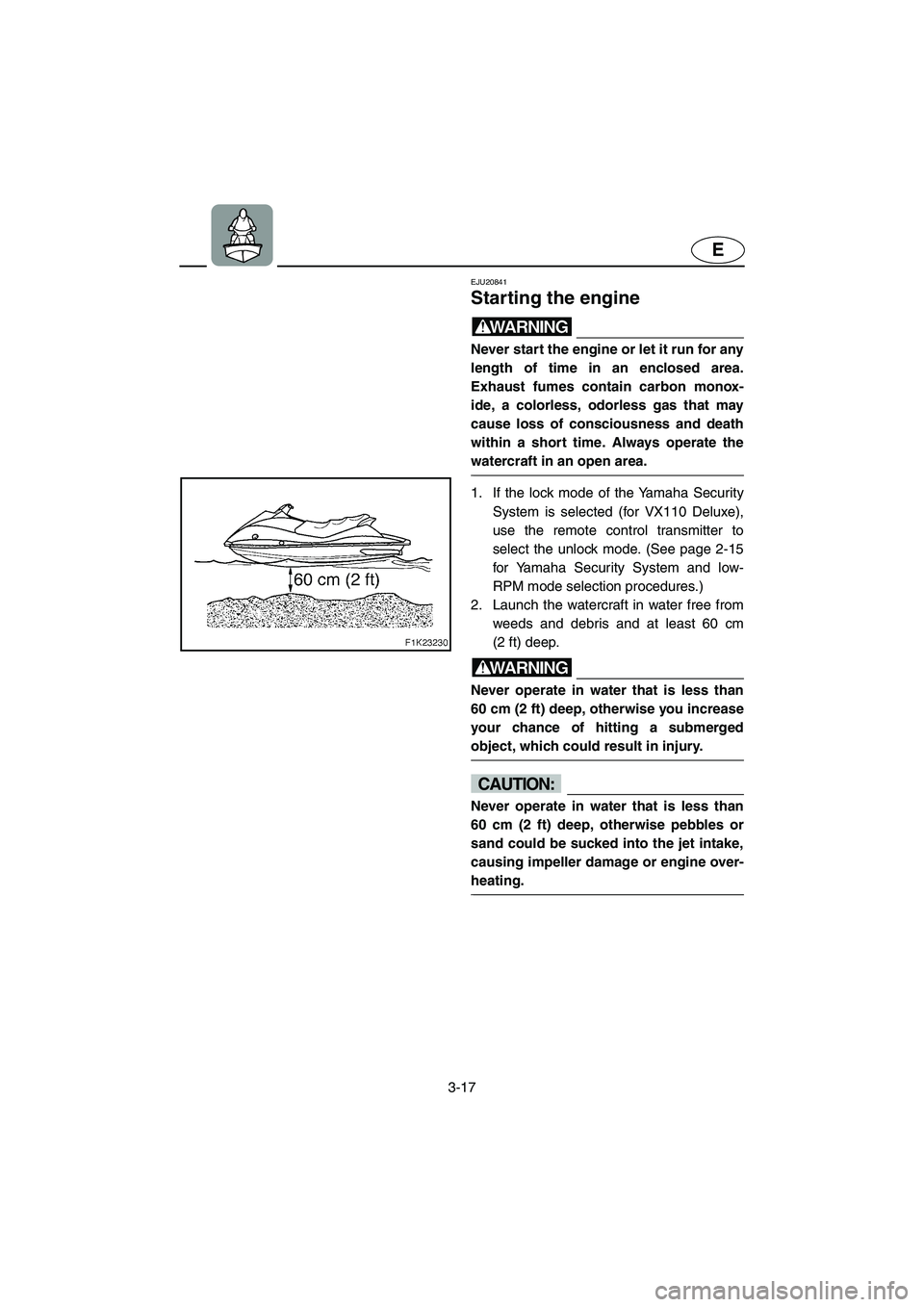

Starting the engine
WARNING@ Never start the engine or let it run for any
length of time in an enclosed area.
Exhaust fumes contain carbon monox-
ide, a colorless, odorless gas that may
cause loss of consciousness and death
within a short time. Always operate the
watercraft in an open area.
@
1. If the lock mode of the Yamaha Security
System is selected (for VX110 Deluxe),
use the remote control transmitter to
select the unlock mode. (See page 2-15
for Yamaha Security System and low-
RPM mode selection procedures.)
2. Launch the watercraft in water free from
weeds and debris and at least 60 cm
(2 ft) deep.
WARNING@ Never operate in water that is less than
60 cm (2 ft) deep, otherwise you increase
your chance of hitting a submerged
object, which could result in injury.
@
CAUTION:@ Never operate in water that is less than
60 cm (2 ft) deep, otherwise pebbles or
sand could be sucked into the jet intake,
causing impeller damage or engine over-
heating.
@
