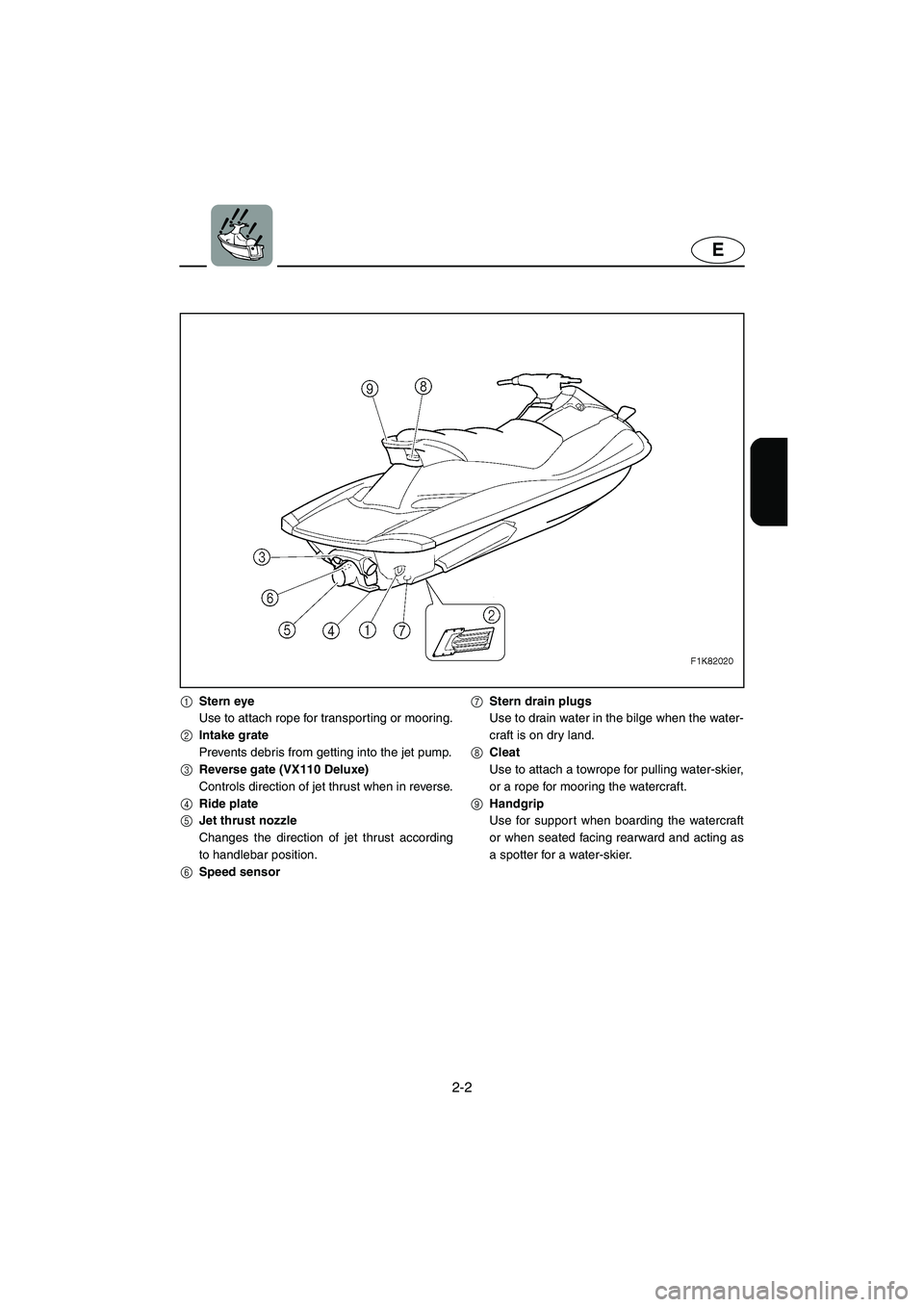

1Stern eye
Use to attach rope for transporting or mooring.
2Intake grate
Prevents debris from getting into the jet pump.
3Reverse gate (VX110 Deluxe)
Controls direction of jet thrust when in reverse.
4Ride plate
5Jet thrust nozzle
Changes the direction of jet thrust according
to handlebar position.
6Speed sensor7Stern drain plugs
Use to drain water in the bilge when the water-
craft is on dry land.
8Cleat
Use to attach a towrope for pulling water-skier,
or a rope for mooring the watercraft.
9Handgrip
Use for suppor t when boarding the watercraft
or when seated facing rearward and acting as
a spotter for a water-skier.
E_F1K-70.book Page 2 Thursday, October 20, 2005 1:30 PM

2-20
E
EJU21172
Hour meter/Voltmeter
NOTE:@ To switch the display between the hour
meter and voltmeter, push the select
button1 for at least 1 second after the
meter is displayed for more than 10 sec-
onds.
@
Hour meter
The hour meter is provided to make it
easy to follow the maintenance schedule.
The meter shows the hours of engine
operation that have elapsed since the water-
craft was new.
Vo l t m e t e r
The voltmeter is provided to display the
voltage of the battery.
When the battery voltage is normal, the
voltmeter displays approximately 12 volts.
If the battery voltage is less than 8.0 volts,
“LO” is displayed on the voltmeter and if the
voltage is above 18.1 volts, “HI” is displayed
on the voltmeter. If “HI” or “LO” is displayed,
return to shore and, if necessary, have a
Yamaha dealer check the charging system
and the battery.
EJU20761
Check engine warning indicator
If a sensor malfunction or a short circuit is
detected, the warning light and the check
engine warning indicator begin to blink and
the buzzer sounds intermittently.
If this occurs, reduce the engine speed,
return to shore, and have a Yamaha dealer
check the engine.
E_F1K-70.book Page 20 Thursday, October 20, 2005 1:30 PM

5-2
E
Engine runs irregu-
larly or stallsFuel Empty Refill as soon as possi-
ble3-4
Stale or contaminated Have serviced by
Yamaha dealer4-11
Fuel tank Water or dirt present Have serviced by
Yamaha dealer4-11
Spark plug Fouled or defective Replace 4-16
Incorrect heat range Replace 4-16
Gap incorrect Adjust 4-16
Spark plug cap Loose Connect properly 4-16
Cracked, torn, or dam-
agedReplace
—
Electrical wir-
ingLoose connection Tighten or connect
properly—
Fuel injection
systemJet nozzle clogged Have serviced by
Yamaha dealer—
Warning light or
indicator blinksFuel level Empty Refill as soon as possi-
ble3-4
Engine over-
heatedJet intake clogged Clean
5-3
Check engine
warningFaulty sensors Have serviced by
Yamaha dealer—
Wate rcr af t slow or
loses powerYamaha
Security
System
(VX110
Deluxe)Low-RPM mode
selectedSelect normal mode
2-15
Cavitation Jet intake clogged Clean 5-3
Impeller damaged or
wornHave serviced by
Yamaha dealer—
Engine over-
heat warningEngine speed reduc-
tion control activatedClean jet intake and
cool engine2-22
Oil pressure
warningEngine speed reduc-
tion control activatedAdd oil
2-21
Spark plug Fouled or defective Replace 4-16
Incorrect heat range Replace 4-16
Gap incorrect Adjust 4-16
Spark plug
capsLoose Connect properly
4-16
Electrical wir-
ingLoose connection Tighten or connect
properly—
Fuel Stale or contaminated Have serviced by
Yamaha dealer4-11
Air filter Clogged or oil buildup Have serviced by
Yamaha dealer4-14 TROUBLE POSSIBLE CAUSE REMEDY PAGE
