Trouble recovery
82
gine. Any wrong connection could dam-
age the electrical system.
(4) Start the engine, and then disconnect the
jumper cables by reversing the steps
above.
CAUTION:
ECJ00480

Never push the start switch while the en-
gine is running.

Do not operate the start switch for more
than 5 seconds, otherwise the battery
will be discharged and the engine will
not start. Also, the starter motor could
be damaged. If the engine does not start
in 5 seconds, release the start switch,
wait 15 seconds, and then try again.

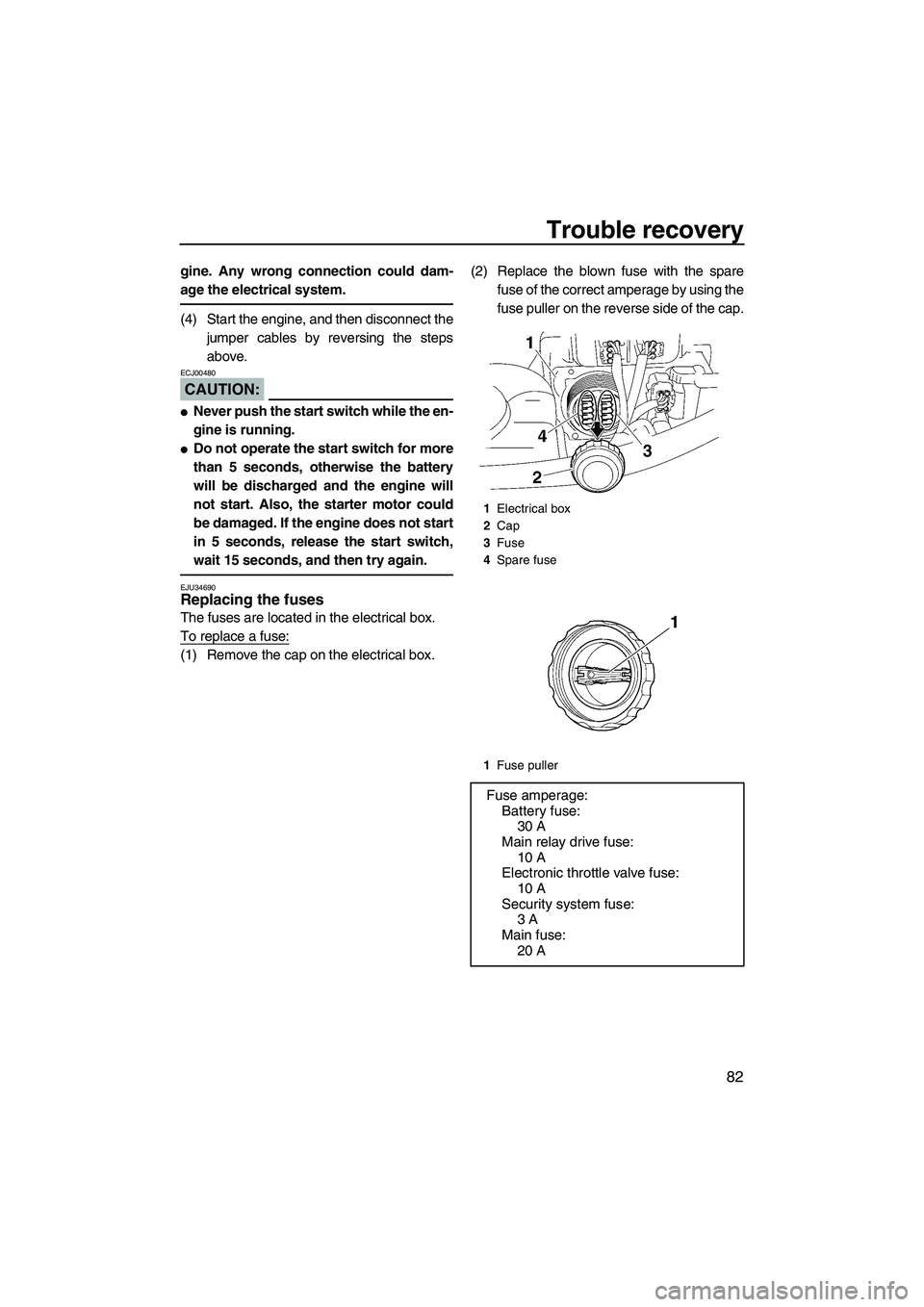

EJU34690Replacing the fuses
The fuses are located in the electrical box.
To replace a fuse:
(1) Remove the cap on the electrical box.(2) Replace the blown fuse with the spare
fuse of the correct amperage by using the
fuse puller on the reverse side of the cap.
1Electrical box
2Cap
3Fuse
4Spare fuse
1Fuse puller
Fuse amperage:
Battery fuse:
30 A
Main relay drive fuse:
10 A
Electronic throttle valve fuse:
10 A
Security system fuse:
3 A
Main fuse:
20 A
