cruise control YAMAHA VX 2010 Owners Manual

Table of contents
General and important labels ........... 1
Identification numbers .................... 1
Primary Identification (PRI-ID)
number ........................................... 1
Craft Identification Number (CIN) ...... 1
Engine serial number ........................ 1
Model information ........................... 2
Builder’s plate .................................... 2
Important labels .............................. 3
Warning labels ................................... 4
Other labels ....................................... 7
Safety information ............................. 9
Limitations on who may operate
the watercraft .............................. 9
Cruising limitations ....................... 10
Operation requirements ............... 11
Recommended equipment ........... 13
Hazard information ....................... 14
Watercraft characteristics ............. 14
Water-skiing ................................. 16
Safe boating rules ........................ 17
Enjoy your watercraft
responsibly ................................ 18
Description....................................... 19
Watercraft glossary ...................... 19
Location of main components ...... 20
Control function operation ............. 24
Watercraft control functions ......... 24
Remote control transmitter
(VX Deluxe / VX Cruiser) ............. 24
Yamaha Security System
(VX Deluxe / VX Cruiser) ............. 25
Engine stop switch .......................... 26
Engine shut-off switch ..................... 26
Start switch ...................................... 26
Throttle lever ................................... 27
Steering system ............................... 27
Cooling water pilot outlet ................. 28
Water separator ............................... 28
Watercraft operation ....................... 29
Watercraft operation functions ..... 29
Reverse system
(VX Deluxe / VX Cruiser) ............. 29
Watercraft operation modes ......... 30
Low RPM Mode
(VX Deluxe / VX Cruiser) ............. 30
Instrument operation ...................... 32
Multifunction information center ... 32
Information display .......................... 32
Equipment operation ...................... 37
Equipment .................................... 37
Seat ................................................. 37
Handgrip .......................................... 38
Reboarding step (VX Cruiser) ......... 38
Bow eye ........................................... 38
Stern eyes ....................................... 39
Cleat ................................................ 39
Storage compartments .................... 39
Fire extinguisher holder and
cover ............................................ 41
Operation and handling
requirements ................................... 43
Fuel requirements ........................ 43
Fuel ................................................. 43
Engine oil requirements ............... 44
Engine oil ......................................... 44
Draining the bilge water ............... 46
Draining the bilge water on land ...... 46
Draining the bilge water on water .... 46
Transporting on a trailer ............... 47
First-time operation ........................ 48
Engine break-in ............................ 48
Pre-operation checks ..................... 49
Pre-operation checklist .................... 49
Pre-operation check points .......... 51
Pre-launch checks ........................... 51
Post-launch checks ......................... 57
UF2N70E0.book Page 1 Tuesday, October 6, 2009 9:57 AM

General and important labels
8
The following label indicates the correct direction to upright a capsized watercraft.
VX Deluxe / VX Cruiser:
The following CE marking is located on the back of the remote control transmitter.
UF2N70E0.book Page 8 Tuesday, October 6, 2009 9:57 AM

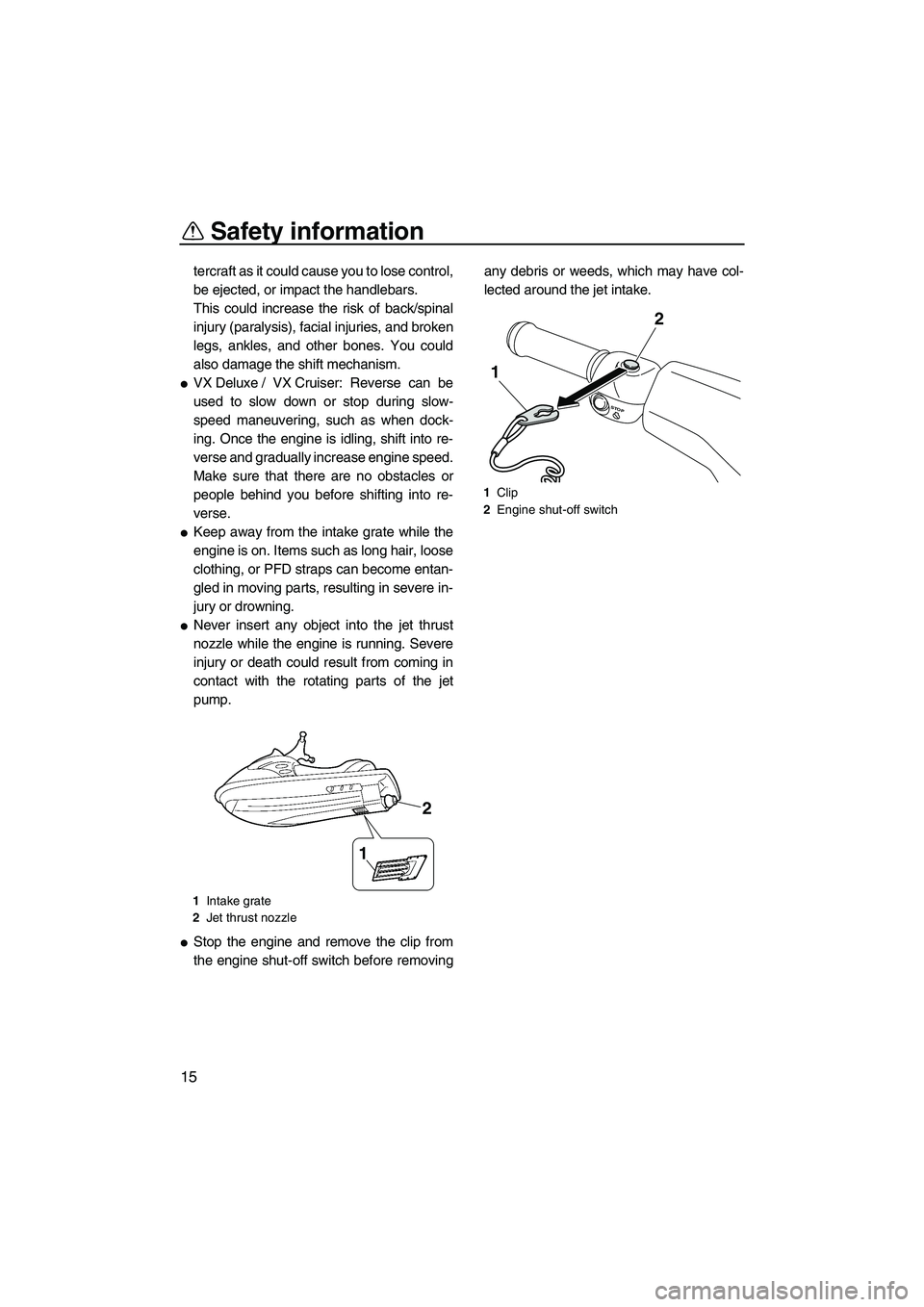

Safety information
15
tercraft as it could cause you to lose control,
be ejected, or impact the handlebars.
This could increase the risk of back/spinal
injury (paralysis), facial injuries, and broken
legs, ankles, and other bones. You could
also damage the shift mechanism.

VX Deluxe / VX Cruiser: Reverse can be
used to slow down or stop during slow-
speed maneuvering, such as when dock-
ing. Once the engine is idling, shift into re-
verse and gradually increase engine speed.
Make sure that there are no obstacles or
people behind you before shifting into re-
verse.

Keep away from the intake grate while the
engine is on. Items such as long hair, loose
clothing, or PFD straps can become entan-
gled in moving parts, resulting in severe in-
jury or drowning.

Never insert any object into the jet thrust
nozzle while the engine is running. Severe
injury or death could result from coming in
contact with the rotating parts of the jet
pump.

Stop the engine and remove the clip from
the engine shut-off switch before removingany debris or weeds, which may have col-
lected around the jet intake.
1Intake grate
2Jet thrust nozzle
1
2
1Clip
2Engine shut-off switch
STOP
2
1
UF2N70E0.book Page 15 Tuesday, October 6, 2009 9:57 AM

Description
22
5
4 1
23
10
1112 7
68
9
1Start switch (page 26)
2Engine shut-off switch (page 26)
3Clip (page 26)
4Engine shut-off cord (lanyard) (page 26)
5Engine stop switch (page 26)
6Glove compartment (page 40)
7Multifunction information center (page 32)
8Rearview mirror
9Remote control transmitter (VX Deluxe /
VX Cruiser) (page 24)
10Beverage holder (VX Deluxe / VX Cruiser)
(page 41)
11Shift lever (VX Deluxe / VX Cruiser) (page
29)
12Throttle lever (page 27)
UF2N70E0.book Page 22 Tuesday, October 6, 2009 9:57 AM

Control function operation
24
EJU31024
Watercraft control functions EJU41390Remote control transmitter
(VX Deluxe / VX Cruiser)
The Yamaha Security System and Low RPM
Mode settings can be selected by operating
the remote control transmitter. (See page 25
for Yamaha Security System setting proce-
dures and page 30 for Low RPM Mode activa-
tion procedures.)
Since the watercraft is programmed to recog-
nize the internal code from this transmitter
only, the settings can only be selected with
this transmitter.
If you accidentally lose your remote control
transmitter or if it is not operating properly,
contact a Yamaha dealer.
When operating the watercraft, always keep
the transmitter with you, such as by storing itin the transmitter holder in the beverage hold-
er, so that it is not lost.
NOTICE
ECJ00752

The remote control transmitter is not
completely waterproof. Do not sub-
merge the transmitter or operate it un-
derwater. If the transmitter is
submerged, dry it with a soft, dry cloth,
and then check that it is operating prop-
erly. If the transmitter is not operating
properly, contact a Yamaha dealer.

Keep the remote control transmitter
away from high temperatures and do not
place it in direct sunlight.

Do not drop the remote control transmit-
ter, subject it to strong shocks, or place
any heavy items on it.

Use a soft, dry cloth to clean the remote
control transmitter. Do not use deter-
gent, alcohol, or other chemicals.

Do not attempt to disassemble the re-
mote control transmitter yourself. Other-
wise, the transmitter may not operate
properly. If the transmitter needs a new
battery, contact a Yamaha dealer. Refer
to local hazardous waste regulations
when disposing of transmitter batteries.
1Remote control transmitter
1Transmitter holder
1
UF2N70E0.book Page 24 Tuesday, October 6, 2009 9:57 AM

Control function operation
25
EJU31384Yamaha Security System (VX Deluxe /
VX Cruiser)
The Yamaha Security System functions to
help prevent unauthorized use or theft of the
watercraft. The lock and unlock modes of the
security system can be selected by operating
the remote control transmitter that is included
with this watercraft. The engine cannot be
started if the lock mode of the security system
is selected. The engine can only be started if
the unlock mode is selected. (See page 24 for
information on the remote control transmitter.)
TIP:
The Yamaha Security System settings can
only be selected while the engine is stopped.
EJU36106Yamaha Security System settings
The Yamaha Security System settings will be
confirmed by the number of beeps when the
remote control transmitter is operated, and by
the “SECURITY” indicator light of the multi-
function information center. (See page 32 for
information on the multifunction information
center.)
TIP:

The beeper sounds two times for the nor-
mal operation mode or three times for the
Low RPM Mode. (See page 30 for Low
RPM Mode activation procedures.)

If the remote control transmitter is operated
while the multifunction information center is
in the standby state, the center will performthe initial operation, and then the setting is
selected.
To select the lock mode:
Push the lock button on the remote control
transmitter briefly. The beeper sounds once
and the “SECURITY” indicator light blinks
once, then goes off. This indicates the lock
mode is selected.
To select the unlock mode:
Push the “L-Mode” (unlock) button on the re-
mote control transmitter briefly. The beeper
sounds two or three times and the “SECURI-
TY” indicator light blinks two or three times,
then comes on. This indicates the unlock
mode is selected.
Number of
beepsYamaha Security
System mode“SECURI-
TY” indi-
cator light
Lock Goes off
Unlock
(normal operation
mode)Comes
on
Unlock
(Low RPM Mode)Comes
on
1Lock button
2“SECURITY” indicator light
1“L-Mode” (unlock) button
2“SECURITY” indicator light
21
2L-Mode1
UF2N70E0.book Page 25 Tuesday, October 6, 2009 9:57 AM

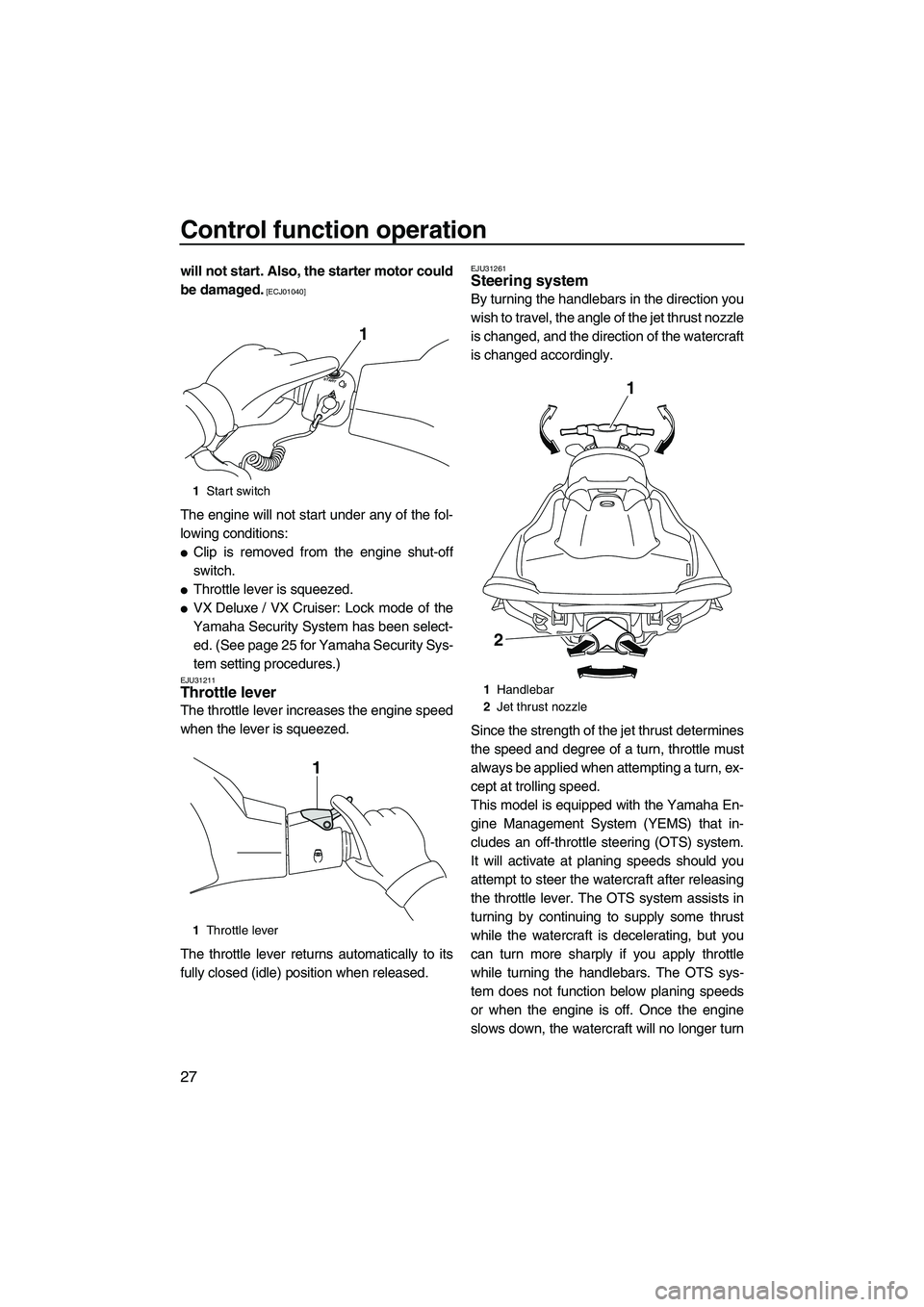

Control function operation
27
will not start. Also, the starter motor could
be damaged.
[ECJ01040]
The engine will not start under any of the fol-
lowing conditions:

Clip is removed from the engine shut-off
switch.

Throttle lever is squeezed.

VX Deluxe / VX Cruiser: Lock mode of the
Yamaha Security System has been select-
ed. (See page 25 for Yamaha Security Sys-
tem setting procedures.)
EJU31211Throttle lever
The throttle lever increases the engine speed
when the lever is squeezed.
The throttle lever returns automatically to its
fully closed (idle) position when released.
EJU31261Steering system
By turning the handlebars in the direction you
wish to travel, the angle of the jet thrust nozzle
is changed, and the direction of the watercraft
is changed accordingly.
Since the strength of the jet thrust determines
the speed and degree of a turn, throttle must
always be applied when attempting a turn, ex-
cept at trolling speed.
This model is equipped with the Yamaha En-
gine Management System (YEMS) that in-
cludes an off-throttle steering (OTS) system.
It will activate at planing speeds should you
attempt to steer the watercraft after releasing
the throttle lever. The OTS system assists in
turning by continuing to supply some thrust
while the watercraft is decelerating, but you
can turn more sharply if you apply throttle
while turning the handlebars. The OTS sys-
tem does not function below planing speeds
or when the engine is off. Once the engine
slows down, the watercraft will no longer turn
1Start switch
1Throttle lever
START
1
1
1Handlebar
2Jet thrust nozzle
2
1
UF2N70E0.book Page 27 Tuesday, October 6, 2009 9:57 AM

Watercraft operation
29
EJU40011
Watercraft operation functions
EJU40520Reverse system (VX Deluxe /
VX Cruiser)
WARNING
EWJ01230

Do not use the reverse function to slow
down or stop the watercraft as it could
cause you to lose control, be ejected, or
impact the handlebars.

Make sure that there are no obstacles or
people behind you before shifting into
reverse.

Do not touch the reverse gate while the
shift lever is being operated, otherwise
you could be pinched.
When the shift lever is moved to the reverse
position, the reverse gate lowers and deflects
the water jet being discharged from the jet
thrust nozzle. This allows the watercraft to
move in reverse.
To shift into reverse:
(1) Release the throttle lever and let the en-
gine speed return to idle.
(2) Pull the shift lever rearward until it stops
in the reverse position. The reverse gatewill lower and the watercraft will start
moving in reverse at trolling speed.
To shift into forward:
(1) Release the throttle lever and let the en-
gine speed return to idle.
(2) Push the shift lever forward until it stops
in the forward position. The reverse gate
will rise and the watercraft will start mov-
ing forward at trolling speed.
1Shift lever
2Reverse position
3Forward position
1Reverse gate
2Forward position
3Reverse position
1
23
13
2
UF2N70E0.book Page 29 Tuesday, October 6, 2009 9:57 AM

Watercraft operation
30
EJU40000
Watercraft operation modes
EJU31417Low RPM Mode (VX Deluxe /
VX Cruiser)
The Low RPM Mode is a function that limits
the maximum engine speed to approximately
90% of the maximum engine speed in the nor-
mal mode.
The Low RPM Mode can only be activated
and deactivated by operating the remote con-
trol transmitter that is included with this water-
craft. (See page 24 for information on the
remote control transmitter.)
TIP:
The Low RPM Mode can only be activated
when the engine is stopped in the unlock
mode of the Yamaha Security System.
Activating and deactivating the Low RPM
Mode
Activation of the Low RPM Mode will be con-
firmed by the number of beeps when the re-
mote control transmitter is operated, and by
the “L-MODE” indicator light of the multifunc-
tion information center. (See page 32 for infor-
mation on the multifunction information
center.)
TIP:
If the remote control transmitter is operated
while the multifunction information center is in
the standby state, the center performs the ini-
tial operation, and then the setting is selected.
To activate the Low RPM Mode:
Push the “L-Mode” (unlock) button on the re-
mote control transmitter for more than 4 sec-
onds. Once the beeper sounds three times
and the “SECURITY” indicator light blinks
three times, then comes on, the “L-MODE” in-
dicator light comes on and the Low RPM
Mode is activated.
TIP:
If the Low RPM Mode is activated immediate-
ly after the information display turns off, the
“L-MODE” indicator light will not come on. The
1Remote control transmitter
Number of
beepsLow RPM Mode
operation“L-
MODE”
indicator
light
ActivatedComes
on
Deactivated Goes off
UF2N70E0.book Page 30 Tuesday, October 6, 2009 9:57 AM

Pre-operation checks
49
EJU31981
WARNING
EWJ00411
Failure to inspect or maintain the watercraft properly increases the possibility of an ac-
cident or damage to the watercraft. Do not operate the watercraft if you find any prob-
lem. If a problem cannot be corrected by the procedures provided in this manual, have
the watercraft inspected by a Yamaha dealer.
EJU41232Pre-operation checklist
Before using this watercraft, be sure to perform the checks in the following checklist.
ITEM ROUTINE PAGE
PRE-LAUNCH CHECKS
Engine compartmentVentilate the engine compartment.
Check inside the engine compartment for damage.51
Fuel systemCheck the fuel system for leakage.
Check the fuel level in the fuel tank.51
Water separatorCheck the water separator for water. 51
Engine unitCheck the exterior of the engine unit for damage. 51
Engine oil levelCheck the engine oil level. 51
Bilge waterCheck the engine compartment for bilge water. 52
BatteryCheck the battery connections and electrolyte level. 52
Steering systemCheck the steering system for proper operation. 52
Reverse system
(VX Deluxe / VX Cruiser)Check the reverse system for proper operation. 53
Throttle leverCheck the throttle lever for proper operation.
Check the throttle lever free play.54
Remote control transmitter
(VX Deluxe / VX Cruiser)Check the remote control transmitter for proper op-
eration.54
Engine shut-off cord (lan-
yard)Check the engine shut-off cord (lanyard) for dam-
age.54
SwitchesCheck the start switch, engine stop switch, and en-
gine shut-off switch for proper operation.55
Storage compartmentsCheck the storage compartments for damage and
water.55
Fire extinguisher holder,
cover, and bandCheck the fire extinguisher holder, cover, and band
for damage.55
Fire extinguisherCheck the condition of the fire extinguisher. 56
Safety equipmentCheck that safety equipment meeting the applicable
regulations is on board.56
Hull and deckCheck the hull and deck for damage. 56
Jet intakeCheck the jet intake for damage and clogging. 56
Stern drain plugsCheck the stern drain plugs for damage and foreign
material and check that they are securely installed.56
UF2N70E0.book Page 49 Tuesday, October 6, 2009 9:57 AM
