5-7
E
EJU19130
Towing the watercraft
If the watercraft becomes inoperative in
the water, it can be towed to shore.
If the watercraft must be towed in an
emergency using a towline, the operator
should ride the watercraft, holding onto the
handlebars.
CAUTION:@
Tow the watercraft at 5 mph (8 km/h) or
less, otherwise water could enter the
engine through the exhaust passages
or through the air intake and flood the
engine compartment if it is towed too
fast.

Tow the watercraft using the bow
eye1 only.

The bow must be kept up out of the
water during towing to prevent water
from entering the engine compart-
ment.
@
WARNING@
The watercraft should only be towed in
an emergency.

The towline should be long enough so
that the watercraft will not collide with
the towing boat when slowing down. A
good rule of thumb is a towline that is
three times the combined length of the
towing boat and the watercraft.

The operator of the towing boat must
keep speed to a minimum and avoid
traffic or obstacles which could be a
hazard to the rider on the watercraft.
@
UF1K70.book Page 7 Friday, November 19, 2004 2:42 PM

5-8
E
EJU19020

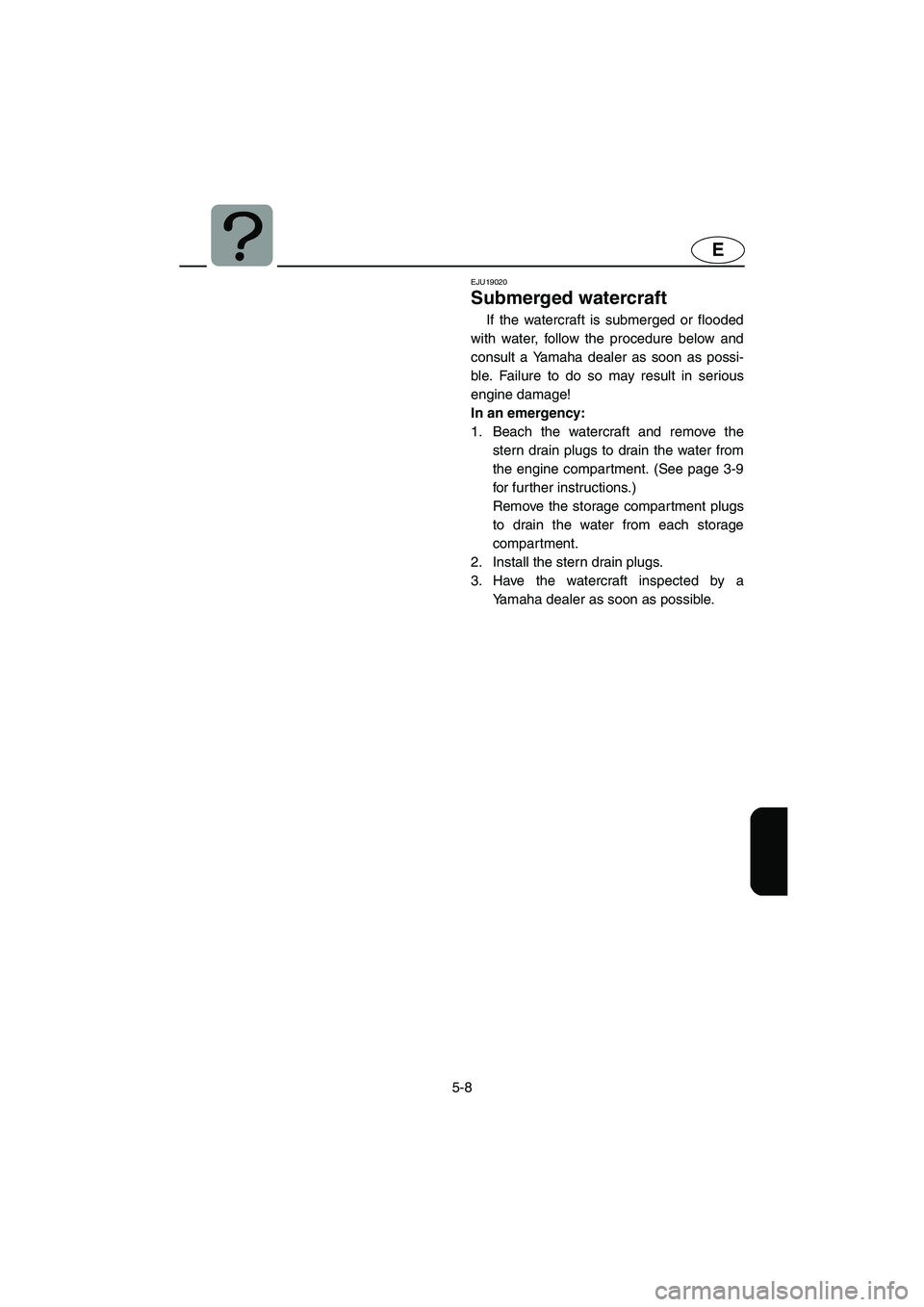

Submerged watercraft
If the watercraft is submerged or flooded
with water, follow the procedure below and
consult a Yamaha dealer as soon as possi-
ble. Failure to do so may result in serious
engine damage!
In an emergency:
1. Beach the watercraft and remove the
stern drain plugs to drain the water from
the engine compartment. (See page 3-9
for further instructions.)
Remove the storage compartment plugs
to drain the water from each storage
compartment.
2. Install the stern drain plugs.
3. Have the watercraft inspected by a
Yamaha dealer as soon as possible.
UF1K70.book Page 8 Friday, November 19, 2004 2:42 PM

6-1
E
EJU11250
Index
A
Adjusting the fuel injection system ........ 4-21
Approval label of emission control
certificate ................................................. 1-3
B
Battery ............................................ 3-10, 4-5
Beaching the watercraft ........................ 3-32
Bilge ........................................................ 3-9
Boarding alone ...................................... 3-24
Boarding and starting in deep water ..... 3-24
Boarding with passengers ..................... 3-25
C
Capsized watercraft .............................. 3-27
Changing the engine oil ........................ 4-11
Check engine warning indicator ............ 2-20
Checking the air filter element............... 4-13
Checking the trolling speed ................... 4-21
Cleaning and adjusting the
spark plugs ............................................ 4-15
Cleaning the jet intake and impeller ........ 5-3
Cleaning the watercraft ........................... 4-6
Connecting the jumper cables................. 5-6
Cooling water pilot outlet .............. 2-11, 3-14
Cruising limitations ................................ 1-12
D
Docking the watercraft .......................... 3-32
E
Emergency procedures ........................... 5-3
Emission control information
(For Canada only) ................................... 1-3
Engine break-in ..................................... 3-15
Engine compartment ............................... 3-6
Engine oil ................................................ 3-3
Engine oil level ........................................ 3-7
Engine overheat warning indicator ........ 2-22
Engine serial number .............................. 1-2
Engine shut-off cord (lanyard) ............... 3-13
Engine shut-off switch ............................. 2-9
Engine stop switch .................................. 2-9
Enjoy your watercraft responsibly ......... 1-20F
Filling the fuel tank .................................. 3-4
Fire extinguisher .................................... 3-11
Flushing the cooling system .................... 4-1
Front storage compartment ................... 2-24
Fuel and oil.............................................. 3-1
Fuel level ................................................. 3-6
Fuel meter ............................................. 2-19
Fuel system ............................................. 4-4
Fuel tank ............................................... 4-10
Fuel tank filler cap ................................... 2-6
Fuel warning indicator ........................... 2-21
G
Gasohol ................................................... 3-2
Gasoline .................................................. 3-1
Getting to know your watercraft ............ 3-20
Glove compartment ............................... 2-25
H
Handgrip ................................................ 2-14
Hazard information ................................ 1-16
Hood........................................................ 2-6
Hour meter/Voltmeter ............................ 2-20
Hull and deck .......................................... 3-6
Hull Identification Number (HIN).............. 1-2
I
Identification numbers ............................. 1-1
Important labels ....................................... 1-4
Inspecting and adjusting the throttle
cable...................................................... 4-14
Inspecting the battery ............................ 4-19
Inspecting the fuel system ..................... 4-10
Inspecting the jet thrust nozzle angle .... 4-13
Inspecting the shift cable
(for VX110 Deluxe) ................................ 4-13
J
Jet unit................................................... 3-13
Jumping the battery ................................. 5-5
L
Label location .......................................... 1-4
Launching the watercraft ...................... 3-16
Learning to operate your watercraft ...... 3-20
Leaving the watercraft ........................... 3-19
UF1K70.book Page 1 Friday, November 19, 2004 2:42 PM

6-2
E
Limitations on who may operate the
watercraft .............................................. 1-11
“L-MODE” indicator light
(for VX110 Deluxe)................................ 2-23
Location of main components ................. 2-1
Lubrication............................................... 4-3
Lubrication points .................................. 4-17
M
Maintenance and adjustments ................ 4-7
Manufactured date label.......................... 1-3
Multifunction meter ....................... 2-18, 3-14
O
Oil pressure warning indicator............... 2-21
Operating your watercraft...................... 3-20
Operation .............................................. 3-15
Operation of controls and other
functions .................................................. 2-5
Operation requirements ........................ 1-13
Other labels ............................................. 1-9
Owner’s/Operator’s Manual and
tool kit ...................................................... 4-8
P
Periodic maintenance chart..................... 4-9
Post-operation checks........................... 3-34
Pre-operation check list........................... 3-5
Pre-operation check points ..................... 3-6
Pre-operation checks .............................. 3-5
Primary Identification (PRI-ID) number ... 1-1
R
Recommended equipment .................... 1-15
Remote control transmitter
(for VX110 Deluxe).................................. 2-7
Replacing the fuses............................... 4-22
Reverse on waterways
(for VX110 Deluxe)................................ 3-33
Riding watercraft with passengers ........ 3-21
Rough water operation .......................... 3-33
S
Safe boating rules ................................. 1-20
Safety information ................................. 1-11
Seat ......................................................... 2-5
“SECURITY” indicator light
(for VX110 Deluxe)................................ 2-23Selecting the normal mode/low-RPM
mode (for VX110 Deluxe) ...................... 2-17
Shift lever and reverse gate
(for VX110 Deluxe) ................................ 3-12
Shift lever (for VX110 Deluxe) ............... 2-13
Specifications ........................................ 4-23
Speedometer......................................... 2-19
Starting and boarding in shallow
water ..................................................... 3-23
Starting from a dock .............................. 3-23
Starting the engine ................................ 3-17
Starting the watercraft ........................... 3-22
Start switch............................................ 2-10
Steering system ...........................2-12, 3-12
Stern drain plug ....................................... 3-9
Stopping the engine .............................. 3-19
Stopping the watercraft ......................... 3-31
Storage.................................................... 4-1
Storage compartments .......................... 2-24
Submerged watercraft ............................. 5-8
Switches ................................................ 3-14
T
Tachometer ........................................... 2-19
Throttle .................................................. 3-11
Throttle lever ......................................... 2-10
Towing the watercraft .............................. 5-7
Transporting .......................................... 3-36
Troubleshooting ...................................... 5-1
Troubleshooting chart ............................. 5-1
Turning the watercraft ........................... 3-29
W
Warning labels ........................................ 1-5
Watercraft characteristics ...................... 1-16
Water separator ...................................... 3-8
Water-skiing .......................................... 1-18
Y
Yamaha Engine Management
System (YEMS) ..................................... 2-15
Yamaha Security System
(for VX110 Deluxe) ................................ 2-15
Yamaha Security System lock and
unlock modes (for VX110 Deluxe) ........ 2-16
Yamaha Security System/Low-RPM
mode (for VX110 Deluxe) ...................... 2-15
