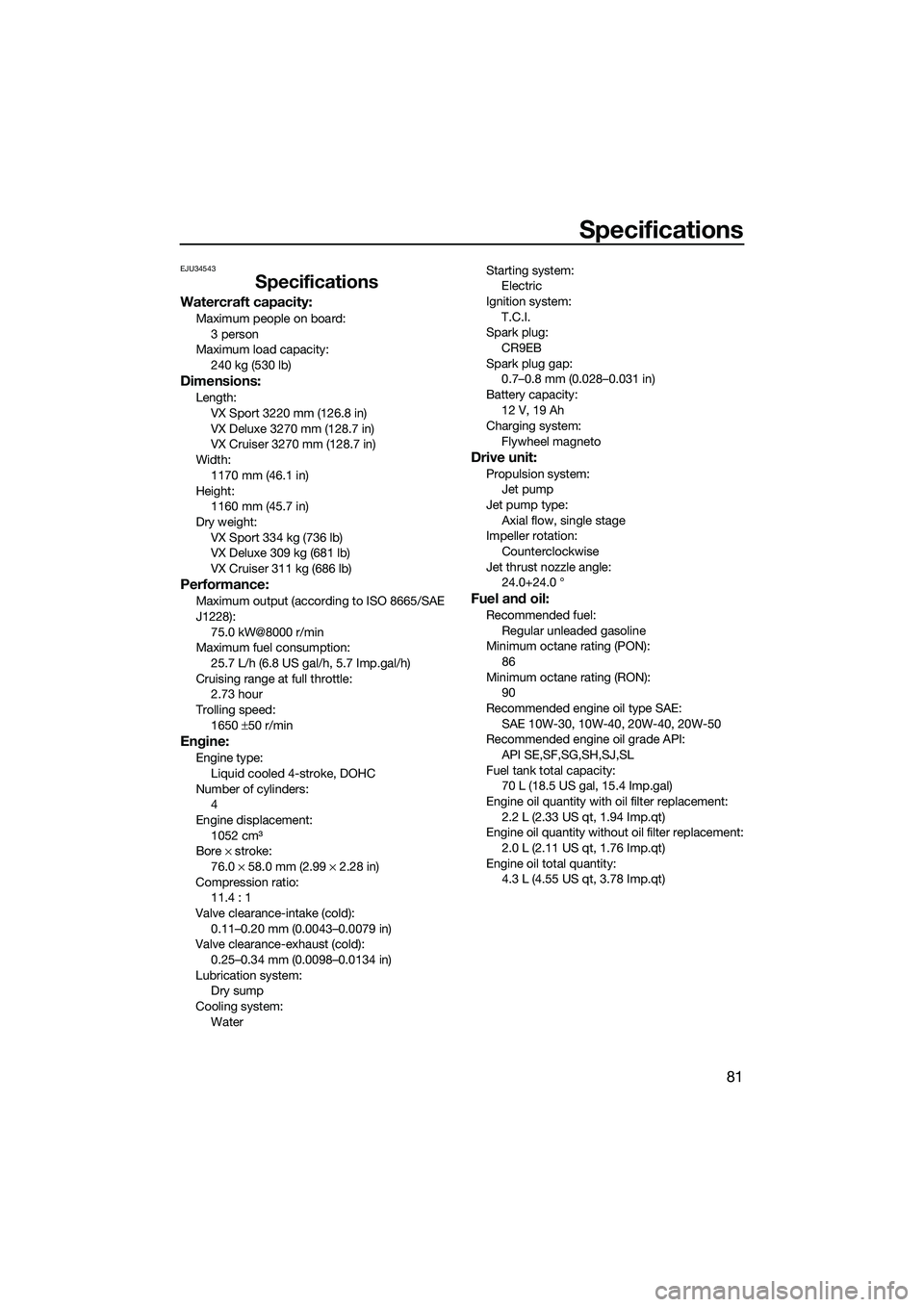

Specifications
81
EJU34543
Specifications
Watercraft capacity:
Maximum people on board:3 person
Maximum load capacity: 240 kg (530 lb)
Dimensions:
Length:
VX Sport 3220 mm (126.8 in)
VX Deluxe 3270 mm (128.7 in)
VX Cruiser 3270 mm (128.7 in)
Width: 1170 mm (46.1 in)
Height: 1160 mm (45.7 in)
Dry weight:
VX Sport 334 kg (736 lb)
VX Deluxe 309 kg (681 lb)
VX Cruiser 311 kg (686 lb)
Performance:
Maximum output (according to ISO 8665/SAE
J1228):75.0 kW@8000 r/min
Maximum fuel consumption:
25.7 L/h (6.8 US gal/h, 5.7 Imp.gal/h)
Cruising range at full throttle: 2.73 hour
Trolling speed: 1650 ±50 r/min
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Number of cylinders: 4
Engine displacement:
1052 cm³
Bore × stroke:
76.0 × 58.0 mm (2.99 × 2.28 in)
Compression ratio: 11.4 : 1
Valve clearance-intake (cold):
0.11–0.20 mm (0.0043–0.0079 in)
Valve clearance-exhaust (cold): 0.25–0.34 mm (0.0098–0.0134 in)
Lubrication system: Dry sump
Cooling system:
Water Starting system:
Electric
Ignition system: T.C.I.
Spark plug:
CR9EB
Spark plug gap: 0.7–0.8 mm (0.028–0.031 in)
Battery capacity: 12 V, 19 Ah
Charging system:
Flywheel magneto
Drive unit:
Propulsion system:Jet pump
Jet pump type: Axial flow, single stage
Impeller rotation:
Counterclockwise
Jet thrust nozzle angle: 24.0+24.0 °
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Minimum octane rating (PON): 86
Minimum octane rating (RON): 90
Recommended engine oil type SAE:
SAE 10W-30, 10W-40, 20W-40, 20W-50
Recommended engine oil grade API: API SE,SF,SG,SH,SJ,SL
Fuel tank total capacity: 70 L (18.5 US gal, 15.4 Imp.gal)
Engine oil quantity with oil filter replacement:
2.2 L (2.33 US qt, 1.94 Imp.qt)
Engine oil quantity without oil filter replacement: 2.0 L (2.11 US qt, 1.76 Imp.qt)
Engine oil total quantity: 4.3 L (4.55 US qt, 3.78 Imp.qt)
