display YAMAHA VX CRUISER 2021 Owners Manual

Table of contents
General and important labels ........... 1Identification numbers .................... 1
Primary Identification (PRI-ID)
number............................................ 1
Craft Identification Number (CIN) ....... 1
Engine serial number.......................... 2
Manufactured date label .................... 2
Model information ........................... 3
Builder’s plate .................................... 3
Important labels .............................. 4
Warning labels.................................... 5
Other labels ........................................ 8
Safety information ........................... 10 Limitations on who may operate the watercraft ............................. 10
Cruising limitations ........................ 11
Operation requirements ................ 12
Recommended equipment ........... 14
Hazard information........................ 15
Watercraft characteristics ............. 15
Wakeboarding and water-skiing ... 17
Safe boating rules ......................... 18
Enjoy your watercraft responsibly ................................. 19
Description....................................... 20 Watercraft glossary ....................... 20
Location of main components ...... 21
Control function operation ............. 25 Watercraft control functions ......... 25
Yamaha Security System
(VX DELUXE / VX CRUISER /
VX LIMITED) .................................. 25
Engine stop switch (VX-C)................ 26
Engine start/stop switch (VX / VX DELUXE / VX CRUISER /
VX LIMITED) .................................. 26
Engine shut-off switch .................... 26
Start switch (VX-C) ........................... 27
Throttle lever .................................... 27 RiDE lever (VX / VX DELUXE /
VX CRUISER / VX LIMITED) .......... 28
Steering system................................ 28
Cooling water pilot outlet ................. 28
Water separator................................ 29
Watercraft operation ...................... 30 Watercraft operation functions ..... 30
Shift system (VX / VX DELUXE /
VX CRUISER / VX LIMITED) .......... 30
Watercraft operation modes (VX DELUXE / VX CRUISER /
VX LIMITED) ............................... 33
Reverse assist .................................. 33
T.D.E. (thrust directional
enhancer) ...................................... 34
No-wake mode ................................. 35
Drive control mode ........................... 36
Cruise assist ..................................... 37
Instrument operation ...................... 39 Multifunction information center (VX-C / VX) ................................. 39
Information display ........................... 39
Multifunction information center (VX DELUXE / VX CRUISER /
VX LIMITED) ............................... 44
Operation buttons ............................ 45
Display.............................................. 45
Home screen ................................... 46
Information screen .......................... 47
Drive control mode screen .............. 47
Setting menu screen ....................... 47
Engine lock screen .......................... 49
Warning function .............................. 49
Audio system (equipped models) ...................................... 52
Audio control .................................... 52
Accessory outlet............................... 52
USB charger ..................................... 53
UF4N70E0.book Page 1 Tuesday, October 6, 2020 5:13 PM

Safety information
15
EJU44610
Hazard information
Never start the engine or let it run for any
length of time in an enclosed area. Exhaust
fumes contain carbon monoxide, a color-
less, odorless gas that may cause loss of
consciousness and death within a short
time. Always operate the watercraft in an
open area.
Do not touch the hot oil tank, muffler, or en-
gine during or immediately after engine op-
eration; they can cause serious burns.
Do not place magnets or objects with a
strong magnetic force near the throttle le-
ver or RiDE lever (VX / VX DELUXE /
VX CRUISER / VX LIMITED). The electronic
throttle mechanism of the levers can be ad-
versely affected, which could cause loss of
control. In addition, do not place objects
susceptible to magnetic forces (i.e., credit
cards, watches, etc.) close to the throttle
lever or RiDE lever.
EJU44971
Watercraft characteristics
Jet thrust turns the watercraft. Releasing
the throttle lever completely produces only
minimum thrust. If you are traveling at
speeds above trolling, you will have rapidly
decreasing ability to steer without throttle.
This model is equipped with the Yamaha
Engine Management System (YEMS) that
includes an off-throttle steering (OTS) sys-
tem. It will activate at planing speeds
should you attempt to steer the watercraft
after releasing the throttle lever. The OTS
system assists in turning by continuing to
supply some thrust while the watercraft is
decelerating, but you can turn more sharp-
ly if you apply throttle while turning the han-
dlebars.
The OTS system does not function below
planing speeds or when the engine is off.
Once the engine slows down, the water-
craft will no longer turn in response to han-
dlebar input until you apply throttle again or
you reach trolling speed.
Practice turning in an open area without
obstacles until you have a good feel for this
maneuver.
VX-C: This watercraft is water-jet pro-
pelled. The jet pump is directly connected
to the engine. This means that jet thrust will
produce some movement whenever the
engine is running. There is no “neutral” po-
sition.
VX / VX DELUXE / VX CRUISER / VX
LIMITED: This watercra ft is water-jet pro-
pelled. The jet pump is directly connected
to the engine. This means that jet thrust will
produce some movement whenever the
engine is running and the “F” (forward) or
“R” (reverse) shift indicator is displayed.
When the “N” (neutral) shift indicator is dis-
played, the forward and reverse thrust are
UF4N70E0.book Page 15 Tuesday, October 6, 2020 5:13 PM

Watercraft operation
30
EJU40014
Watercraft operation functions
EJU43155Shift system (VX / VX DELUXE /
VX CRUISER / VX LIMITED)
EWJ01773
Make sure that there are no obstacles or
people behind you before shifting into
reverse.
Do not touch the reverse gate while the
RiDE lever is being operated, otherwise
you could be pinched.
If the RiDE lever and throttle lever are
being operated at the same time, do not
release only the RiDE lever. Otherwise,
the watercraft could accelerate more
quickly than expected, which may lead
to an accident.
The RiDE lever and throttle lever can be oper-
ated to change the forward or rearward
movement of the watercraft only when the
engine is running. When the RiDE lever is
squeezed, the reverse gate lowers and de-
flects the water jet being discharged from the
jet thrust nozzle so that the watercraft moves
in reverse or is in neutral. When the throttle le-
ver is squeezed, the reverse gate rises and
the watercraft moves forward.
TIP:
This model is equipped with a function
which limits the engine speed in reverse.
When the engine is started, the reverse
gate automatically moves to the neutral po-
sition.
To shift into reverse:
(1) Release the throttle lever.
(2) Squeeze the RiDE lever. The reverse gate will lower, the engine speed will in-
crease, the watercraft will start moving in reverse, and the “R” (reverse) shift indi-
cator will be displayed.
VX
1 RiDE lever
1 Reverse gate
2 Reverse position
1 “R” (Reverse position)
1
1
2
1
UF4N70E0.book Page 30 Tuesday, October 6, 2020 5:13 PM

Watercraft operation
32
start moving forward, and the “F” (for-
ward) shift indicator will be displayed.
VX VX DELUXE / VX CRUISER / VX LIMITED
TIP:
If the RiDE lever is squeezed while the throttle
lever is squeezed, the watercraft will slow
down, and once stopped, move in reverse.

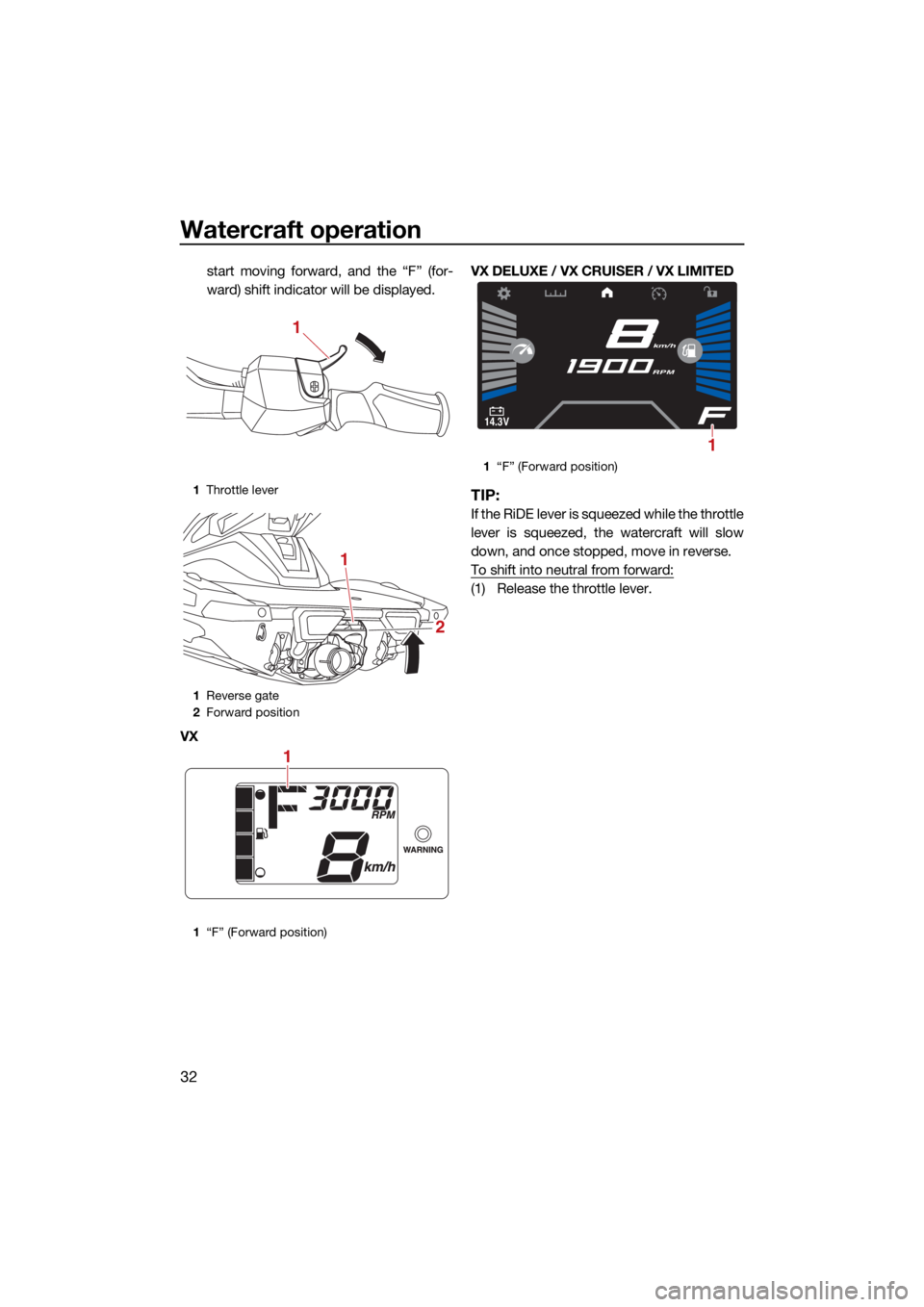

To shift into neutral from forward:
(1) Release the throttle lever.
1
Throttle lever
1 Reverse gate
2 Forward position
1 “F” (Forward position)
1
1
2
1
1“F” (Forward position)
14.3V
km/h
RPM
1
UF4N70E0.book Page 32 Tuesday, October 6, 2020 5:13 PM

Watercraft operation
33
(2) Lightly squeeze and release the RiDE le-ver. The “N” (neutral) shift indicator will
be displayed.
VX
VX DELUXE / VX CRUISER / VX LIMITED
TIP:
If the RiDE lever is squeezed continuously,
the reverse gate will move to the reverse po-
sition.
EJU40003
Watercraft operation modes
(VX DELUXE / VX CRUISER / VX LIMITED)
EJU45891Reverse assist
The reverse assist is a function for temporar-
ily increasing the engine speed when moving
in reverse, such as to enter the water
smoothly when launching the watercraft from
a trailer.
This function operates after the engine is
started and only if the watercraft is not shifted
into forward.
TIP:
Once the watercraft is shifted into forward af-
ter the engine is started, the reverse assist
cannot be operated.
Activating and deactivating the reverse
assist
The activation of the reverse assist can be
confirmed by the reverse assist indicator on
the multifunction information center.
To activate the reverse assist:
(1) Start the engine.
(2) Squeeze the RiDE lever to the fully open
position, and then push the upper side of
the “SPEED ADJUST” switch. Once the
beeper sounds three times and the re-
1“N” (Neutral position)
1 “N” (Neutral position)
1
14.3V
km/h
RPM
1
1 Reverse assist indicator
2 Reverse assist level
14.3V
km/h
RPM
Rever se Assist +2
21
UF4N70E0.book Page 33 Tuesday, October 6, 2020 5:13 PM

Watercraft operation
34
verse assist indicator is displayed, the
engine speed will increase. The engine
speed can be adjusted to two levels: +1
and +2.
To deactivate the reverse assist:
Perform one of the following operations. The
beeper sounds two times and the reverse as-
sist indicator disappears when the reverse
assist is deactivated.
Relax your grip on the RiDE lever.
Push the lower side of the “SPEED AD-
JUST” switch when the reverse assist level
is set to +1.
Squeeze the throttle lever.EJU46280T.D.E. (thrust directional enhancer)
The T.D.E. is a function for slightly lifting or
lowering the reverse gate from the neutral po-
sition to operate the watercraft at very low speeds when the engine is running at idling
speed.
This function can be used only when the wa-
tercraft is in neutral.
Activating and deactivating the T.D.E.
The activation of the T.D.E. can be confirmed
by the T.D.E. indicator on the multifunction
information center.
To activate the T.D.E.:
(1) Shift into neutral.
(2) Push the upper side of the “T.D.E.”
switch to move forward at a very low
speed or push the lower side of the
“T.D.E.” switch to move in reverse at a
very low speed.
1RiDE lever
1 “SPEED ADJUST” switch
1
1
1T.D.E. indicator
2 Forward operation at a very low speed
3 Reverse operation at a very low speed
1 “T.D.E.” switch
14.3V
MPH
RPM
T.D.E. FORWARD
T.D.E. REVERSE T.D.E. FORWARD
1
3
2
1
UF4N70E0.book Page 34 Tuesday, October 6, 2020 5:13 PM

Watercraft operation
35
TIP:
While the T.D.E. is activated, the “N” (neutral)
shift indicator will be displayed and “0” will be
displayed on the speedometer.
To deactivate the T.D.E.:
Perform one of the following operations. The
T.D.E. indicator disappears and the T.D.E. is
deactivated.
Squeeze the throttle lever.
Squeeze the RiDE lever.
Push and hold the “CRUISE/NO WAKE”
switch.
While moving forward at a very low speed,
push the lower side of the “T.D.E.” switch.
While moving in reverse at a very low
speed, push the upper side of the “T.D.E.”
switch.
TIP:
The T.D.E. is also deactivated when the en-
gine is stopped.
EJU46420No-wake mode
The no-wake mode is a function that main-
tains the engine speed at a fixed setting for
operating the watercraft at low speeds.
This function can be used only when the wa-
tercraft is in neutral, or when the watercraft is
shifted into forward and the engine is operat-
ing at idling speed.
TIP:
If the no-wake mode is activated when the
watercraft is in neutral, the watercraft will au-
tomatically shift into forward and the water-
craft will start moving at a low speed.Activating and deactivating the no-wake
mode
The activation of the no-wake mode can be
confirmed by the no-wake mode indicator on
the multifunction information center.
To activate the no-wake mode:
(1) Shift into neutral, or release the throttle
lever and let the engine speed return to
idle.
(2) Push and hold the “CRUISE/NO WAKE” switch. Once the beeper sounds three
times and the no-wake mode indicator is
displayed, the no-wake mode is activat-
ed.
To deactivate the no-wake mode:
Perform one of the following operations. The
beeper sounds two times and the no-wake
mode indicator disappears when the no-
wake mode is deactivated.
1 No-wake mode indicator
1 “CRUISE/NO WAKE” switch
14.3V
km/h
RPM
No Wake
1
1
UF4N70E0.book Page 35 Tuesday, October 6, 2020 5:13 PM

Watercraft operation
37
To unlock the drive control mode:
(1) Select the drive control mode indicator.
(2) Input each digit of the 4-digit PIN, andthen push the “OK” button of the touch-
pad control.
(3) Select “Lock”.
EJU46390Cruise assist
The cruise assist is a function for maintaining
a desired engine speed within a fixed range
while operating the watercraft. Once the
cruise assist is activated, the set engine
speed can be increased or decreased. How-
ever, the adjustment is limited to a maximum
of five increments above or below the initial
cruise assist setting.
TIP:
The cruise assist can only be set between en-
gine speeds of approximately 4000 r/min and
approximately 7000 r/min.
Activating and deactivating the cruise as-
sist
Activation of the cruise assist can be con-
firmed by the cruise assist indicator on the
multifunction information center.
To activate the cruise assist:
(1) Operate the throttle lever until the de- sired engine speed is reached.
(2) When the engine speed reaches the de- sired cruise assist setting, push the “CRUISE/NO WAKE” switch. Once the
beeper sounds three times and the
cruise assist indicator is displayed, the
cruise assist is activated.
(3) When the cruise assist is activated, slow- ly squeeze the throttle lever to keep it
squeezed further than the position at
which the cruise assist was set.
TIP:
Check the multifunction information center to
make sure that the cruise assist is activated
before squeezing the throttle lever to the full
throttle position. If the cruise assist is not ac-
tivated, the engine will respond normally to
the throttle operation.
(4) Once the cruise assist is activated, pushthe upper side of the “SPEED ADJUST”
switch to increase the set engine speed
or the lower side of the “SPEED AD-
JUST” switch to decrease the set engine
speed. The engine speed can be
1Cruise assist indicator
2 Cruise assist level
14.3V
RPM
Cruise Assist +4
km/h
21
1“CRUISE/NO WAKE” switch
1
UF4N70E0.book Page 37 Tuesday, October 6, 2020 5:13 PM

Instrument operation
39
EJU44571
Multifunction information center (VX-C / VX)
The multifunction information center displays
various watercraft information.
Multifunction information center initial op-
eration
When the multifunction information center is
activated, all of the display segments come
on. After 2 seconds, the warning indicators in
the information display go off, and then the
center starts to operate normally.
Multifunction information center standby
state
If the multifunction information center does
not receive any operation input within 30 sec-
onds after the engine stops, the center will
turn off and enter a standby state. When the
engine is started again, the displays return to
their state before the center turned off, and
then the center starts to operate normally.
EJU35027Information display
The information display shows watercraft op-
erating conditions.
EJU46430Speedometer
The speedometer shows the watercraft
speed.
By switching the display units, the speed can
be shown in kilometers per hour “km/h” or
miles per hour “MPH”.
TIP:
“MPH” is selected as the display unit at the
Yamaha factory.
1 Information display
2 “WARNING” indicator light
12
1Fuel level meter
2 Shift indicator (VX)
3 Engine overheat warning indicator
4 Check engine warning indicator
5 Tachometer / hour meter / voltmeter
6 Oil pressure warning indicator
7 Fuel level warning indicator
8 Speedometer
1 Speedometer
251346
78
1
UF4N70E0.book Page 39 Tuesday, October 6, 2020 5:13 PM

Instrument operation
40

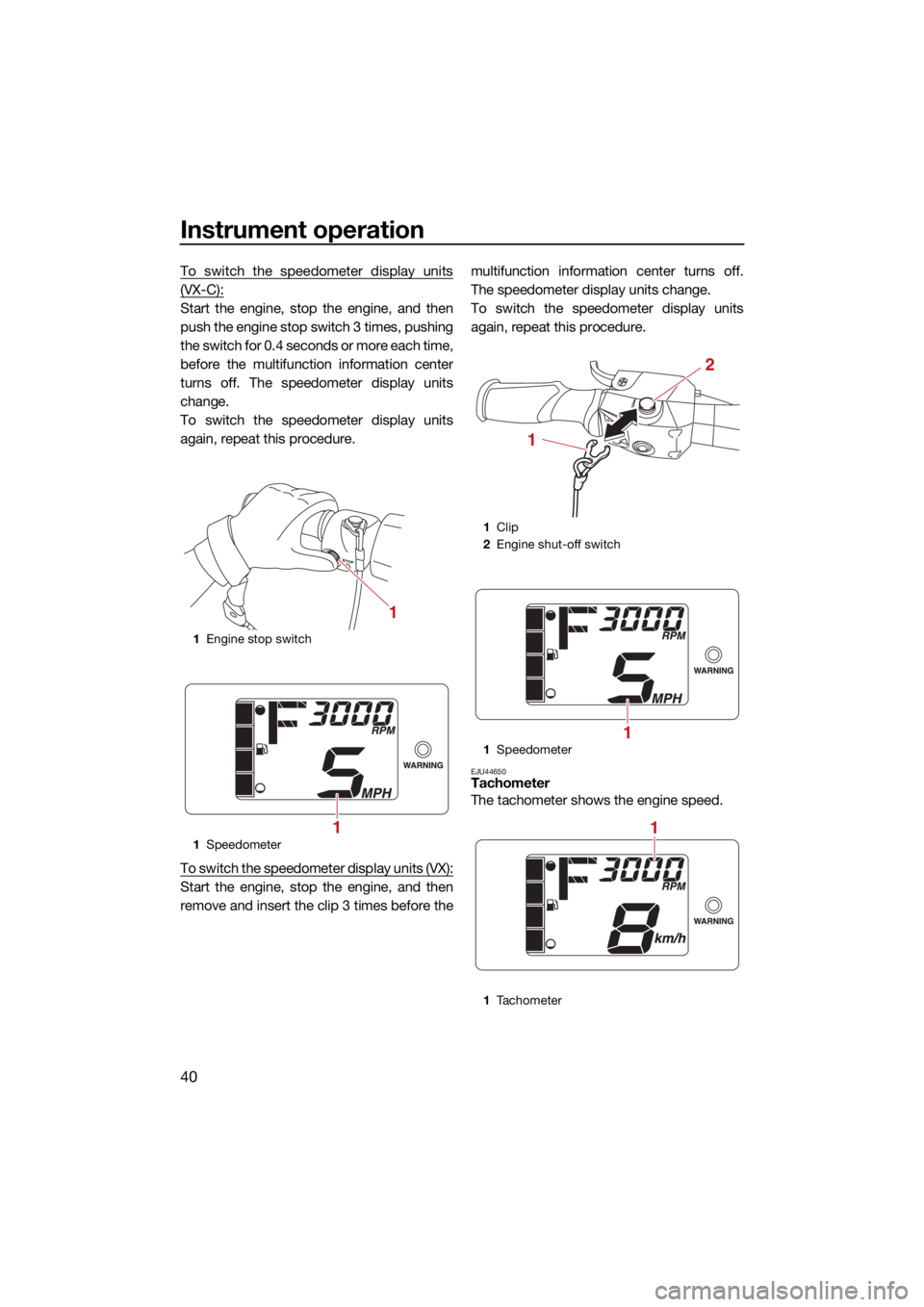

To switch the speedometer display units
(VX-C):
Start the engine, stop the engine, and then
push the engine stop switch 3 times, pushing
the switch for 0.4 seconds or more each time,
before the multifunction information center
turns off. The speedometer display units
change.
To switch the speedometer display units
again, repeat this procedure.
To switch the speedometer display units (VX):
Start the engine, stop the engine, and then
remove and insert the clip 3 times before the multifunction information center turns off.
The speedometer display units change.
To switch the speedometer display units
again, repeat this procedure.
EJU44650Tachometer
The tachometer shows the engine speed.
1
Engine stop switch
1 Speedometer
1
1
1Clip
2 Engine shut-off switch
1 Speedometer
1 Tachometer
1
2
1
1
UF4N70E0.book Page 40 Tuesday, October 6, 2020 5:13 PM
