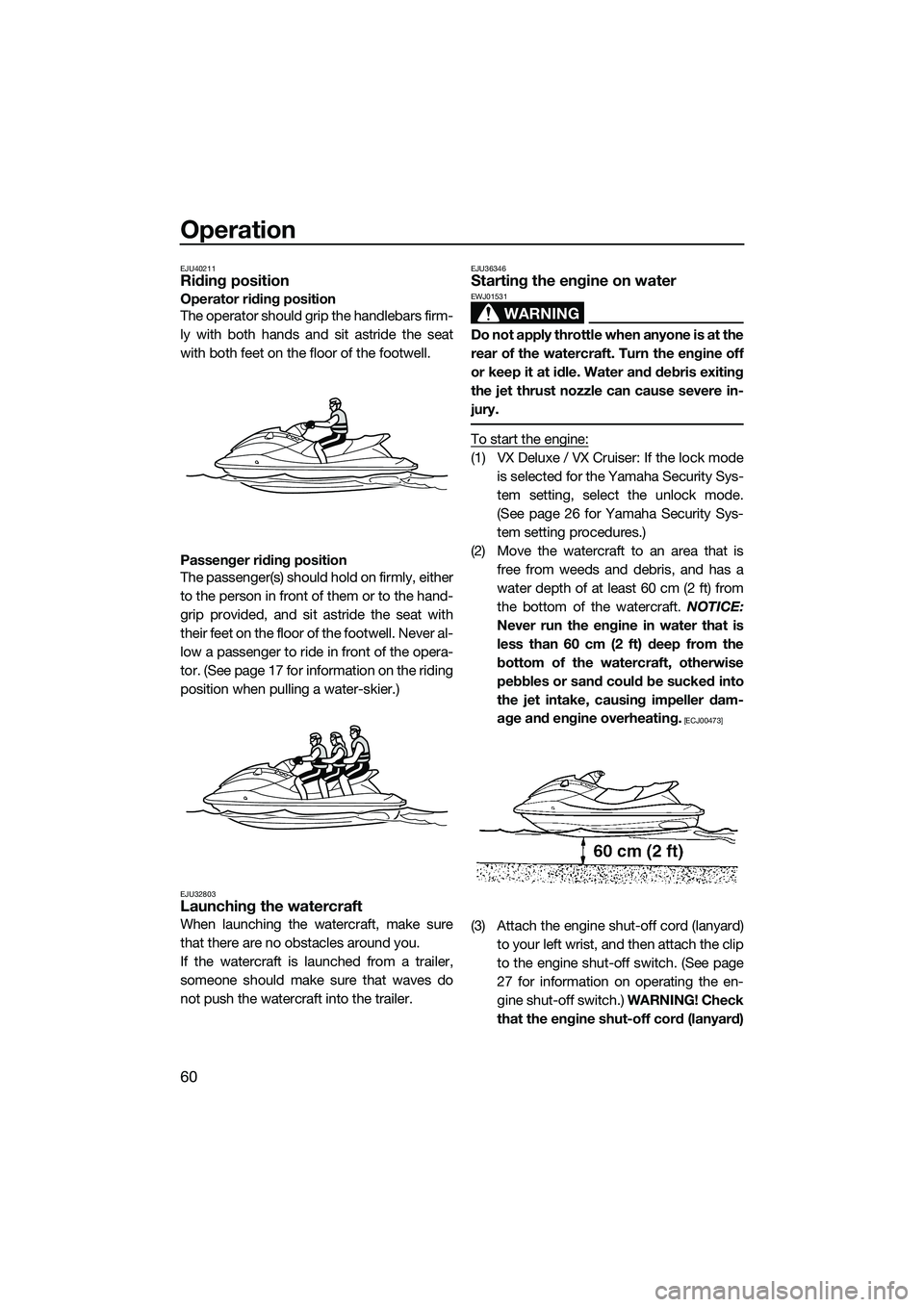

Operation
60
EJU40211Riding position
Operator riding position
The operator should grip the handlebars firm-
ly with both hands and sit astride the seat
with both feet on the floor of the footwell.
Passenger riding position
The passenger(s) should hold on firmly, either
to the person in front of them or to the hand-
grip provided, and sit astride the seat with
their feet on the floor of the footwell. Never al-
low a passenger to ride in front of the opera-
tor. (See page 17 for information on the riding
position when pulling a water-skier.)
EJU32803Launching the watercraft
When launching the watercraft, make sure
that there are no obstacles around you.
If the watercraft is launched from a trailer,
someone should make sure that waves do
not push the watercraft into the trailer.
EJU36346Starting the engine on water
WARNING
EWJ01531
Do not apply throttle when anyone is at the
rear of the watercraft. Turn the engine off
or keep it at idle. Water and debris exiting
the jet thrust nozzle can cause severe in-
jury.
To start the engine:
(1) VX Deluxe / VX Cruiser: If the lock modeis selected for the Yamaha Security Sys-
tem setting, select the unlock mode.
(See page 26 for Yamaha Security Sys-
tem setting procedures.)
(2) Move the watercraft to an area that is free from weeds and debris, and has a
water depth of at least 60 cm (2 ft) from
the bottom of the watercraft. NOTICE:
Never run the engine in water that is
less than 60 cm (2 ft) deep from the
bottom of the watercraft, otherwise
pebbles or sand could be sucked into
the jet intake, causing impeller dam-
age and engine overheating.
[ECJ00473]
(3) Attach the engine shut-off cord (lanyard) to your left wrist, and then attach the clip
to the engine shut-off switch. (See page
27 for information on operating the en-
gine shut-off switch.) WARNING! Check
that the engine shut-off cord (lanyard)
UF2P71E0.book Page 60 Wednesday, July 10, 2013 5:37 PM

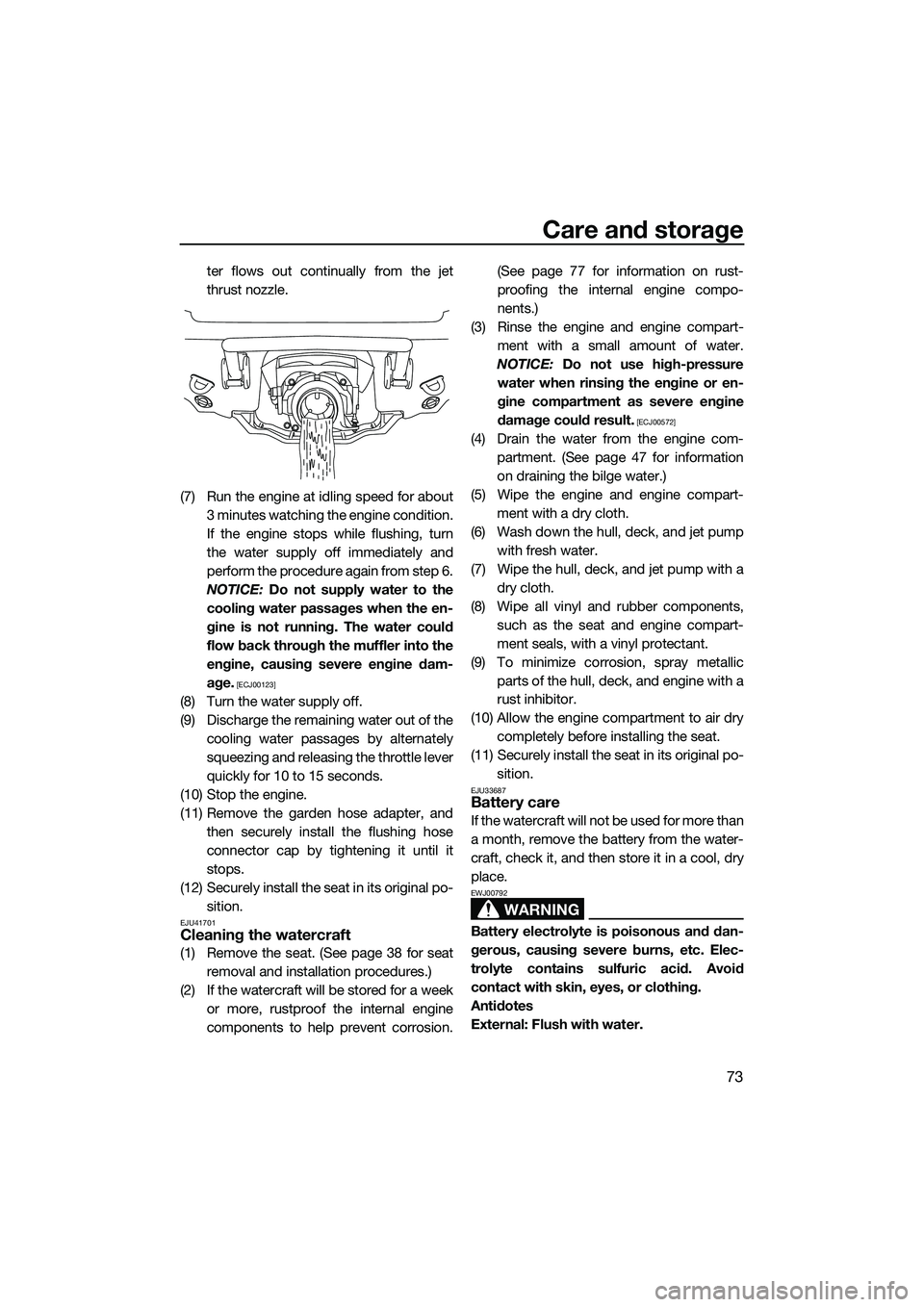

Care and storage
73
ter flows out continually from the jet
thrust nozzle.
(7) Run the engine at idling speed for about 3 minutes watching the engine condition.
If the engine stops while flushing, turn
the water supply off immediately and
perform the procedure again from step 6.
NOTICE: Do not supply water to the
cooling water passages when the en-
gine is not running. The water could
flow back through the muffler into the
engine, causing severe engine dam-
age.
[ECJ00123]
(8) Turn the water supply off.
(9) Discharge the remaining water out of the cooling water passages by alternately
squeezing and releasing the throttle lever
quickly for 10 to 15 seconds.
(10) Stop the engine.
(11) Remove the garden hose adapter, and then securely install the flushing hose
connector cap by tightening it until it
stops.
(12) Securely install the seat in its original po- sition.
EJU41701Cleaning the watercraft
(1) Remove the seat. (See page 38 for seatremoval and installation procedures.)
(2) If the watercraft will be stored for a week or more, rustproof the internal engine
components to help prevent corrosion. (See page 77 for information on rust-
proofing the internal engine compo-
nents.)
(3) Rinse the engine and engine compart- ment with a small amount of water.
NOTICE: Do not use high-pressure
water when rinsing the engine or en-
gine compartment as severe engine
damage could result.
[ECJ00572]
(4) Drain the water from the engine com- partment. (See page 47 for information
on draining the bilge water.)
(5) Wipe the engine and engine compart- ment with a dry cloth.
(6) Wash down the hull, deck, and jet pump with fresh water.
(7) Wipe the hull, deck, and jet pump with a dry cloth.
(8) Wipe all vinyl and rubber components, such as the seat and engine compart-
ment seals, with a vinyl protectant.
(9) To minimize corrosion, spray metallic parts of the hull, deck, and engine with a
rust inhibitor.
(10) Allow the engine compartment to air dry completely before installing the seat.
(11) Securely install the seat in its original po- sition.
EJU33687Battery care
If the watercraft will not be used for more than
a month, remove the battery from the water-
craft, check it, and then store it in a cool, dry
place.
WARNING
EWJ00792
Battery electrolyte is poisonous and dan-
gerous, causing severe burns, etc. Elec-
trolyte contains sulfuric acid. Avoid
contact with skin, eyes, or clothing.
Antidotes
External: Flush with water.
UF2P71E0.book Page 73 Wednesday, July 10, 2013 5:37 PM

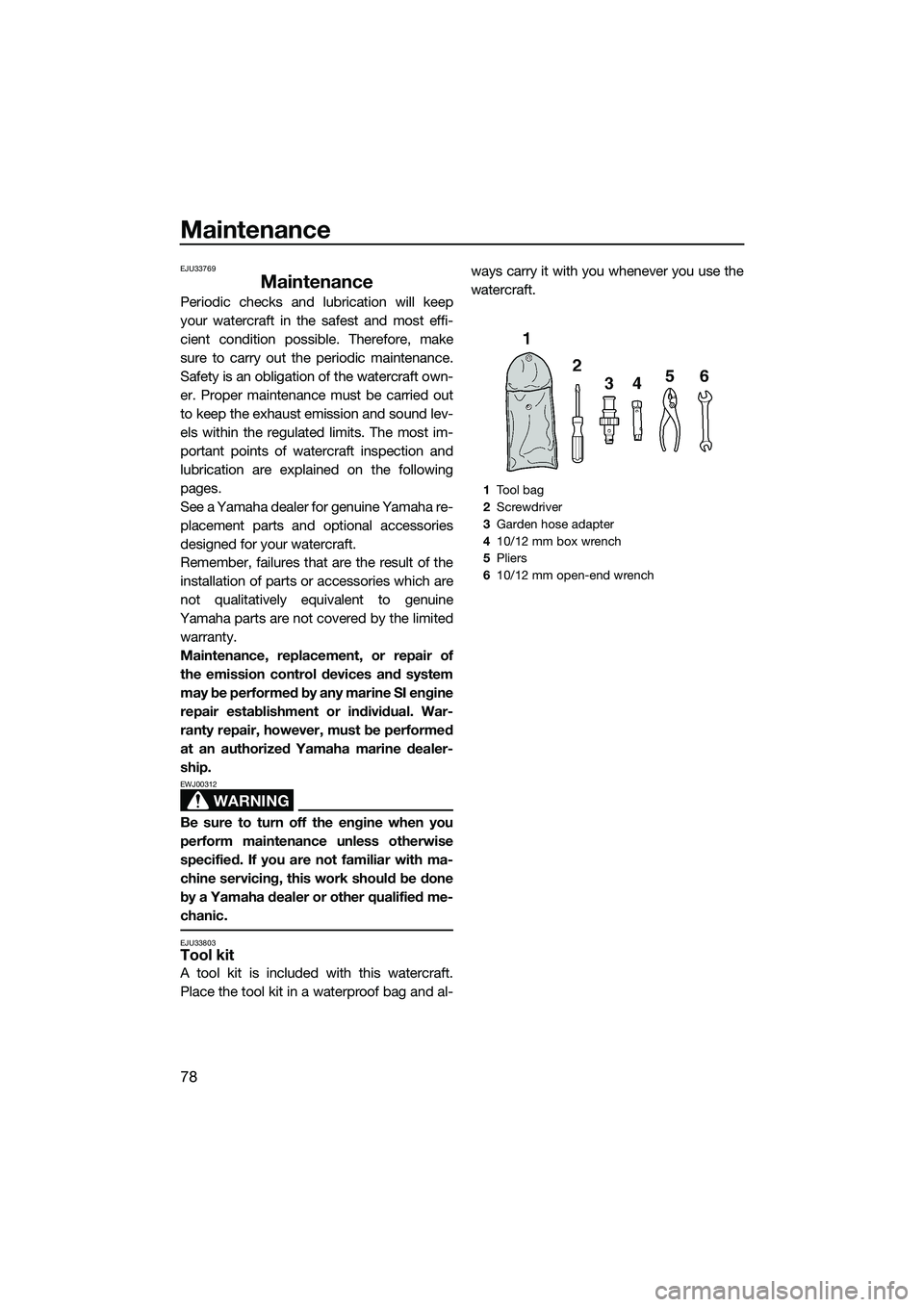

Maintenance
78
EJU33769
Maintenance
Periodic checks and lubrication will keep
your watercraft in the safest and most effi-
cient condition possible. Therefore, make
sure to carry out the periodic maintenance.
Safety is an obligation of the watercraft own-
er. Proper maintenance must be carried out
to keep the exhaust emission and sound lev-
els within the regulated limits. The most im-
portant points of watercraft inspection and
lubrication are explained on the following
pages.
See a Yamaha dealer for genuine Yamaha re-
placement parts and optional accessories
designed for your watercraft.
Remember, failures that are the result of the
installation of parts or accessories which are
not qualitatively equivalent to genuine
Yamaha parts are not covered by the limited warranty.
Maintenance, replacement, or repair of
the emission control devices and system
may be performed by any marine SI engine
repair establishment or individual. War-
ranty repair, however, must be performed
at an authorized Yamaha marine dealer-
ship.
WARNING
EWJ00312
Be sure to turn off the engine when you
perform maintenance unless otherwise
specified. If you are not familiar with ma-
chine servicing, this work should be done
by a Yamaha dealer or other qualified me-
chanic.
EJU33803Tool kit
A tool kit is included with this watercraft.
Place the tool kit in a waterproof bag and al- ways carry it with you whenever you use the
watercraft.
1
Tool bag
2 Screwdriver
3 Garden hose adapter
4 10/12 mm box wrench
5 Pliers
6 10/12 mm open-end wrench
UF2P71E0.book Page 78 Wednesday, July 10, 2013 5:37 PM

Maintenance
79
EJU37063Periodic maintenance chart
The periodic maintenance chart gives general guidelines for periodic maintenance. Have a
Yamaha dealer perform the checks in the following chart. However, maintenance may need to be performed more frequently depending on your operating conditions. If you have any
questions, consult a Yamaha dealer.
This “ ” mark indicates items to be checked and serviced by a Yamaha dealer.
Item OperationInitial
Thereafter every
Page
10
hours 50 hours
100
hours 200
hours
6
months 12
months 12
months 24
months
Spark plugs Check, clean, replace —
Lubrication points Lubricate —
Intermediate
housing Lubricate
—
Fuel system Check —
Fuel tank Check, clean —
Engine idling
speed Check, adjust
—
Throttle shaft Check —
Water inlet strain-
er Check, clean
—
Bilge strainer Clean —
Impeller Check —
Jet thrust nozzle
angle Check, adjust
—
Shift cable and re-
verse gate
(VX Deluxe /
VX Cruiser) Check, adjust
—
Throttle cable Check —
Stern drain plugs Check, replace —
Battery Check, charge —
Rubber coupling Check —
Engine mount Check —
Nuts and bolts Check —
Air filter element Check —
Engine oil Replace 80
Oil filter Replace 80
Valve clearance Check, adjust —
UF2P71E0.book Page 79 Wednesday, July 10, 2013 5:37 PM

Trouble recovery
82
EJU34562
Troubleshooting
If you have any trouble with your watercraft, use the troubleshooting chart to check for the
possible cause.
If you cannot find the cause, consult a Yamaha dealer.
EJU34596Troubleshooting chart
Confirm the possible cause and remedy, and then refer to the applicable page.
TROUBLEPOSSIBLE CAUSE REMEDYPAGE
Engine does not
start (Starter motor
does not turn over) Ya m a h a S e -
curity System
(VX Deluxe /
VX Cruiser)Lock mode selected Select unlock mode
26
Engine shut-
off switch Clip not in place Install clip
27
Fuse Burned out Replace fuse and
check wiring 86
Battery Run down Recharge73
Poor terminal con-
nections Tighten as required
73
Terminal corroded Clean or replace 73
Starter motor Faulty Have serviced by
Yamaha dealer —
Engine does not
start (Starter motor
turns over) Throttle lever Squeezed
Release27
Fuel Empty Refill as soon as pos-
sible 44
Stale or contaminat-
ed Have serviced by
Yamaha dealer
—
Fuel tank Water or dirt present Have serviced by Yamaha dealer—
Spark plug Fouled or defective Have serviced by Yamaha dealer—
Spark plug
cap Not connected or
loose Have serviced by
Yamaha dealer
—
Connected to wrong
cylinder Have serviced by
Yamaha dealer
—
Fuel injec-
tion system Fuel pump faulty Have serviced by
Yamaha dealer —
UF2P71E0.book Page 82 Wednesday, July 10, 2013 5:37 PM

Trouble recovery
83
Engine runs irregu-
larly or stallsFuel Empty Refill as soon as pos-
sible44
Stale or contaminat-
ed Have serviced by
Yamaha dealer
—
Fuel tank Water or dirt present Have serviced by Yamaha dealer—
Spark plug Fouled or defective Have serviced by Yamaha dealer—
Incorrect heat range Have serviced by Yamaha dealer —
Gap incorrect Have serviced by Yamaha dealer —
Spark plug
cap Not connected or
loose Have serviced by
Yamaha dealer
—
Cracked, torn, or
damaged Have serviced by
Yamaha dealer
—
Electrical wir-
ing Loose connection Have serviced by
Yamaha dealer —
Fuel injec-
tion system Faulty or clogged in-
jectors Have serviced by
Yamaha dealer
—
Warning light or in-
dicator blinks or
comes on Fuel level Empty Refill as soon as pos-
sible44
Oil pressure
warning Oil pressure dropped Have serviced by
Yamaha dealer 36
Engine over-
heated Jet intake clogged Clean
85
Check en-
gine warning Faulty sensors Have serviced by
Yamaha dealer 37
TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF2P71E0.book Page 83 Wednesday, July 10, 2013 5:37 PM

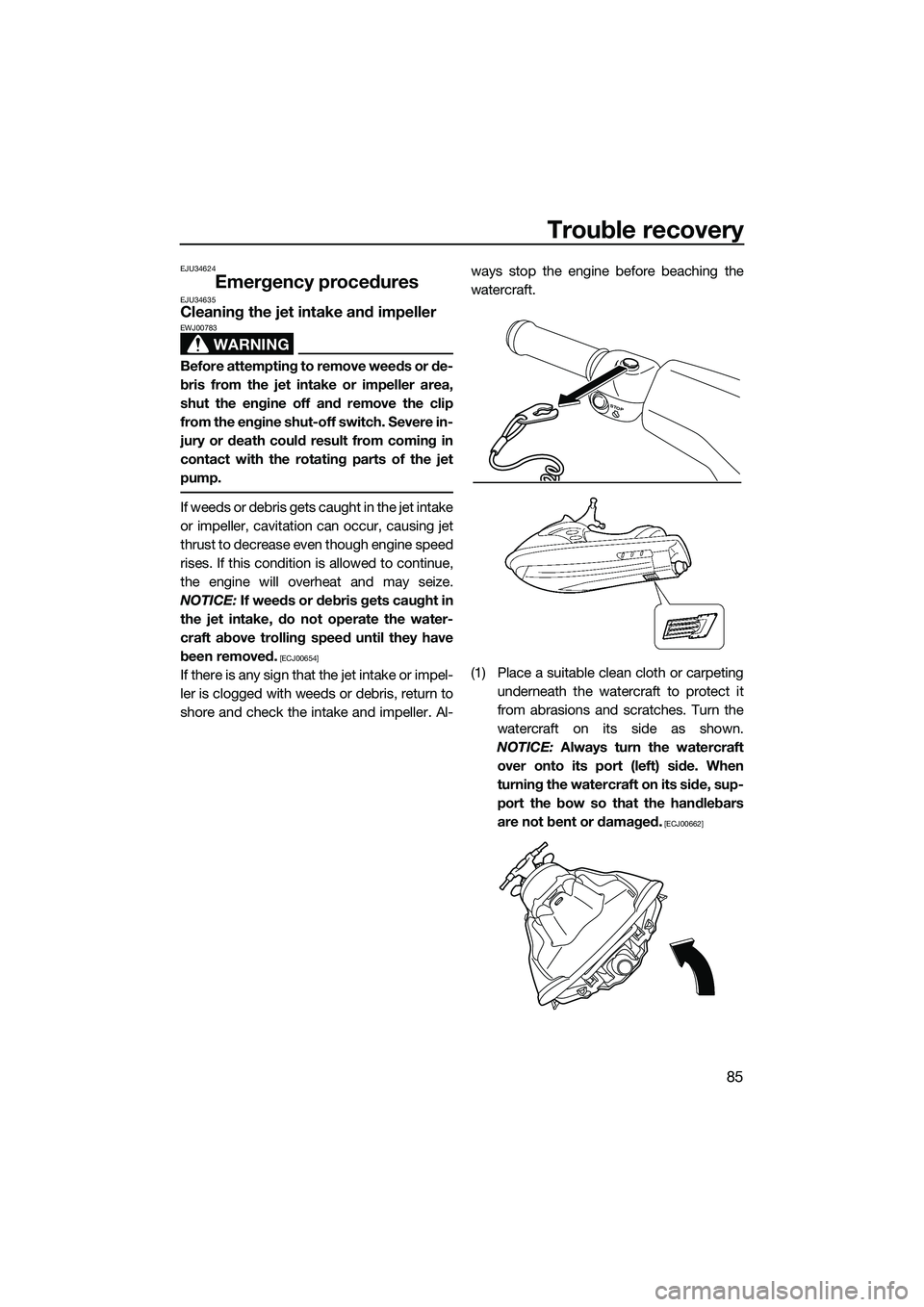

Trouble recovery
85
EJU34624
Emergency proceduresEJU34635Cleaning the jet intake and impeller
WARNING
EWJ00783
Before attempting to remove weeds or de-
bris from the jet intake or impeller area,
shut the engine off and remove the clip
from the engine shut-off switch. Severe in-
jury or death could result from coming in
contact with the rotating parts of the jet
pump.
If weeds or debris gets caught in the jet intake
or impeller, cavitation can occur, causing jet
thrust to decrease even though engine speed
rises. If this condition is allowed to continue,
the engine will overheat and may seize.
NOTICE: If weeds or debris gets caught in
the jet intake, do not operate the water-
craft above trolling speed until they have
been removed.
[ECJ00654]
If there is any sign that the jet intake or impel-
ler is clogged with weeds or debris, return to
shore and check the intake and impeller. Al- ways stop the engine before beaching the
watercraft.
(1) Place a suitable clean cloth or carpeting
underneath the watercraft to protect it
from abrasions and scratches. Turn the
watercraft on its side as shown.
NOTICE: Always turn the watercraft
over onto its port (left) side. When
turning the watercraft on its side, sup-
port the bow so that the handlebars
are not bent or damaged.
[ECJ00662]
STOP
UF2P71E0.book Page 85 Wednesday, July 10, 2013 5:37 PM

Index
A
After removing the watercraft from the water ..................................................... 71
B
Battery care.............................................. 73
Battery checks ......................................... 53
Battery, jumping ....................................... 86
Beaching and docking the watercraft ...... 70
Beverage holder ....................................... 42
Bilge water check..................................... 53
Bilge water, draining ................................ 47
Bilge water, draining on land ................... 47
Bilge water, draining on water ................. 47
Boarding alone ......................................... 65
Boarding and starting off from a dock ..... 69
Boarding the watercraft ........................... 65
Boarding with passenger(s) ..................... 66
Bow eye ................................................... 40
Bow storage compartment ...................... 40
Builder’s plate ............................................ 2
C
Capsized watercraft ................................. 69
Check engine warning ............................. 37
Cleaning ................................................... 76
Cleaning the watercraft ............................ 73
Cleat ......................................................... 40
Cooling water pilot outlet ......................... 29
Cooling water pilot outlet check .............. 58
Craft Identification Number (CIN)............... 1
Cruising limitations................................... 11
E
Emergency procedures ............................ 85
Engine break-in ........................................ 49
Engine compartment check ..................... 52
Engine idling speed check ....................... 58
Engine oil ................................................. 45
Engine oil and oil filter .............................. 80
Engine oil level check............................... 52
Engine oil requirements ........................... 45
Engine overheat warning ......................... 36
Engine serial number ................................. 1
Engine shut-off cord (lanyard) check ....... 55
Engine shut-off switch ............................. 27
Engine stop switch................................... 27
Engine unit check..................................... 52 Enjoy your watercraft responsibly ............ 19
Equipment ................................................ 38
F
Fire extinguisher check ............................ 57
Fire extinguisher holder and cover........... 42
Fire extinguisher holder, cover, and
band checks ......................................... 56
Flushing the cooling water passages....... 72
Fuel .......................................................... 44
Fuel level check........................................ 52
Fuel level meter ........................................ 35
Fuel level warning..................................... 35
Fuel requirements .................................... 44
Fuel system checks ................................. 52
Fuses, replacing ....................................... 86
G
Getting to know your watercraft .............. 59
Glossary, watercraft ................................. 20
Glove compartment ................................. 41
H
Handgrip .................................................. 39
Hazard information................................... 15
Hood check .............................................. 58
Hour meter/voltmeter ............................... 34
Hull and deck check ................................ 57
I
Identification numbers ............................... 1
Information display................................... 33
J
Jet intake and impeller, cleaning.............. 85
Jet intake checks ..................................... 57
Jumper cables, connecting ...................... 86
L
Labels, important ....................................... 4
Labels, other .............................................. 8
Labels, warning .......................................... 5
Launching the watercraft ......................... 60
Learning to operate your watercraft......... 59
Leaving the watercraft.............................. 61
Limitations on who may operate the watercraft .............................................. 10
Long-term storage ................................... 76
Low RPM Mode (VX Deluxe / VX Cruiser) ............................................ 31
Lubrication ............................................... 76
UF2P71E0.book Page 1 Wednesday, July 10, 2013 5:37 PM

Index
M
Main components, location of ................. 21
Maintenance ............................................ 78
Manufactured date label ............................ 2
Model information ...................................... 2
Multifunction information center .............. 33
Multifunction information center check ... 58
O
Oil pressure warning ................................ 36
Operating in weeded areas ...................... 70
Operating the watercraft .......................... 61
Operating the watercraft in reverse (VX Deluxe / VX Cruiser) ....................... 64
Operating your watercraft ........................ 59
Operation requirements ........................... 12
P
Periodic maintenance chart ..................... 79
Post-launch checks ................................. 58
Post-operation care ................................. 72
Pre-launch checks ................................... 52
Pre-operation check points ..................... 52
Pre-operation checklist ............................ 50
Primary Identification (PRI-ID) number ...... 1
R
Reboarding step (VX Deluxe / VX Cruiser) ............................................ 39
Recommended equipment ...................... 14
Remote control transmitter check (VX Deluxe / VX Cruiser) ....................... 55
Remote control transmitter (VX Deluxe / VX Cruiser) ............................................ 25
Reverse system checks (VX Deluxe /
VX Cruiser) ............................................ 54
Reverse system (VX Deluxe / VX Cruiser) ............................................ 30
Riding position ......................................... 60
Rustproofing ............................................ 77
S
Safe boating rules .................................... 18
Safety equipment check .......................... 57
Seat .......................................................... 38
Speedometer ........................................... 33
Start switch .............................................. 27
Starting off ............................................... 68
Starting off from a trailer .......................... 68 Starting the engine on water .................... 60
Steering system ....................................... 28
Steering system checks ........................... 53
Stern drain plug checks ........................... 57
Stern eyes ................................................ 40
Stopping the engine ................................. 61
Stopping the watercraft ........................... 64
Storage compartment checks.................. 56
Storage compartments ............................ 40
Submerged watercraft ............................. 88
Switch checks .......................................... 56
T
Tachometer .............................................. 34
Throttle lever ............................................ 28
Throttle lever checks ................................ 55
Tool kit ..................................................... 78
Towing the watercraft .............................. 88
Transporting on a trailer ........................... 48
Troubleshooting ....................................... 82
Troubleshooting chart .............................. 82
Turning the watercraft .............................. 62
W
Water separator ....................................... 29
Water separator check ............................. 52
Watercraft characteristics ........................ 15
Watercraft control functions..................... 25
Watercraft operation functions ................ 30
Watercraft operation modes .................... 31
Water-skiing ............................................. 17
Y
Yamaha Security System settings ........... 26
Yamaha Security System (VX Deluxe /
VX Cruiser) ............................................ 26
UF2P71E0.book Page 2 Wednesday, July 10, 2013 5:37 PM
