YAMAHA VX LIMITED HO 2022 Owners Manual

Specifications
93
Fuel and oil:Recommended fuel: Regular unleaded gasoline
Minimum octane rating (PON): 86
Minimum octane rating (RON): 90
Recommended engine oil: YAMALUBE 4W or 4-stroke motor oil
Recommended engine oil type SAE: SAE 10W-30, 10W-40, 20W-40,
20W-50
Recommended engine oil grade API: API SG, SH, SJ, SL
Fuel tank total capacity: 70 L (18.5 US gal, 15.4 Imp.gal)
Engine oil quantity with oil filter re-
placement: 3.7 L (3.91 US qt, 3.26 Imp.qt)
Engine oil quantity without oil filter re-
placement: 3.5 L (3.70 US qt, 3.08 Imp.qt)
Engine oil total quantity: 5.3 L (5.60 US qt, 4.66 Imp.qt)
UF4S71E0.book Page 93 Wednesday, August 4, 2021 5:18 PM

Trouble recovery
94
EJU34562
Troubleshooting
If you have any trouble with your watercraft, use the troubleshooting chart to check for the
possible cause.
If you cannot find the cause, consult a Yamaha dealer.
EJU46132Troubleshooting chart
Confirm the possible cause and remedy, and then refer to the applicable page.
TROUBLEPOSSIBLE CAUSE REMEDYPAGE
Engine does not
start (Starter motor
does not turn over) Ya m a h a S e -
curity System
Lock mode selected Select unlock mode
24
Engine shut-
off switch Clip not in place Install clip
25
Fuse Burned out Have serviced by
Yamaha dealer —
Battery Run down Recharge83
Poor terminal con-
nections Tighten as required
83
Terminal corroded Clean or replace 83
Starter motor Faulty Have serviced by
Yamaha dealer —
Engine does not
start (Starter motor
turns over) Throttle lever Squeezed
Release25
Faulty Have serviced by
Yamaha dealer —
RiDE lever Squeezed Release25
Faulty Have serviced by
Yamaha dealer —
Fuel Fuel tank empty Refill as soon as pos-
sible 54
Stale or contaminat-
ed Have serviced by
Yamaha dealer
—
Fuel tank Water or dirt present Have serviced by Yamaha dealer—
Spark plug Fouled or defective Have serviced by Yamaha dealer—
Fuel injec-
tion system Fuel pump faulty Have serviced by
Yamaha dealer —
UF4S71E0.book Page 94 Wednesday, August 4, 2021 5:18 PM

Trouble recovery
95
Engine runs irregu-
larly or stallsFuel Fuel tank empty Refill as soon as pos-
sible54
Stale or contaminat-
ed Have serviced by
Yamaha dealer
—
Fuel tank Water or dirt present Have serviced by Yamaha dealer—
Spark plug Fouled or defective Have serviced by Yamaha dealer—
Incorrect heat range Have serviced by Yamaha dealer —
Gap incorrect Have serviced by Yamaha dealer —
Electrical wir-
ing Loose connection Have serviced by
Yamaha dealer —
Fuel injec-
tion system Faulty or clogged in-
jectors Have serviced by
Yamaha dealer
—
Warning is dis-
played Fuel level
warningFuel tank empty Refill as soon as pos-
sible 54
Oil pressure
warning Oil pressure dropped Have serviced by
Yamaha dealer 43
Engine over-
heat warning Jet intake clogged Clean
97
Check en-
gine warning Faulty sensors Have serviced by
Yamaha dealer 42
TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF4S71E0.book Page 95 Wednesday, August 4, 2021 5:18 PM

Trouble recovery
96
Watercraft slow or
loses powerWatercraft
operation
modeDrive control mode
activated
Deactivate or adjust
drive control mode 33
Cavitation Jet intake clogged Clean 97 Impeller damaged or
worn Have serviced by
Yamaha dealer
97
Engine over-
heat warning Engine speed reduc-
tion control activated Clean jet intake and
cool engine
43
Oil pressure
warning Engine speed reduc-
tion control activated Add oil
43
Spark plug Fouled or defective Have serviced by Yamaha dealer—
Incorrect heat range Have serviced by Yamaha dealer —
Gap incorrect Have serviced by Yamaha dealer —
Electrical wir-
ing Loose connection Have serviced by
Yamaha dealer —
Fuel Stale or contaminat- ed Have serviced by
Yamaha dealer
—
Air filter Clogged Have serviced by Yamaha dealer—
Oil buildup Have serviced by Yamaha dealer —
Throttle lever Faulty Have serviced by Yamaha dealer—
Audio system does
not activate
(equipped models) Fuse Burned out Have serviced by
Yamaha dealer —
TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF4S71E0.book Page 96 Wednesday, August 4, 2021 5:18 PM

Trouble recovery
97
EJU34625
Emergency proceduresEJU44592Cleaning the jet intake and impellerEWJ00783
Before attempting to remove weeds or de-
bris from the jet intake or impeller area,
shut the engine off and remove the clip
from the engine shut-off switch. Severe in-
jury or death could result from coming in
contact with the rotating parts of the jet
pump.
If weeds or debris gets caught in the jet intake
or impeller, cavitation can occur, causing jet
thrust to decrease even though engine speed
rises. If this condition is allowed to continue,
the engine will overheat and may seize.
NOTICE: If weeds or debris gets caught in
the jet intake, do not operate the water-
craft above trolling speed until they have
been removed.
[ECJ00654]
If there is any sign that the jet intake or impel-
ler is clogged with weeds or debris, return to
shore and check the intake and impeller. Al-
ways stop the engine before beaching the
watercraft. (1) Place a suitable clean cloth or carpeting
underneath the watercraft to protect it
from abrasions and scratches. Turn the
watercraft on its side as shown.
NOTICE: When turning the watercraft
on its side, support the bow so that
the handlebars are not bent or dam-
aged.
[ECJ02691]
(2) Remove any weeds or debris from around the jet intake, drive shaft, impel-
UF4S71E0.book Page 97 Wednesday, August 4, 2021 5:18 PM

Trouble recovery
98
ler, jet pump housing, and jet thrust noz-
zle.
If debris is difficult to remove, consult a
Yamaha dealer.
EJU43472Raising the reverse gate
If the RiDE system malfunctions and the re-
verse gate remains in the lowered position,
the watercraft will not be able to move for-
ward.
After raising the reverse gate so that the wa-
tercraft can move forward, immediately re-
turn to shore and have a Yamaha dealer
service the watercraft.
To raise the reverse gate:
(1) Stop the engine and remove the clip from the engine shut-off switch.
(2) Enter the water and move to the rear of the watercraft.
(3) Slide the shift rod joint toward the bow, and then disconnect the shift rod joint
from the ball joint.
(4) Raise the reverse gate to the forward po- sition.
TIP
While the shift rod is disconnected, the re-
verse gate will not move to the neutral po-
sition or reverse position even if the RiDE
lever is squeezed.
If the RiDE lever is squeezed while the shift
rod is disconnected, the watercraft will
move forward.
EJU34642Jumping the battery
If the watercraft battery has run down, the en-
gine can be started using a 12-volt booster
battery and jumper cables.
EJU46101Connecting the jumper cablesEWJ01252
To avoid battery explosion and serious
damage to the electrical system:
Do not reverse the polarity of the jumper
cables when connecting to the batter-
ies.
Do not connect the negative (–) jumper
cable to the negative (–) terminal of the
watercraft battery.
Do not touch the positive (+) jumper ca-
ble to the negative (–) jumper cable.
1Shift rod joint
2 Ball joint
1 2
1
Reverse gate
2 Forward position
1
2
UF4S71E0.book Page 98 Wednesday, August 4, 2021 5:18 PM

Trouble recovery
99
(1) Connect the positive (+) jumper cable tothe positive (+) battery terminals of both
batteries.
(2) Connect one end of the negative (–) jumper cable to the negative (–) battery
terminal of the booster battery.
(3) Connect the other end of the negative (–) jumper cable to an engine hanger.
(4) Start the engine, and then disconnect the jumper cables by reversing the steps
above. (See page 25 for information on
starting the engine.)
EJU34717Towing the watercraftEWJ00813
The operator of the towing boat must
keep speed to a minimum and avoid
traffic or obstacles which could be a
hazard to the operator on the water-
craft.
The towline should be long enough so
that the watercraft will not collide with
the towing boat when slowing down.
If the watercraft becomes inoperative in the
water, it can be towed to shore.
To tow the watercraft:
Use a towline that is three times the com-
bined length of the towing boat and the wa-
tercraft.
(1) Securely attach the towline to the boweye of the watercraft being towed.
(2) Sit astride the seat and hold on to the handlebars in order to balance the water-
craft. NOTICE: The bow must be kept
up out of the water during towing, oth-
erwise water could flood the engine
compartment or water could flow
back into the engine, causing severe
engine damage.
[ECJ01331]
Tow the watercraft at 8 km/h (5 mph) or less.
NOTICE: Tow the watercraft at 8 km/h (5
mph) or less, otherwise water could flood
the engine compartment or water could
flow back into the engine, causing severe
engine damage.
[ECJ01322]
EJU36156
Submerged watercraft
If the watercraft is submerged or flooded with
water, drain the bilge water from the engine
compartment. Then, have a Yamaha dealer
service the watercraft as soon as possible.
If the watercraft was submerged:
(1) Remove the watercraft from the water and drain the water from the storage
compartments. (See page 50 for infor-

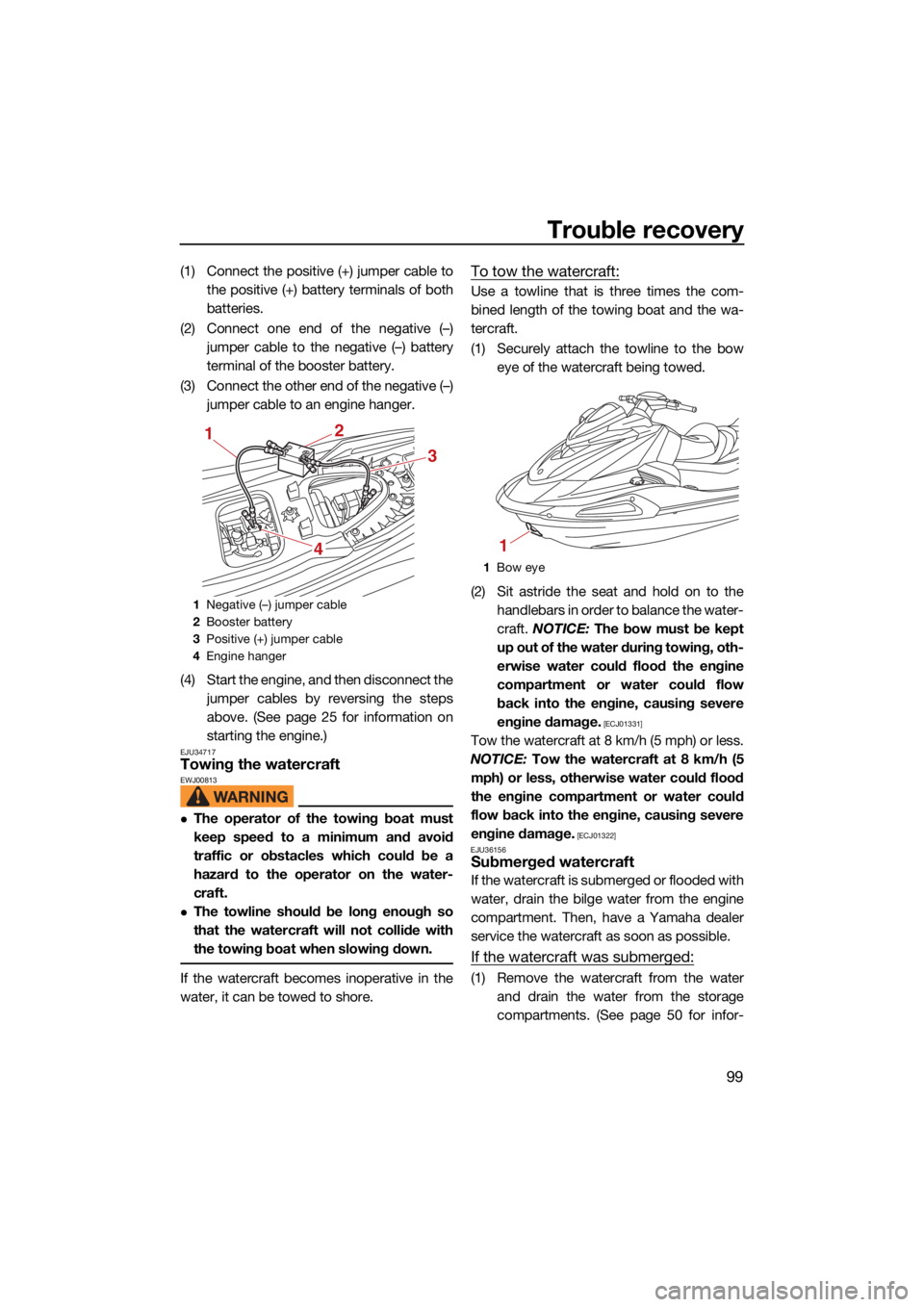

1Negative (–) jumper cable
2 Booster battery
3 Positive (+) jumper cable
4 Engine hanger
3
2
1
4
1Bow eye
1
UF4S71E0.book Page 99 Wednesday, August 4, 2021 5:18 PM

Trouble recovery
100
mation on draining the storage compart-
ments.)
(2) Drain the bilge water from the engine compartment. (See page 58 for informa-
tion on draining the bilge water.)
(3) Have the watercraft serviced by a Yamaha dealer as soon as possible.
NOTICE: Be sure to have a Yamaha
dealer inspect the watercraft. Other-
wise, serious engine damage could
result.
[ECJ00792]
UF4S71E0.book Page 100 Wednesday, August 4, 2021 5:18 PM

101
Index
A
Accessory outlet ...................................... 45
After removing the watercraft from the water ..................................................... 81
Audio control............................................ 44
Audio system (equipped models) ............ 44
B
Battery care.............................................. 83
Battery checks ......................................... 64
Battery, jumping....................................... 98
Beaching and docking the watercraft ...... 80
Bilge water check..................................... 64
Bilge water, draining ................................ 58
Bilge water, draining on land ................... 58
Bilge water, draining on water ................. 58
Boarding alone ......................................... 76
Boarding and starting off from a dock ..... 79
Boarding the watercraft ........................... 76
Boarding with passenger(s) ..................... 77
Bow eye ................................................... 49
Bow storage compartment ...................... 50
Builder’s plate ............................................ 3
C
Capsized watercraft ................................. 79
Cleaning ................................................... 85
Cleaning the watercraft ............................ 83
Cleat ......................................................... 49
Cooling water pilot outlet ......................... 26
Cooling water pilot outlet check .............. 68
Craft Identification Number (CIN)............... 1
Cruise assist............................................. 35
Cruising limitations................................... 10
D
Display ..................................................... 37
Drive control mode................................... 33
Drive control mode screen ....................... 40
E
Emergency procedures ............................ 97
Engine break-in ........................................ 60
Engine compartment check ..................... 63
Engine cover, removing and installing ..... 87
Engine idling speed check ....................... 69
Engine lock screen ................................... 41
Engine oil ................................................. 56
Engine oil and oil filter .............................. 91 Engine oil level check ............................... 64
Engine oil requirements ........................... 56
Engine serial number ................................. 1
Engine shut-off cord (lanyard) check ....... 65
Engine shut-off switch ............................. 25
Engine start/stop switch .......................... 25
Engine unit check ..................................... 64
Enjoy your watercraft responsibly ............ 18
Equipment ................................................ 47
F
Fire extinguisher check ............................ 67
Fire extinguisher holder and cover........... 53
Fire extinguisher holder, cover, and
band checks ......................................... 66
Flushing the cooling water passages....... 82
Fuel .......................................................... 54
Fuel level check........................................ 63
Fuel requirements .................................... 54
Fuel system checks ................................. 63
G
Getting to know your watercraft .............. 70
Glossary, watercraft ................................. 19
Glove compartment ................................. 51
H
Handgrip .................................................. 48
Hazard information................................... 14
Home screen ............................................ 39
Hood check .............................................. 68
Hull and deck check ................................ 67
I
Identification numbers ............................... 1
Information screen ................................... 39
J
Jet intake and impeller, cleaning.............. 97
Jet intake checks ..................................... 67
Jet thrust nozzle and reverse gate check .................................................... 67
Jumper cables, connecting ...................... 98
L
Labels, important ....................................... 4
Labels, other .............................................. 8
Labels, warning .......................................... 5
Launching the watercraft ......................... 71
Learning to operate your watercraft......... 70
Leaving the watercraft.............................. 72
UF4S71E0.book Page 101 Wednesday, August 4, 2021 5:18 PM

Index
102
Limitations on who may operate the watercraft................................................ 9
Long-term storage ................................... 85
Lubrication ............................................... 85
M
Main components, location of ................. 20
Maintenance ............................................ 87
Manufactured date label ............................ 2
Model information ...................................... 3
Multifunction information center .............. 37
Multifunction information center check ... 68
N
No-wake mode ........................................ 32
O
Operating in weeded areas ...................... 80
Operating the watercraft .......................... 72
Operating the watercraft in reverse or neutral ................................................... 75
Operating your watercraft ........................ 70
Operation buttons .................................... 37
Operation requirements ........................... 11
P
Periodic maintenance chart ..................... 89
Post-launch checks ................................. 68
Post-operation care ................................. 82
Pre-launch checks ................................... 63
Pre-operation check points ..................... 63
Pre-operation checklist ............................ 61
Primary Identification (PRI-ID) number ...... 1
Pull-up cleats ........................................... 50
R
Raising the reverse gate .......................... 98
Reboarding grip ....................................... 48
Reboarding step ...................................... 48
Recommended equipment ...................... 13
Reverse assist .......................................... 31
RiDE lever................................................. 26
RiDE lever checks .................................... 65
Riding position ......................................... 71
Rustproofing ............................................ 86
S
Safe boating rules .................................... 17
Safety equipment check .......................... 67
Seat storage compartment ...................... 52
Seats ........................................................ 47 Setting menu screen ................................ 40
Shift system ............................................. 28
Shift system check ................................... 68
Starting off ............................................... 78
Starting off from a trailer .......................... 79
Starting the engine on water .................... 71
Steering system ....................................... 26
Steering system checks ........................... 64
Stern drain plug checks ........................... 67
Stern eyes ................................................ 49
Stopping the engine ................................. 72
Stopping the watercraft ........................... 74
Storage compartment checks.................. 66
Storage compartments ............................ 50
Submerged watercraft ............................. 99
Switch checks .......................................... 66
T
T.D.E. (thrust directional enhancer) .......... 31
Throttle lever ............................................ 25
Throttle lever checks ................................ 65
Towing the watercraft .............................. 99
Transporting on a trailer ........................... 59
Troubleshooting ....................................... 94
Troubleshooting chart .............................. 94
Turning the watercraft .............................. 73
U
USB charger............................................. 46
W
Wakeboarding and water-skiing .............. 16
Warning function ...................................... 42
Water separator ....................................... 27
Water separator check ............................. 63
Watercraft characteristics ........................ 14
Watercraft control functions..................... 24
Watercraft operation functions ................ 28
Watercraft operation modes .................... 31
Y
Yamaha Security System ......................... 24
Yamaha Security System check .............. 65
Yamaha Security System setting ............. 24
UF4S71E0.book Page 102 Wednesday, August 4, 2021 5:18 PM
