Table of contents
General and important labels ........... 1
Identification numbers .................... 1
Primary Identification (PRI-ID)
number ........................................... 1
Craft Identification Number (CIN) ...... 1
Engine serial number ........................ 1
Manufactured date label .................... 2
Model information ........................... 2
Builder’s plate .................................... 2
Important labels .............................. 4
Warning labels ................................... 5
Other labels ....................................... 8
Safety information ........................... 10
Limitations on who may operate
the watercraft ............................ 10
Cruising limitations ....................... 11
Operation requirements ............... 12
Recommended equipment ........... 14
Hazard information ....................... 15
Watercraft characteristics ............. 15
Water-skiing ................................. 17
Safe boating rules ........................ 18
Enjoy your watercraft
responsibly ................................ 19
Description....................................... 20
Watercraft glossary ...................... 20
Location of main components ...... 21
Control function operation ............. 25
Watercraft control functions ......... 25
Remote control transmitter .............. 25
Yamaha Security System ................ 26
Engine stop switch .......................... 27
Engine shut-off switch ..................... 27
Start switch ...................................... 27
Throttle lever ................................... 28
Steering system ............................... 28
Cooling water pilot outlet ................. 29
Water separator ............................... 29
Watercraft operation ....................... 30
Watercraft operation functions ..... 30
Reverse system ............................... 30
Watercraft operation modes ......... 31
Low RPM Mode ............................... 31
Instrument operation ...................... 33
Multifunction information center ... 33
Information display .......................... 33
Equipment operation ...................... 38
Equipment .................................... 38
Seat ................................................. 38
Handgrip .......................................... 39
Reboarding step (VXR) ................... 39
Bow eye ........................................... 39
Stern eyes ....................................... 40
Cleat ................................................ 40
Storage compartments .................... 40
Fire extinguisher holder and
cover ............................................ 42
Operation and handling
requirements ................................... 44
Fuel requirements ........................ 44
Fuel ................................................. 44
Engine oil requirements ............... 45
Engine oil ......................................... 45
Draining the bilge water ............... 47
Draining the bilge water on land ...... 47
Draining the bilge water on water .... 47
Transporting on a trailer ............... 48
First-time operation ........................ 49
Engine break-in ............................ 49
Pre-operation checks ..................... 50
Pre-operation checklist .................... 50
Pre-operation check points .......... 52
Pre-launch checks ........................... 52
Post-launch checks ......................... 58
UF2M71E0.book Page 1 Wednesday, June 29, 2011 9:27 AM

Description
23
5
4 1
23
10
1112 7
68
9
1Start switch (page 27)
2Engine shut-off switch (page 27)
3Clip (page 27)
4Engine shut-off cord (lanyard) (page 27)
5Engine stop switch (page 27)
6Glove compartment (page 41)
7Multifunction information center (page 33)
8Rearview mirror
9Remote control transmitter (page 25)
10Beverage holder (VXR) (page 42)
11Shift lever (page 30)
12Throttle lever (page 28)
UF2M71E0.book Page 23 Wednesday, June 29, 2011 9:27 AM

Control function operation
26

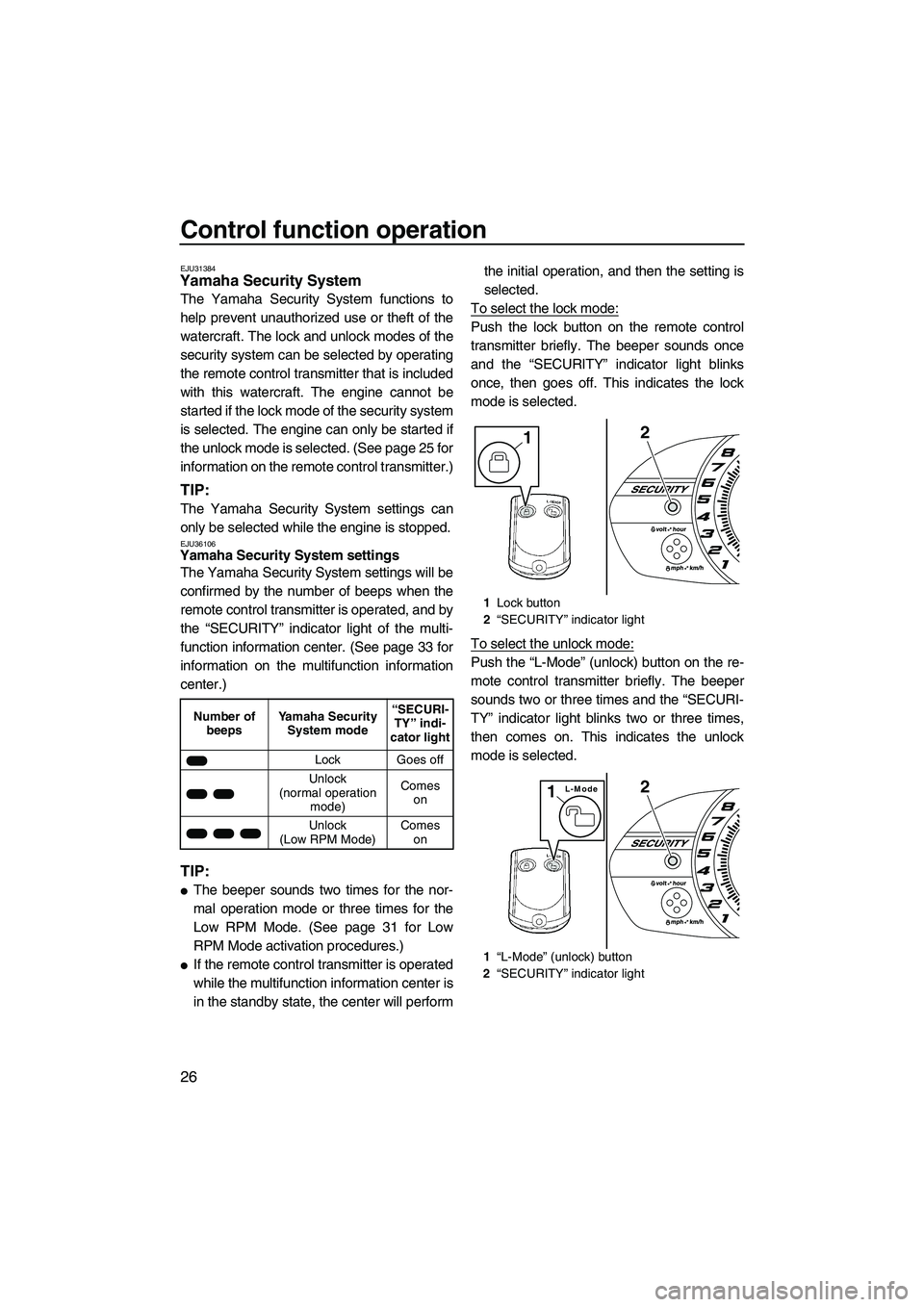

EJU31384Yamaha Security System
The Yamaha Security System functions to
help prevent unauthorized use or theft of the
watercraft. The lock and unlock modes of the
security system can be selected by operating
the remote control transmitter that is included
with this watercraft. The engine cannot be
started if the lock mode of the security system
is selected. The engine can only be started if
the unlock mode is selected. (See page 25 for
information on the remote control transmitter.)
TIP:
The Yamaha Security System settings can
only be selected while the engine is stopped.
EJU36106Yamaha Security System settings
The Yamaha Security System settings will be
confirmed by the number of beeps when the
remote control transmitter is operated, and by
the “SECURITY” indicator light of the multi-
function information center. (See page 33 for
information on the multifunction information
center.)
TIP:

The beeper sounds two times for the nor-
mal operation mode or three times for the
Low RPM Mode. (See page 31 for Low
RPM Mode activation procedures.)

If the remote control transmitter is operated
while the multifunction information center is
in the standby state, the center will performthe initial operation, and then the setting is
selected.
To select the lock mode:
Push the lock button on the remote control
transmitter briefly. The beeper sounds once
and the “SECURITY” indicator light blinks
once, then goes off. This indicates the lock
mode is selected.
To select the unlock mode:
Push the “L-Mode” (unlock) button on the re-
mote control transmitter briefly. The beeper
sounds two or three times and the “SECURI-
TY” indicator light blinks two or three times,
then comes on. This indicates the unlock
mode is selected.
Number of
beepsYamaha Security
System mode“SECURI-
TY” indi-
cator light
Lock Goes off
Unlock
(normal operation
mode)Comes
on
Unlock
(Low RPM Mode)Comes
on
1Lock button
2“SECURITY” indicator light
1“L-Mode” (unlock) button
2“SECURITY” indicator light
21
2L-Mode1
UF2M71E0.book Page 26 Wednesday, June 29, 2011 9:27 AM

Pre-operation checks
50
EJU31981
WARNING
EWJ00411
Failure to inspect or maintain the watercraft properly increases the possibility of an ac-
cident or damage to the watercraft. Do not operate the watercraft if you find any prob-
lem. If a problem cannot be corrected by the procedures provided in this manual, have
the watercraft inspected by a Yamaha dealer.
EJU41232Pre-operation checklist
Before using this watercraft, be sure to perform the checks in the following checklist.
ITEM ROUTINE PAGE
PRE-LAUNCH CHECKS
Engine compartmentVentilate the engine compartment.
Check inside the engine compartment for damage.52
Fuel systemCheck the fuel system for leakage.
Check the fuel level in the fuel tank.52
Water separatorCheck the water separator for water. 52
Engine unitCheck the exterior of the engine unit for damage. 52
Engine oil levelCheck the engine oil level. 52
Bilge waterCheck the engine compartment for bilge water. 53
BatteryCheck the battery connections and electrolyte level. 53
Steering systemCheck the steering system for proper operation. 53
Reverse systemCheck the reverse system for proper operation. 54
Throttle leverCheck the throttle lever for proper operation.
Check the throttle lever free play.55
Remote control transmitterCheck the remote control transmitter for proper op-
eration.55
Engine shut-off cord (lan-
yard)Check the engine shut-off cord (lanyard) for dam-
age.55
SwitchesCheck the start switch, engine stop switch, and en-
gine shut-off switch for proper operation.56
Storage compartmentsCheck the storage compartments for damage and
water.56
Fire extinguisher holder,
cover, and bandCheck the fire extinguisher holder, cover, and band
for damage.56
Fire extinguisherCheck the condition of the fire extinguisher. 57
Safety equipmentCheck that safety equipment meeting the applicable
regulations is on board.57
Hull and deckCheck the hull and deck for damage. 57
Jet intakeCheck the jet intake for damage and clogging. 57
Stern drain plugsCheck the stern drain plugs for damage and foreign
material and check that they are securely installed.57
HoodCheck that the hood is securely closed. 58
UF2M71E0.book Page 50 Wednesday, June 29, 2011 9:27 AM

Index
M
Main components, location of .................. 21
Maintenance............................................. 77
Manufactured date label............................. 2
Model information....................................... 2
Multifunction information center ............... 33
Multifunction information center check ..... 58
O
Oil pressure warning ................................ 36
Operating in weeded areas ...................... 69
Operating the watercraft........................... 61
Operating the watercraft in reverse .......... 64
Operating your watercraft......................... 59
Operation requirements ........................... 12
P
Periodic maintenance chart...................... 79
Post-launch checks .................................. 58
Post-operation care .................................. 71
Pre-launch checks.................................... 52
Pre-operation check points ...................... 52
Pre-operation checklist............................. 50
Primary Identification (PRI-ID) number ...... 1
R
Reboarding step (VXR) ............................ 39
Recommended equipment ....................... 14
Remote control transmitter ....................... 25
Remote control transmitter check ............ 55
Reverse system ....................................... 30
Reverse system checks ........................... 54
Riding position.......................................... 60
Rustproofing ............................................. 76
S
Safe boating rules .................................... 18
Safety equipment check ........................... 57
Seat .......................................................... 38
Speedometer............................................ 33
Start switch............................................... 27
Starting off ................................................ 67
Starting off from a trailer........................... 68
Starting the engine on water .................... 60
Steering system ....................................... 28
Steering system checks ........................... 53
Stern drain plug checks............................ 57
Stern eyes ................................................ 40
Stopping the engine ................................. 61Stopping the watercraft ............................ 63
Storage compartment checks .................. 56
Storage compartments ............................. 40
Submerged watercraft .............................. 88
Switch checks .......................................... 56
T
Tachometer .............................................. 34
Throttle lever ............................................ 28
Throttle lever checks ................................ 55
Tool kit...................................................... 77
Towing the watercraft ............................... 88
Transporting on a trailer ........................... 48
Troubleshooting ....................................... 82
Troubleshooting chart .............................. 82
Turning the watercraft .............................. 62
W
Water separator ....................................... 29
Water separator check ............................. 52
Watercraft characteristics ......................... 15
Watercraft control functions ..................... 25
Watercraft operation functions ................. 30
Watercraft operation modes ..................... 31
Water-skiing ............................................. 17
Y
Yamaha Security System ......................... 26
Yamaha Security System settings ........... 26
UF2M71E0.book Page 2 Wednesday, June 29, 2011 9:27 AM
