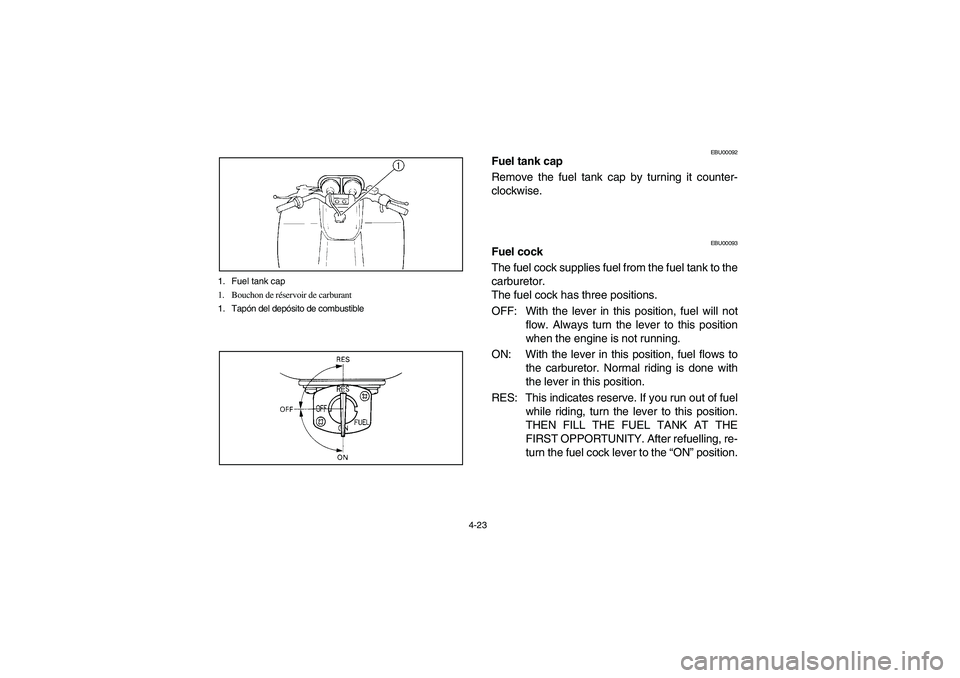

4-23 1. Fuel tank cap
1. Bouchon de réservoir de carburant
1. Tapón del depósito de combustible
EBU00092
Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
EBU00093
Fuel cock
The fuel cock supplies fuel from the fuel tank to the
carburetor.
The fuel cock has three positions.
OFF: With the lever in this position, fuel will not
flow. Always turn the lever to this position
when the engine is not running.
ON: With the lever in this position, fuel flows to
the carburetor. Normal riding is done with
the lever in this position.
RES: This indicates reserve. If you run out of fuel
while riding, turn the lever to this position.
THEN FILL THE FUEL TANK AT THE
FIRST OPPORTUNITY. After refuelling, re-
turn the fuel cock lever to the “ON” position.
U5NF63.book Page 23 Wednesday, March 12, 2003 10:06 AM

5-9
EBU09980

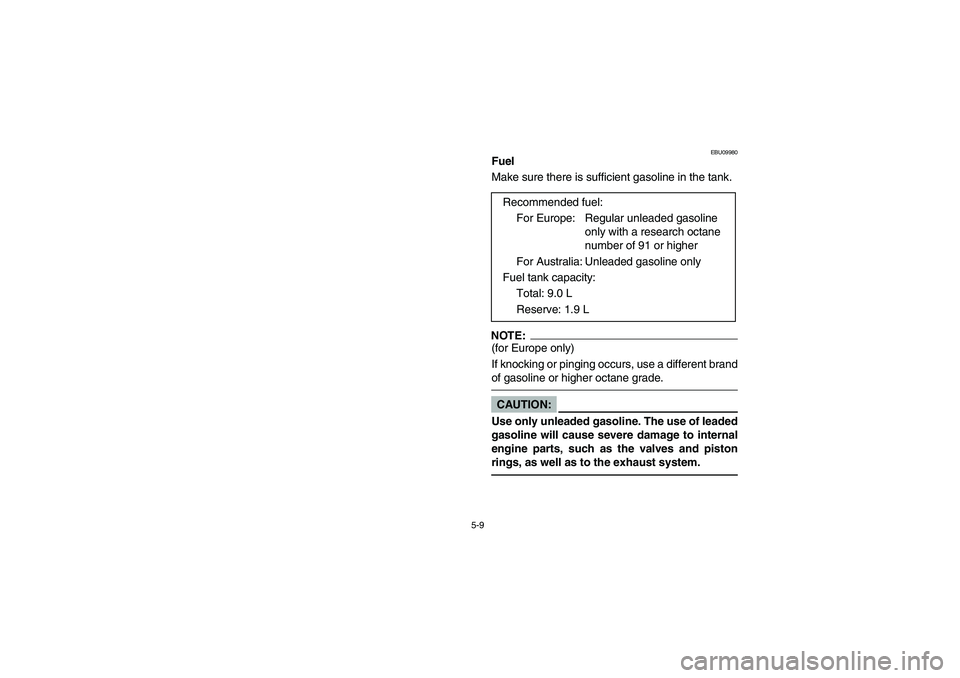

Fuel
Make sure there is sufficient gasoline in the tank.NOTE:_ (for Europe only)
If knocking or pinging occurs, use a different brand
of gasoline or higher octane grade. _CAUTION:_ Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and piston
rings, as well as to the exhaust system. _
Recommended fuel:
For Europe: Regular unleaded gasoline
only with a research octane
number of 91 or higher
For Australia: Unleaded gasoline only
Fuel tank capacity:
Total: 9.0 L
Reserve: 1.9 L
U5NF63.book Page 9 Wednesday, March 12, 2003 10:06 AM

10-3

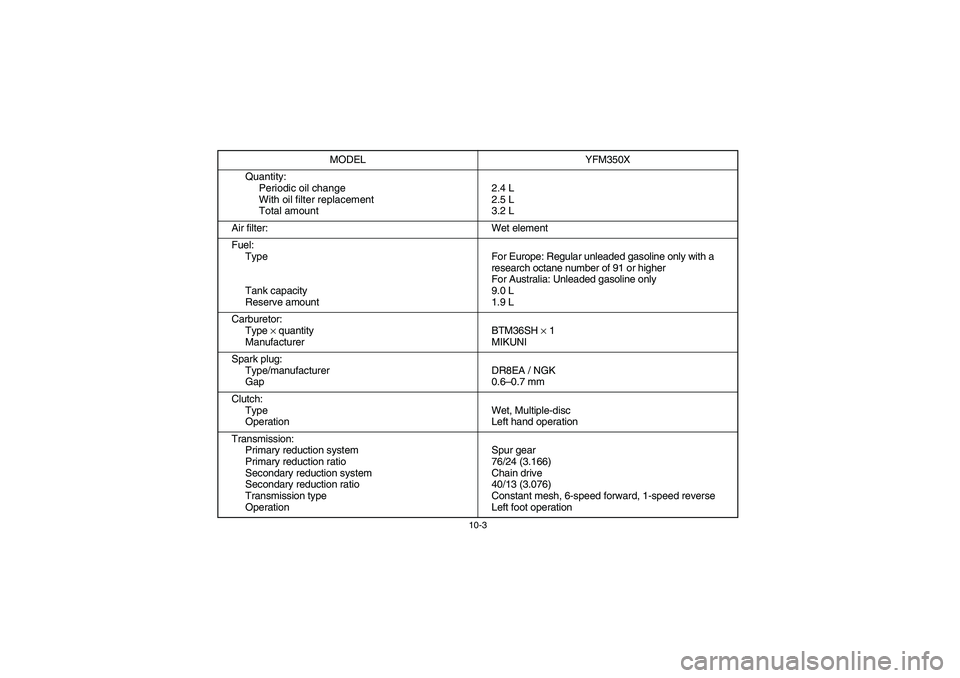

Quantity:
Periodic oil change
With oil filter replacement
Total amount2.4 L
2.5 L
3.2 L
Air filter: Wet element
Fuel:
Type
Tank capacity
Reserve amountFor Europe: Regular unleaded gasoline only with a
research octane number of 91 or higher
For Australia: Unleaded gasoline only
9.0 L
1.9 L
Carburetor:
Type
× quantity
ManufacturerBTM36SH
× 1
MIKUNI
Spark plug:
Type/manufacturer
GapDR8EA / NGK
0.6–0.7 mm
Clutch:
Type
OperationWet, Multiple-disc
Left hand operation
Transmission:
Primary reduction system
Primary reduction ratio
Secondary reduction system
Secondary reduction ratio
Transmission type
OperationSpur gear
76/24 (3.166)
Chain drive
40/13 (3.076)
Constant mesh, 6-speed forward, 1-speed reverse
Left foot operation MODEL YFM350X
