2

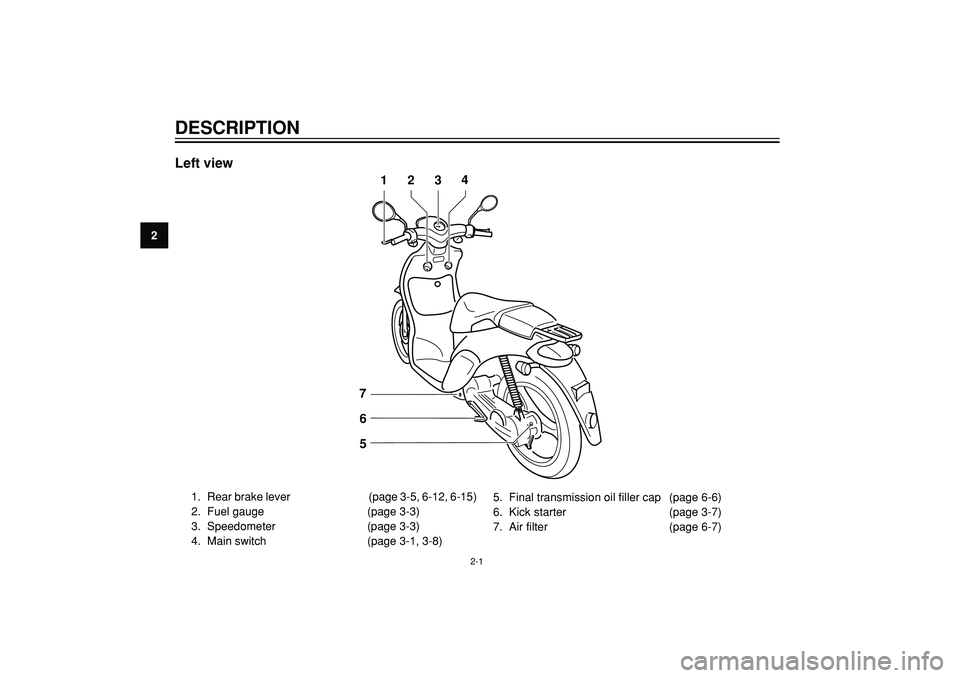

DESCRIPTION
Left view
6
5 7
1234
1. Rear brake lever (page 3-5, 6-12, 6-15)
2. Fuel gauge (page 3-3)
3. Speedometer (page 3-3)
4. Main switch (page 3-1, 3-8)5. Final transmission oil filler cap (page 6-6)
6. Kick starter (page 3-7)
7. Air filter (page 6-7)
2-1

PERIODIC MAINTENANCE AND MINOR REPAIR
6
1 * Fuel line•Check fuel hoses and vacuum hose for cracks or damage.√√√√ √
2 Spark plug•Replace.√√√√ √
3 Air filter element•Clean.√√•Replace.√√
4 * Battery•Check electrolyte level and specific gravity.
√√√√ √
•Make sure that the breather hose is properly routed.
•Check operation, fluid level and vehicle for fluid leak
√√√√√ √
5 * Front brake(See NOTE on page 6-4.)
•Replace brake pads. Whenever worn to the limit
6 * Rear brake•Check operation and adjust brake lever free play.√√√√√ √•Replace brake shoes. Whenever worn to the limit
7 * Brake hose•Check for cracks or damage.√√√√ √•Replace. (See NOTE on page 6-4.) Every 4 years
8 * Wheels•Check runout and for damage.√√√√
EAU03686
Periodic maintenance and lubrication chart
NOTE :
•The annual checks must be performed every year, except if a kilometer-based maintenance is performed instead.
•From 30,000 km, repeat the maintenance intervals starting from 6,000 km.
•Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical skills.
ODOMETER READING (x 1,000 km)
NO. ITEMCHECK OR MAINTENANCE JOB
1
ANNUAL
CHECK
6121824
6-2

SPECIFICATIONS
8
Model YH50
Dimensions:
Overall length 1.940 mm
Overall width 685 mm
Overall height 1.105 mm
Seat height 765 mm
Wheelbase 1.294 mm
Minimum ground clearance 125 mm
Minimum turning radius 1.800 mm
Weight:
Wet (with oil and a full fuel tank) 78 kg
Engine:
Engine type Air cooled, 2 strokes
Cylinder arrangement Single cylinder, horizontal
Displacement 49.2 cm3
Bore x stroke 40.0 x 39.2
Compression ratio 7.25:1
Starting system type Electric and kick starter
Lubrication system Separate lubrication
(Autolube)
Engine oil:
Type Yamalube 2
or 2 strokes engine oil
Classification Jaso FC ou ISO EG-C, EG-D
Capacity 1.3 LTransmission oil:
Type SAE 10W30 type SE
Capacity
Périodic oil change 0.11L
Total amount 0.13L
Air filter type:Wet type element
Fuel:
Recommended fuel Regular unleaded gasoline
(RON 91 mini)
Fuel tank capacity 7L
Carburetor:
Type / quantity PY-12
Manufacturer GURTNER
Spark plug:
Type / Manufacturer BR8HS / NGK
Spark plug gap 0.6—0.7 mm
Clutch type:Dry, centrifugal automatic
Transmission:
Primary reduction system Helical gear
Primary reduction ratio 52/13 (4.000)
Secondary reduction system Spur gear
Secondary reduction ratio 45/12 (3.750)
Transmission type V-belt automatic
Operation Centrifugal automatic type
8-1
