Valve clearance .................................. 8-38
Brakes ................................................ 8-38
Checking the front and rear brake pads.................................................. 8-38
Checking the brake fluid level ............ 8-39
Brake fluid replacement ..................... 8-40
Checking the brake pedal .................. 8-40
Parking brake ..................................... 8-41
Brake light switch adjustment ............ 8-41
Cable inspection and lubrication........ 8-42
Brake pedal and accelerator pedal
lubrication ......................................... 8-42
Checking the stabilizer bushes .......... 8-43
Rear knuckle upper and lower pivot
lubrication (left and right) .................. 8-43
Steering shaft lubrication ................... 8-44
Wheel removal.................................... 8-44
Tire replacement ................................ 8-45
Wheel installation ............................... 8-46
Battery ................................................ 8-46
Jump-starting ..................................... 8-50
Fuse replacement............................... 8-51
Replacing a headlight bulb................. 8-54 Headlight beam adjustment ...............8-56
Tail/brake light bulb replacement .......8-57
Troubleshooting ..................................8-57
Troubleshooting charts .......................8-59
CLEANING AND STORAGE ....................9-1 Cleaning................................................9-1
Storage .................................................9-2
SPECIFICATIONS..................................10-1
CONSUMER INFORMATION ................11-1 Identification number records.............11-1
INDEX ....................................................12-1
U2MB7AE0.book Page 3 Thursday, January 29, 2015 3:42 PM

4-10
4
Self-diagnosis device
This model is equipped with a self-diagnosis
device for various electrical circuits.
If a problem is detected in any of those cir-
cuits, the engine trouble warning light comes
on or flashes, and the multi-function display
indicates an error code.
If the multi-function display indicates an error
code, note the code number, and then have a
Yamaha dealer check the vehicle.
NOTICEECB00812If the multi-function display indicates an
error code, the vehicle should be checked
as soon as possible in order to avoid en-
gine damage. EBU31390Light switch “ / / ”Set the switch to “ ” to turn on the low
beam and the taillights.
Set the switch to “ ” to turn on the high
beam and the taillights.
1. Error code display
2. Engine trouble warning light “ ”
2
1
1. Light switch “ / / ”
L
H
1
L
HLH
U2MB7AE0.book Page 10 Thursday, January 29, 2015 3:42 PM

8-56
8
7. Connect the headlight coupler.
8. Install the bulb cover and the cover at therear of the headlight. NOTICE: Make
sure the headlight bulb cover is se-
curely fitted over the bulb holder and
seated properly.
[ECB02210]
9. Adjust the headlight beam if necessary.

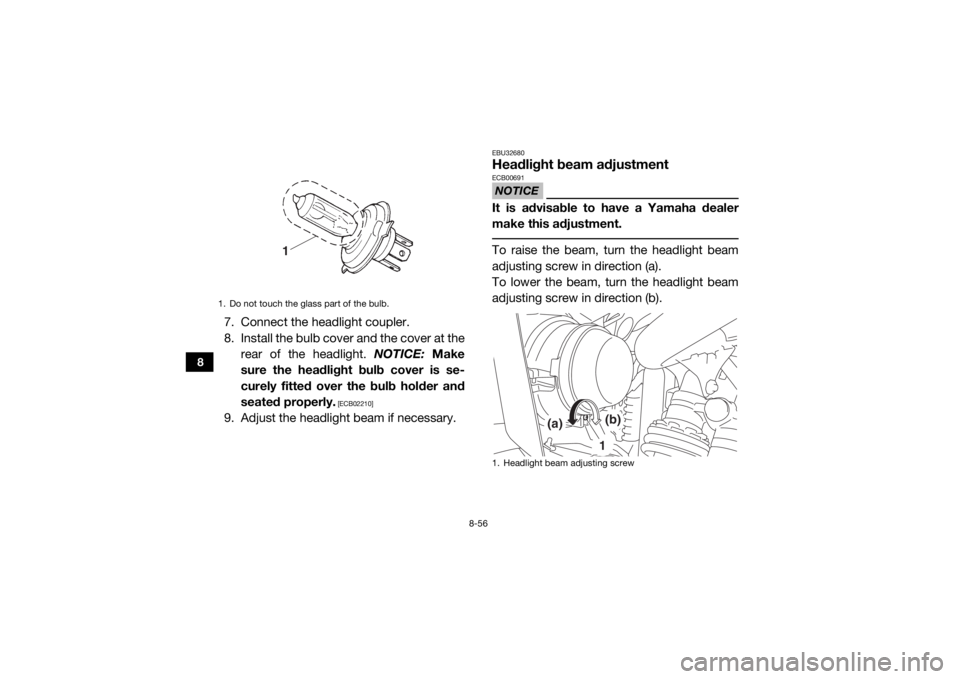

EBU32680Headlight beam adjustmentNOTICEECB00691It is advisable to have a Yamaha dealer
make this adjustment. To raise the beam, turn the headlight beam
adjusting screw in direction (a).
To lower the beam, turn the headlight beam
adjusting screw in direction (b).
1. Do not touch the glass part of the bulb.
1
1. Headlight beam adjusting screw
1
(a)
(b)
U2MB7AE0.book Page 56 Thursday, January 29, 2015 3:42 PM
