23. Stop the engine and allow it to cool. If thecoolant level has dropped after the en-
gine has cooled, add sufficient coolant
until it reaches the top of the radiator, and
then install the radiator cap.
24. Check the coolant level in the reservoir. If necessary, remove the coolant reservoir
cap, add coolant to the maximum level
mark, and then install the cap.
25. Start the engine, and then check for cool- ant leakage.TIPIf any leakage is found, have a Yamaha dealer
check the cooling system. 26. Install the center bottom panel by install-
ing the bolts, and then tightening them to
the specified torque.
27. Install the panels and the hood.
EBU32400Axle bootsCheck the axle boots for holes or tears.
If any damage is found, have them replaced
by a Yamaha dealer.
Tightening torques: Center bottom panel bolt9 Nm (0.9 m·kgf, 6.5 ft·lbf)
1. Front axle boot
1
1
UBN57AE0.book Page 31 Tuesday, November 24, 2015 1:42 PM

8-34
8
rect torque is one-quarter to one-half turn
past finger tight. Have the spark plug
tightened to the specified torque as soon
as possible.
3. Install the spark plug cap.
EBU33580Cleaning the air filter elementThe air filter element should be cleaned every
20–40 hours. It should be cleaned and lubri-
cated more often if the vehicle is operated in
extremely dusty areas. Ea ch time air filter ele-
ment maintenance is performed, check the air
inlet to the air filter case for obstructions.
Check the air filter elem ent rubber joint to the
throttle body and manifold fittings for an air-
tight seal. Tighten all fittings securely to avoid
the possibility of unfiltered air entering the en-
gine.
NOTICEECB02270Never operate the engine with the air filter
element removed. Doing so would allow
unfiltered air to enter, causing rapid en-
gine wear and possible engine damage.
Additionally, the fuel injection system
would be affected, re sulting in poor engine
performance and possible overheating. 1. Remove the storage compartment locat- ed between the driver seat and the pas-
senger seat as shown.
Tightening torque:Spark plug:11 Nm (1.1 m·kgf, 8.0 ft·lbf)
1. Storage compartment
1
UBN57AE0.book Page 34 Tuesday, November 24, 2015 1:42 PM

8-39
8
Install the center bottom panel by installing
the bolts, and then tightening them to the
specified torque.
EBU33690V-belt case drain plugThe V-belt case drain plug is located behind
the left panel. (See page 8-11 for left panel re-
moval and installation procedures.)
After riding in water deep enough to allow wa-
ter to enter the V-belt case, remove the drain
plug to drain any water from the case.
If water drains from the V-belt case after re-
moving the drain plug, have a Yamaha dealer
inspect the vehicle, as the water may affect
other engine parts.
1. Air duct check hose
2. Air filter case check hoseTightening torques: Center bottom panel bolt9 Nm (0.9 m·kgf, 6.5 ft·lbf)2
1
1. V-belt case drain plug
1
UBN57AE0.book Page 39 Tuesday, November 24, 2015 1:42 PM

8-41
8
EBU32460Valve clearanceThe correct valve clearance changes with
use, resulting in improper fuel/air supply or
engine noise. To prevent this, the valve clear-
ance must be adjusted regularly. This adjust-
ment however, should be left to a
professional Yamaha service technician.EBU32470BrakesReplacement of brake components requires
professional knowledge. Brake service
should be performed by a Yamaha dealer.
WARNING
EWB02572Operating with improperly serviced or ad-
justed brakes could lead to a loss in brak-
ing ability and an accident.
EBU32480Checking the front and rear brake padsEach brake pad is provided with wear indica-
tor grooves, which allow you to check the
brake pad wear without having to disassem-
ble the brake. To check the brake pad wear,
check the wear indicator grooves. If a brake
pad has worn to the point that the wear indi-
cator grooves have almost disappeared, have
a Yamaha dealer replace the brake pads as a
set.
The wheels need to be removed to check the
brake pads. (See pages 8-47, 8-49 for wheel
removal and installation procedures.)
Tightening torque: Tailpipe bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
UBN57AE0.book Page 41 Tuesday, November 24, 2015 1:42 PM

8-62
8

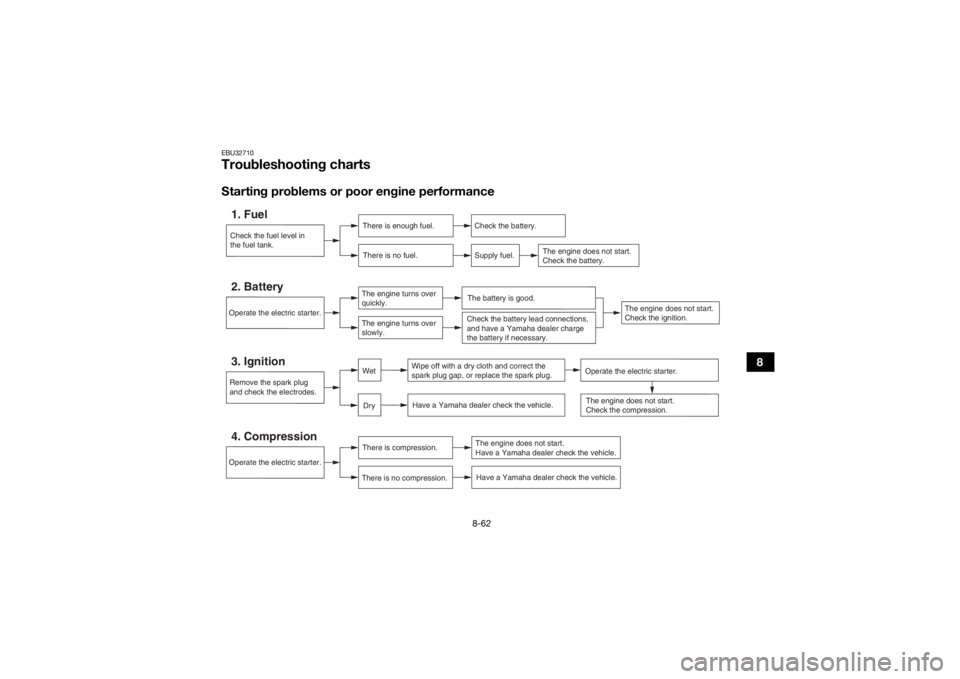

EBU32710Troubleshooting chartsStarting problems or poor engine performanceCheck the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the battery.
Supply fuel.
The engine does not start.
Check the battery.
Operate the electric starter.4. Compression
There is compression.
There is no compression.
The engine does not start.
Have a Yamaha dealer check the vehicle.Have a Yamaha dealer check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug. Have a Yamaha dealer check the vehicle.
The engine does not start.
Check the compression.
Operate the electric starter.2. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.
DryWet
Operate the electric starter.
Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
The engine does not start.
Check the ignition.
UBN57AE0.book Page 62 Tuesday, November 24, 2015 1:42 PM

8-63
8

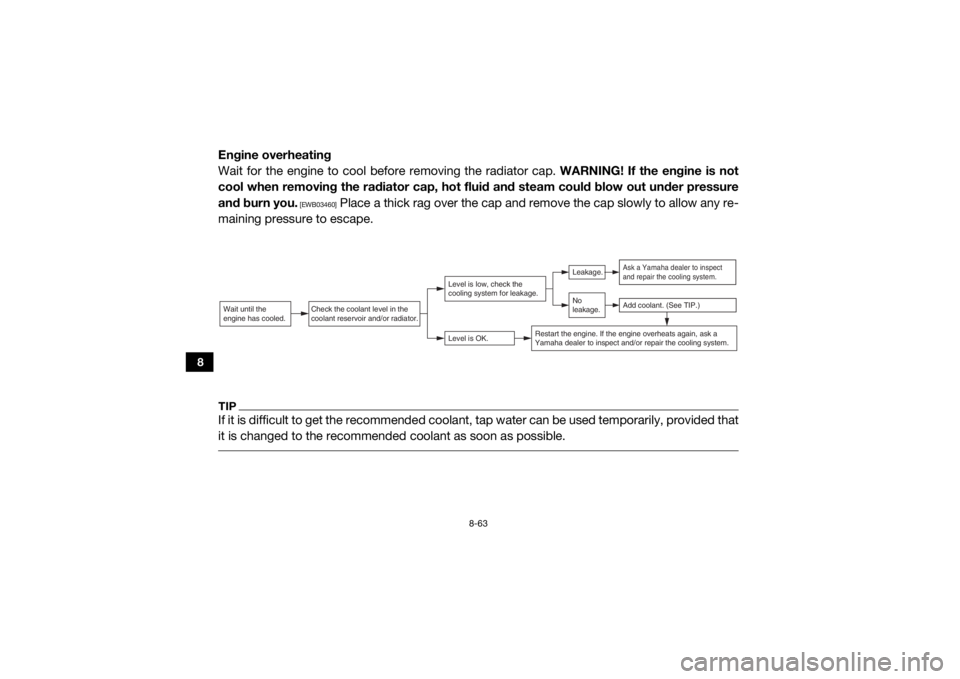

Engine overheating
Wait for the engine to cool before removing the radiator cap. WARNING! If the engine is not
cool when removing the radiator cap, hot fluid and steam could blow out under pressure
and burn you.
[EWB03460]
Place a thick rag over the cap and remove the cap slowly to allow any re-
maining pressure to escape.
TIPIf it is difficult to get the recommended coolant, tap water can be used temporarily, provided that
it is changed to the recommende d coolant as soon as possible. Wait until the
engine has cooled.
Check the coolant level in the
coolant reservoir and/or radiator.
Level is OK.Level is low, check the
cooling system for leakage.
No
leakage.Leakage.
Ask a Yamaha dealer to inspect
and repair the cooling system.Add coolant. (See TIP.)
Restart the engine. If the engine overheats again, ask a
Yamaha dealer to inspect and/or repair the cooling system.
UBN57AE0.book Page 63 Tuesday, November 24, 2015 1:42 PM

12-1
12
INDEX
AAccelerator pedal ......................................................... 4-12
Accelerator pedal, Pre-operation check ........................ 5-7
Air filter case/air duct check hose, cleaning ................ 8-38
Air filter element, cleaning ........................................... 8-34
Auxiliary DC jack .......................................................... 4-34
Axle boots .................................................................... 8-31BBasic guide for safe use ................................................ 7-1
Battery, Periodic maintenance .................................... 8-50
Bead lock, checking and tightening ............................ 8-48
Brake fluid level, checking ........................................... 8-42
Brake fluid, replacing ................................................... 8-43
Brake light switch, adjusting ........................................ 8-44
Brake pedal .................................................................. 4-12
Brake pedal and accelerator pedal, lubrication ........... 8-45
Brake pedal, checking ................................................. 8-43
Brakes, Periodic maintenance ..................................... 8-41
Brakes, Pre-operation check ......................................... 5-3CCable, inspecting and lubrication ................................ 8-45
Cargo bed .................................................................... 4-22
Cleaning ......................................................................... 9-1
Control cables, Pre-operation check ............................. 5-8
Coolant, Periodic maintenance ................................... 8-25
Coolant, Pre-operation check ........................................ 5-6
Coolant temperature warning light ................................ 4-4
Cup holders ................................................................. 4-21
DDifferential gear oil, Periodic maintenance .................. 8-22
Differential gear oil, Pre-operation check ...................... 5-6
Doors ........................................................................... 4-15
Driver seat position ...................................................... 4-16
Drive select lever ......................................................... 4-14
Drive select lever operation and reverse driving ............ 6-3EEngine break-in .............................................................. 6-1
Engine oil and oil filter cartridge, Periodic maintenance .............................................................. 8-14
Engine oil, Pre-operation check .................................... 5-5
Engine trouble warning light .......................................... 4-4
EPS warning light .......................................................... 4-5FFinal gear oil, Periodic maintenance ............................ 8-20
Final gear oil, Pre-operation check ................................ 5-6
Fittings and fasteners, Pre-operation check ................. 5-8
Front and rear brake pads, checking .......................... 8-41
Fuel, Pre-operation check ............................................. 5-3
Fuel tank cap ............................................................... 4-14
Fuse, replacing ............................................................ 8-54GGlove compartment ..................................................... 4-17HHeadlight beam, adjusting ........................................... 8-59
Headlight bulb, replacing ............................................. 8-57
Helmet indicator light ..................................................... 4-5
High-range indicator light .............................................. 4-2
Hood ............................................................................ 8-10
Horn switch .................................................................. 4-12
UBN57AE0.book Page 1 Tuesday, November 24, 2015 1:42 PM

12-2
12
IIdentification number records ...................................... 11-1
Indicator lights and warning lights ................................. 4-2
Instruments, lights and switches, Pre-operation check ........................................................................... 5-8JJump-starting ............................................................... 8-53LLabel locations ............................................................... 1-1
Light switch .................................................................. 4-10
Loading ..........................................................................6-7
Low-range indicator light ............................................... 4-2MMain switch .................................................................... 4-1
Maintenance and lubrication chart ................................8-6
Maintenance chart, emission control system ................ 8-4
Model label ................................................................... 11-1
Multi-function meter unit ................................................ 4-6NNeutral indicator light .....................................................4-3OOn-Command drive knob ............................................ 4-11
On-Command drive knob, operation ............................. 6-5
On-Command four-wheel-drive /differential gear lock
indicator ....................................................................... 4-3
Owner’s manual and tool kit .......................................... 8-2PPanels .......................................................................... 8-11
Parking ........................................................................... 6-7
Parking brake ............................................................... 8-44
Parking brake indicator light .......................................... 4-3 Parking brake lever ...................................................... 4-13
Passenger handhold, Pre-operation check ................... 5-7
RRear knuckle upper and lower pivot, lubrication ......... 8-46
Reverse indicator light ................................................... 4-3SSafety information .......................................................... 2-1
Seat belt indicator light .................................................. 4-5
Seat belts ..................................................................... 4-17
Seat belts, Pre-operation check .................................... 5-7
Seats ............................................................................ 4-15
Shock absorber assemblies, adjusting the front ......... 4-23
Shock absorber assemblies, adjusting the rear ........... 4-28
Spark arrester, cleaning ............................................... 8-40
Spark plug, inspecting ................................................. 8-32
Specifications .............................................................. 10-1
Stabilizer bushes, checking ......................................... 8-46
Starting the engine ......................................................... 6-2
Steering, Pre-operation check ....................................... 5-7
Steering shaft, lubrication ............................................ 8-47
Storage .......................................................................... 9-2
Storage compartments ................................................ 4-18TTail/brake light bulb, replacing ..................................... 8-60
Tire, replacing .............................................................. 8-48
Tires, Pre-operation check ............................................. 5-8
Trailer hitch bracket and receiver ................................ 4-33
Troubleshooting ........................................................... 8-60
Troubleshooting charts ................................................ 8-62VValve clearance ............................................................ 8-41
UBN57AE0.book Page 2 Tuesday, November 24, 2015 1:42 PM
