ESP YAMAHA WOLVERINE 2016 Owners Manual

EBU36140
Read this manual carefully before operating this vehicle. This manual should stay with this ve-
hicle if it is sold.
ANSI ROHVA1 - 2011General Manager
RV Engineering Division
Recreational Vehicle Business Unit
YAMAHA MOTOR CO., LTD.
22, October, 2015
We, YAMAHA MOTOR CO., LTD. 2500 Shingai, Iwata, Japan,
declare in sole responsibility, that the product
(Make, model)
(If applicable)
and to the other relevant Directives of EEC
2004/108/EC, 2014/30/EC
(Title and/or number and date of issue of the other Directives of EEC)
(If applicable)YAMAHA MOTOR EUROPE N.V.
Koolhovenlaan 101, 1119 NC Schiphol-Rijk, The Netherlands
Signature
Akihiro Tsuzuki
Date of Issue
to which this declaration applies, conforms to the essential health
and safety requirements of Directive 2006/42/EC
To effect correct application of the essential health and safety requirements
stated in the Directives of EEC, the following-standards and/or technical
specifications were consulted:
(Title and/or number and date of issue of standards and/or specifications)
Authorized Representative
EC Declaration of Conformity
conforming to Directive 2006/42/EC
Manufacturer
YAMAHA MOTOR MANUFACTURING CORPORATION OF AMERICA
1000 GA Highway 34 East, Newnan, Georgia 30265-1320, U.S.A.YXE700ES (YXE70WPSG) (5Y4AME6W0G0500101–)
UBN57AE0.book Page 1 Tuesday, November 24, 2015 1:42 PM

1-5
1

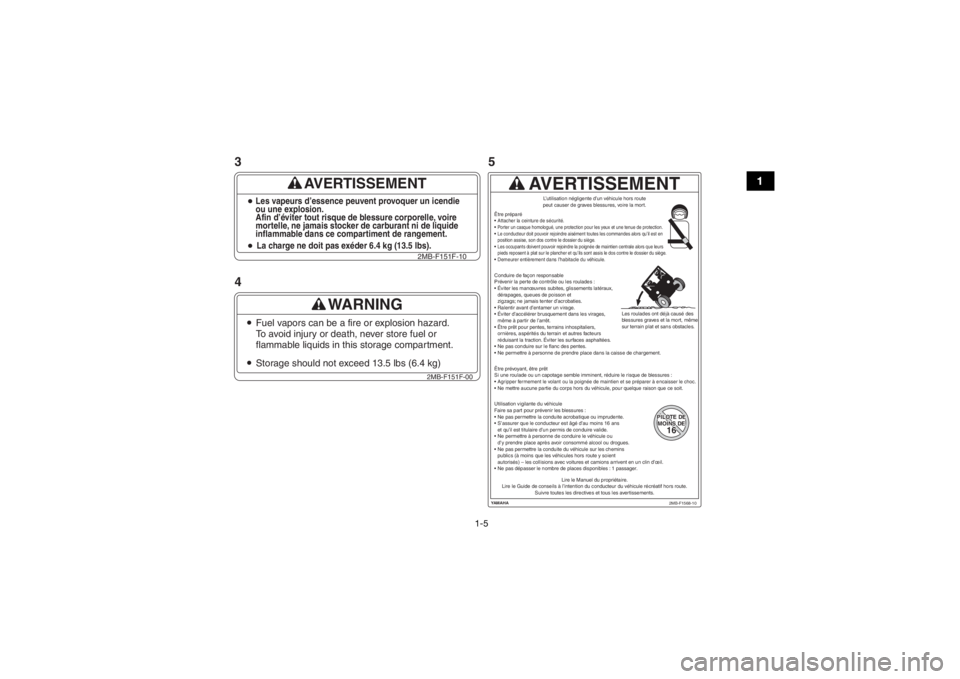

AVERTISSEMENT
La charge ne doit pas exéder 6.4 kg (13.5 lbs).Les vapeurs d’essence peuvent provoquer un icendie
ou une explosion.
Afin d’éviter tout risque de blessure corporelle, voire
mortelle, ne jamais stocker de carburant ni de liquide
inflammable dans ce compartiment de rangement.
2MB-F151F-10
WARNING
Fuel vapors can be a fire or explosion hazard.
To avoid injury or death, never store fuel or
flammable liquids in this storage compartment.Storage should not exceed 13.5 lbs (6.4 kg)
2MB-F151F-00
YAMAHA2MB-F1568-10
AVERTISSEMENT
PILOTE DEPILOTE DEMOINS DEMOINS DE1616PILOTE DE
MOINS DE16
Lire le Manuel du propriétaire.
Lire le Guide de conseils à l’intention du conducteur du véhicule récréatif hors route. Suivre toutes les directives et tous les avertissements.L’utilisation négligente d’un véhicule hors route
peut causer de graves blessures, voire la mort.
Les roulades ont déjà causé des
blessures graves et la mort, même
sur terrain plat et sans obstacles.
Utilisation vigilante du véhicule
Faire sa part pour prévenir les blessures : Ne pas permettre la conduite acrobatique ou imprudente.

S’assurer que le conducteur est âgé d’au moins 16 ans
et qu’il est titulaire d’un permis de conduire valide.

Ne permettre à personne de conduire le véhicule ou
d’y prendre place après avoir consommé alcool ou drogues.

Ne pas permettre la conduite du véhicule sur les chemins
publics (à moins que les véhicules hors route y soient
autorisés) – les collisions avec voitures et camions arrivent en un clin d’œil.

Ne pas dépasser le nombre de places disponibles : 1 passager.
Être préparé
Attacher la ceinture de sécurité.Porter un casque homologué, une protection pour les yeux et une tenue de protection.Le conducteur doit pouvoir rejoindre aisément toutes les commandes alors qu’il est en
position assise, son dos contre le dossier du siège.Les occupants doivent pouvoir rejoindre la poignée de maintien centrale alors que leurs
pieds reposent à plat sur le plancher et qu’ils sont assis le dos \
contre le dossier du siège.Demeurer entièrement dans l’habitacle du véhicule.
Conduire de façon responsable
Prévenir la perte de contrôle ou les roulades :
Éviter les manœuvres subites, glissements latéraux,
dérapages, queues de poisson et
zigzags; ne jamais tenter d’acrobaties.

Ralentir avant d’entamer un virage.

Éviter d’accélérer brusquement dans les virages,
même à partir de l’arrêt.

Être prêt pour pentes, terrains inhospitaliers,
ornières, aspérités du terrain et autres facteurs
réduisant la traction. Éviter les surfaces asphaltées.

Ne pas conduire sur le flanc des pentes.

Ne permettre à personne de prendre place dans la caisse de chargement.

Être prévoyant, être prêt
Si une roulade ou un capotage semble imminent, réduire le risque de blessures :Agripper fermement le volant ou la poignée de maintien et se préparer à encaisser le c\
hoc.
Ne mettre aucune partie du corps hors du véhicule, pour quelque raison que ce soit.

3
4 5
UBN57AE0.book Page 5 Tuesday, November 24, 2015 1:42 PM

1-13
1

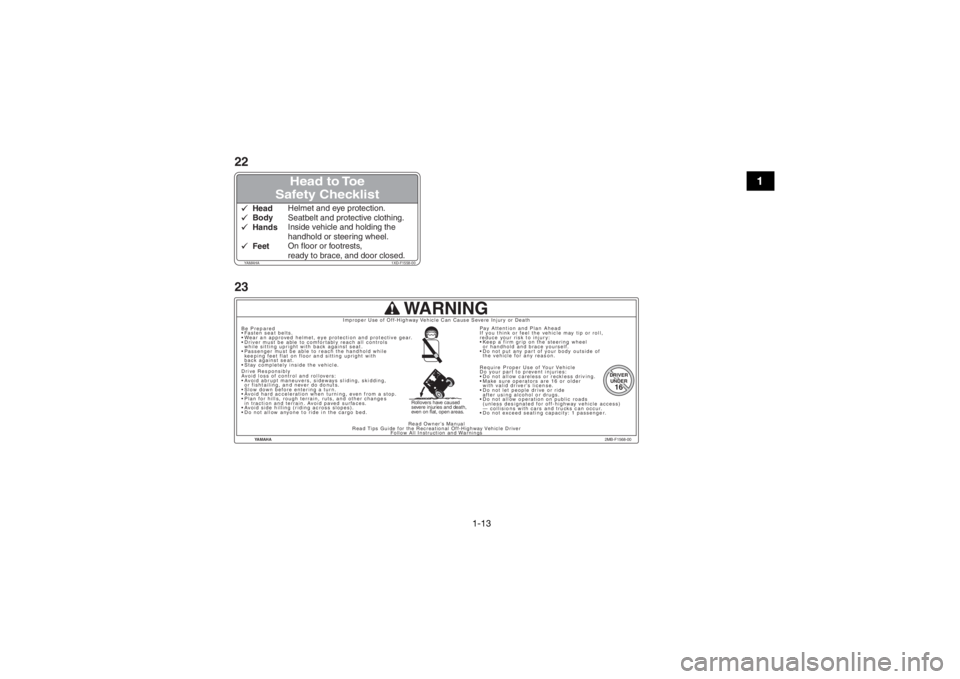

Head to Toe
Safety Checklist
YAMAHA 1XD-F1558-00HeadHelmet and eye protection.BodySeatbelt and protective clothing.HandsInside vehicle and holding the
handhold or steering wheel.FeetOn floor or footrests,
ready to brace, and door closed.YAMAHA
2MB-F1568-00
WARNING
DRIVERDRIVERUNDERUNDER1616DRIVER
UNDER16
Improper Use of Off-Highway Vehicle Can Cause Severe Injury or Death
Read Owner’s Manual
Read Tips Guide for the Recreational Off-Highway Vehicle Driver Follow All Instruction and Warnings
Be Prepared
Drive Responsibly
If you think or feel the vehicle may tip or roll,
reduce your risk to injury: Pay Attention and Plan Ahead
Do not allow careless or reckless driving.
Do your part to prevent injuries: Require Proper Use of Your Vehicle
Rollovers have caused
severe injuries and death,
even on flat, open areas.
Stay completely inside the vehicle.
Passenger must be able to reach the handhold while
keeping feet flat on floor and sitting upright with
back against seat.
Driver must be able to comfortably reach all controls
while sitting upright with back against seat.
Wear an approved helmet, eye protection and protective gear.
Fasten seat belts.

Do not allow anyone to ride in the cargo bed.
Avoid side hilling (riding across slopes).
Plan for hills, rough terrain, ruts, and other changes
in traction and terrain. Avoid paved surfaces.
Avoid hard acceleration when turning, even from a stop.
Slow down before entering a turn.
Avoid abrupt maneuvers, sideways sliding, skidding,
or fishtailing, and never do donuts.
Avoid loss of control and rollovers: Do not put any part of your body outside of
the vehicle for any reason.
Keep a firm grip on the steering wheel
or handhold and brace yourself.

Do not exceed seating capacity: 1 passenger.
Do not allow operation on public roads
(unless designated for off-highway vehicle access)
— collisions with cars and trucks can occur.
Do not let people drive or ride
after using alcohol or drugs.
Make sure operators are 16 or older
with valid driver’s license.

22
23
UBN57AE0.book Page 13 Tuesday, November 24, 2015 1:42 PM

1-21
1

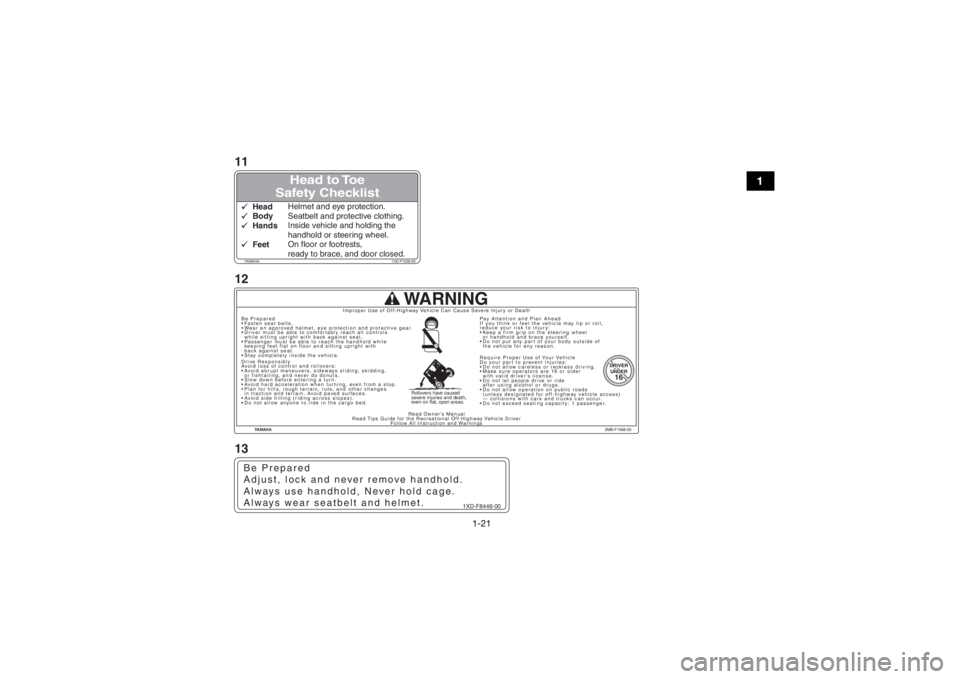

Head to Toe
Safety Checklist
YAMAHA 1XD-F1558-00HeadHelmet and eye protection.BodySeatbelt and protective clothing.HandsInside vehicle and holding the
handhold or steering wheel.FeetOn floor or footrests,
ready to brace, and door closed.
1XD-F8446-00
Be Prepared
Adjust, lock and never remove handhold.
Always use handhold, Never hold cage.
Always wear seatbelt and helmet.YAMAHA
2MB-F1568-00
WARNING
DRIVERDRIVERUNDERUNDER1616DRIVER
UNDER16
Improper Use of Off-Highway Vehicle Can Cause Severe Injury or Death
Read Owner’s Manual
Read Tips Guide for the Recreational Off-Highway Vehicle Driver Follow All Instruction and Warnings
Be Prepared
Drive Responsibly
If you think or feel the vehicle may tip or roll,
reduce your risk to injury: Pay Attention and Plan Ahead
Do not allow careless or reckless driving.
Do your part to prevent injuries: Require Proper Use of Your Vehicle
Rollovers have caused
severe injuries and death,
even on flat, open areas.
Stay completely inside the vehicle.
Passenger must be able to reach the handhold while
keeping feet flat on floor and sitting upright with
back against seat.
Driver must be able to comfortably reach all controls
while sitting upright with back against seat.
Wear an approved helmet, eye protection and protective gear.
Fasten seat belts.

Do not allow anyone to ride in the cargo bed.
Avoid side hilling (riding across slopes).
Plan for hills, rough terrain, ruts, and other changes
in traction and terrain. Avoid paved surfaces.
Avoid hard acceleration when turning, even from a stop.
Slow down before entering a turn.
Avoid abrupt maneuvers, sideways sliding, skidding,
or fishtailing, and never do donuts.
Avoid loss of control and rollovers: Do not put any part of your body outside of
the vehicle for any reason.
Keep a firm grip on the steering wheel
or handhold and brace yourself.

Do not exceed seating capacity: 1 passenger.
Do not allow operation on public roads
(unless designated for off-highway vehicle access)
— collisions with cars and trucks can occur.
Do not let people drive or ride
after using alcohol or drugs.
Make sure operators are 16 or older
with valid driver’s license.

11
12
13
UBN57AE0.book Page 21 Tuesday, November 24, 2015 1:42 PM

2-1
2
EBU31150
SAFETY INFORMATION
SAFETY INFORMATION
EBU33441Be a responsible owner
As the vehicle’s owner, you are responsible for the safe and proper operation of your Yamaha
Wolverine. While understanding all parts of this manual are important for vehicle ownership, be
sure to read this chapter and the instructions in Chapter 7 before operating your Yamaha
Wolverine. Also use these two ch apters and the labels on the vehicle to instruct new operators
and passengers. Do not allow anyone else to operate your vehicle or ride as a passenger if you
are unsure that he/she is willing and able to follow these instructions.
Get to know your vehicle
This off-road vehicle will handle and maneuver differently from cars, ATVs, go-carts, golf-cars
and grounds-keeping vehicles. Follow these instructions to reduce your risk of an accident and
to reduce the risk of serious injury or death in the event of an accident.UBN57AE0.book Page 1 Tuesday, November 24, 2015 1:42 PM

2-7
2
Aftermarket parts, accessories, and modifications
While you may find aftermarket products similar in design and quality to genuine Yamaha Acces-
sories, recognize that some aftermarket accessories or modifications are not suitable because
of potential safety hazards to yo u or others. Installing aftermarket products or having other mod-
ifications performed to your Wolv erine that change any of the vehicle’s design or operation char-
acteristics can put you and others at greater risk of serious injury or death. You are responsible
for injuries related to changes in the vehicle.
Aftermarket tires and rims
The tires and rims that came with your Wolverine were designed to match the performance ca-
pabilities and to provide the best combination of handling, braking, and comfort. Other tires,
rims, sizes, and combinations may not be appropriate. Refer to page 8-48 for tire specifications
and more information on replacing your tires.UBN57AE0.book Page 7 Tuesday, November 24, 2015 1:42 PM

4-1
4
EBU31213INSTRUMENT AND CONTROL FUNCTIONSEBU31220Main switchFunctions of the respective switch positions
are as follows:
EBU31230“” (on):
All electrical circuits are supplied with power.
The key cannot be removed.TIPThe helmet indicator light comes on and stays
on while the key is turned to “ ” (on). EBU31240“ ” (off):
All electrical circuits are switched off. The key
can be removed.EBU31250“ ” (start):
The electric starter is engaged by turning and
holding the key in this position. Release the
key when the engine starts.
1. Main switch
2. “ ” (off)
3. “ ” (on)
4. “ ” (start)
1
2
3
4
UBN57AE0.book Page 1 Tuesday, November 24, 2015 1:42 PM

7-1
7
EBU31950
BASIC GUIDE FOR SAFE USE
EBU31960As a Wolverine owner you are responsible for
the safe and proper operation of this vehicle.
Read this chapter and review the safety in-
structions in Chapter 2 before operating the
vehicle. Use these chapters and the labels on
the vehicle to instruct new operators and pas-
sengers. Do not allow anyone else to operate
the vehicle or ride as a passenger if you are
unsure that he/she is willing and able to follow
these instructions.
WARNING
EWB03340Follow these instructions to reduce your
risk of an accident and to reduce the risk
of serious injury or death in the event of an
accident.
EBU33510KNOW YOUR VEHICLEThis off-road vehicle will handle and maneu-
ver differently from cars, ATVs, go-carts, golf-
cars and grounds-keeping vehicles. The
Wolverine has higher ground clearance and other features to handle rugged terrain, and,
as a result, can overturn in situations where
some vehicles may not. This would include
vehicles made primarily for pavement, roads,
improved paths, or grounds-keeping. If you
do not use care in maneuvering the
Wolverine, you can cause it to roll over even on flat, open areas.
Doing things with a Wolverine that some peo-
ple do for thrills in other vehicles (such as
sideways sliding, skidding, back-wheel slid-
ing, or donuts) have led to side rollovers.
These rollovers can resu lt in crushed limbs
and other serious injuries or death to drivers
or passengers.
UBN57AE0.book Page 1 Tuesday, November 24, 2015 1:42 PM

7-2
7
As the owner/operator, it is your responsibility
to protect yourself and your passenger from
accidents, including rollovers. The Wolverine
has many features, including a protective
structure and seat belts, to help protect occu-
pants, but the best way to avoid injuries is to
avoid accidents. There is a risk of injury or
death in any accident, even with these safety
features.
Driver requirements
This vehicle is intended for use only by an
operator 16 or older with a valid motor ve-
hicle license. Check country laws for mini-
mum age requirements. 
The driver must be able to place both feet
flat on the floorboard while seated upright
with his/her back against the backrest.
 Do not drive after using drugs or alcohol.
 Remove the ignition key when the vehicle is
not in use to prevent unauthorized use of
the machine.
Parents:
Many countries have implemented new mo-
tor vehicle licensing requirements for young
drivers. These requirements are in response
to the disproportionately high rate of crashes
involving youthful drivers. As with automo-
DRIVER
UNDER
16
UBN57AE0.book Page 2 Tuesday, November 24, 2015 1:42 PM

7-3
7
biles, to promote safe driving behaviors, you
should supervise younger drivers and consid-
er setting rules and putting limits on how,
when, and where the Wolverine can be used.
Passenger requirements
This vehicle is designed for the operator and
one passenger. Allowing passengers to ride
improperly can lead to serious injury or death.
As the operator, you are responsible for your
passenger.
Your passenger must be able to place both
feet on the floorboard while seated upright
with his/her back against the backrest.
 Your passenger must be able to reach and
hold the passenger handhold.
 Allow only one passenger in the vehicle and
only in the designated passenger seat. Do
not carry any other passengers. Do not car-
ry passengers in the cargo bed.
 Do not allow someone to ride as a passen-
ger who has been using drugs or alcohol. 
Do not allow children who need child safety
seats or booster seats in the Wolverine. The
seat belt is not designed to restrain auto-
motive child safety seats.
Occupant protection system
WARNING
EWB03350Do not make changes to the occupant pro-
tection system. If you install aftermarket
products or have your vehicle modified,
you may put yourself and others at greater
risk of serious injury or death. You are re-
sponsible for any such changes to the ve-
hicle.
UBN57AE0.book Page 3 Tuesday, November 24, 2015 1:42 PM
