drain bolt YAMAHA WOLVERINE 350 2004 Owners Manual

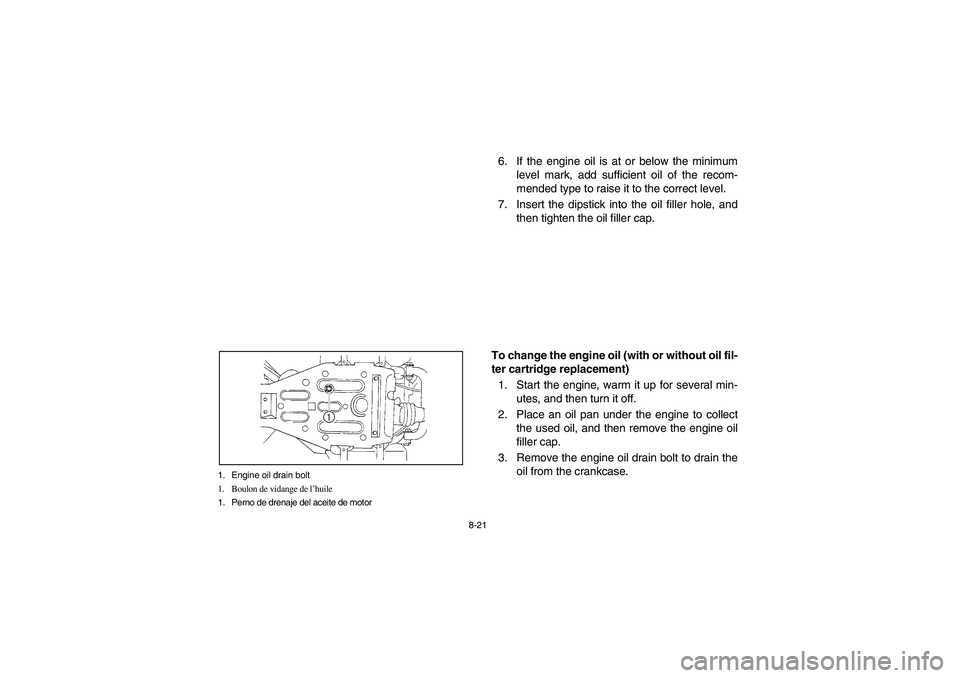

8-21 1. Engine oil drain bolt
1. Boulon de vidange de l’huile
1. Perno de drenaje del aceite de motor
6. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.
7. Insert the dipstick into the oil filler hole, and
then tighten the oil filler cap.
To change the engine oil (with or without oil fil-
ter cartridge replacement)
1. Start the engine, warm it up for several min-
utes, and then turn it off.
2. Place an oil pan under the engine to collect
the used oil, and then remove the engine oil
filler cap.
3. Remove the engine oil drain bolt to drain the
oil from the crankcase.
U5UH60.book Page 21 Wednesday, October 8, 2003 9:05 AM

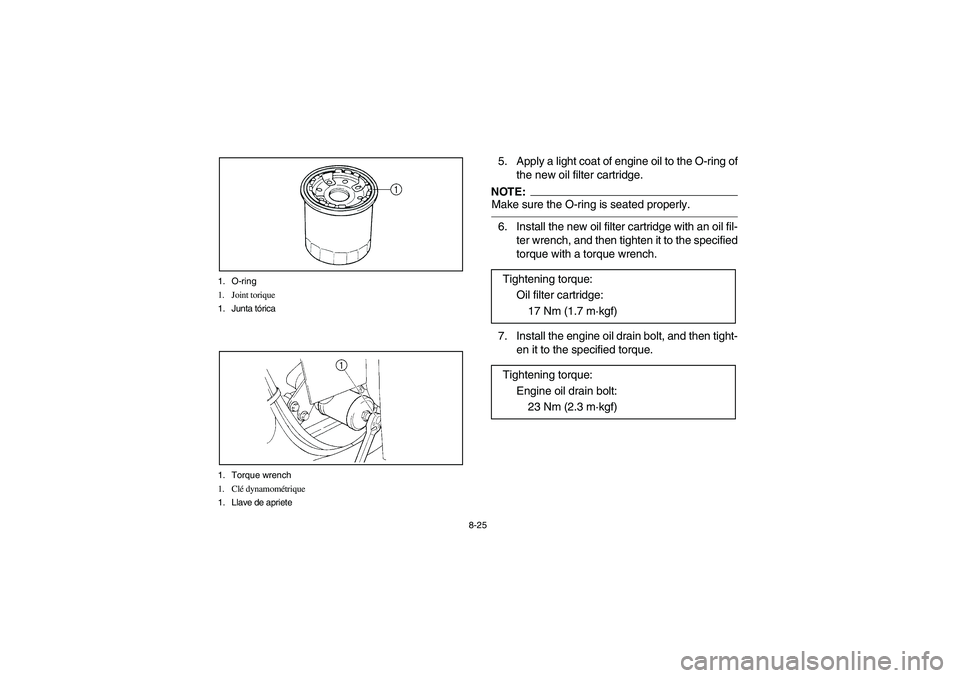

8-25 1. O-ring
1. Joint torique
1. Junta tórica
1. Torque wrench
1. Clé dynamométrique
1. Llave de apriete
5. Apply a light coat of engine oil to the O-ring of
the new oil filter cartridge.NOTE:_ Make sure the O-ring is seated properly. _6. Install the new oil filter cartridge with an oil fil-
ter wrench, and then tighten it to the specified
torque with a torque wrench.
7. Install the engine oil drain bolt, and then tight-
en it to the specified torque. Tightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf)
Tightening torque:
Engine oil drain bolt:
23 Nm (2.3 m·kgf)
U5UH60.book Page 25 Wednesday, October 8, 2003 9:05 AM

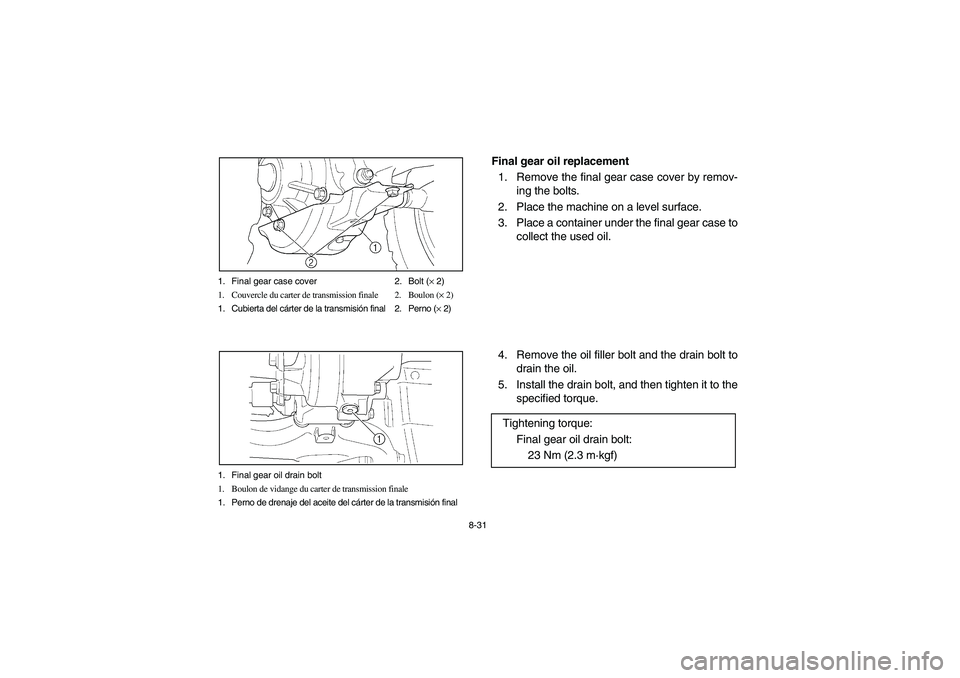

8-31 1. Final gear case cover 2. Bolt (× 2)
1. Couvercle du carter de transmission finale 2. Boulon (× 2)
1. Cubierta del cárter de la transmisión final 2. Perno (× 2)
1. Final gear oil drain bolt
1. Boulon de vidange du carter de transmission finale
1. Perno de drenaje del aceite del cárter de la transmisión final
Final gear oil replacement
1. Remove the final gear case cover by remov-
ing the bolts.
2. Place the machine on a level surface.
3. Place a container under the final gear case to
collect the used oil.
4. Remove the oil filler bolt and the drain bolt to
drain the oil.
5. Install the drain bolt, and then tighten it to the
specified torque.
Tightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf)
U5UH60.book Page 31 Wednesday, October 8, 2003 9:05 AM

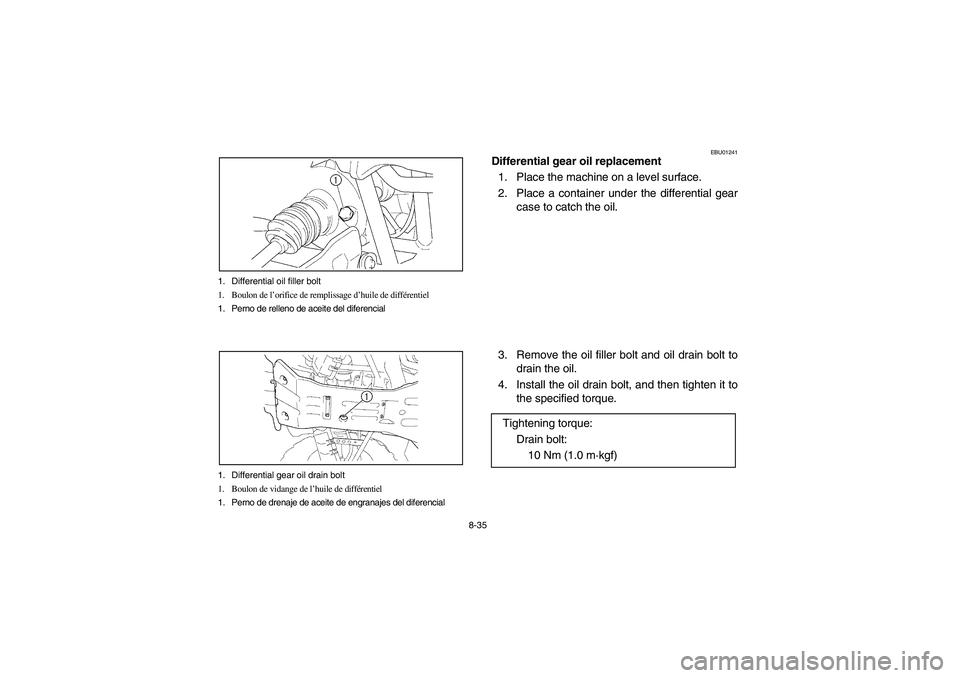

8-35 1. Differential oil filler bolt
1. Boulon de l’orifice de remplissage d’huile de différentiel
1. Perno de relleno de aceite del diferencial
1. Differential gear oil drain bolt
1. Boulon de vidange de l’huile de différentiel
1. Perno de drenaje de aceite de engranajes del diferencial
EBU01241
Differential gear oil replacement
1. Place the machine on a level surface.
2. Place a container under the differential gear
case to catch the oil.
3. Remove the oil filler bolt and oil drain bolt to
drain the oil.
4. Install the oil drain bolt, and then tighten it to
the specified torque.
Tightening torque:
Drain bolt:
10 Nm (1.0 m·kgf)
U5UH60.book Page 35 Wednesday, October 8, 2003 9:05 AM
