8-39

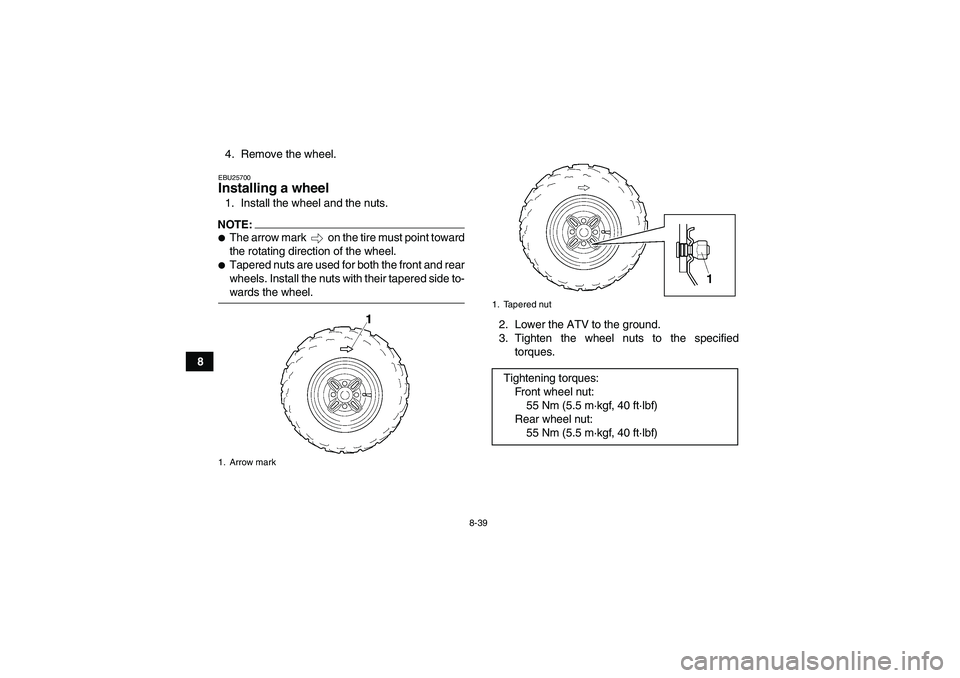

84. Remove the wheel.
EBU25700Installing a wheel 1. Install the wheel and the nuts.NOTE:
The arrow mark on the tire must point toward
the rotating direction of the wheel.
Tapered nuts are used for both the front and rear
wheels. Install the nuts with their tapered side to-wards the wheel.
2. Lower the ATV to the ground.
3. Tighten the wheel nuts to the specified
torques.1. Arrow mark
1. Tapered nutTightening torques:
Fro nt wh ee l nu t:
55 Nm (5.5 m·kgf, 40 ft·lbf)
Rear wheel nut:
55 Nm (5.5 m·kgf, 40 ft·lbf)
