8 3. Install the panel.
EBU24900Checking and lubricating the cables The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02130Inspect cables frequently and replace if dam-
aged. Corrosion can result when the cable
sheaths become damaged, and cables can
also become frayed or kinked, which could re-
strict the operation of controls and lead to anaccident or injury.EBU24911Checking and lubricating the front and
rear brake levers The operation of the front and rear brake levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
1. Brake light switch
2. Brake light switch adjusting nutRecommended lubricant:
Engine oil
Recommended lubricant:
Lithium-soap-based grease (all-purpose
grease)
U3D561E0.book Page 30 Thursday, June 29, 2006 11:03 AM

8-31
8

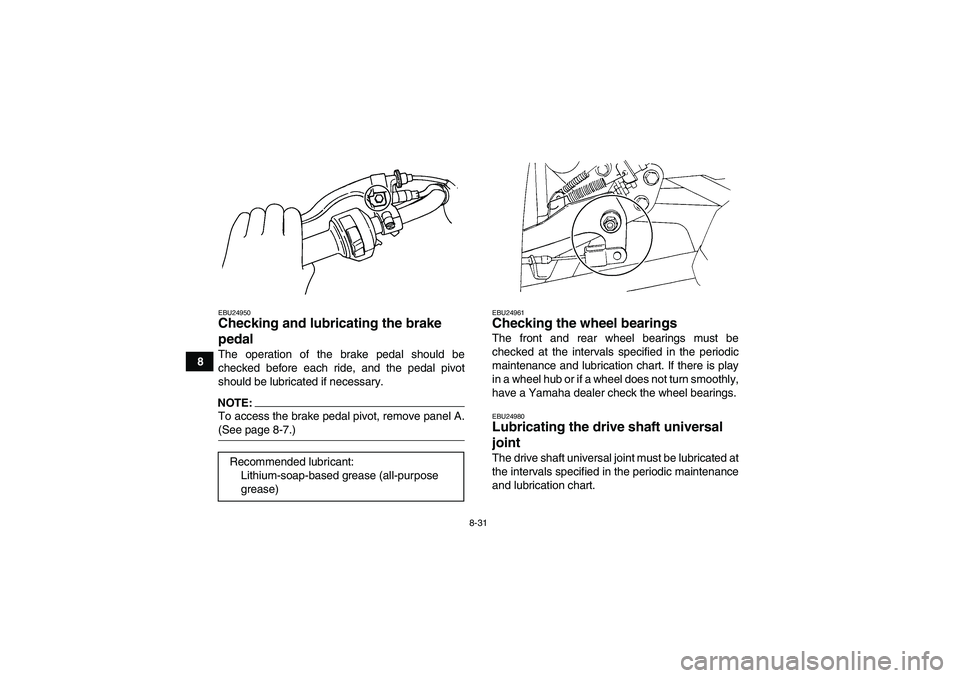

EBU24950Checking and lubricating the brake
pedal The operation of the brake pedal should be
checked before each ride, and the pedal pivot
should be lubricated if necessary.NOTE:To access the brake pedal pivot, remove panel A.(See page 8-7.)
EBU24961Checking the wheel bearings The front and rear wheel bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smoothly,
have a Yamaha dealer check the wheel bearings.EBU24980Lubricating the drive shaft universal
joint The drive shaft universal joint must be lubricated at
the intervals specified in the periodic maintenance
and lubrication chart. Recommended lubricant:
Lithium-soap-based grease (all-purpose
grease)
U3D561E0.book Page 31 Thursday, June 29, 2006 11:03 AM

8-32
8
EBU25100Lubricating the steering shaft The steering shaft must be lubricated at the inter-
vals specified in the periodic maintenance and lu-
brication chart.EBU25222Battery This model is equipped with a sealed-type (MF)
battery, which does not require any maintenance.
There is no need to check the electrolyte or to add
distilled water. Check and, if necessary, tighten the
battery lead connections.CAUTION:ECB00620Never attempt to remove the battery cell seals,as this would permanently damage the battery.
WARNING
EWB02160Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can
cause severe burns. Avoid contact with skin,
eyes or clothing. Always shield your eyes
when working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of ig-
nition away. Ventilate when charging or using
in an enclosed space.KEEP OUT OF REACH OF CHILDREN.
To charge the battery
Have a Yamaha dealer charge the battery as soon
as possible if it seems to have discharged. Keep in
mind that the battery tends to discharge more
quickly if the ATV is equipped with optional electri-
cal accessories. Recommended lubricant:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease
U3D561E0.book Page 32 Thursday, June 29, 2006 11:03 AM

8-33

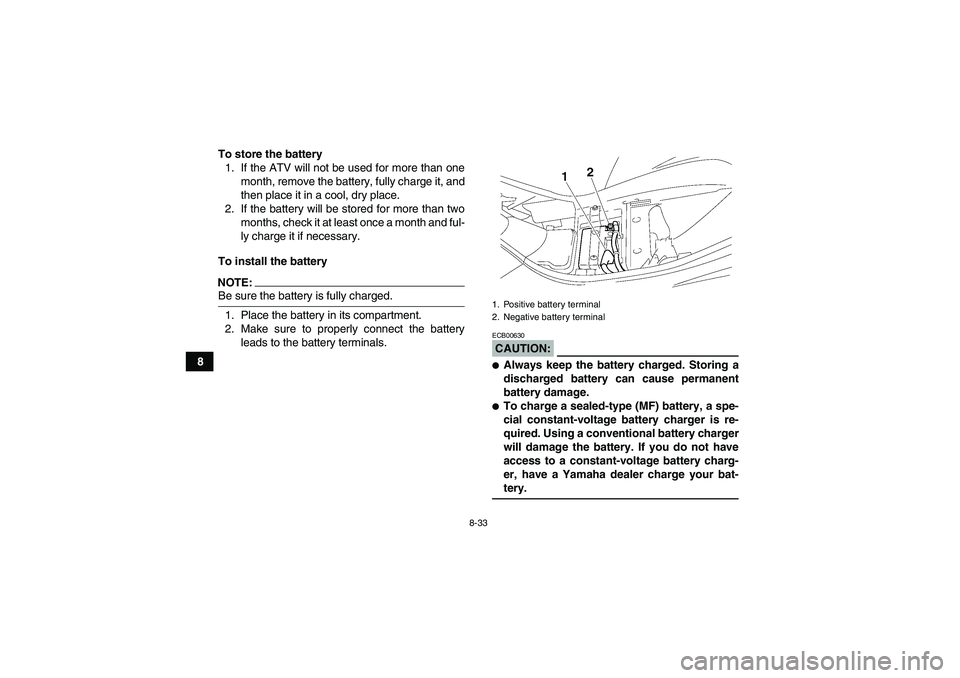

8To store the battery
1. If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
2. If the battery will be stored for more than two
months, check it at least once a month and ful-
ly charge it if necessary.
To install the battery
NOTE:Be sure the battery is fully charged.
1. Place the battery in its compartment.
2. Make sure to properly connect the battery
leads to the battery terminals.
CAUTION:ECB00630
Always keep the battery charged. Storing a
discharged battery can cause permanent
battery damage.
To charge a sealed-type (MF) battery, a spe-
cial constant-voltage battery charger is re-
quired. Using a conventional battery charger
will damage the battery. If you do not have
access to a constant-voltage battery charg-
er, have a Yamaha dealer charge your bat-tery.1. Positive battery terminal
2. Negative battery terminal
U3D561E0.book Page 33 Thursday, June 29, 2006 11:03 AM

8-34
8
EBU25323Replacing a fuse
The main fuse and the fuse box are located under
the seat. (See page 4-11.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off all electrical
circuits.CAUTION:ECB00640To prevent accidental short-circuiting, turn off
the main switch when checking or replacing afuse.
1. Main fuse
2. Spare main fuse
3. Fuse box
1. Headlight fuse
2. Ignition fuse
3. Signaling system fuse
4. Spare fuse
U3D561E0.book Page 34 Thursday, June 29, 2006 11:03 AM

8-35
82. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING
EWB02171Always use a fuse of the specified rating, and
never use a substitute object in place of the
proper fuse. An improper fuse or a substitute
object can cause damage to the electrical sys-tem, which could lead to a fire.
3. Turn the key to “ON” and turn on the electrical
circuits to check if the devices operate.
4. If the fuse immediately blows again, have a
Yamaha dealer check the electrical system.
EBU25541Replacing a headlight bulb If a headlight bulb burns out, replace it as follows.
1. Remove the headlight bulb holder cover at the
rear of the headlight by pulling it off.
2. Remove the headlight bulb holder by pushing
it inward and turning it counterclockwise. Specified fuses:
Main fuse:
20.0 A
Headlight fuse:
15.0 A
Ignition fuse:
15.0 A
Signaling system fuse:
10.0 A1. Headlight bulb holder cover
U3D561E0.book Page 35 Thursday, June 29, 2006 11:03 AM

8-36
8 3. Remove the defective bulb from the headlight
unit by pulling it out.
WARNING
EWB02220A headlight bulb is hot when it is on and imme-
diately after it is turned off. Wait for the bulb to
cool before touching or removing it. You can
be burned or a fire could start if the bulb touch-es something flammable.
4. Install a new headlight bulb into the headlight
unit by aligning the projection on the bulb with
the groove in the headlight unit.
CAUTION:ECB00650Do not touch the glass part of the headlight
bulb to keep it free from oil, otherwise the
transparency of the glass, the luminosity of the
bulb, and the bulb life will be adversely affect-
ed. Thoroughly clean off any dirt and finger-
prints on the headlight bulb using a clothmoistened with alcohol or thinner.
5. Install the headlight bulb holder by aligning the
projections with the holes in the headlight unit,
pushing it inward, and turning it clockwise until
it stops.
1. Headlight bulb holder
1. Do not touch the glass part of the bulb.
U3D561E0.book Page 36 Thursday, June 29, 2006 11:03 AM

8-37

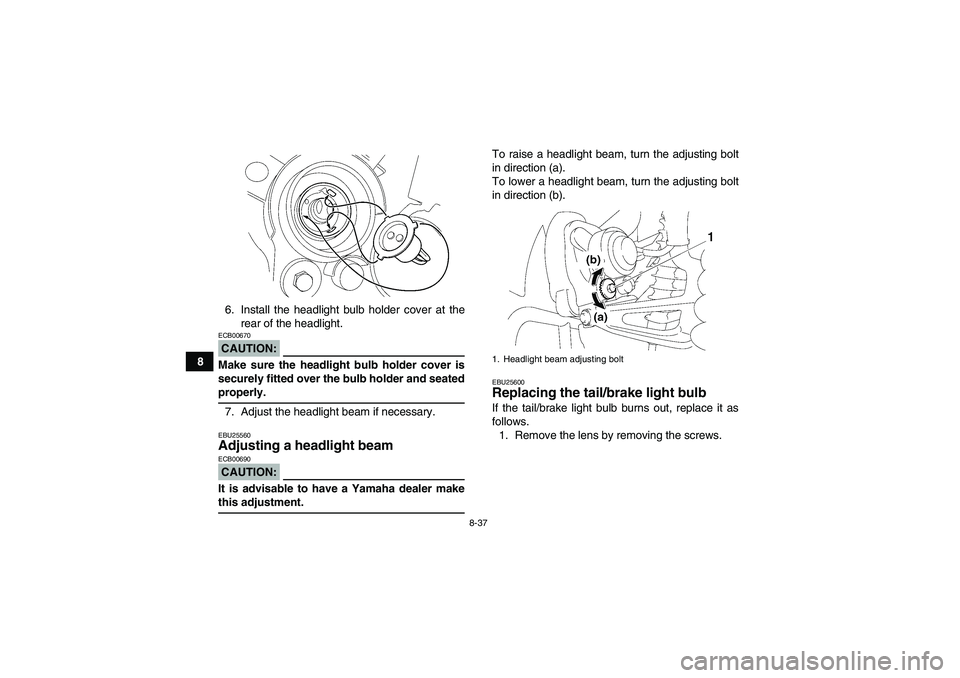

86. Install the headlight bulb holder cover at the
rear of the headlight.
CAUTION:ECB00670Make sure the headlight bulb holder cover is
securely fitted over the bulb holder and seatedproperly.
7. Adjust the headlight beam if necessary.EBU25560Adjusting a headlight beam CAUTION:ECB00690It is advisable to have a Yamaha dealer makethis adjustment.To raise a headlight beam, turn the adjusting bolt
in direction (a).
To lower a headlight beam, turn the adjusting bolt
in direction (b).
EBU25600Replacing the tail/brake light bulb If the tail/brake light bulb burns out, replace it as
follows.
1. Remove the lens by removing the screws.1. Headlight beam adjusting bolt
U3D561E0.book Page 37 Thursday, June 29, 2006 11:03 AM

8-38
8 2. Remove the defective bulb by pushing it in
and turning it counterclockwise.3. Insert a new bulb into the socket, push it in,
and then turn it clockwise until it stops.
4. Install the lens by installing the screws.
CAUTION:ECB00700Do not overtighten the screws, otherwise thelens may break.EBU25650Removing a wheel 1. Loosen the wheel nuts.
2. Elevate the ATV and place a suitable stand
under the frame.
3. Remove the nuts from the wheel.
1. Screw
1. Tail/brake light bulb
1. Nut
U3D561E0.book Page 38 Thursday, June 29, 2006 11:03 AM

8-39
84. Remove the wheel.
EBU25700Installing a wheel 1. Install the wheel and the nuts.NOTE:
The arrow mark on the tire must point toward
the rotating direction of the wheel.
Tapered nuts are used for both the front and rear
wheels. Install the nuts with their tapered side to-wards the wheel.
2. Lower the ATV to the ground.
3. Tighten the wheel nuts to the specified
torques.1. Arrow mark
1. Tapered nutTightening torques:
Fro nt wh ee l nu t:
55 Nm (5.5 m·kgf, 40 ft·lbf)
Rear wheel nut:
55 Nm (5.5 m·kgf, 40 ft·lbf)
