brakes YAMAHA WOLVERINE 350 2009 Owners Manual

EBU17420
TABLE OF CONTENTS
SAFETY INFORMATION .............................. 1-1
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 2-1
DESCRIPTION .............................................. 3-1
Left view ...................................................... 3-1
Right view.................................................... 3-1
Controls and instruments ............................ 3-2
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1
Main switch ................................................ 4-1
Indicator lights and warning light ................ 4-2
Handlebar switches .................................... 4-3
Throttle lever .............................................. 4-4
Speed limiter .............................................. 4-4
Front brake lever ........................................ 4-5
Brake pedal and rear brake lever ............... 4-5
Parking brake ............................................. 4-6
Drive select lever ........................................ 4-7
Fuel tank cap .............................................. 4-7
Fuel ............................................................ 4-8
Fuel cock .................................................... 4-9Starter (choke) ..........................................4-10
Seat ..........................................................4-11
Storage compartment ...............................4-12
Adjusting the front shock absorber
assemblies ..............................................4-13
Adjusting the rear shock absorber
assembly .................................................4-14
PRE-OPERATION CHECKS ..........................5-1
Pre-operation check list ..............................5-1
Fuel .............................................................5-3
Engine oil ....................................................5-3
Final gear oil ...............................................5-3
Front and rear brakes .................................5-3
Throttle lever ...............................................5-4
Tires ............................................................5-4
Measuring the tire pressure ........................5-5
Tire wear limit .............................................5-6
Chassis fasteners .......................................5-6
Instruments, lights and switches .................5-6
OPERATION...................................................6-1
Starting a cold engine .................................6-1
Starting a warm engine ...............................6-3U3D563E0.book Page 1 Monday, May 12, 2008 11:12 AM

1-3
1 hill. If you stall or roll backwards, follow the spe-
cial procedure for braking described in this man-
ual. Dismount on the uphill side or to a side if
pointed straight uphill. Turn the ATV around and
remount, following the procedure described in
this manual.

Always check for obstacles before operating in a
new area.
Never attempt to operate over large obstacles,
such as large rocks or fallen trees. Always follow
proper procedures when operating over obsta-
cles as described in this manual.
Always be careful when skidding or sliding.
Learn to safely control skidding or sliding by
practicing at low speeds and on level, smooth
terrain. On extremely slippery surfaces, such as
ice, go slowly and be very cautious in order to re-
duce the chance of skidding or sliding out of con-
trol.

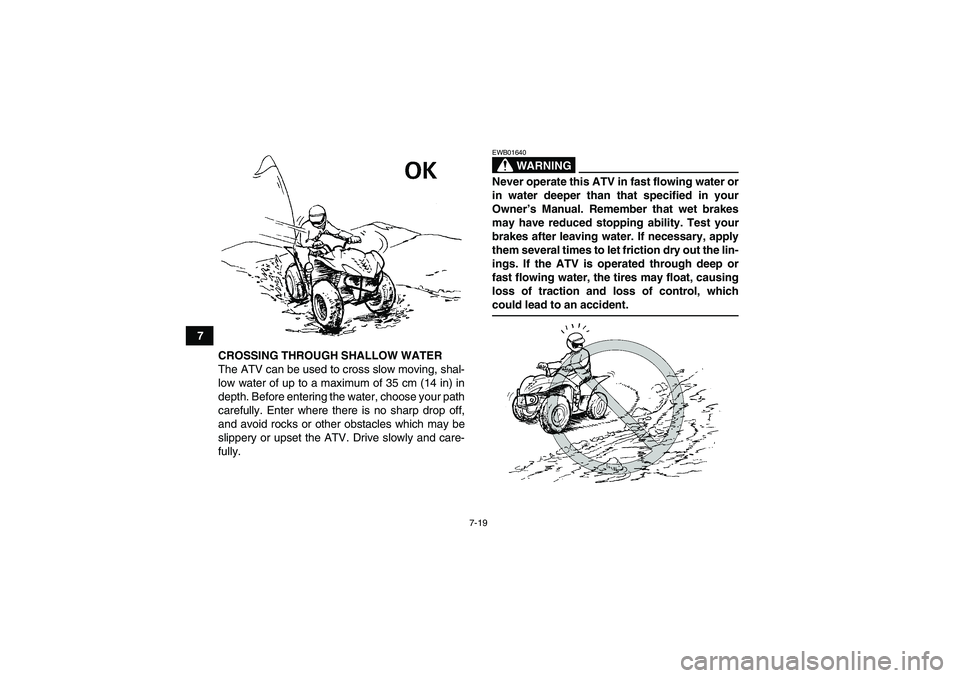

Never operate an ATV in fast flowing water or in
water deeper than that recommended in this
manual. Remember that wet brakes may have
reduced stopping ability. Test your brakes after
leaving water. If necessary, apply them several
times to let friction dry out the linings.

Always be sure there are no obstacles or people
behind you when you operate in reverse. When
it is safe to proceed in reverse, go slowly.
Always use the size and type of tires specified in
this manual.
Always maintain proper tire pressure as de-
scribed in this manual.
Never modify an ATV through improper installa-
tion or use of accessories.
Never exceed the stated load capacity for an
ATV. Cargo should be properly distributed and
securely attached. Reduce speed and follow in-
structions in this manual for carrying cargo. Al-
low greater distance for braking.
WARNING
EWB00061
Always turn off the engine when refueling.
Do not refuel right after the engine has been
running and is still very hot.
Do not spill gasoline on the engine or ex-
haust pipe/muffler when refueling. Never re-
fuel while smoking, or in the vicinity of
sparks, open flames, or other sources of ig-
nition such as the pilot lights of water heat-
ers and clothes dryers. Gasoline can catch
fire and you could be burned.
U3D563E0.book Page 3 Monday, May 12, 2008 11:12 AM

4-7
4

Always be sure you have released the park-
ing brake before you begin to ride. The brake
could overheat if you ride the ATV without re-
leasing the parking brake. You could lose
braking performance which could cause an
accident. You could also wear out the brakesprematurely.EBU18581Drive select lever The drive select lever is used to shift your ATV into
the forward, neutral and reverse positions. See the
“Operating the drive select lever and driving in re-
verse” section on page 6-3 for the drive select lever
operation.
EBU18720Fuel tank cap Remove the fuel tank cap by turning it counter-
clockwise.1. Drive select lever
U3D563E0.book Page 7 Monday, May 12, 2008 11:12 AM

5-3
5
EBU19540Fuel Make sure that there is sufficient fuel in the tank.
(See page 4-8.)
WARNING
EWB00520
Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is overfilled,
fuel could spill out due to heat from the en-
gine or the sun.
Be careful not to spill fuel, especially on the
engine or exhaust pipe which can cause a
fire and severe injury. Wipe up any spilled
fuel immediately.
Do not refuel right after the engine has been
running and is still very hot.
Be sure the fuel tank cap is closed securely.EBU19560Engine oil Make sure that the engine oil is at the specified lev-
el. Add oil as necessary. (See page 8-10.)EBU19590Final gear oil Make sure that the final gear oil is at the specified
level. Add oil as necessary. (See page 8-14.)
EBU27670Front and rear brakes Brake levers and brake pedal
Check that there is no free play in the front brake
lever. If there is free play, have a Yamaha dealer
check the brake system.
Check for correct free play in the rear brake lever
and brake pedal. If the free play is incorrect, ad-
just it. (See page 8-28.)
Check operation of the levers and pedal. They
should move smoothly and there should be a
firm feeling when the brake is applied. If not,
have a Yamaha dealer check them.
Brake fluid level (front brake)
Check the brake fluid level. Add fluid if necessary.
(See page 8-26.)
Brake fluid leakage (front brake)
Check to see if any brake fluid is leaking out of the
hose, joint or brake fluid reservoir of the front
brake. Apply the brake firmly for one minute. If theRecommended brake fluid:
DOT 4
U3D563E0.book Page 3 Monday, May 12, 2008 11:12 AM

5-4
5lever moves slowly inward, there may be a leak in
the brake system. If there is any leakage, the brake
system should be checked by a Yamaha dealer.
Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance, check
the brake pads and shoes for wear. (See page
8-25.)
WARNING
EWB00580Always check the brakes at the start of every
ride. Do not ride the ATV if you find any prob-
lem with the brakes or you could lose braking
ability, which could lead to an accident. If a
problem cannot be corrected by the adjust-
ment procedures provided in this manual, havea Yamaha dealer check for the cause.EBU19761Throttle lever Check the operation of the throttle lever. It must
open smoothly and spring back to the idle position
when released. Have a Yamaha dealer correct if
necessary.
EBU19812Tires
WARNING
EWB00592Use of improper tires on this ATV, or operation
of this ATV with improper or uneven tire pres-
sure, may cause loss of control, increasing
your risk of accident.
Pay attention to the following.
The tires listed below have been approved
by Yamaha Motor Manufacturing Corpora-
tion of America for this model. Other tire
combinations are not recommended.
Front:
Manufacturer/model:
MAXXIS/M937
Size:
AT23 x 8-12
Type:
Tubeless
Rear:
Manufacturer/model:
MAXXIS/M938
Size:
AT23 x 10-12
Type:
Tubeless
U3D563E0.book Page 4 Monday, May 12, 2008 11:12 AM

6-5
6 polish themselves to the correct operating clear-
ances. During this period, prolonged full-throttle
operation or any condition that might result in en-
gine overheating must be avoided.
0–160 km (0–100 mi) or 0–10 hours
Avoid prolonged operation above 1/2 throttle. Vary
the speed of the ATV regularly. Do not operate it at
one set throttle position.
160–320 km (100–200 mi) or 10–20 hours
Avoid prolonged operation above 3/4 throttle. Rev
the engine freely, but do not use full throttle at any
time.
320 km (200 mi) or 20 hours and beyond
The ATV can now be operated normally.
NOTICEECB00220If any engine trouble should occur during the
engine break-in period, immediately have aYamaha dealer check the ATV.
EBU20700Parking When parking the ATV, stop the engine, shift the
drive select lever into the forward position, apply
the parking brake, and then turn the fuel cock to
“OFF”.EBU20760Parking on a slope
WARNING
EWB00830Avoid parking on hills or other inclines. Park-
ing on a hill or other incline could cause the
ATV to roll out of control, increasing the
chance of an accident. If you must park on an
incline, place the ATV transversely across the
incline, shift the drive select lever to the for-
ward position, stop the engine, apply the park-
ing brake, and then block the front and rear
wheels with rocks or other objects.
Do not park the ATV at all on hills that are sosteep you could not walk up them easily.
1. Bring the ATV to a stop by applying the brakes
in the forward position.
2. Stop the engine.
U3D563E0.book Page 5 Monday, May 12, 2008 11:12 AM

7-12
7 Select a large, flat, unpaved area to become famil-
iar with your ATV. Make sure that this area is free
of obstacles and other riders. You should practice
control of the throttle, brakes, and turning tech-
niques in this area before trying more difficult ter-
rain. Always avoid riding on paved surfaces: the
ATV is designed for use on unpaved surfaces only,
and handling maneuvers are more difficult to per-
form on pavement.
Set the parking brake and follow the instruction on
page 6-1 to start the engine. Once it has warmed
up you are ready to begin riding your ATV. Re-
member that the engine and exhaust pipe will be
hot when riding and afterwards; do not allow skin
or clothing to come in contact with these compo-
nents.With the engine idling, return the starter (choke) to
the closed position and shift the drive select lever
into the forward position, then release the parking
brake. Apply the throttle slowly and smoothly. The
centrifugal clutch will engage and you will start to
accelerate. If the throttle is applied too abruptly, the
front wheels may lift off the ground, resulting in a
loss of directional control. Avoid higher speeds un-
til you are thoroughly familiar with the operation of
your ATV.
When slowing down or stopping, release the throt-
tle and apply the brakes smoothly and evenly. Im-
proper use of the brakes can cause the tires to lose
traction, reducing control and increasing the possi-
bility of an accident.
TURNING YOUR ATV
To achieve maximum traction on unpaved surfac-
es, the two rear wheels are mounted solidly on one
axle and turn together at the same speed. There-
fore, unless the wheel on the inside of the turn is al-
lowed to slip or lose some traction, the ATV will
resist turning. A special turning technique must be
used to allow the ATV to make turns quickly and
easily. It is essential that this skill be learned first at
low speed.
U3D563E0.book Page 12 Monday, May 12, 2008 11:12 AM

7-16
7 If your ATV has stalled or stopped and you believe
you can continue up the hill, restart carefully to
make sure you do not lift the front wheels which
could cause you to lose control. If you are unable
to continue up the hill, dismount the ATV on the up-
hill side. Physically turn the ATV around and then
descend the hill.
If you start to roll backwards, DO NOT apply the
rear brake to stop or try to put the ATV in gear. The
ATV could easily tip over backwards. Instead, ap-
ply the front brake gradually, or dismount the ATV
immediately on the uphill side.
WARNING
EWB01741Maintain a steady speed when climbing a hill.
If you lose all forward speed:
Keep weight uphill.
Apply the brakes.
Apply the parking brake after you are
stopped.
If you begin rolling backwards:
Keep weight uphill.
Never apply the rear brake while rolling
backwards. Apply the front brake.
When fully stopped, apply the rear brake as
well, and then lock the parking brake.
Dismount on uphill side or to a side if pointed
straight uphill. Turn the ATV around and re-
mount, following the procedure described inthe Owner’s Manual.
U3D563E0.book Page 16 Monday, May 12, 2008 11:12 AM

7-19
7
CROSSING THROUGH SHALLOW WATER
The ATV can be used to cross slow moving, shal-
low water of up to a maximum of 35 cm (14 in) in
depth. Before entering the water, choose your path
carefully. Enter where there is no sharp drop off,
and avoid rocks or other obstacles which may be
slippery or upset the ATV. Drive slowly and care-
fully.
WARNING
EWB01640Never operate this ATV in fast flowing water or
in water deeper than that specified in your
Owner’s Manual. Remember that wet brakes
may have reduced stopping ability. Test your
brakes after leaving water. If necessary, apply
them several times to let friction dry out the lin-
ings. If the ATV is operated through deep or
fast flowing water, the tires may float, causing
loss of traction and loss of control, whichcould lead to an accident.
U3D563E0.book Page 19 Monday, May 12, 2008 11:12 AM

7-20
7 Test your brakes after leaving the water. Do not
continue to ride your ATV without verifying that you
have regained proper braking ability.
NOTICEECB00730After riding your ATV in water, be sure to drain
the trapped water by removing the check hose
at the bottom of the air filter case, the V-belt
cooling duct check hose, the drive select lever
box check hose and the storage compartment
drain plugs. Also, remove the V-belt case drainplug to drain any water that may have accumu-
lated. Wash the ATV in fresh water if it has been
operated in salt water or muddy conditions.1. Air filter case check hose
U3D563E0.book Page 20 Monday, May 12, 2008 11:12 AM
