8-129
EBU00413
Troubleshooting
Although Yamaha machines receive a rigid in-
spection before shipment from the factory, trouble
may occur during operation.
Any problem in the fuel, compression, or ignition
systems can cause poor starting and loss of pow-
er. The troubleshooting chart describes a quick,
easy procedure for making checks. If your ma-
chine requires any repair, take it to a Yamaha
dealer.
The skilled technicians at a Yamaha dealership
have the tools, experience, and know-how to prop-
erly service your machine. Use only genuine
Yamaha parts on your machine. Imitation parts
may look like Yamaha parts, but they are often in-
ferior. Consequently, they have a shorter service
life and can lead to expensive repair bills.
WARNING
Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe in-
jury or property damage. Make sure there are
no open flames or sparks in the area, including
pilot lights from water heaters or furnaces.
U5TE61.book Page 129 Tuesday, May 6, 2003 4:40 PM
10-1
EBU00428

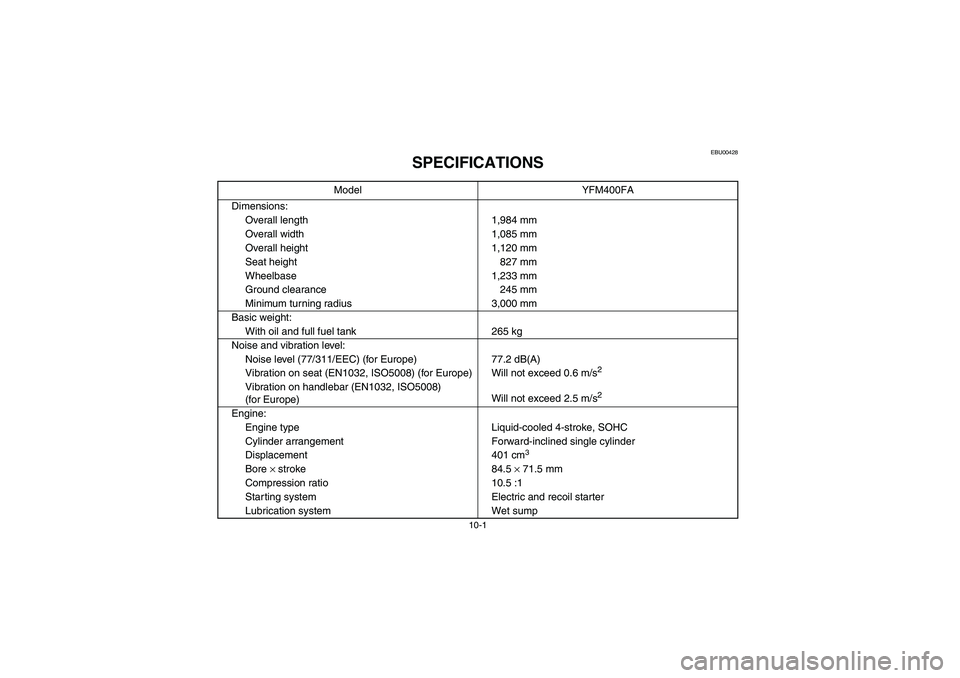

SPECIFICATIONS
Model YFM400FA
Dimensions:
Overall length 1,984 mm
Overall width 1,085 mm
Overall height 1,120 mm
Seat height 827 mm
Wheelbase 1,233 mm
Ground clearance 245 mm
Minimum turning radius 3,000 mm
Basic weight:
With oil and full fuel tank 265 kg
Noise and vibration level:
Noise level (77/311/EEC) (for Europe) 77.2 dB(A)
Vibration on seat (EN1032, ISO5008) (for Europe) Will not exceed 0.6 m/s
2
Vibration on handlebar (EN1032, ISO5008)
(for Europe)Will not exceed 2.5 m/s
2
Engine:
Engine type Liquid-cooled 4-stroke, SOHC
Cylinder arrangement Forward-inclined single cylinder
Displacement 401 cm
3
Bore
× stroke 84.5
× 71.5 mm
Compression ratio 10.5 :1
Starting system Electric and recoil starter
Lubrication system Wet sump
