coolant temperature YAMAHA WOLVERINE 400 2004 Owners Manual

4-3 1. Coolant temperature warning light “”
2. Reverse indicator light “R”
3. Four-wheel-drive indicator light “”
4. Neutral indicator light “N”
1. Témoin d’avertissement de la température du liquide de
refroidissement “”
2. Témoin de marche arrière “R”
3. Témoin 4x4 “”
4. Témoin de point mort “N”
1. Luz de aviso de la temperatura del refrigerante “”
2. Luz de control de marcha atrás “R”
3. Luz de control del modo de tracción de cuatro ruedas “”
4. Luz de control de punto muerto “N”
EBU08020
Indicator and warning lights
EBU01223
Coolant temperature warning light “”
When the coolant temperature reaches a specified
level, this light comes on to warn that the coolant
temperature is too hot. If the light comes on during
operation, stop the engine as soon as it is safe to
do so and allow the engine to cool down for about
10 minutes.
To check the coolant temperature warning light,
shift the drive select lever into neutral, turn the key
to “ON”, and then press the start switch. If the light
does not come on, have a Yamaha dealer inspect
the electrical circuit.CAUTION:_

The engine may overheat if the ATV is
overloaded. If this happens, reduce the
load to specification.


Restart after making sure that the light is
out. Continuous use while the light is on
may cause damage to the engine.
_
U5TE61.book Page 3 Tuesday, May 6, 2003 4:40 PM

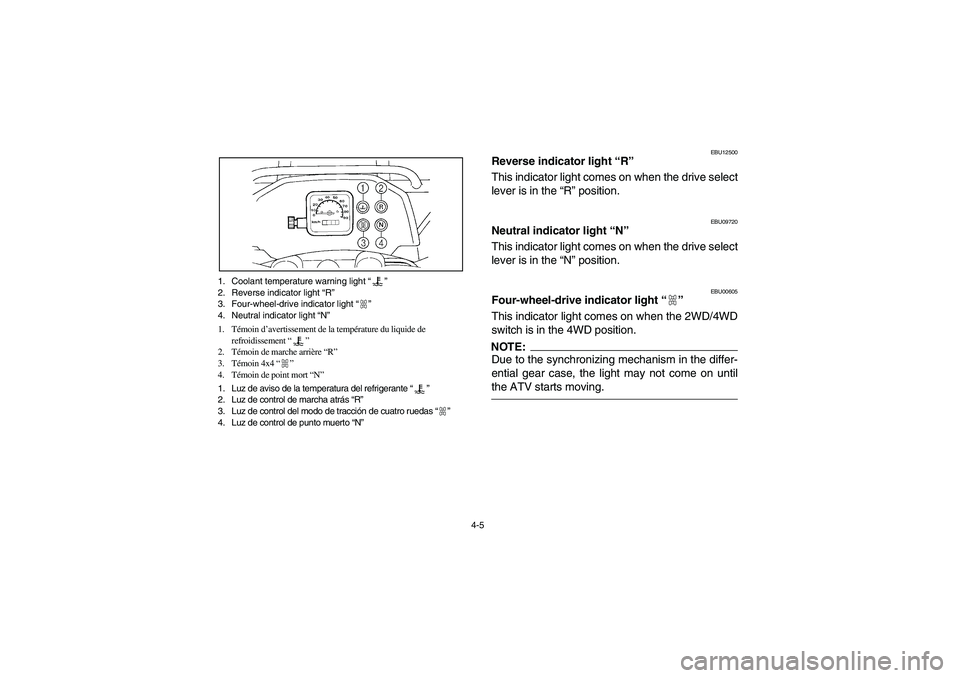

4-5 1. Coolant temperature warning light “”
2. Reverse indicator light “R”
3. Four-wheel-drive indicator light “”
4. Neutral indicator light “N”
1. Témoin d’avertissement de la température du liquide de
refroidissement “”
2. Témoin de marche arrière “R”
3. Témoin 4x4 “”
4. Témoin de point mort “N”
1. Luz de aviso de la temperatura del refrigerante “”
2. Luz de control de marcha atrás “R”
3. Luz de control del modo de tracción de cuatro ruedas “”
4. Luz de control de punto muerto “N”
EBU12500
Reverse indicator light “R”
This indicator light comes on when the drive select
lever is in the “R” position.
EBU09720
Neutral indicator light “N”
This indicator light comes on when the drive select
lever is in the “N” position.
EBU00605
Four-wheel-drive indicator light “”
This indicator light comes on when the 2WD/4WD
switch is in the 4WD position.NOTE:_ Due to the synchronizing mechanism in the differ-
ential gear case, the light may not come on until
the ATV starts moving. _
U5TE61.book Page 5 Tuesday, May 6, 2003 4:40 PM

5-17
EBU00678
Differential gear oil
Make sure the differential gear oil is at the speci-
fied level. Add oil as necessary. (See pages 8-45–
8-49 for details.)
EBU13160
Coolant
Check the coolant level in the coolant reservoir
when the engine is cold. (The coolant level will
vary with engine temperature.) The coolant level is
satisfactory if it is between the minimum and max-
imum level marks on the coolant reservoir. If the
coolant level is at or below the minimum level
mark, add distilled water to bring the level up to the
maximum level mark. Change the coolant every
two years. (See pages 8-51–8-61 for details.) Recommended oil:
SAE 80 API GL-4 Hypoid gear oil
U5TE61.book Page 17 Tuesday, May 6, 2003 4:40 PM

8-51 1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level mark
1. Bouchon du vase d’expansion
2. Repère de niveau maximum
3. Repère de niveau minimum
1. Tapa del depósito de refrigerante
2. Marca de nivel máximo
3. Marca de nivel mínimo
EBU13210
Cooling system
1. Place the ATV on a level surface.
2. Check the coolant level in the coolant reser-
voir when the engine is cold as the coolant
level will vary with engine temperature.NOTE:_ The coolant level should be between the minimum
and maximum level marks. _3. If the coolant is at or below the minimum level
mark, remove panel D. (See pages 8-17–
8-19 for panel removal and installation proce-
dures.)
U5TE61.book Page 51 Tuesday, May 6, 2003 4:40 PM

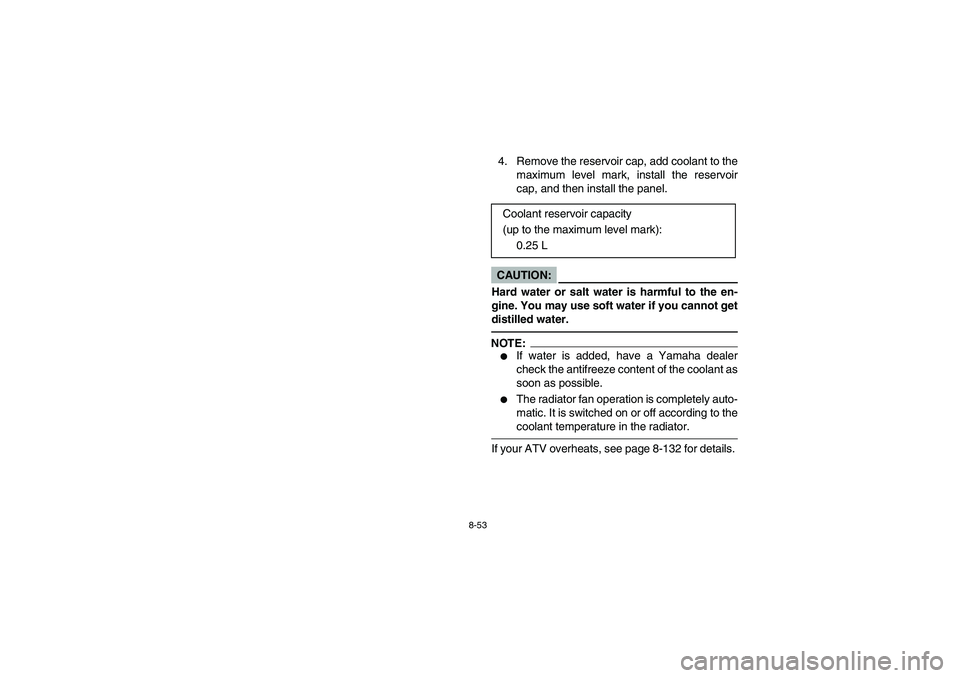

8-53
4. Remove the reservoir cap, add coolant to the
maximum level mark, install the reservoir
cap, and then install the panel.CAUTION:_ Hard water or salt water is harmful to the en-
gine. You may use soft water if you cannot get
distilled water. _NOTE:_

If water is added, have a Yamaha dealer
check the antifreeze content of the coolant as
soon as possible.


The radiator fan operation is completely auto-
matic. It is switched on or off according to the
coolant temperature in the radiator.
_If your ATV overheats, see page 8-132 for details. Coolant reservoir capacity
(up to the maximum level mark):
0.25 L
U5TE61.book Page 53 Tuesday, May 6, 2003 4:40 PM

10-6
Bulb voltage, wattage
× quantity:
Headlight 12 V, 30/30 W
× 2
Tail/brake light 12 V, 5/21 W
× 1
Meter lighting 14 V, 3 W
× 1
Neutral indicator light 12 V, 1.7 W
× 1
Reverse indicator light 12 V, 1.7 W
× 1
Coolant temperature warning light 12 V, 1.7 W
× 1
Four-wheel-drive indicator light 12 V, 1.7 W
× 1
Fuse:
Main fuse 30 A
Headlight fuse 15 A
Ignition fuse 10 A
Auxiliary DC jack fuse 10 A
Four-wheel-drive fuse 3 A
Signaling system fuse 10 AModel YFM400FA
U5TE61.book Page 6 Tuesday, May 6, 2003 4:40 PM
