engine oil YAMAHA WOLVERINE 400 2004 Owners Manual

EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ...................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION ................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ........................ 4-1
Main switch........................................... 4-1
Indicator and warning lights.................. 4-3
Speedometer ........................................ 4-7
Fuel gauge ........................................... 4-9
Handlebar switches ............................ 4-11
Throttle lever ...................................... 4-17
Speed limiter ...................................... 4-19
Front brake lever ................................ 4-21
Brake pedal and rear brake lever ....... 4-23
Parking brake ..................................... 4-25
Drive select lever ................................ 4-27
1234
Recoil starter ...................................... 4-29
Fuel tank cap ..................................... 4-29
Fuel cock............................................ 4-31
Starter (choke) ................................... 4-33
Seat.................................................... 4-35
Storage box........................................ 4-37
Front carrier ....................................... 4-39
Rear carrier ........................................ 4-39
Front shock absorber adjustment ...... 4-41
Rear shock absorber adjustment ....... 4-43
Auxiliary DC jack ................................ 4-45
PRE-OPERATION CHECKS .................. 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Final gear oil ...................................... 5-15
Differential gear oil ............................. 5-17
Coolant............................................... 5-17
Throttle lever ...................................... 5-19
Fittings and fasteners......................... 5-21
Lights ................................................. 5-21
Switches............................................. 5-21
Tires ................................................... 5-23
5
U5TE61.book Page 1 Tuesday, May 6, 2003 4:40 PM

How to measure tire pressure .............5-27
Tire wear limit......................................5-29
OPERATION ...........................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Warming up...........................................6-9
Drive select lever operation and
reverse driving ..................................6-11
Engine break-in ...................................6-17
Parking ................................................6-19
Parking on a slope ..............................6-21
Accessories and loading .....................6-23
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-39
Climbing uphill.....................................7-45
Riding downhill ....................................7-55
Crossing a slope .................................7-59
Crossing through shallow water ..........7-63
Riding over rough terrain ....................7-69
Sliding and skidding ............................7-71
What to do if ........................................7-75
What to do...........................................7-75
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ........................................ 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Panel removal and installation............ 8-15

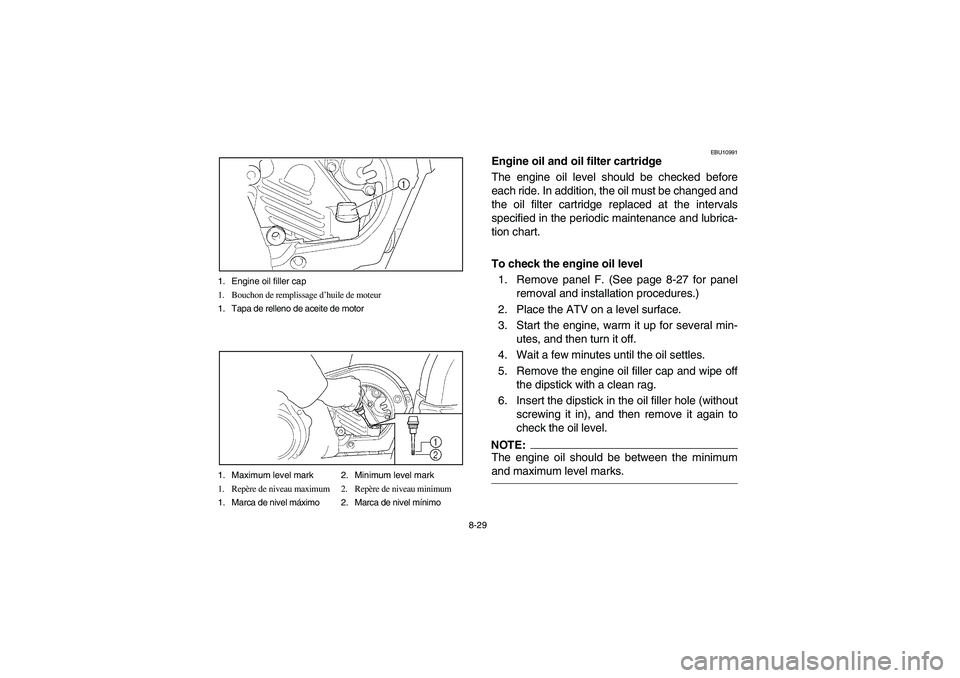

Engine oil and oil filter cartridge ......... 8-29
Final gear oil ....................................... 8-39
Differential gear oil replacement ......... 8-45
Cooling system ................................... 8-51
Changing the coolant.......................... 8-55
Axle boots ........................................... 8-61
Spark plug inspection ......................... 8-63
Air filter element cleaning ................... 8-69
V-belt cooling duct check hose ........... 8-77
V-belt case drain plug ......................... 8-77
Carburetor adjustment ........................ 8-79
Idle speed adjustment ........................ 8-81
Valve clearance adjustment ............... 8-83
Throttle lever adjustment .................... 8-85
Front brake pad check ........................ 8-87
Rear brake shoe inspection ................ 8-87
Brake fluid level check ........................ 8-89
Brake fluid replacement ...................... 8-93
Front brake lever free play.................. 8-95
8
U5TE61.book Page 2 Tuesday, May 6, 2003 4:40 PM

3-1
EBU00032
DESCRIPTION AND MACHINE
IDENTIFICATION1. Rear shock absorber
assembly spring preload
adjusting ring
2. Storage box and tool kit
3. Spark plug
4. Front shock absorber
assembly spring preload
adjusting ring
5. Brake pedal
6. V-belt case
7. Radiator cap
8. Fuel cock
9. Air filter case
10. Fuses
11. Tail/brake light
12. Front shock absorber
assembly spring preload
adjusting ring
13. V-belt cooling duct check
hose14. Coolant reservoir
15. Oil filter cartridge
16. Engine oil dipstick
17. Rear brake lever
18. Left handlebar switches
19. Starter (choke)
20. Horn switch
21. Drive select lever
22. Speedometer
23. Main switch
24. Fuel tank cap
25. Auxiliary DC jack
26. Right handlebar
switch
27. Throttle lever
28. Front brake leverNOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
U5TE61.book Page 1 Tuesday, May 6, 2003 4:40 PM

4-29 1. Recoil starter
1. Lanceur à réenroulement
1. Arranque por tracción de cable
1. Fuel tank cap
1. Bouchon du réservoir de carburant
1. Tapón del depósito de combustible
EBU01264
Recoil starter
Firmly grasp the handle and pull slightly until en-
gagement can be felt. Then pull forcefully, being
careful not to pull the rope all the way out.
WARNING
_ Shift the drive select lever into the neutral po-
sition and apply the parking brake before start-
ing the engine or the ATV could start to move
unexpectedly, which could cause an accident. _
EBU00092
Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
U5TE61.book Page 29 Tuesday, May 6, 2003 4:40 PM

5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
Front brakeCheck operation, free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-87–8-95
Rear brakeCheck operation, condition and free play.
Adjust if necessary.5-5–5-7,
8-87, 8-97–8-101
FuelCheck fuel level.
Fill with fuel if necessary.5-9–5-11
Engine oilCheck oil level.
Fill with oil if necessary.5-13, 8-29–8-39
Coolant reservoirCheck coolant level in reservoir.
Fill with coolant if necessary.8-51–8-61
Final gear oil and
differential gear oilCheck for leakage.5-15–5-17,
8-39–8-49
ThrottleCheck for proper throttle cable operation. 5-19, 8-85
Wheels and tiresCheck tire pressure, wear and damage.5-23–5-29,
8-109–8-111
Fittings and fastenersCheck all fittings and fasteners. 5-21
Lights and switchesCheck for proper operation. 5-21, 8-123–8-127
Axle bootsCheck for damage. 8-61
U5TE61.book Page 1 Tuesday, May 6, 2003 4:40 PM

5-13
EBU10842
Engine oil
Make sure the engine oil is at the specified level.
Add oil as necessary. (See pages 8-29–8-39.)CAUTION:_

In order to prevent clutch slippage (since
the engine oil also lubricates the clutch),
do not mix any chemical additives. Do not
use oils with a diesel specification of “CD”
or oils of a higher quality than specified. In
addition, do not use oils labeled “ENERGY
CONSERVING II” or higher.


Make sure that no foreign material enters
the crankcase.
_
Recommended engine oil type and quantity:
See page 10-2.
U5TE61.book Page 13 Tuesday, May 6, 2003 4:40 PM

5-17
EBU00678
Differential gear oil
Make sure the differential gear oil is at the speci-
fied level. Add oil as necessary. (See pages 8-45–
8-49 for details.)
EBU13160
Coolant
Check the coolant level in the coolant reservoir
when the engine is cold. (The coolant level will
vary with engine temperature.) The coolant level is
satisfactory if it is between the minimum and max-
imum level marks on the coolant reservoir. If the
coolant level is at or below the minimum level
mark, add distilled water to bring the level up to the
maximum level mark. Change the coolant every
two years. (See pages 8-51–8-61 for details.) Recommended oil:
SAE 80 API GL-4 Hypoid gear oil
U5TE61.book Page 17 Tuesday, May 6, 2003 4:40 PM

6-7 a. Starter (choke)
1. Fully open
2. Half open
3. Closed
a. Starter (enrichisseur)
1. Complètement ouvert
2. Mi-ouvert
3. Fermé
a. Arrancador (choke)
1. Abre completamente
2. Semiabierto
3. Cerrado
NOTE:_

If the engine fails to start, release the start
switch, then push the start switch again.
Pause a few seconds before the next at-
tempt. Each cranking should be as short as
possible to preserve battery energy. Do not
crank the engine more than 10 seconds on
each attempt.


If the battery is discharged, pull the recoil
starter to start the engine.
_7. If the engine is started with the starter (choke)
in position
1, the starter (choke) should be
returned to position
2 to warm up the en-
gine. If the engine is started with the starter
(choke) in position
2, keep the starter
(choke) in this position to warm up the en-
gine.
8. Continue warming up the engine until it idles
smoothly and return the starter (choke) to po-
sition
3 before riding.CAUTION:_ See the “Engine break-in” section prior to op-
erating the engine for the first time. _
U5TE61.book Page 7 Tuesday, May 6, 2003 4:40 PM

8-7
EBU00262
PERIODIC MAINTENANCE/LUBRICATION
ITEM ROUTINEINITIAL EVERY
1
month3
months6
months6
months1
year
Valves*Check valve clearance.
Adjust if necessary.
Cooling systemCheck coolant leakage.
Repair if necessary.
Replace coolant every 24 months.Spark plugCheck condition.
Adjust gap and clean.
Replace if necessary.Air filter elementClean.
Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*Check and adjust idle speed/starter operation.
Adjust if necessary.Crankcase breather
system*Check breather hose for cracks or damage.
Replace if necessary.Exhaust system*Check for leakage.
Retighten if necessary.
Replace gasket(s) if necessary.Fuel line*Check fuel hose for cracks or damage.
Replace if necessary.Engine oil
Replace. (Warm engine before draining.)Engine oil filter cartridge
Replace.Engine oil strainer*
Clean.Final gear oil
Check oil level/oil leakage.
Replace every 12 months.Differential gear oil
Front brake*Check operation/fluid leakage. (See NOTE page 8-8.)
Correct if necessary.Rear brakeCheck operation.
Adjust if necessary.U5TE61.book Page 7 Tuesday, May 6, 2003 4:40 PM

8-29 1. Engine oil filler cap
1. Bouchon de remplissage d’huile de moteur
1. Tapa de relleno de aceite de motor
1. Maximum level mark 2. Minimum level mark
1. Repère de niveau maximum 2. Repère de niveau minimum
1. Marca de nivel máximo 2. Marca de nivel mínimo
EBU10991
Engine oil and oil filter cartridge
The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals
specified in the periodic maintenance and lubrica-
tion chart.
To check the engine oil level
1. Remove panel F. (See page 8-27 for panel
removal and installation procedures.)
2. Place the ATV on a level surface.
3. Start the engine, warm it up for several min-
utes, and then turn it off.
4. Wait a few minutes until the oil settles.
5. Remove the engine oil filler cap and wipe off
the dipstick with a clean rag.
6. Insert the dipstick in the oil filler hole (without
screwing it in), and then remove it again to
check the oil level.NOTE:_ The engine oil should be between the minimum
and maximum level marks. _
U5TE61.book Page 29 Tuesday, May 6, 2003 4:40 PM
