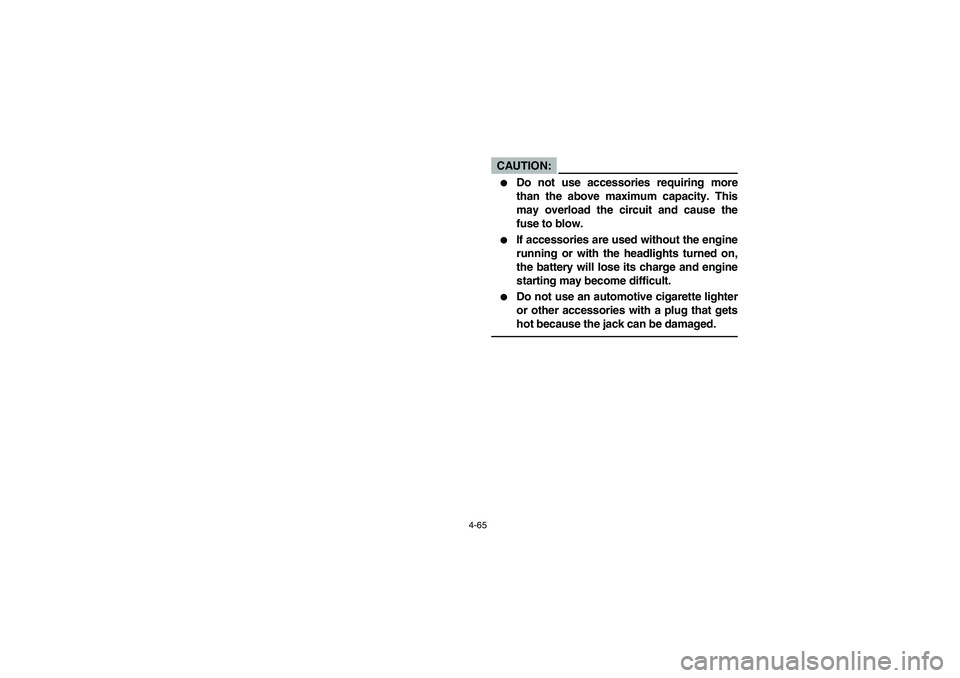

4-65
CAUTION:_

Do not use accessories requiring more
than the above maximum capacity. This
may overload the circuit and cause the
fuse to blow.


If accessories are used without the engine
running or with the headlights turned on,
the battery will lose its charge and engine
starting may become difficult.


Do not use an automotive cigarette lighter
or other accessories with a plug that gets
hot because the jack can be damaged.
_
U5ND61.book Page 65 Thursday, June 5, 2003 7:02 PM

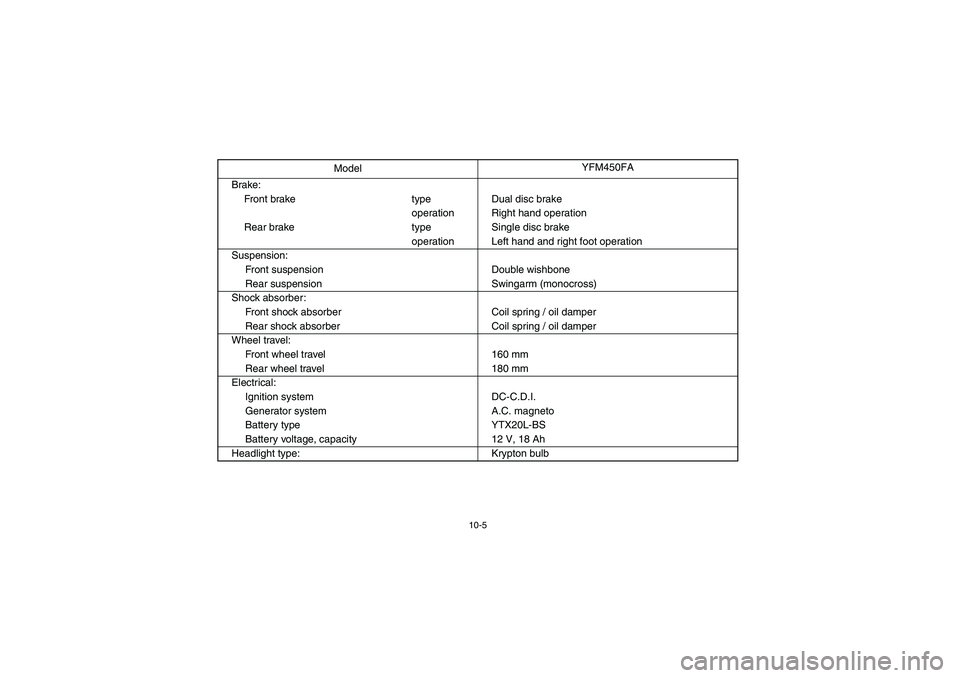

10-5
Brake:
Front brake type Dual disc brake
operation Right hand operation
Rear brake type Single disc brake
operation Left hand and right foot operation
Suspension:
Front suspension Double wishbone
Rear suspension Swingarm (monocross)
Shock absorber:
Front shock absorber Coil spring / oil damper
Rear shock absorber Coil spring / oil damper
Wheel travel:
Front wheel travel 160 mm
Rear wheel travel 180 mm
Electrical:
Ignition system DC-C.D.I.
Generator system A.C. magneto
Battery type YTX20L-BS
Battery voltage, capacity 12 V, 18 Ah
Headlight type: Krypton bulbModelYFM450FA
U5ND61.book Page 5 Thursday, June 5, 2003 7:02 PM
