Page 138 of 446

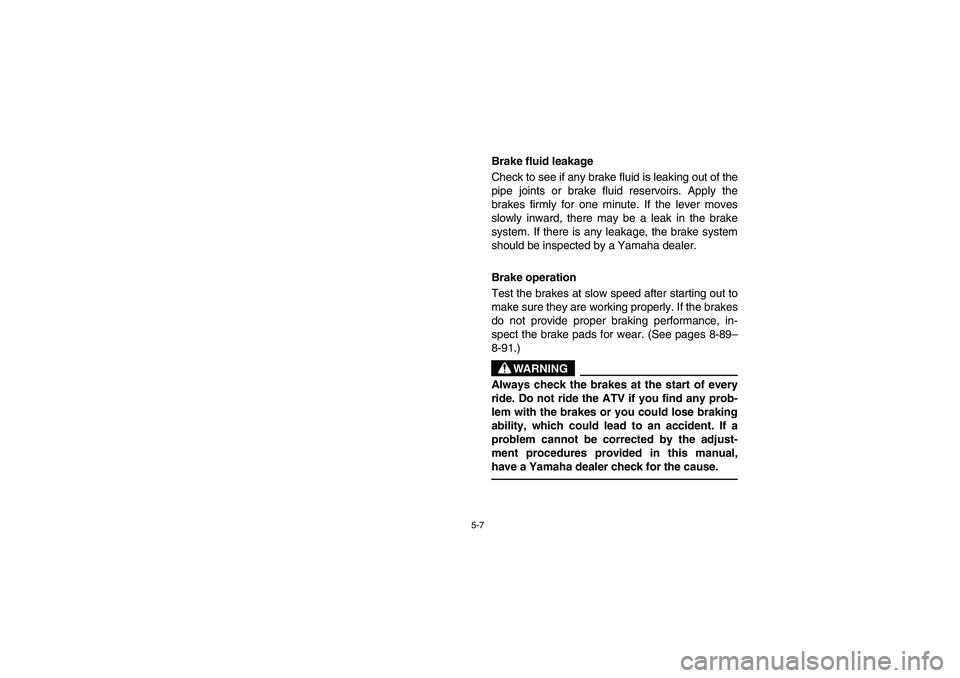

5-7
Brake fluid leakage
Check to see if any brake fluid is leaking out of the
pipe joints or brake fluid reservoirs. Apply the
brakes firmly for one minute. If the lever moves
slowly inward, there may be a leak in the brake
system. If there is any leakage, the brake system
should be inspected by a Yamaha dealer.
Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance, in-
spect the brake pads for wear. (See pages 8-89–
8-91.)
WARNING
_ Always check the brakes at the start of every
ride. Do not ride the ATV if you find any prob-
lem with the brakes or you could lose braking
ability, which could lead to an accident. If a
problem cannot be corrected by the adjust-
ment procedures provided in this manual,
have a Yamaha dealer check for the cause. _
U5ND61.book Page 7 Thursday, June 5, 2003 7:02 PM
Page 364 of 446

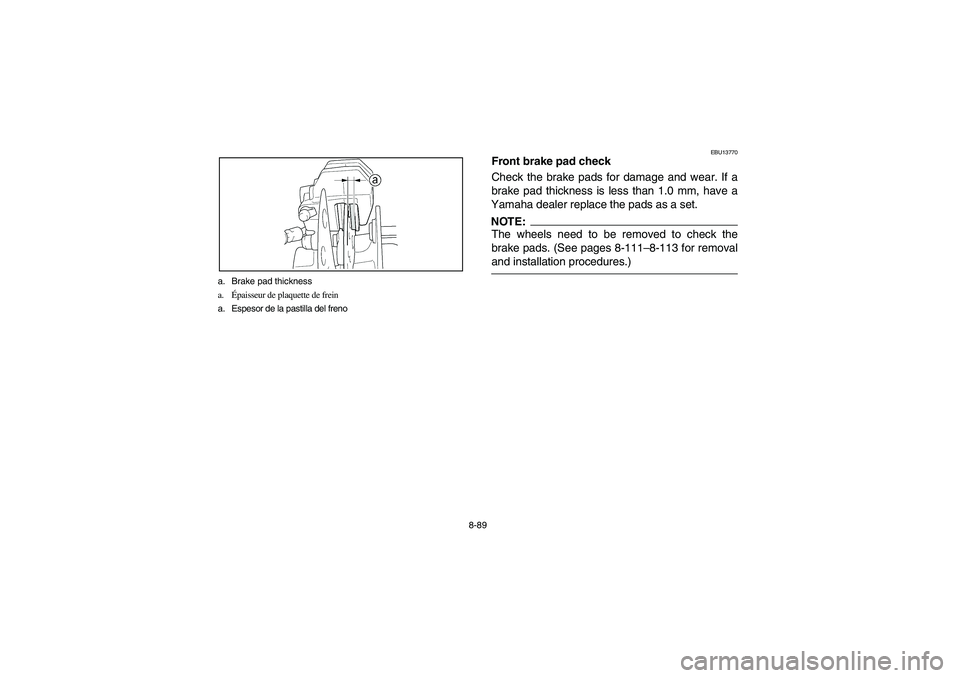

8-89 a. Brake pad thickness
a.Épaisseur de plaquette de frein
a. Espesor de la pastilla del freno
EBU13770
Front brake pad check
Check the brake pads for damage and wear. If a
brake pad thickness is less than 1.0 mm, have a
Yamaha dealer replace the pads as a set.NOTE:_ The wheels need to be removed to check the
brake pads. (See pages 8-111–8-113 for removal
and installation procedures.) _
U5ND61.book Page 89 Thursday, June 5, 2003 7:02 PM
Page 366 of 446

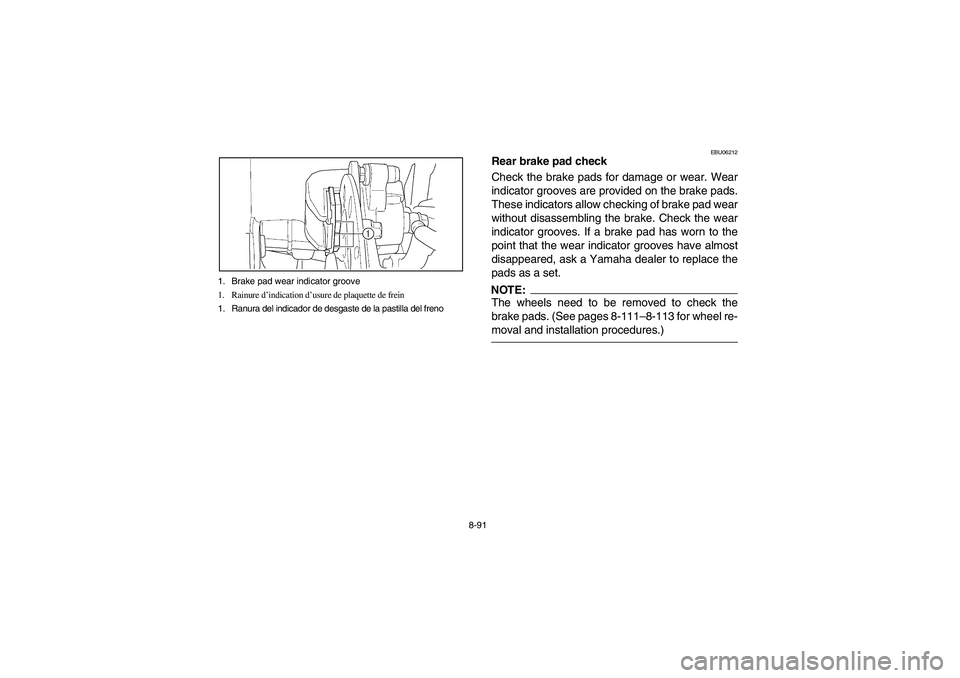

8-91 1. Brake pad wear indicator groove
1. Rainure d’indication d’usure de plaquette de frein
1. Ranura del indicador de desgaste de la pastilla del freno
EBU06212
Rear brake pad check
Check the brake pads for damage or wear. Wear
indicator grooves are provided on the brake pads.
These indicators allow checking of brake pad wear
without disassembling the brake. Check the wear
indicator grooves. If a brake pad has worn to the
point that the wear indicator grooves have almost
disappeared, ask a Yamaha dealer to replace the
pads as a set.NOTE:_ The wheels need to be removed to check the
brake pads. (See pages 8-111–8-113 for wheel re-
moval and installation procedures.) _
U5ND61.book Page 91 Thursday, June 5, 2003 7:02 PM
Page 368 of 446

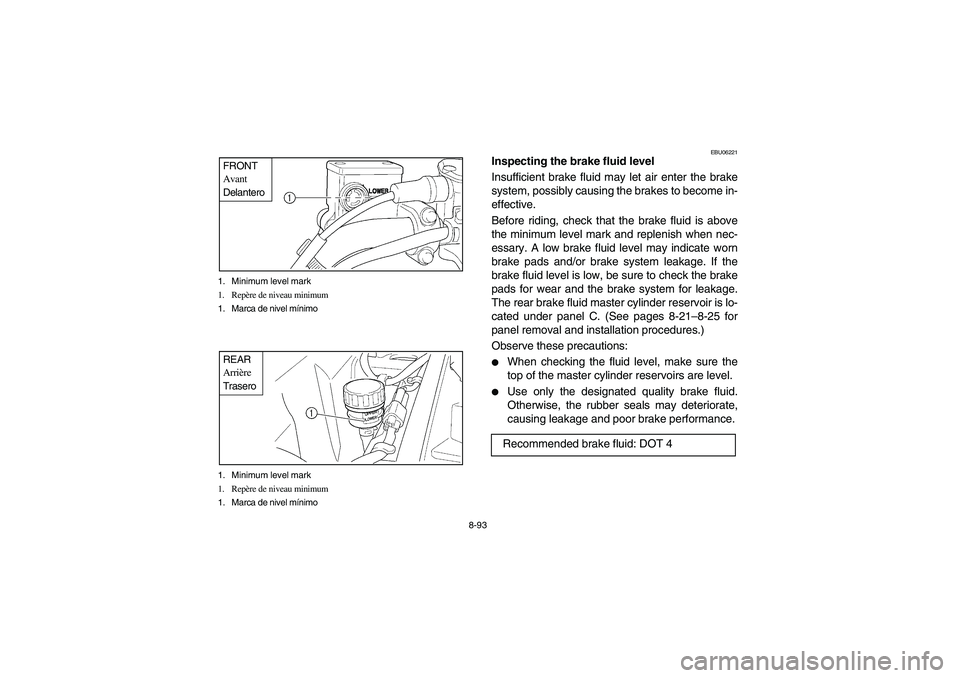

8-93 1. Minimum level mark
1. Repère de niveau minimum
1. Marca de nivel mínimo
FRONT
Avant
Delantero1. Minimum level mark
1. Repère de niveau minimum
1. Marca de nivel mínimoREAR
Arrière
Trasero
EBU06221
Inspecting the brake fluid level
Insufficient brake fluid may let air enter the brake
system, possibly causing the brakes to become in-
effective.
Before riding, check that the brake fluid is above
the minimum level mark and replenish when nec-
essary. A low brake fluid level may indicate worn
brake pads and/or brake system leakage. If the
brake fluid level is low, be sure to check the brake
pads for wear and the brake system for leakage.
The rear brake fluid master cylinder reservoir is lo-
cated under panel C. (See pages 8-21–8-25 for
panel removal and installation procedures.)
Observe these precautions:
When checking the fluid level, make sure the
top of the master cylinder reservoirs are level.
Use only the designated quality brake fluid.
Otherwise, the rubber seals may deteriorate,
causing leakage and poor brake performance.
Recommended brake fluid: DOT 4
U5ND61.book Page 93 Thursday, June 5, 2003 7:02 PM
Page 376 of 446

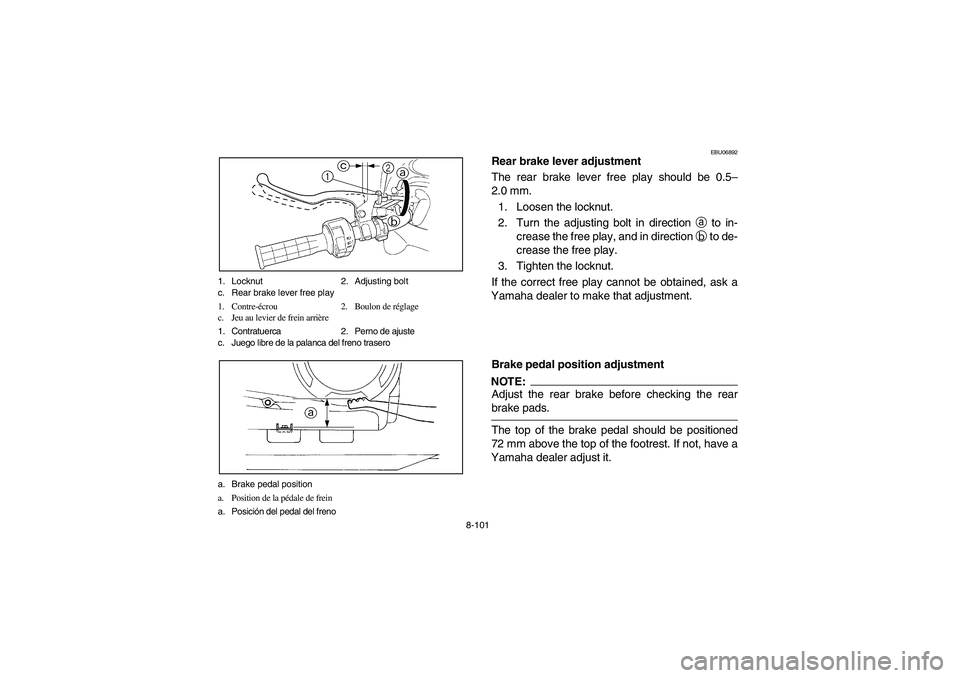

8-101 1. Locknut 2. Adjusting bolt
c. Rear brake lever free play
1. Contre-écrou 2. Boulon de réglage
c. Jeu au levier de frein arrière
1. Contratuerca 2. Perno de ajuste
c. Juego libre de la palanca del freno trasero
a. Brake pedal position
a. Position de la pédale de frein
a. Posición del pedal del freno
EBU06892
Rear brake lever adjustment
The rear brake lever free play should be 0.5–
2.0 mm.
1. Loosen the locknut.
2. Turn the adjusting bolt in direction
a to in-
crease the free play, and in direction
b to de-
crease the free play.
3. Tighten the locknut.
If the correct free play cannot be obtained, ask a
Yamaha dealer to make that adjustment.
Brake pedal position adjustmentNOTE:_ Adjust the rear brake before checking the rear
brake pads. _The top of the brake pedal should be positioned
72 mm above the top of the footrest. If not, have a
Yamaha dealer adjust it.
U5ND61.book Page 101 Thursday, June 5, 2003 7:02 PM
