10-1
EBU00428

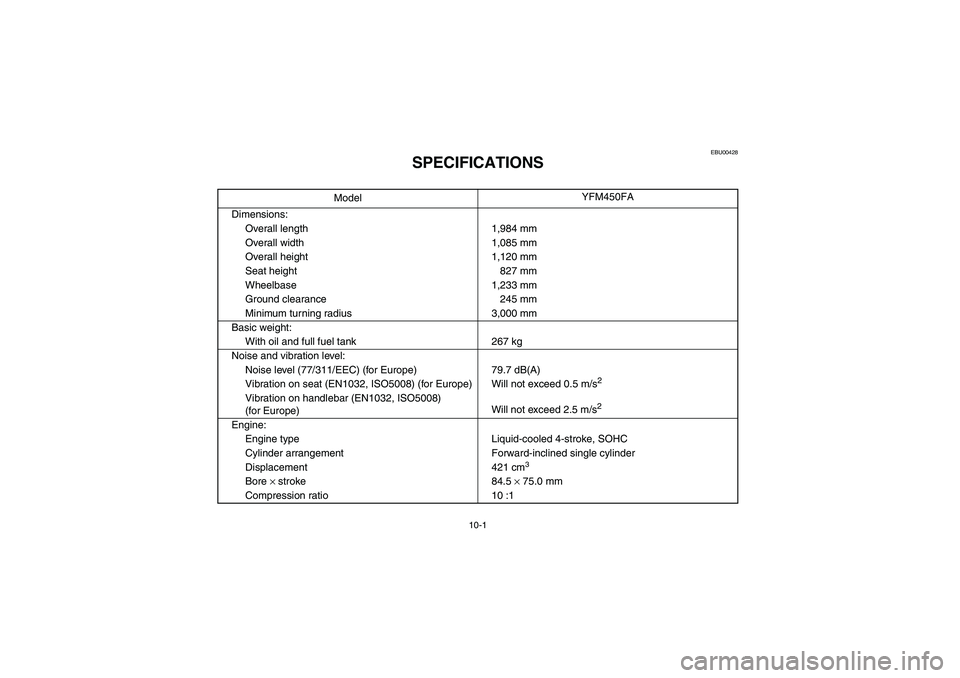

SPECIFICATIONS
ModelYFM450FA
Dimensions:
Overall length 1,984 mm
Overall width 1,085 mm
Overall height 1,120 mm
Seat height 827 mm
Wheelbase 1,233 mm
Ground clearance 245 mm
Minimum turning radius 3,000 mm
Basic weight:
With oil and full fuel tank 267 kg
Noise and vibration level:
Noise level (77/311/EEC) (for Europe) 79.7 dB(A)
Vibration on seat (EN1032, ISO5008) (for Europe) Will not exceed 0.5 m/s
2
Vibration on handlebar (EN1032, ISO5008)
(for Europe)Will not exceed 2.5 m/s
2
Engine:
Engine type Liquid-cooled 4-stroke, SOHC
Cylinder arrangement Forward-inclined single cylinder
Displacement 421 cm
3
Bore
× stroke 84.5
× 75.0 mm
Compression ratio 10 :1
