YAMAHA WOLVERINE 450 2006 Owners Manual

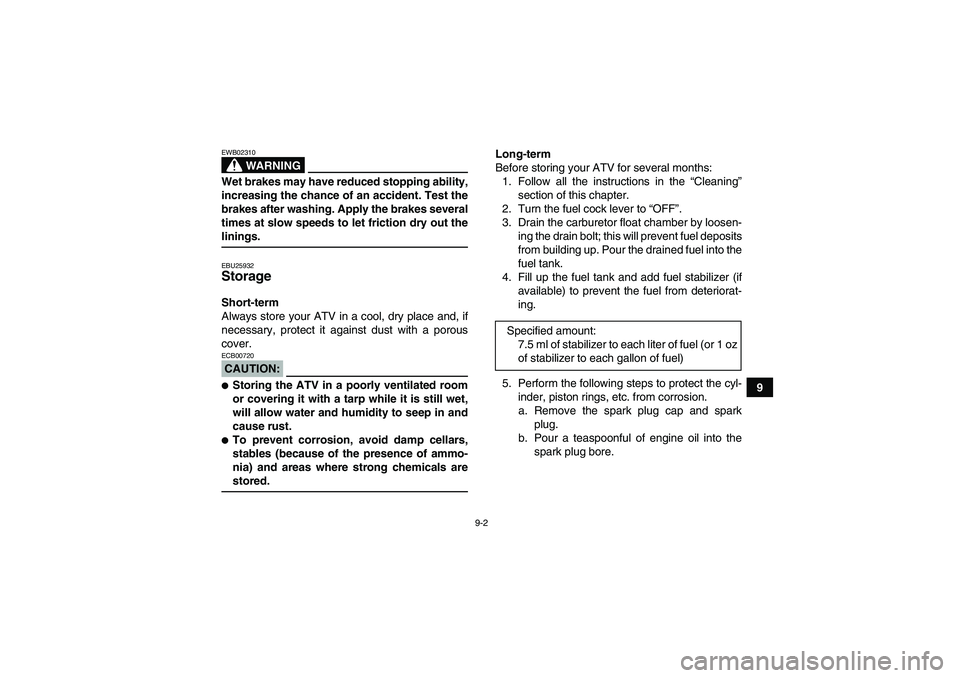

9-2
9
WARNING
EWB02310Wet brakes may have reduced stopping ability,
increasing the chance of an accident. Test the
brakes after washing. Apply the brakes several
times at slow speeds to let friction dry out thelinings.EBU25932Storage Short-term
Always store your ATV in a cool, dry place and, if
necessary, protect it against dust with a porous
cover.CAUTION:ECB00720
Storing the ATV in a poorly ventilated room
or covering it with a tarp while it is still wet,
will allow water and humidity to seep in and
cause rust.
To prevent corrosion, avoid damp cellars,
stables (because of the presence of ammo-
nia) and areas where strong chemicals arestored.Long-term
Before storing your ATV for several months:
1. Follow all the instructions in the “Cleaning”
section of this chapter.
2. Turn the fuel cock lever to “OFF”.
3. Drain the carburetor float chamber by loosen-
ing the drain bolt; this will prevent fuel deposits
from building up. Pour the drained fuel into the
fuel tank.
4. Fill up the fuel tank and add fuel stabilizer (if
available) to prevent the fuel from deteriorat-
ing.
5. Perform the following steps to protect the cyl-
inder, piston rings, etc. from corrosion.
a. Remove the spark plug cap and spark
plug.
b. Pour a teaspoonful of engine oil into the
spark plug bore. Specified amount:
7.5 ml of stabilizer to each liter of fuel (or 1 oz
of stabilizer to each gallon of fuel)
U3C260E0.book Page 2 Tuesday, August 2, 2005 9:52 AM

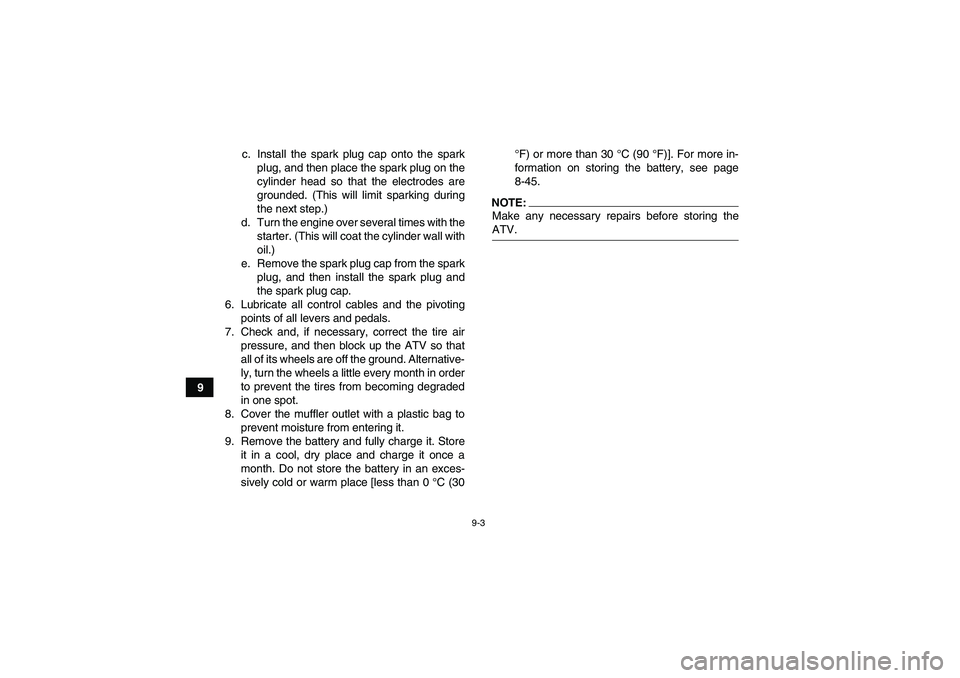

9-3
9c. Install the spark plug cap onto the spark
plug, and then place the spark plug on the
cylinder head so that the electrodes are
grounded. (This will limit sparking during
the next step.)
d. Turn the engine over several times with the
starter. (This will coat the cylinder wall with
oil.)
e. Remove the spark plug cap from the spark
plug, and then install the spark plug and
the spark plug cap.
6. Lubricate all control cables and the pivoting
points of all levers and pedals.
7. Check and, if necessary, correct the tire air
pressure, and then block up the ATV so that
all of its wheels are off the ground. Alternative-
ly, turn the wheels a little every month in order
to prevent the tires from becoming degraded
in one spot.
8. Cover the muffler outlet with a plastic bag to
prevent moisture from entering it.
9. Remove the battery and fully charge it. Store
it in a cool, dry place and charge it once a
month. Do not store the battery in an exces-
sively cold or warm place [less than 0 °C (30°F) or more than 30 °C (90 °F)]. For more in-
formation on storing the battery, see page
8-45.
NOTE:Make any necessary repairs before storing theATV.
U3C260E0.book Page 3 Tuesday, August 2, 2005 9:52 AM

10-1
10
EBU25960
SPECIFICATIONS
Dimensions:Overall length:
1978 mm (77.9 in)
Overall width:
1063 mm (41.9 in)
Overall height:
1095 mm (43.1 in)
Seat height:
840 mm (33.1 in)
Wheelbase:
1233 mm (48.5 in)
Ground clearance:
220 mm (8.66 in)
Minimum turning radius:
3000 mm (118.1 in)Weight:With oil and fuel:
250.0 kg (551 lb)Noise and vibration level:Noise level (77/311/EEC):
79.7 dB(A)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s²
Vibration on handlebar (EN1032, ISO5008):
Will not exceed 2.5 m/s²Engine:Engine type:
Liquid cooled 4-stroke, SOHCCylinder arrangement:
Forward-inclined single cylinder
Displacement:
421.0 cm³ (25.69 cu.in)
Bore × stroke:
84.5 × 75.0 mm (3.33 × 2.95 in)
Compression ratio:
10.00 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
U3C260E0.book Page 1 Tuesday, August 2, 2005 9:52 AM

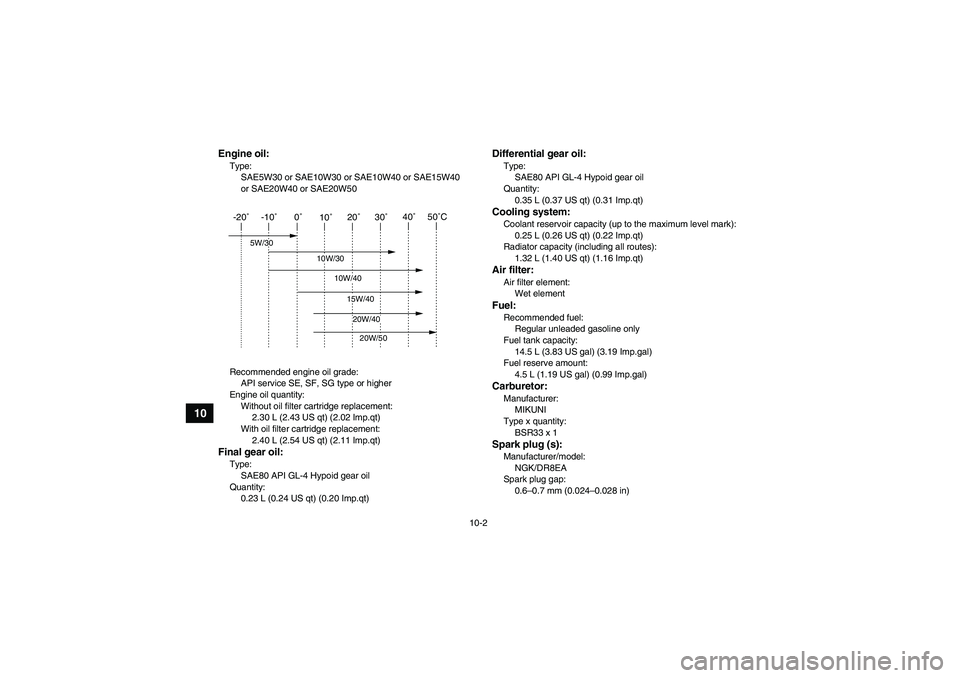

10-2
10
Engine oil:Type:
SAE5W30 or SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:
Without oil filter cartridge replacement:
2.30 L (2.43 US qt) (2.02 Imp.qt)
With oil filter cartridge replacement:
2.40 L (2.54 US qt) (2.11 Imp.qt)Final gear oil:Type:
SAE80 API GL-4 Hypoid gear oil
Quantity:
0.23 L (0.24 US qt) (0.20 Imp.qt)
Differential gear oil:Type:
SAE80 API GL-4 Hypoid gear oil
Quantity:
0.35 L (0.37 US qt) (0.31 Imp.qt)Cooling system:Coolant reservoir capacity (up to the maximum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
Radiator capacity (including all routes):
1.32 L (1.40 US qt) (1.16 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
14.5 L (3.83 US gal) (3.19 Imp.gal)
Fuel reserve amount:
4.5 L (1.19 US gal) (0.99 Imp.gal)Carburetor:Manufacturer:
MIKUNI
Type x quantity:
BSR33 x 1Spark plug (s):Manufacturer/model:
NGK/DR8EA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
-20˚ -10˚ 0˚
10˚20˚ 30˚40˚50˚C
10W/30
15W/4020W/4020W/50
10W/40
5W/30
U3C260E0.book Page 2 Tuesday, August 2, 2005 9:52 AM

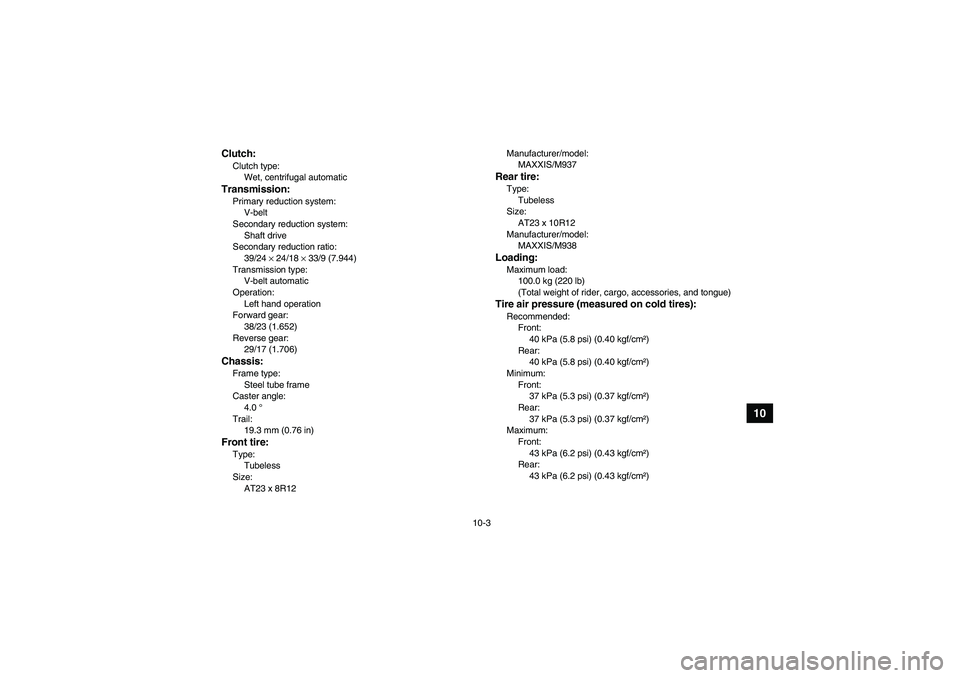

10-3
10
Clutch:Clutch type:
Wet, centrifugal automaticTransmission:Primary reduction system:
V-belt
Secondary reduction system:
Shaft drive
Secondary reduction ratio:
39/24 × 24/18 × 33/9 (7.944)
Transmission type:
V-belt automatic
Operation:
Left hand operation
Forward gear:
38/23 (1.652)
Reverse gear:
29/17 (1.706)Chassis:Frame type:
Steel tube frame
Caster angle:
4.0 °
Trail:
19.3 mm (0.76 in)Front tire:Type:
Tubeless
Size:
AT23 x 8R12Manufacturer/model:
MAXXIS/M937
Rear tire:Type:
Tubeless
Size:
AT23 x 10R12
Manufacturer/model:
MAXXIS/M938Loading:Maximum load:
100.0 kg (220 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:
Front:
40 kPa (5.8 psi) (0.40 kgf/cm²)
Rear:
40 kPa (5.8 psi) (0.40 kgf/cm²)
Minimum:
Front:
37 kPa (5.3 psi) (0.37 kgf/cm²)
Rear:
37 kPa (5.3 psi) (0.37 kgf/cm²)
Maximum:
Front:
43 kPa (6.2 psi) (0.43 kgf/cm²)
Rear:
43 kPa (6.2 psi) (0.43 kgf/cm²)
U3C260E0.book Page 3 Tuesday, August 2, 2005 9:52 AM

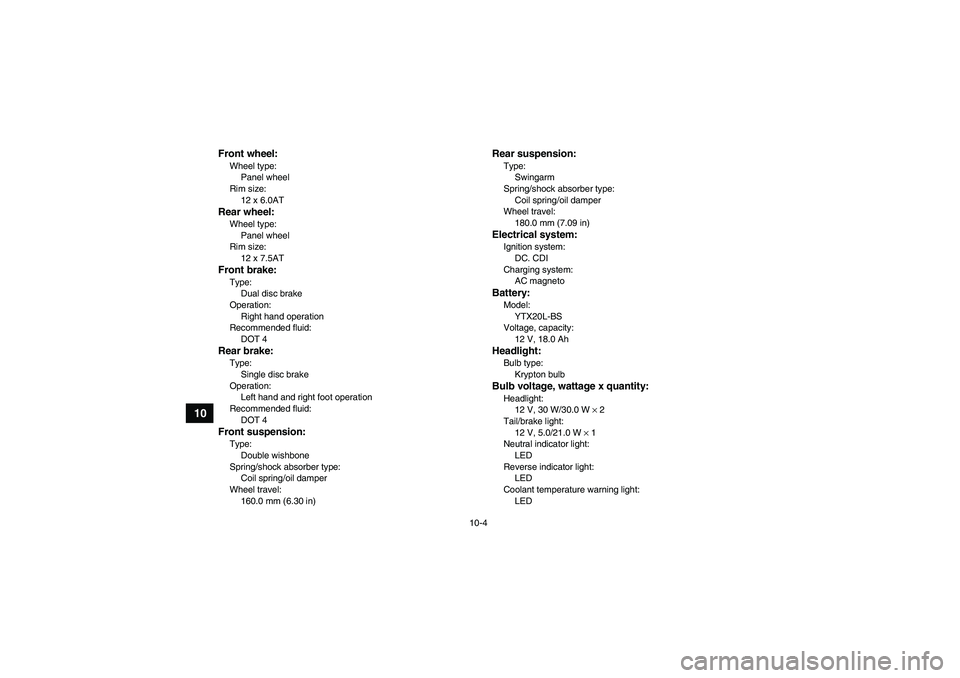

10-4
10
Front wheel:Wheel type:
Panel wheel
Rim size:
12 x 6.0ATRear wheel:Wheel type:
Panel wheel
Rim size:
12 x 7.5ATFront brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Left hand and right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
160.0 mm (6.30 in)
Rear suspension:Type:
Swingarm
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
180.0 mm (7.09 in)Electrical system:Ignition system:
DC. CDI
Charging system:
AC magnetoBattery:Model:
YTX20L-BS
Voltage, capacity:
12 V, 18.0 AhHeadlight:Bulb type:
Krypton bulbBulb voltage, wattage x quantity:Headlight:
12 V, 30 W/30.0 W × 2
Tail/brake light:
12 V, 5.0/21.0 W × 1
Neutral indicator light:
LED
Reverse indicator light:
LED
Coolant temperature warning light:
LED
U3C260E0.book Page 4 Tuesday, August 2, 2005 9:52 AM

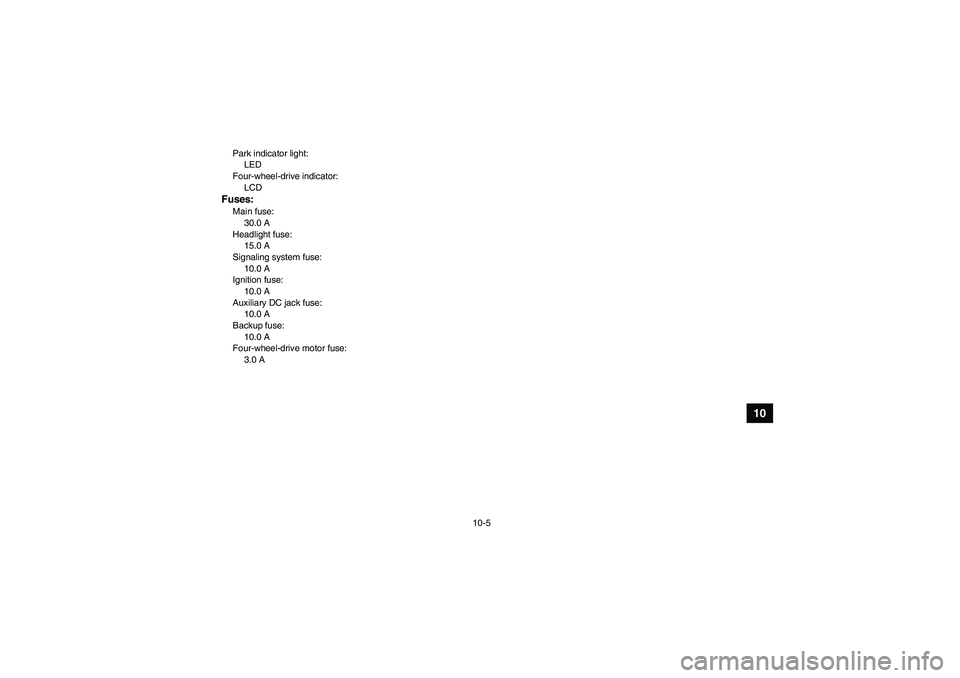

10-5
10
Park indicator light:
LED
Four-wheel-drive indicator:
LCDFuses:Main fuse:
30.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Auxiliary DC jack fuse:
10.0 A
Backup fuse:
10.0 A
Four-wheel-drive motor fuse:
3.0 A
U3C260E0.book Page 5 Tuesday, August 2, 2005 9:52 AM

11-1
11
EBU26000
CONSUMER INFORMATION
EBU26011Identification numbers Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided below for assistance when or-
dering spare parts from a Yamaha dealer or for ref-
erence in case the ATV is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EBU26020Key identification number
The key identification number is stamped into the
key. Record this number in the space provided and
use it for reference when ordering a new key.EBU26030Vehicle identification number
The vehicle identification number is stamped into
the frame.1. Key identification number
U3C260E0.book Page 1 Tuesday, August 2, 2005 9:52 AM

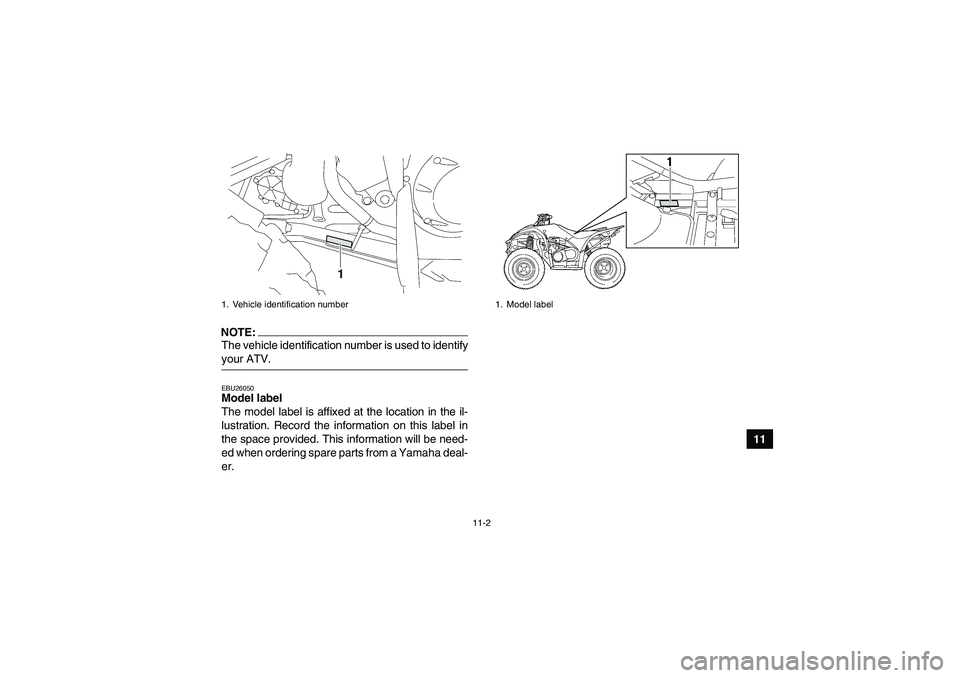

11-2
11
NOTE:The vehicle identification number is used to identifyyour ATV.EBU26050Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha deal-
er.1. Vehicle identification number
1. Model label
U3C260E0.book Page 2 Tuesday, August 2, 2005 9:52 AM

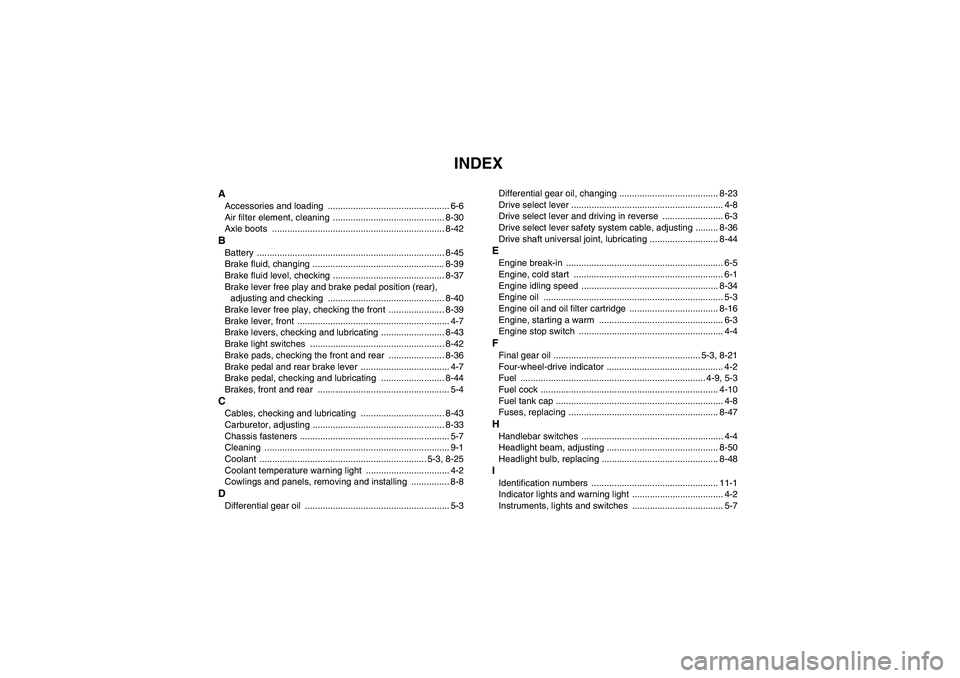

INDEX
AAccessories and loading ................................................ 6-6
Air filter element, cleaning ............................................ 8-30
Axle boots .................................................................... 8-42BBattery .......................................................................... 8-45
Brake fluid, changing .................................................... 8-39
Brake fluid level, checking ............................................ 8-37
Brake lever free play and brake pedal position (rear),
adjusting and checking .............................................. 8-40
Brake lever free play, checking the front ...................... 8-39
Brake lever, front ............................................................ 4-7
Brake levers, checking and lubricating ......................... 8-43
Brake light switches ..................................................... 8-42
Brake pads, checking the front and rear ...................... 8-36
Brake pedal and rear brake lever ................................... 4-7
Brake pedal, checking and lubricating ......................... 8-44
Brakes, front and rear .................................................... 5-4CCables, checking and lubricating ................................. 8-43
Carburetor, adjusting .................................................... 8-33
Chassis fasteners ........................................................... 5-7
Cleaning ......................................................................... 9-1
Coolant .................................................................. 5-3, 8-25
Coolant temperature warning light ................................. 4-2
Cowlings and panels, removing and installing ............... 8-8DDifferential gear oil ......................................................... 5-3Differential gear oil, changing ....................................... 8-23
Drive select lever ............................................................ 4-8
Drive select lever and driving in reverse ........................ 6-3
Drive select lever safety system cable, adjusting ......... 8-36
Drive shaft universal joint, lubricating ........................... 8-44
EEngine break-in .............................................................. 6-5
Engine, cold start ........................................................... 6-1
Engine idling speed ...................................................... 8-34
Engine oil ....................................................................... 5-3
Engine oil and oil filter cartridge ................................... 8-16
Engine, starting a warm ................................................. 6-3
Engine stop switch ......................................................... 4-4FFinal gear oil .......................................................... 5-3, 8-21
Four-wheel-drive indicator .............................................. 4-2
Fuel ......................................................................... 4-9, 5-3
Fuel cock ...................................................................... 4-10
Fuel tank cap .................................................................. 4-8
Fuses, replacing ........................................................... 8-47HHandlebar switches ........................................................ 4-4
Headlight beam, adjusting ............................................ 8-50
Headlight bulb, replacing .............................................. 8-48IIdentification numbers .................................................. 11-1
Indicator lights and warning light .................................... 4-2
Instruments, lights and switches .................................... 5-7
U3C260E0.book Page 1 Tuesday, August 2, 2005 9:52 AM
