YAMAHA WOLVERINE 450 2006 Service Manual

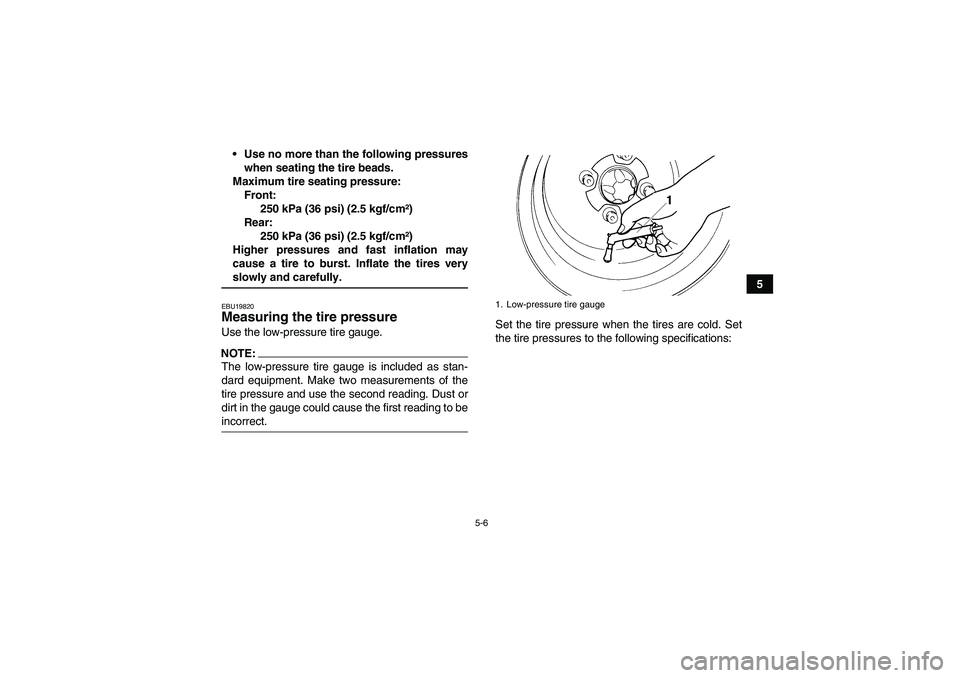

5-6
5 Use no more than the following pressures
when seating the tire beads.
Maximum tire seating pressure:
Front:
250 kPa (36 psi) (2.5 kgf/cm²)
Rear:
250 kPa (36 psi) (2.5 kgf/cm²)
Higher pressures and fast inflation may
cause a tire to burst. Inflate the tires very
slowly and carefully.EBU19820Measuring the tire pressure Use the low-pressure tire gauge.NOTE:The low-pressure tire gauge is included as stan-
dard equipment. Make two measurements of the
tire pressure and use the second reading. Dust or
dirt in the gauge could cause the first reading to beincorrect.Set the tire pressure when the tires are cold. Set
the tire pressures to the following specifications:
1. Low-pressure tire gauge
U3C260E0.book Page 6 Tuesday, August 2, 2005 9:52 AM

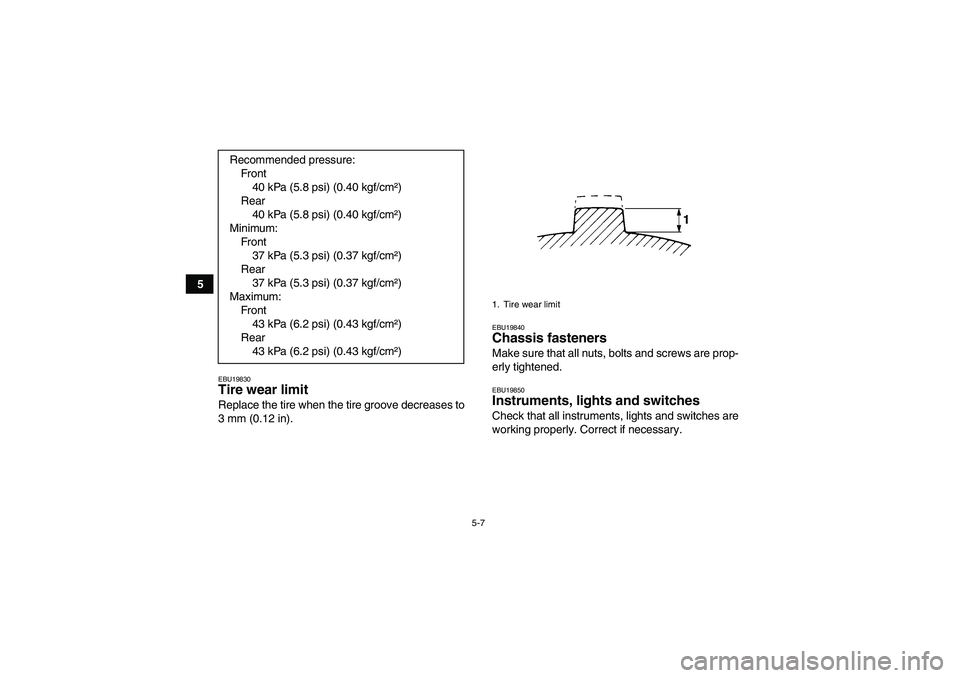

5-7
5
EBU19830Tire wear limit Replace the tire when the tire groove decreases to
3 mm (0.12 in).
EBU19840Chassis fasteners Make sure that all nuts, bolts and screws are prop-
erly tightened.EBU19850Instruments, lights and switches Check that all instruments, lights and switches are
working properly. Correct if necessary. Recommended pressure:
Fro nt
40 kPa (5.8 psi) (0.40 kgf/cm²)
Rear
40 kPa (5.8 psi) (0.40 kgf/cm²)
Minimum:
Fro nt
37 kPa (5.3 psi) (0.37 kgf/cm²)
Rear
37 kPa (5.3 psi) (0.37 kgf/cm²)
Maximum:
Fro nt
43 kPa (6.2 psi) (0.43 kgf/cm²)
Rear
43 kPa (6.2 psi) (0.43 kgf/cm²)1. Tire wear limit
U3C260E0.book Page 7 Tuesday, August 2, 2005 9:52 AM

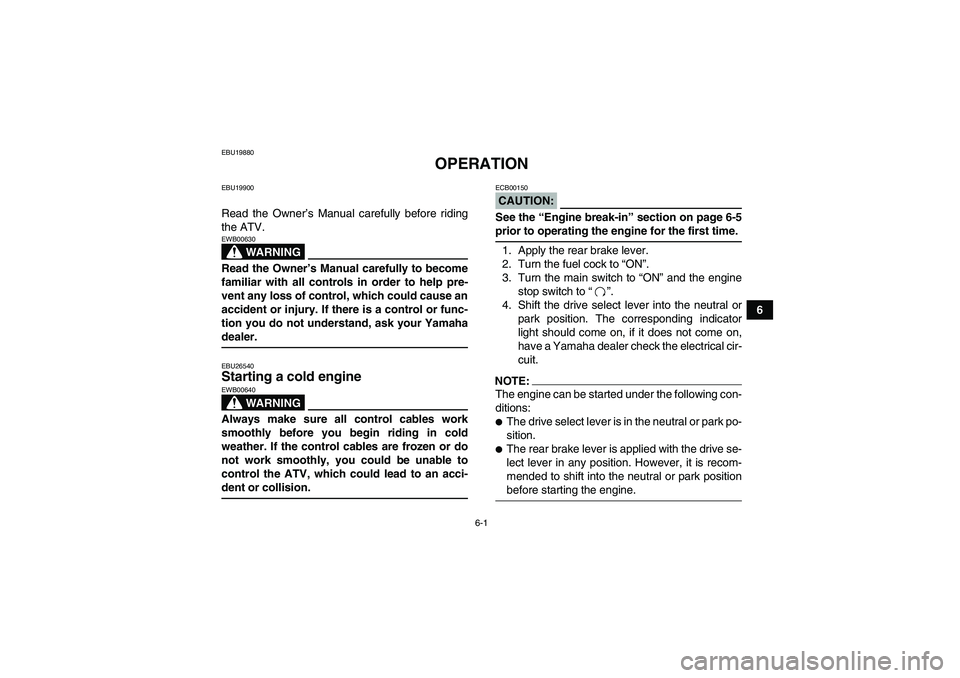

6-1
6
EBU19880
OPERATION
EBU19900Read the Owner’s Manual carefully before riding
the ATV.
WARNING
EWB00630Read the Owner’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury. If there is a control or func-
tion you do not understand, ask your Yamahadealer.EBU26540Starting a cold engine
WARNING
EWB00640Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-dent or collision.
CAUTION:ECB00150See the “Engine break-in” section on page 6-5prior to operating the engine for the first time.
1. Apply the rear brake lever.
2. Turn the fuel cock to “ON”.
3. Turn the main switch to “ON” and the engine
stop switch to “”.
4. Shift the drive select lever into the neutral or
park position. The corresponding indicator
light should come on, if it does not come on,
have a Yamaha dealer check the electrical cir-
cuit.NOTE:The engine can be started under the following con-
ditions:
The drive select lever is in the neutral or park po-
sition.
The rear brake lever is applied with the drive se-
lect lever in any position. However, it is recom-
mended to shift into the neutral or park positionbefore starting the engine.
U3C260E0.book Page 1 Tuesday, August 2, 2005 9:52 AM

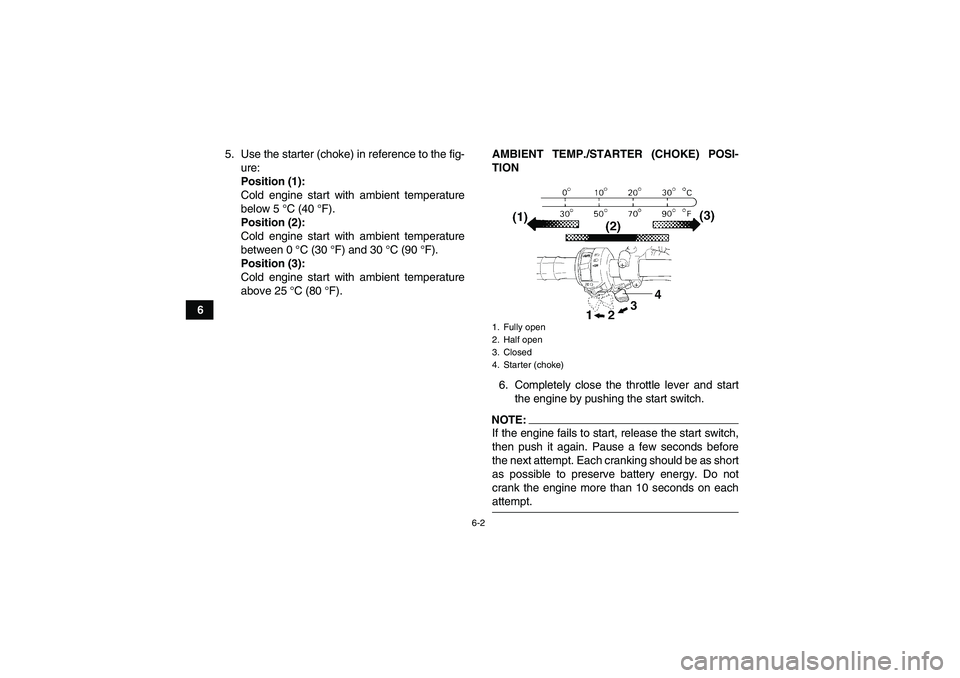

6-2
65. Use the starter (choke) in reference to the fig-
ure:
Position (1):
Cold engine start with ambient temperature
below 5 °C (40 °F).
Position (2):
Cold engine start with ambient temperature
between 0 °C (30 °F) and 30 °C (90 °F).
Position (3):
Cold engine start with ambient temperature
above 25 °C (80 °F).AMBIENT TEMP./STARTER (CHOKE) POSI-
TION
6. Completely close the throttle lever and start
the engine by pushing the start switch.
NOTE:If the engine fails to start, release the start switch,
then push it again. Pause a few seconds before
the next attempt. Each cranking should be as short
as possible to preserve battery energy. Do not
crank the engine more than 10 seconds on eachattempt.1. Fully open
2. Half open
3. Closed
4. Starter (choke)
U3C260E0.book Page 2 Tuesday, August 2, 2005 9:52 AM

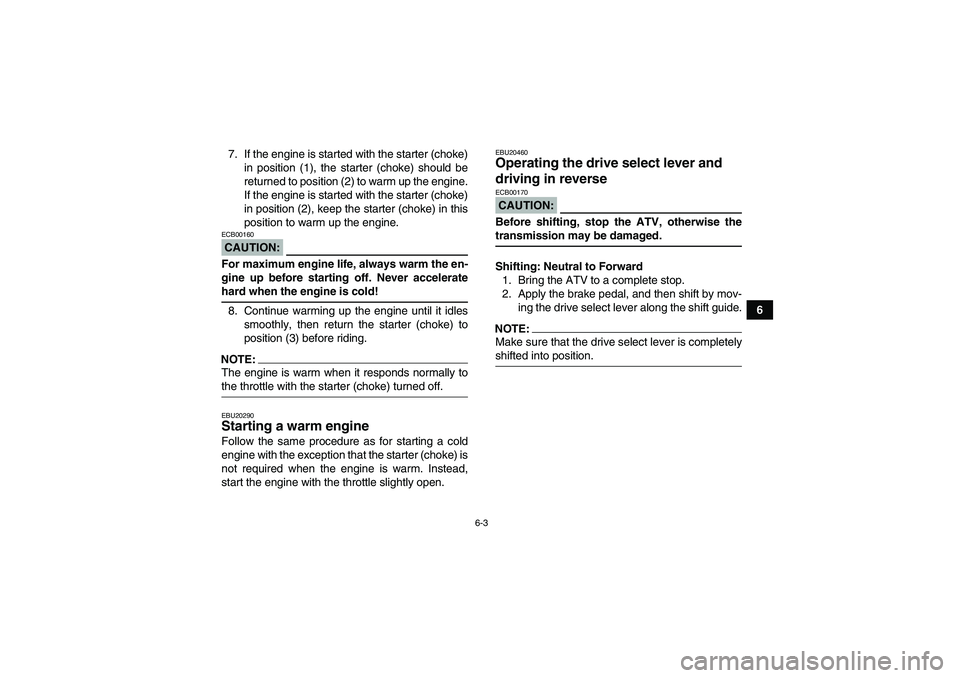

6-3
6 7. If the engine is started with the starter (choke)
in position (1), the starter (choke) should be
returned to position (2) to warm up the engine.
If the engine is started with the starter (choke)
in position (2), keep the starter (choke) in this
position to warm up the engine.
CAUTION:ECB00160For maximum engine life, always warm the en-
gine up before starting off. Never acceleratehard when the engine is cold!
8. Continue warming up the engine until it idles
smoothly, then return the starter (choke) to
position (3) before riding.NOTE:The engine is warm when it responds normally tothe throttle with the starter (choke) turned off.EBU20290Starting a warm engine Follow the same procedure as for starting a cold
engine with the exception that the starter (choke) is
not required when the engine is warm. Instead,
start the engine with the throttle slightly open.
EBU20460Operating the drive select lever and
driving in reverse CAUTION:ECB00170Before shifting, stop the ATV, otherwise thetransmission may be damaged.
Shifting: Neutral to Forward
1. Bring the ATV to a complete stop.
2. Apply the brake pedal, and then shift by mov-
ing the drive select lever along the shift guide.NOTE:Make sure that the drive select lever is completelyshifted into position.
U3C260E0.book Page 3 Tuesday, August 2, 2005 9:52 AM

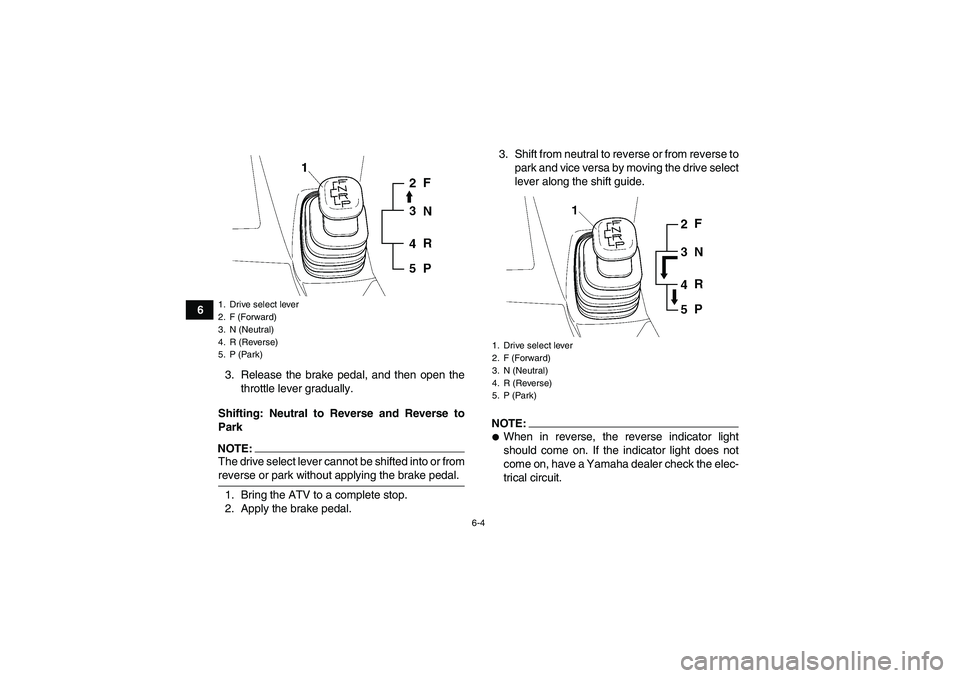

6-4
6
3. Release the brake pedal, and then open the
throttle lever gradually.
Shifting: Neutral to Reverse and Reverse to
Park
NOTE:The drive select lever cannot be shifted into or fromreverse or park without applying the brake pedal.
1. Bring the ATV to a complete stop.
2. Apply the brake pedal.3. Shift from neutral to reverse or from reverse to
park and vice versa by moving the drive select
lever along the shift guide.
NOTE:
When in reverse, the reverse indicator light
should come on. If the indicator light does not
come on, have a Yamaha dealer check the elec-
trical circuit.
1. Drive select lever
2. F (Forward)
3. N (Neutral)
4. R (Reverse)
5. P (Park)
1. Drive select lever
2. F (Forward)
3. N (Neutral)
4. R (Reverse)
5. P (Park)
U3C260E0.book Page 4 Tuesday, August 2, 2005 9:52 AM

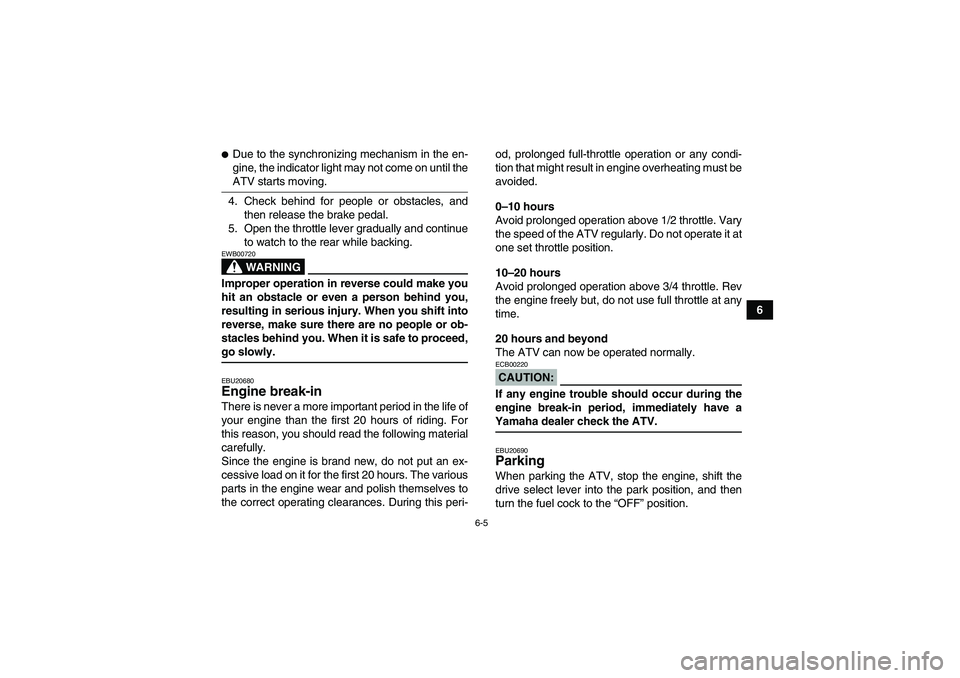

6-5
6

Due to the synchronizing mechanism in the en-
gine, the indicator light may not come on until theATV starts moving.
4. Check behind for people or obstacles, and
then release the brake pedal.
5. Open the throttle lever gradually and continue
to watch to the rear while backing.
WARNING
EWB00720Improper operation in reverse could make you
hit an obstacle or even a person behind you,
resulting in serious injury. When you shift into
reverse, make sure there are no people or ob-
stacles behind you. When it is safe to proceed,go slowly.EBU20680Engine break-in There is never a more important period in the life of
your engine than the first 20 hours of riding. For
this reason, you should read the following material
carefully.
Since the engine is brand new, do not put an ex-
cessive load on it for the first 20 hours. The various
parts in the engine wear and polish themselves to
the correct operating clearances. During this peri-od, prolonged full-throttle operation or any condi-
tion that might result in engine overheating must be
avoided.
0–10 hours
Avoid prolonged operation above 1/2 throttle. Vary
the speed of the ATV regularly. Do not operate it at
one set throttle position.
10–20 hours
Avoid prolonged operation above 3/4 throttle. Rev
the engine freely but, do not use full throttle at any
time.
20 hours and beyond
The ATV can now be operated normally.
CAUTION:ECB00220If any engine trouble should occur during the
engine break-in period, immediately have aYamaha dealer check the ATV.EBU20690Parking When parking the ATV, stop the engine, shift the
drive select lever into the park position, and then
turn the fuel cock to the “OFF” position.
U3C260E0.book Page 5 Tuesday, August 2, 2005 9:52 AM

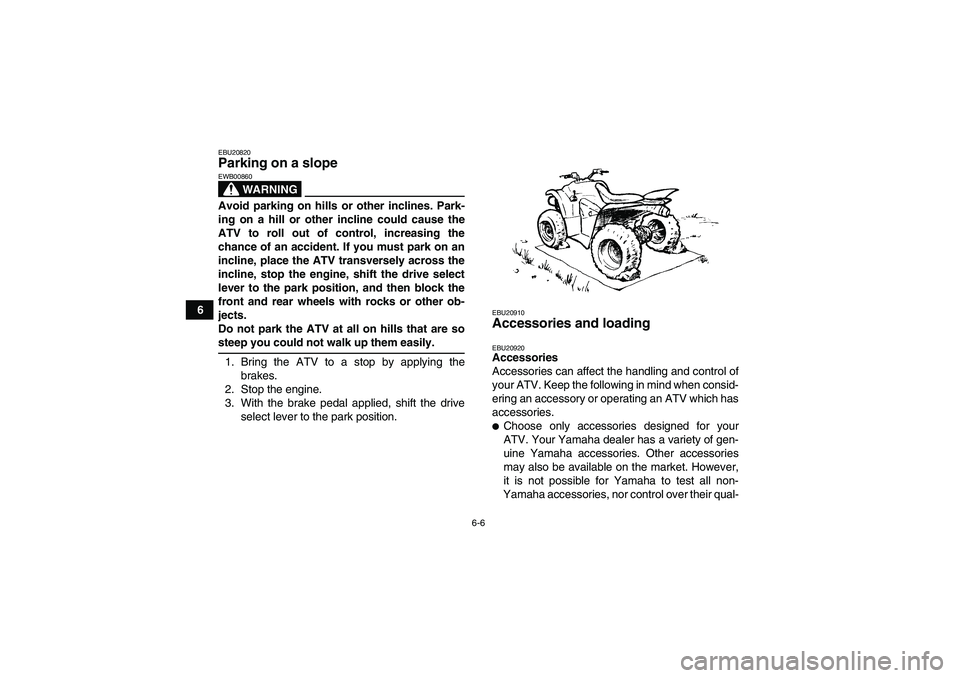

6-6
6
EBU20820Parking on a slope
WARNING
EWB00860Avoid parking on hills or other inclines. Park-
ing on a hill or other incline could cause the
ATV to roll out of control, increasing the
chance of an accident. If you must park on an
incline, place the ATV transversely across the
incline, stop the engine, shift the drive select
lever to the park position, and then block the
front and rear wheels with rocks or other ob-
jects.
Do not park the ATV at all on hills that are sosteep you could not walk up them easily.
1. Bring the ATV to a stop by applying the
brakes.
2. Stop the engine.
3. With the brake pedal applied, shift the drive
select lever to the park position.
EBU20910Accessories and loading EBU20920Accessories
Accessories can affect the handling and control of
your ATV. Keep the following in mind when consid-
ering an accessory or operating an ATV which has
accessories.
Choose only accessories designed for your
ATV. Your Yamaha dealer has a variety of gen-
uine Yamaha accessories. Other accessories
may also be available on the market. However,
it is not possible for Yamaha to test all non-
Yamaha accessories, nor control over their qual-
U3C260E0.book Page 6 Tuesday, August 2, 2005 9:52 AM

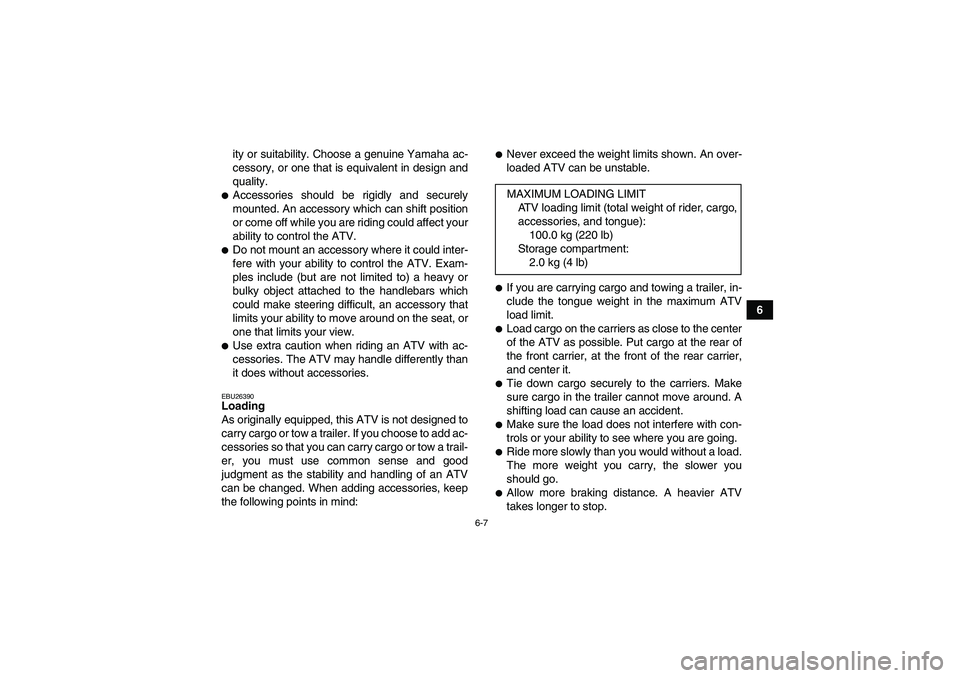

6-7
6 ity or suitability. Choose a genuine Yamaha ac-
cessory, or one that is equivalent in design and
quality.

Accessories should be rigidly and securely
mounted. An accessory which can shift position
or come off while you are riding could affect your
ability to control the ATV.
Do not mount an accessory where it could inter-
fere with your ability to control the ATV. Exam-
ples include (but are not limited to) a heavy or
bulky object attached to the handlebars which
could make steering difficult, an accessory that
limits your ability to move around on the seat, or
one that limits your view.
Use extra caution when riding an ATV with ac-
cessories. The ATV may handle differently than
it does without accessories.EBU26390Loading
As originally equipped, this ATV is not designed to
carry cargo or tow a trailer. If you choose to add ac-
cessories so that you can carry cargo or tow a trail-
er, you must use common sense and good
judgment as the stability and handling of an ATV
can be changed. When adding accessories, keep
the following points in mind:

Never exceed the weight limits shown. An over-
loaded ATV can be unstable.
If you are carrying cargo and towing a trailer, in-
clude the tongue weight in the maximum ATV
load limit.
Load cargo on the carriers as close to the center
of the ATV as possible. Put cargo at the rear of
the front carrier, at the front of the rear carrier,
and center it.
Tie down cargo securely to the carriers. Make
sure cargo in the trailer cannot move around. A
shifting load can cause an accident.
Make sure the load does not interfere with con-
trols or your ability to see where you are going.
Ride more slowly than you would without a load.
The more weight you carry, the slower you
should go.
Allow more braking distance. A heavier ATV
takes longer to stop.MAXIMUM LOADING LIMIT
ATV loading limit (total weight of rider, cargo,
accessories, and tongue):
100.0 kg (220 lb)
Storage compartment:
2.0 kg (4 lb)
U3C260E0.book Page 7 Tuesday, August 2, 2005 9:52 AM

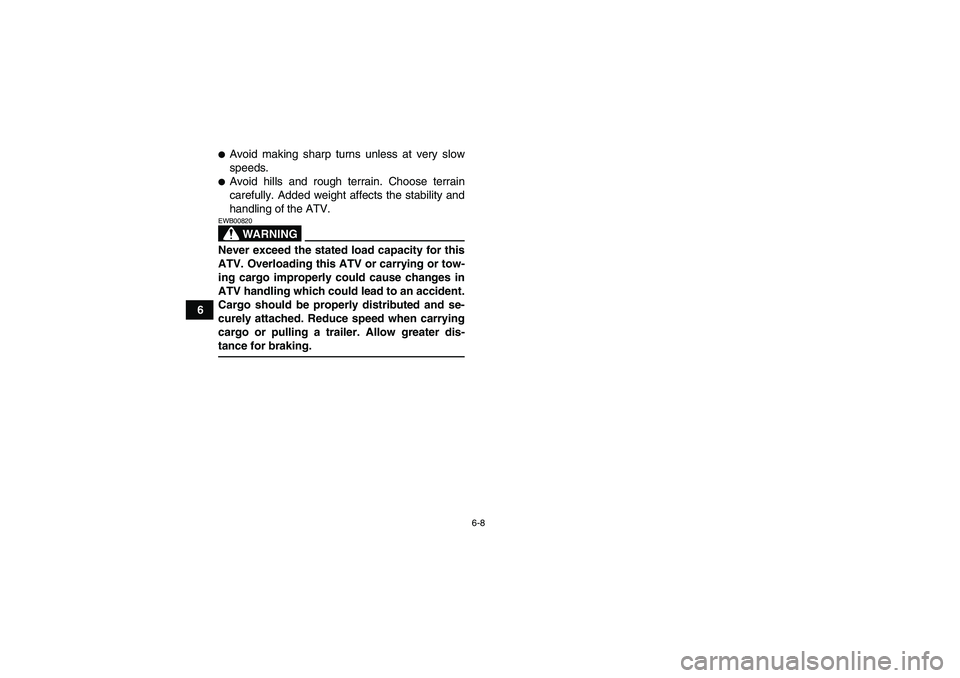

6-8
6

Avoid making sharp turns unless at very slow
speeds.
Avoid hills and rough terrain. Choose terrain
carefully. Added weight affects the stability and
handling of the ATV.
WARNING
EWB00820Never exceed the stated load capacity for this
ATV. Overloading this ATV or carrying or tow-
ing cargo improperly could cause changes in
ATV handling which could lead to an accident.
Cargo should be properly distributed and se-
curely attached. Reduce speed when carrying
cargo or pulling a trailer. Allow greater dis-tance for braking.U3C260E0.book Page 8 Tuesday, August 2, 2005 9:52 AM
