width YAMAHA WOLVERINE 450 2006 Owners Manual

10-1
10
EBU25960

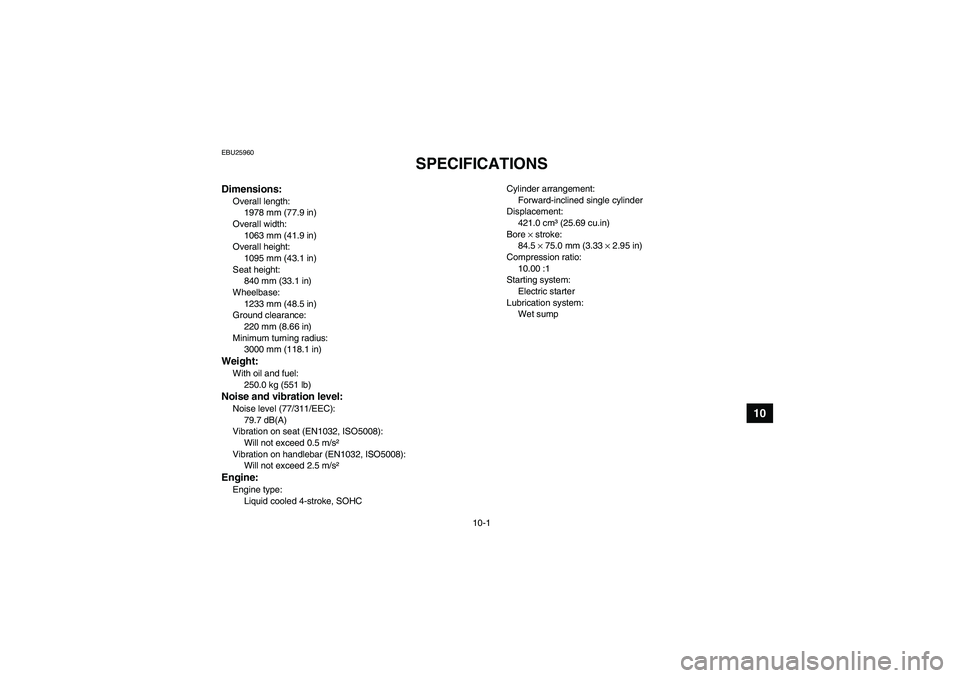

SPECIFICATIONS
Dimensions:Overall length:
1978 mm (77.9 in)
Overall width:
1063 mm (41.9 in)
Overall height:
1095 mm (43.1 in)
Seat height:
840 mm (33.1 in)
Wheelbase:
1233 mm (48.5 in)
Ground clearance:
220 mm (8.66 in)
Minimum turning radius:
3000 mm (118.1 in)Weight:With oil and fuel:
250.0 kg (551 lb)Noise and vibration level:Noise level (77/311/EEC):
79.7 dB(A)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s²
Vibration on handlebar (EN1032, ISO5008):
Will not exceed 2.5 m/s²Engine:Engine type:
Liquid cooled 4-stroke, SOHCCylinder arrangement:
Forward-inclined single cylinder
Displacement:
421.0 cm³ (25.69 cu.in)
Bore × stroke:
84.5 × 75.0 mm (3.33 × 2.95 in)
Compression ratio:
10.00 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
