coolant level YAMAHA WOLVERINE 450 2007 Owners Manual

YAMAHA WOLVERINE 450 2007 Owners Manual WOLVERINE 450 2007 YAMAHA YAMAHA https://www.carmanualsonline.info/img/51/52263/w960_52263-0.png YAMAHA WOLVERINE 450 2007 Owners Manual

Page 9 of 142

YAMAHA WOLVERINE 450 2007  Owners Manual OPERATION .................................................. 6-1
Starting a cold engine  ................................ 6-1
Starting a warm engine  .............................. 6-3
Operating the d

Page 36 of 142

YAMAHA WOLVERINE 450 2007  Owners Manual 5-1
5
EBU19200
PRE-OPERATION CHECKS
EBU19220Pre-operation check list Before operating this ATV, be sure to check the items listed in the following table.NOTE:The maintenance of some items in the table

Page 38 of 142

YAMAHA WOLVERINE 450 2007  Owners Manual 5-3
5
EBU19540Fuel Make sure that there is sufficient fuel in the tank.
(See page 4-9.)
WARNING
EWB00520Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is overfilled,
f

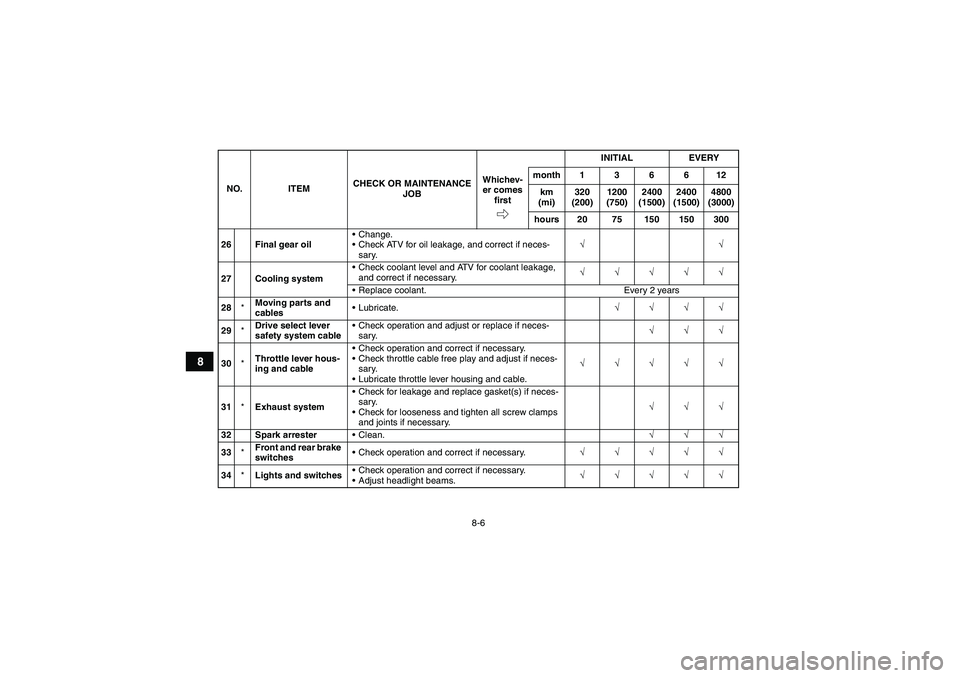

Page 80 of 142

YAMAHA WOLVERINE 450 2007  Owners Manual 8-6
8
26 Final gear oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√√
27 Cooling systemCheck coolant level and ATV for coolant leakage,
and correct if necessary.√√√√

Page 99 of 142

YAMAHA WOLVERINE 450 2007  Owners Manual 8-25
8
The differential gear case capacity is greater
than the recommended oil quantity, therefore
the oil level cannot be accurately checked fromthe oil filler hole.CAUTION:ECB00410Be sure no foreig

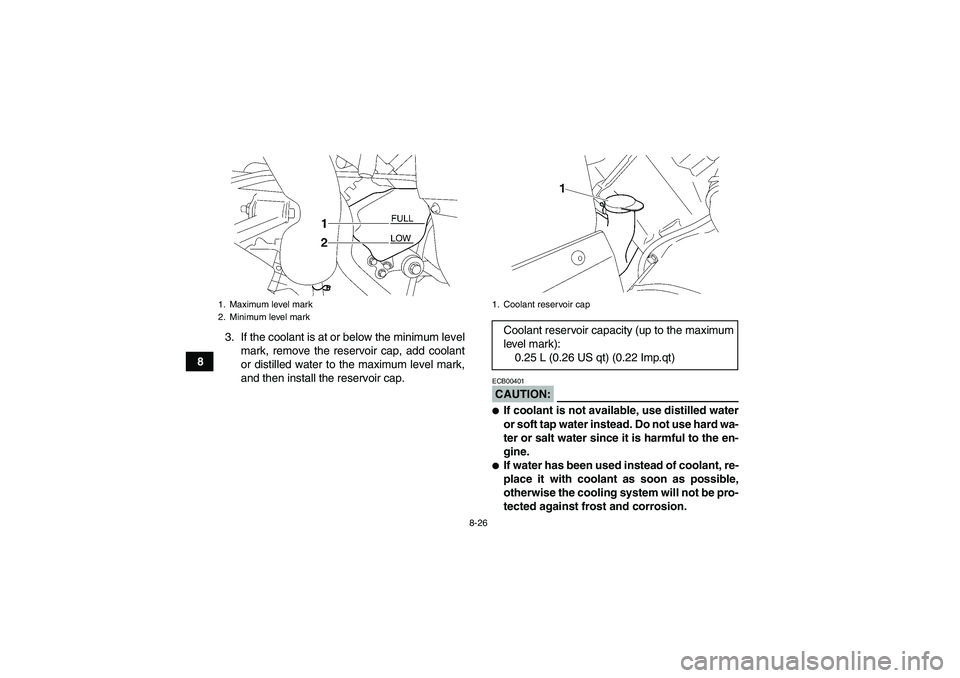

Page 100 of 142

YAMAHA WOLVERINE 450 2007  Owners Manual 8-26
83. If the coolant is at or below the minimum level
mark, remove the reservoir cap, add coolant
or distilled water to the maximum level mark,
and then install the reservoir cap.
CAUTION:ECB00401

Page 101 of 142

YAMAHA WOLVERINE 450 2007  Owners Manual 8-27
8
If water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible, oth-
erwise the effectiveness of the coolant willbe reduced.
NOT

Page 103 of 142

YAMAHA WOLVERINE 450 2007  Owners Manual 8-29
8 10. Connect the coolant reservoir hose.
11. Pour the recommended coolant into the reser-
voir to the maximum level mark, and then in-
stall the reservoir cap.
12. Pour the recommended coolant i

Page 130 of 142

YAMAHA WOLVERINE 450 2007  Owners Manual 8-56
8Engine overheating
WARNING
EWB02290Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a th

Page 135 of 142

YAMAHA WOLVERINE 450 2007  Owners Manual 10-2
10
Engine oil quantity:
Without oil filter cartridge replacement:
2.30 L (2.43 US qt) (2.02 Imp.qt)
With oil filter cartridge replacement:
2.40 L (2.54 US qt) (2.11 Imp.qt)Final gear oil:Type:
SA
