4-3
4
NOTE:Due to the synchronizing mechanism in the differ-
ential gear case, the indicator may not come on un-til the ATV starts moving.EBU17970Park indicator light “”
This indicator light comes on when the transmis-
sion is in the park position.EBU26362Speedometer unit
The speedometer unit is equipped with the follow-
ing:
a speedometer (which shows the riding speed)
an odometer (which shows the total distance
traveled)
a tripmeter (which shows the distance traveled
since it was last set to zero)
Odometer and tripmeter modes
Pushing the “SELECT” button switches the display
between the odometer mode “ODO” and the trip-
meter mode “TRIP” in the following order:
ODO → TRIP → ODO
To reset the tripmeter, select it by pushing the “SE-
LECT” button, and then push the “SELECT” button
for at least three seconds. The tripmeter can be
used to estimate the distance that can be traveled
with a full tank of fuel. This information will enable
you to plan future fuel stops.
NOTE:Pushing in the “SELECT” button, then turning the
key to “ON”, and keeping them in this position for
at least two seconds switches the display between“mph” and “km/h”.

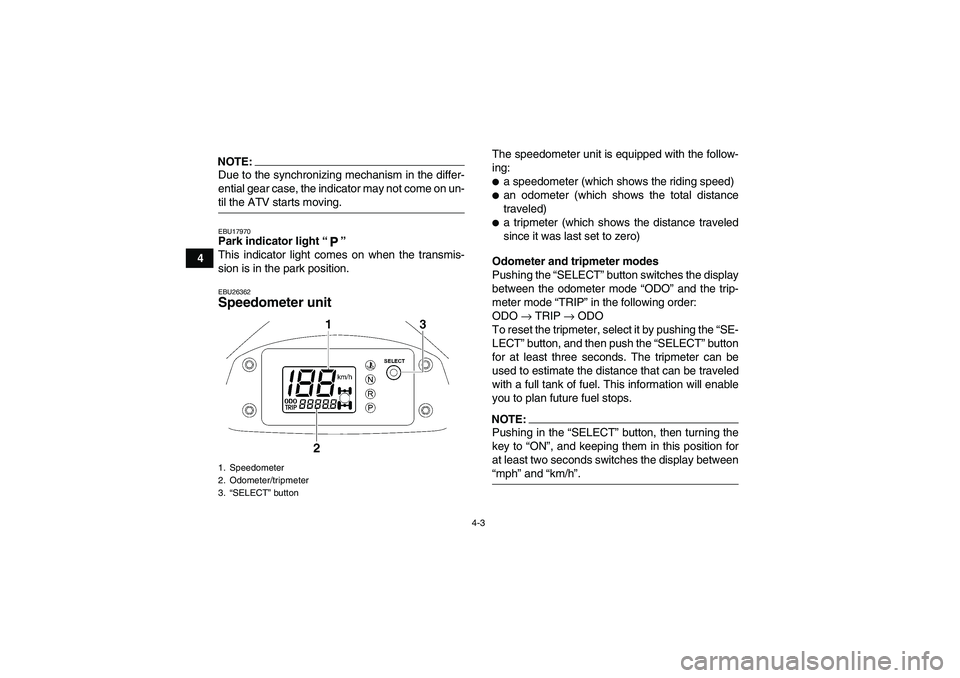

1. Speedometer
2. Odometer/tripmeter
3.“SELECT” buttonU3C261E0.book Page 3 Thursday, June 29, 2006 4:15 PM
