The differential gear case capacity is greater
than the recommended oil quantity, therefore
the oil level cannot be accurately checked fromthe oil filler hole.CAUTION:ECB00410Be sure no foreign material enters the differen-tial gear case.
6. Install the oil filler bolt, and then tighten it to the
specified torque.
7. Check the differential gear case for oil leak-
age. If oil is leaking, check for the cause.
EBU23470Coolant The coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.EBU27940To check the coolant level
1. Place the ATV on a level surface.NOTE:The coolant level must be checked on a cold en-
gine since the level varies with engine tempera-ture.
2. Check the coolant level in the coolant reser-
voir.NOTE:The coolant should be between the minimum andmaximum level marks. Recommended differential gear oil:
See page 10-1.
Oil quantity:
0.35 L (0.37 US qt) (0.31 Imp.qt)
Tightening torque:
Differential gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U3C262E0.book Page 26 Tuesday, June 26, 2007 3:36 PM

8-27
83. If the coolant is at or below the minimum level
mark, remove the reservoir cap, add coolant
or distilled water to the maximum level mark,
and then install the reservoir cap.
CAUTION:ECB00401
If coolant is not available, use distilled water
or soft tap water instead. Do not use hard wa-
ter or salt water since it is harmful to the en-
gine.
If water has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the cooling system will not be pro-
tected against frost and corrosion.

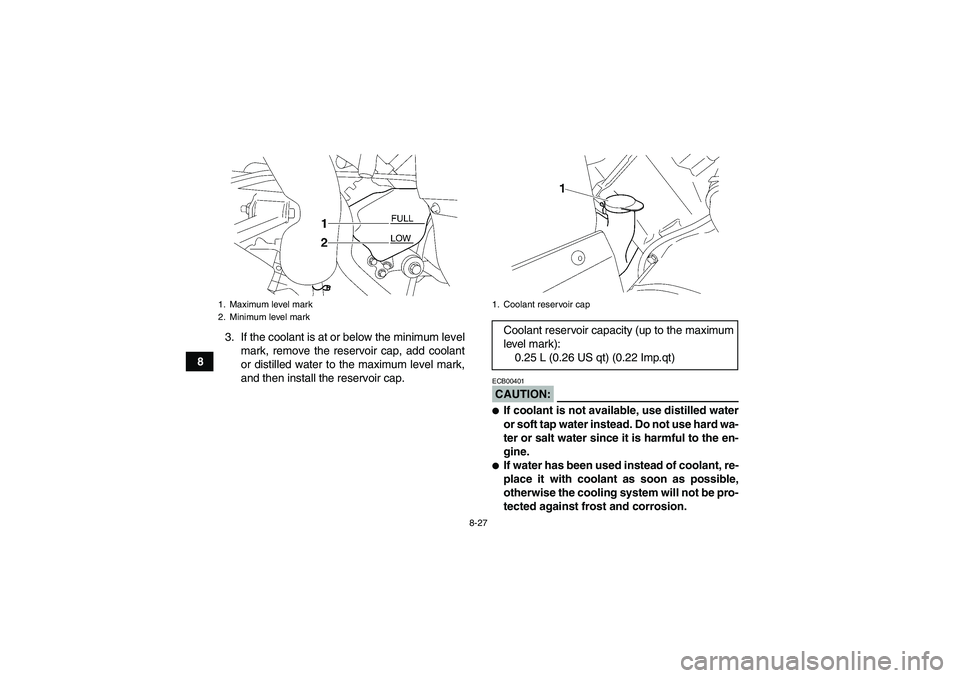

1. Maximum level mark
2. Minimum level mark
1. Coolant reservoir capCoolant reservoir capacity (up to the maximum
level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
U3C262E0.book Page 27 Tuesday, June 26, 2007 3:36 PM

8-28
8

If water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible, oth-
erwise the effectiveness of the coolant willbe reduced.
NOTE:
The radiator fan is automatically switched on or
off according to the coolant temperature in the
radiator.
If the engine overheats, see page 8-56 for fur-ther instructions.EBU26441To change the coolant
WARNING
EWB01890Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressureto escape before completely removing the cap.
1. Place the ATV on a level surface.
2. Remove panels C and D. (See page 8-9.)3. Place a container under the engine, and then
remove the coolant drain bolt. (Use a trough
or a similar object as shown to prevent coolant
from spilling on the footrest.)

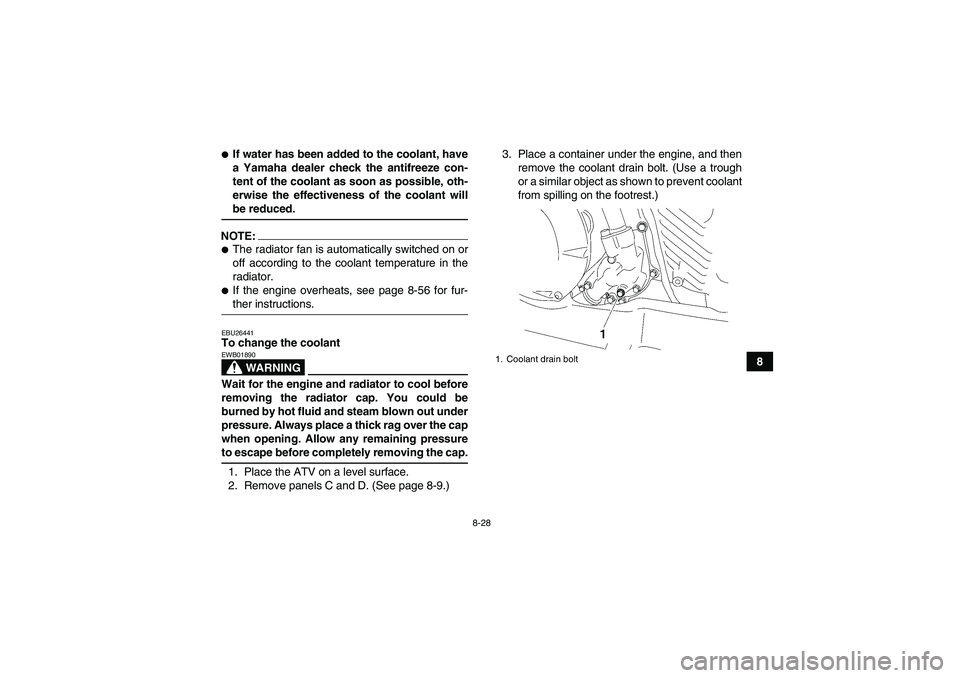

1. Coolant drain bolt
U3C262E0.book Page 28 Tuesday, June 26, 2007 3:36 PM

8-29
84. Remove cowling A. (See page 8-9.)
5. Remove the radiator cap.6. Remove the coolant reservoir cap.
7. Disconnect the hose on the coolant reservoir
side, and then drain the coolant from the cool-
ant reservoir.
8. After draining the coolant, thoroughly flush the
cooling system with clean tap water.
9. Replace the coolant drain bolt washer if it is
damaged, install the coolant drain bolt, and
then tighten it to the specified torque.

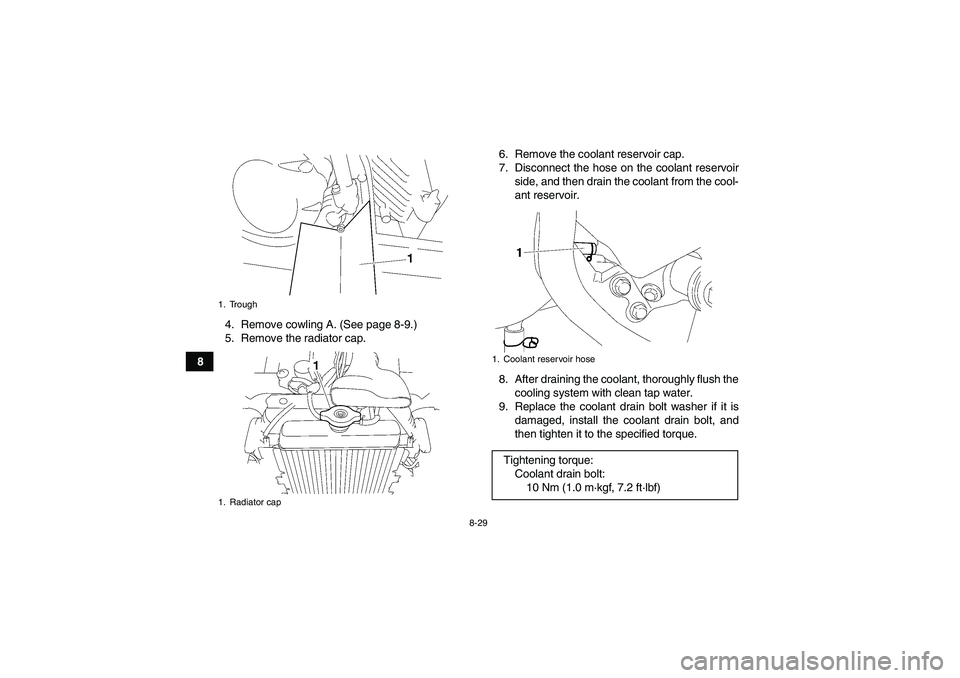

1. Trough
1. Radiator cap
1. Coolant reservoir hoseTightening torque:
Coolant drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U3C262E0.book Page 29 Tuesday, June 26, 2007 3:36 PM

8-30
8 10. Connect the coolant reservoir hose.
11. Pour the recommended coolant into the reser-
voir to the maximum level mark, and then in-
stall the reservoir cap.
12. Pour the recommended coolant into the radia-
tor until it is full.
CAUTION:ECB00401
If coolant is not available, use distilled water
or soft tap water instead. Do not use hard wa-
ter or salt water since it is harmful to the en-
gine.

If water has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the cooling system will not be pro-
tected against frost and corrosion.
If water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible, oth-
erwise the effectiveness of the coolant willbe reduced.
13. Install the radiator cap, start the engine, let it
idle for several minutes, and then turn it off.
14. Remove the radiator cap to check the coolant
level in the radiator. If it is low, add sufficient
coolant until it reaches the top of the radiator,
and then install the radiator cap.
15. Start the engine, and then check for coolant
leakage.
NOTE:If any leakage is found, have a Yamaha dealercheck the cooling system.
16. Install the cowling.

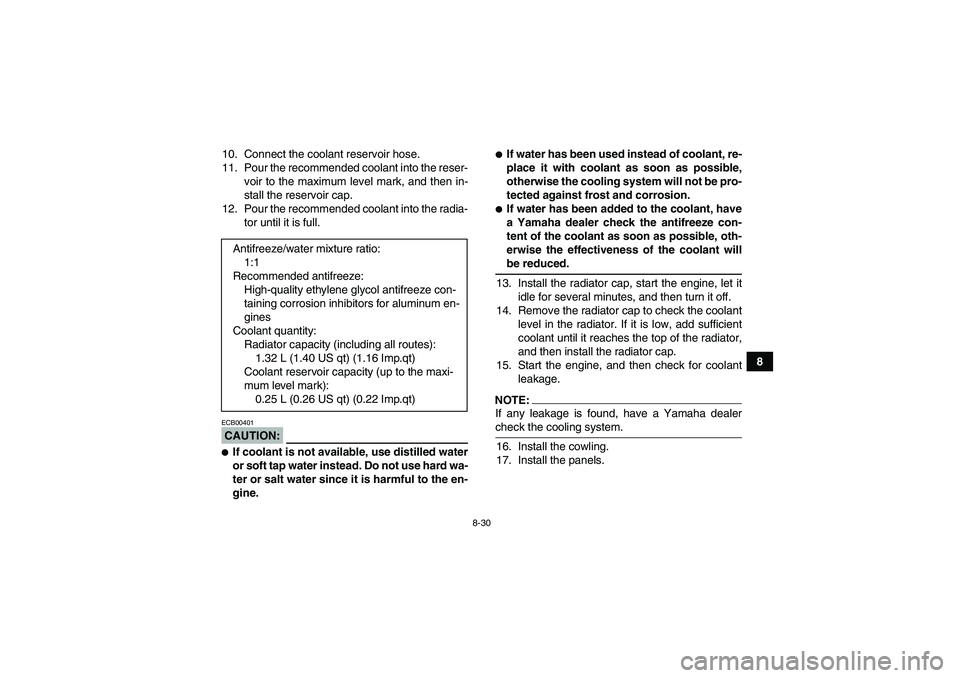

17. Install the panels. Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum en-
gines
Coolant quantity:
Radiator capacity (including all routes):
1.32 L (1.40 US qt) (1.16 Imp.qt)
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
U3C262E0.book Page 30 Tuesday, June 26, 2007 3:36 PM

8-31
8
EBU23641Cleaning the air filter element The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean the air filter element more
frequently if you are riding in unusually wet or dusty
areas.NOTE:There is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-ter case.
1. Remove the seat. (See page 4-12.)2. Remove the air filter case cover by unhooking
the holders.
3. Pull the air filter element out of the air filter

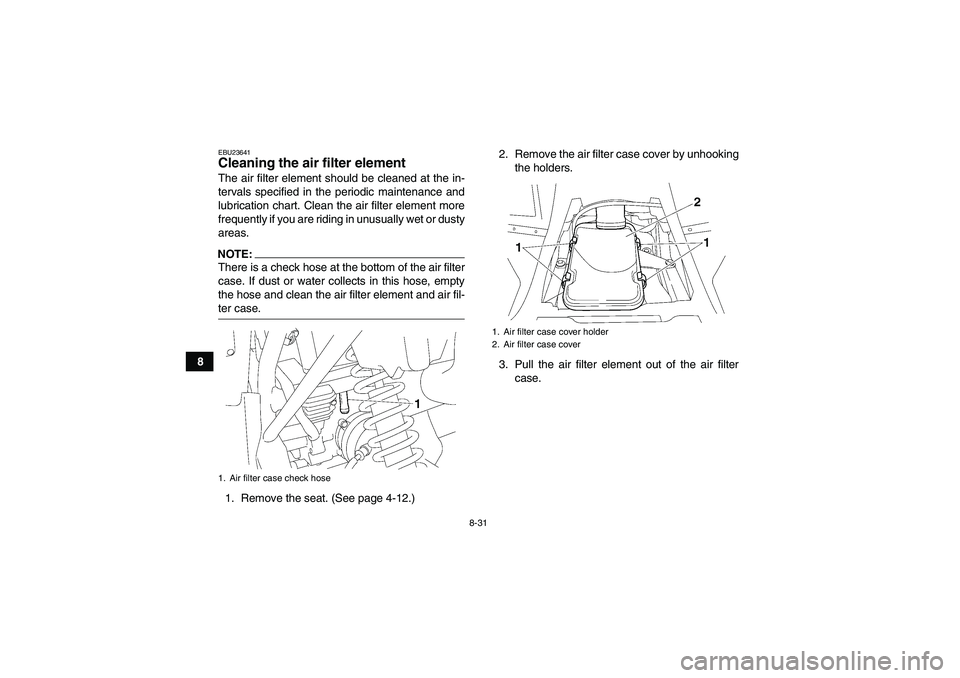

case.1. Air filter case check hose
1. Air filter case cover holder
2. Air filter case cover
U3C262E0.book Page 31 Tuesday, June 26, 2007 3:36 PM

8-32
8 4. Pull off the lock plate, and then remove the
sponge material from the air filter element
frame.5. Wash the sponge material gently but thor-
oughly in solvent.
WARNING
EWB01940Always use parts cleaning solvent to clean the
sponge material. Never use low-flash-point
solvents or gasoline to clean the sponge mate-
rial because the engine could catch fire or ex-plode.
6. Squeeze the excess solvent out of the sponge
material and let it dry.

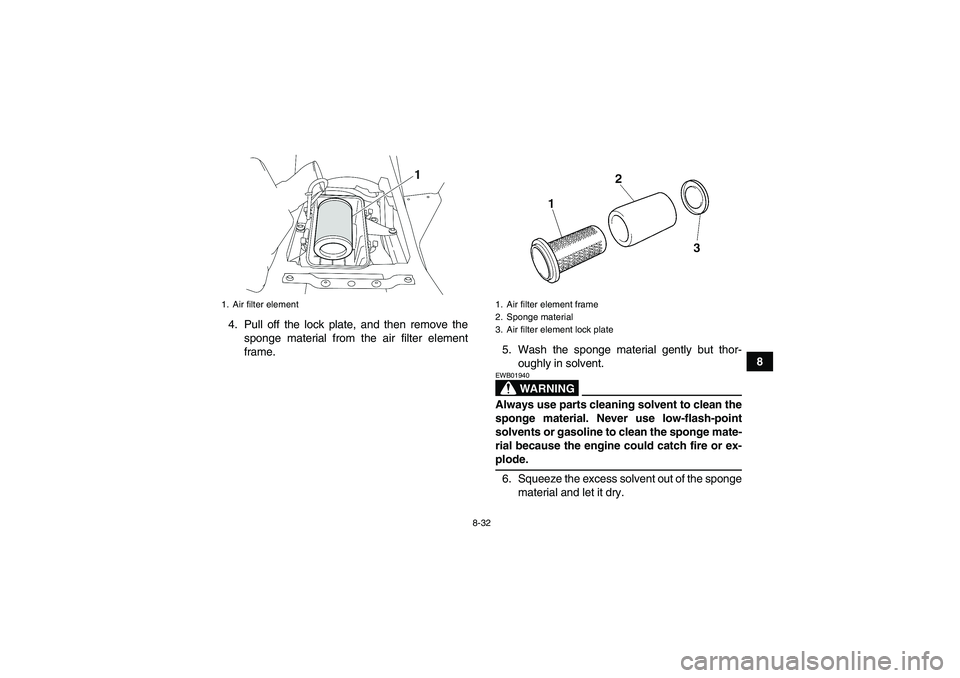

1. Air filter element
1. Air filter element frame
2. Sponge material
3. Air filter element lock plate
U3C262E0.book Page 32 Tuesday, June 26, 2007 3:36 PM

8-33
8

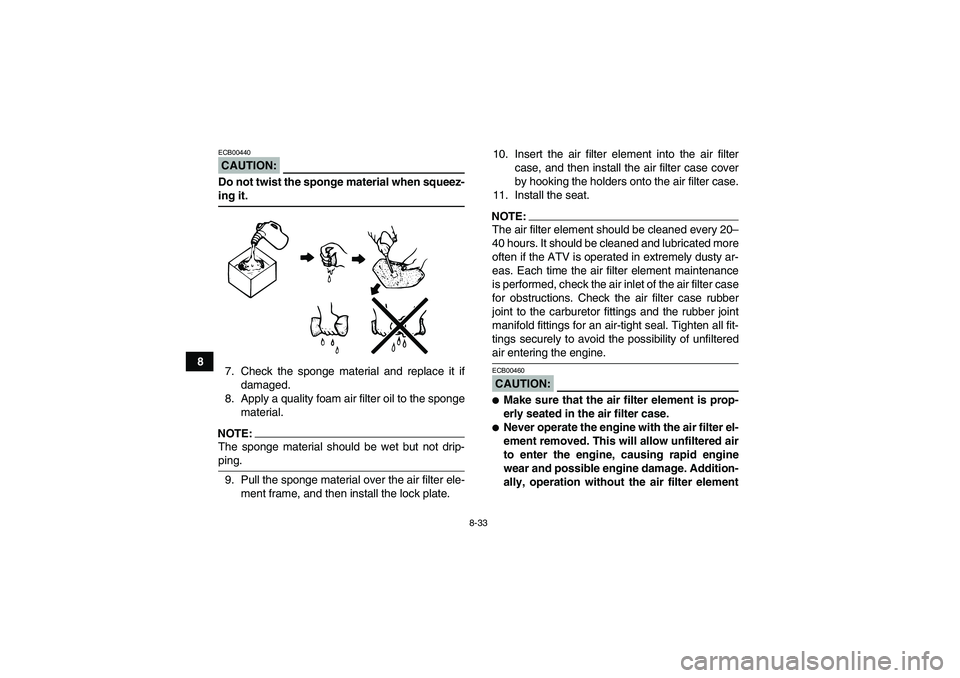

CAUTION:ECB00440Do not twist the sponge material when squeez-ing it.
7. Check the sponge material and replace it if
damaged.
8. Apply a quality foam air filter oil to the sponge
material.NOTE:The sponge material should be wet but not drip-ping.
9. Pull the sponge material over the air filter ele-
ment frame, and then install the lock plate.10. Insert the air filter element into the air filter
case, and then install the air filter case cover
by hooking the holders onto the air filter case.
11. Install the seat.
NOTE:The air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated more
often if the ATV is operated in extremely dusty ar-
eas. Each time the air filter element maintenance
is performed, check the air inlet of the air filter case
for obstructions. Check the air filter case rubber
joint to the carburetor fittings and the rubber joint
manifold fittings for an air-tight seal. Tighten all fit-
tings securely to avoid the possibility of unfilteredair entering the engine.CAUTION:ECB00460
Make sure that the air filter element is prop-
erly seated in the air filter case.
Never operate the engine with the air filter el-
ement removed. This will allow unfiltered air
to enter the engine, causing rapid engine
wear and possible engine damage. Addition-
ally, operation without the air filter element
U3C262E0.book Page 33 Tuesday, June 26, 2007 3:36 PM

8-34
8 will affect carburetor jetting with subsequent
poor performance and possible engine over-
heating.EBU27011Cleaning the spark arrester Be sure the exhaust pipe and muffler are cool be-
fore cleaning the spark arrester.
1. Remove the tailpipe cover by removing the
bolts.
2. Remove the tailpipe by pulling it out of the
muffler.3. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from the
spark arrester portion of the tailpipe and inside
of the tailpipe housing.
4. Insert the tailpipe into the muffler and align the
bolt holes.
5. Install the tailpipe cover by installing the bolts,
and then tighten them to the specified torque.1. Bolt
2. Tailpipe cover

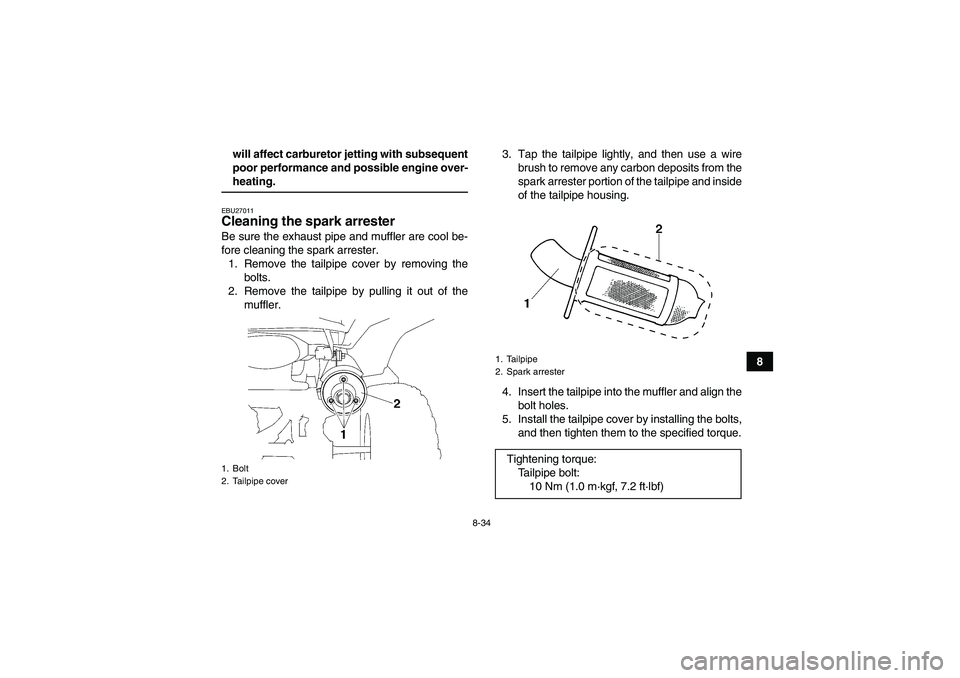

1. Tailpipe
2. Spark arresterTightening torque:
Tailpipe bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U3C262E0.book Page 34 Tuesday, June 26, 2007 3:36 PM

8-35
8
WARNING
EWB02340Do not start the engine when cleaning the
spark arrester, otherwise it could cause injury
to the eyes, burns, carbon monoxide poison-
ing, possibly leading to death, and start a fire.
Always let the exhaust system cool prior totouching exhaust components.EBU23920V-belt cooling duct check hose If dust or water collects in the V-belt cooling duct
check hose, remove the hose and clean it.
EBU23930V-belt case drain plug After riding in water deep enough to allow it to en-
ter the V-belt case, remove this plug to drain the
water from the case.NOTE:If water drains from the V-belt case after removing
the plug, have a Yamaha dealer check the ATV asthe water may affect other engine parts.

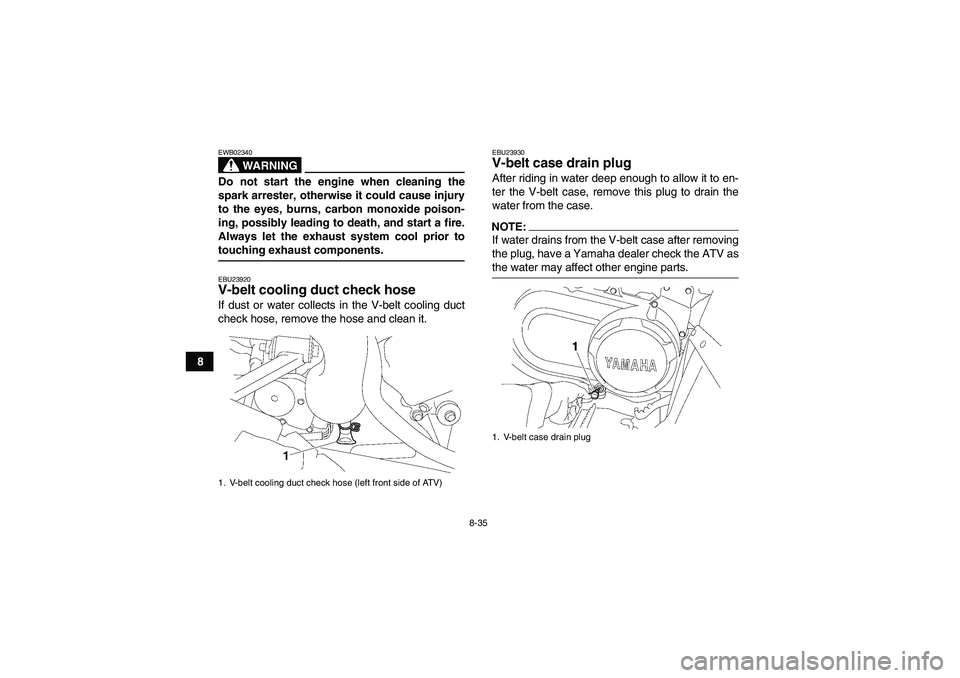

1. V-belt cooling duct check hose (left front side of ATV)
1. V-belt case drain plug
