4-4
4 Odometer and tripmeter modes
Pushing the “SELECT” button switches the display
between the odometer mode “ODO” and the trip-
meter mode “TRIP” in the following order:
ODO → TRIP → ODO
To reset the tripmeter, select it by pushing the “SE-
LECT” button, and then push the “SELECT” button
for at least three seconds. The tripmeter can be
used to estimate the distance that can be traveled
with a full tank of fuel. This information will enable
you to plan future fuel stops.
NOTE:Pushing in the “SELECT” button, then turning the
key to “ON”, and keeping them in this position for
at least two seconds switches the display between“mph” and “km/h”.
EBU18061Handlebar switches EBU18080Engine stop switch“/”
Set this switch to“” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to“”.1. Light switch“//OFF”
2. Engine stop switch“/”
3. Start switch“”
U3C262E0.book Page 4 Tuesday, June 26, 2007 3:36 PM

4-5
4

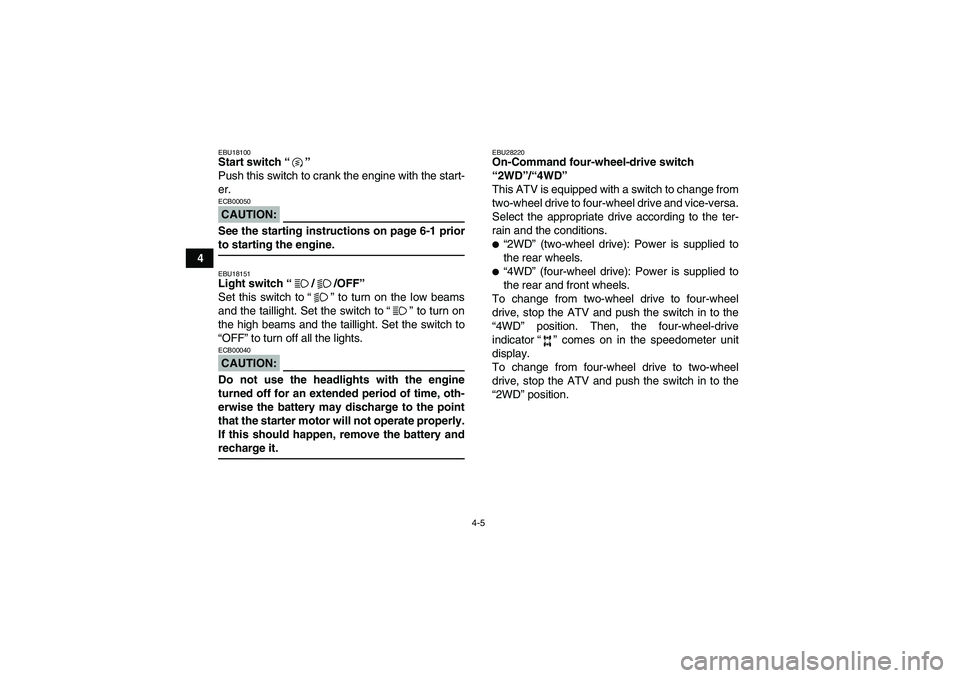

EBU18100Start switch“”
Push this switch to crank the engine with the start-
er.CAUTION:ECB00050See the starting instructions on page 6-1 priorto starting the engine.EBU18151Light switch“//OFF”
Set this switch to“” to turn on the low beams
and the taillight. Set the switch to“” to turn on
the high beams and the taillight. Set the switch to
“OFF” to turn off all the lights.CAUTION:ECB00040Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point
that the starter motor will not operate properly.
If this should happen, remove the battery andrecharge it.
EBU28220On-Command four-wheel-drive switch
“2WD”/“4WD”
This ATV is equipped with a switch to change from
two-wheel drive to four-wheel drive and vice-versa.
Select the appropriate drive according to the ter-
rain and the conditions.
“2WD” (two-wheel drive): Power is supplied to
the rear wheels.
“4WD” (four-wheel drive): Power is supplied to
the rear and front wheels.
To change from two-wheel drive to four-wheel
drive, stop the ATV and push the switch in to the
“4WD” position. Then, the four-wheel-drive
indicator“” comes on in the speedometer unit
display.
To change from four-wheel drive to two-wheel
drive, stop the ATV and push the switch in to the
“2WD” position.
