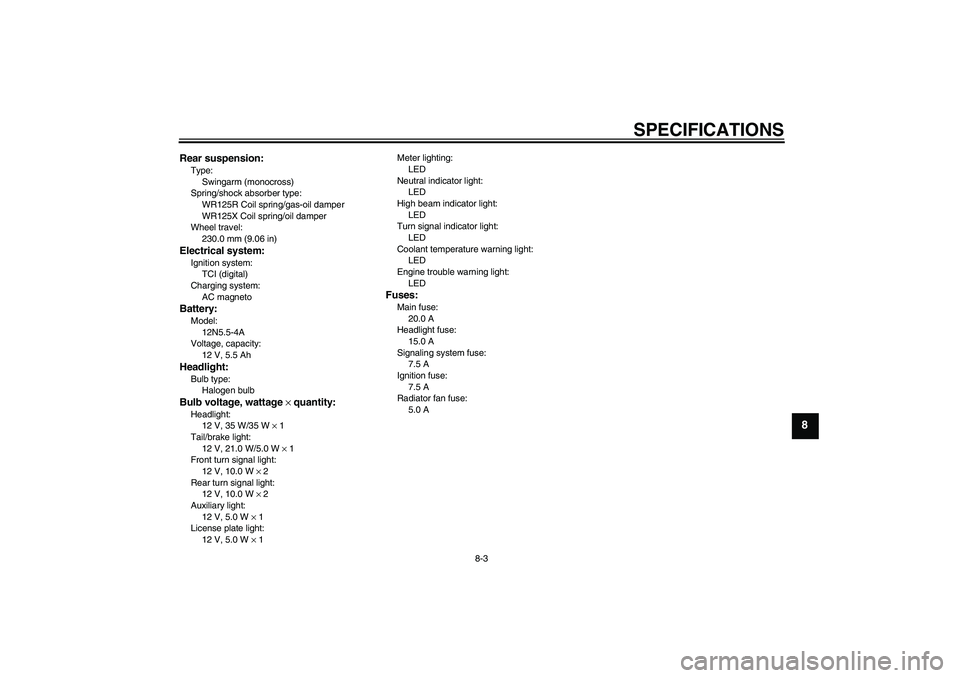

SPECIFICATIONS
8-3
8
Rear suspension:Type:
Swingarm (monocross)
Spring/shock absorber type:
WR125R Coil spring/gas-oil damper
WR125X Coil spring/oil damper
Wheel travel:
230.0 mm (9.06 in)Electrical system:Ignition system:
TCI (digital)
Charging system:
AC magnetoBattery:Model:
12N5.5-4A
Voltage, capacity:
12 V, 5.5 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 35 W/35 W × 1
Tail/brake light:
12 V, 21.0 W/5.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 1
License plate light:
12 V, 5.0 W × 1Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
Fuses:Main fuse:
20.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
7.5 A
Ignition fuse:
7.5 A
Radiator fan fuse:
5.0 A
U22BE0E0.book Page 3 Wednesday, December 17, 2008 11:00 AM

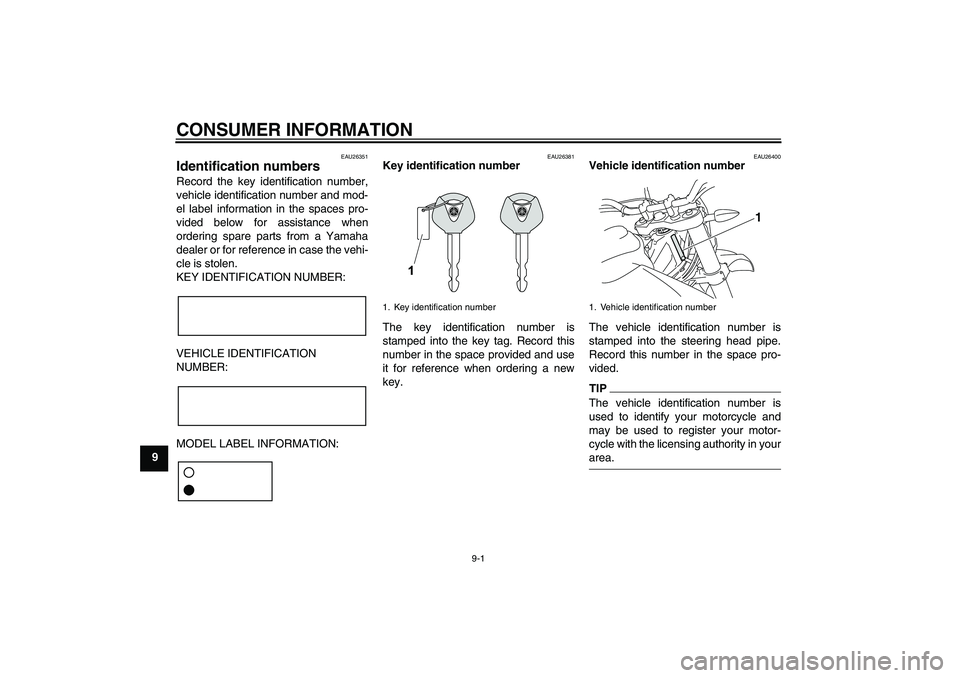

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
1. Vehicle identification number
1
U22BE0E0.book Page 1 Wednesday, December 17, 2008 11:00 AM

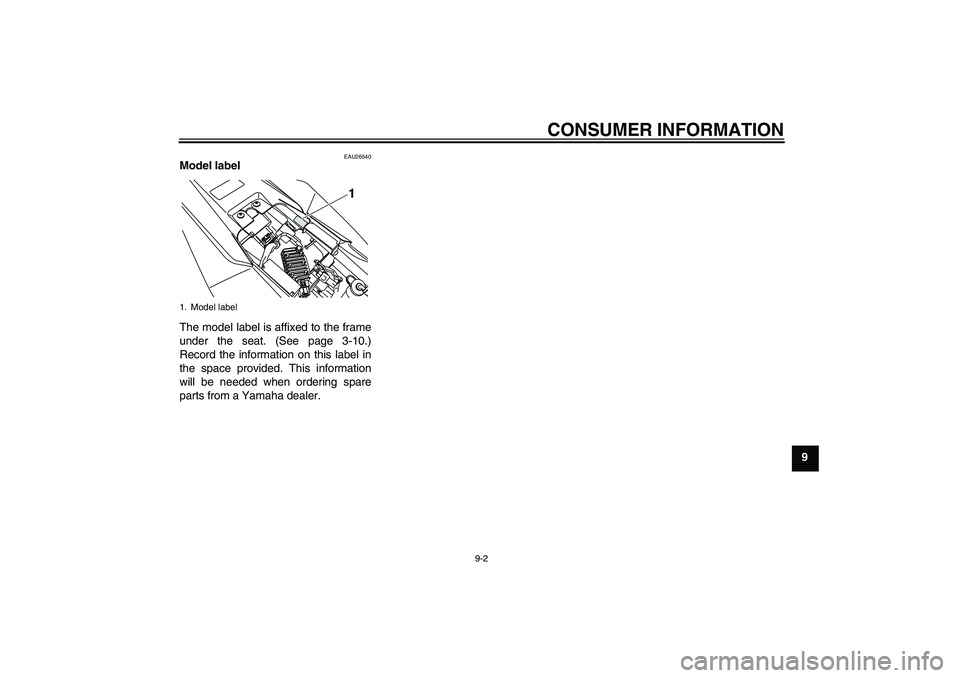

CONSUMER INFORMATION
9-2
9
EAU26540
Model label
The model label is affixed to the frame
under the seat. (See page 3-10.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.1. Model label
U22BE0E0.book Page 2 Wednesday, December 17, 2008 11:00 AM

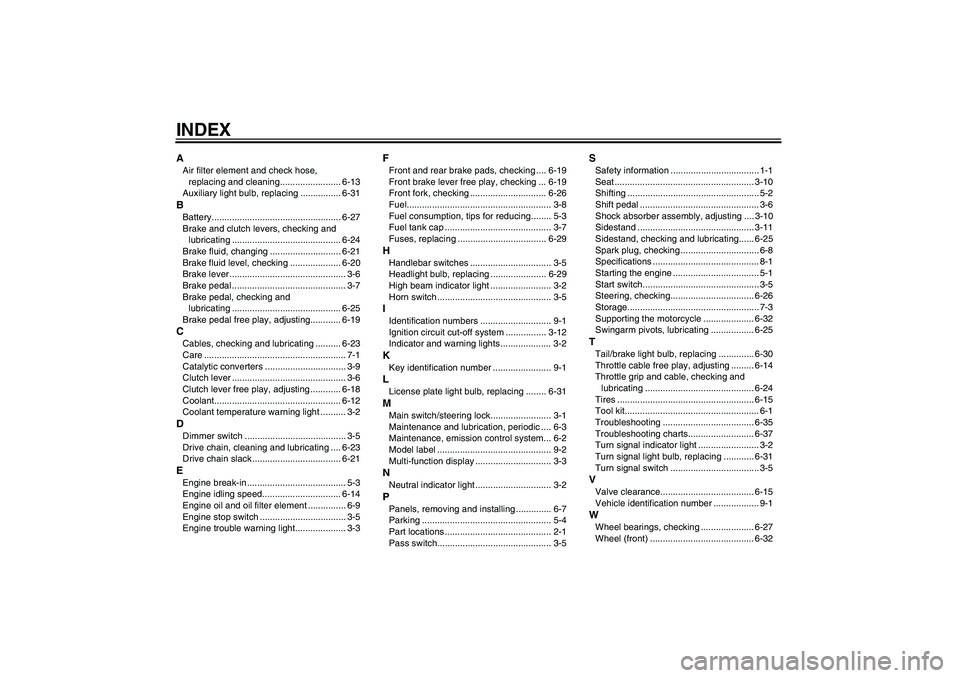

INDEXAAir filter element and check hose,
replacing and cleaning........................ 6-13
Auxiliary light bulb, replacing ................ 6-31BBattery................................................... 6-27
Brake and clutch levers, checking and
lubricating ........................................... 6-24
Brake fluid, changing ............................ 6-21
Brake fluid level, checking .................... 6-20
Brake lever .............................................. 3-6
Brake pedal ............................................. 3-7
Brake pedal, checking and
lubricating ........................................... 6-25
Brake pedal free play, adjusting............ 6-19CCables, checking and lubricating .......... 6-23
Care ........................................................ 7-1
Catalytic converters ................................ 3-9
Clutch lever ............................................. 3-6
Clutch lever free play, adjusting ............ 6-18
Coolant.................................................. 6-12
Coolant temperature warning light .......... 3-2DDimmer switch ........................................ 3-5
Drive chain, cleaning and lubricating .... 6-23
Drive chain slack ................................... 6-21EEngine break-in ....................................... 5-3
Engine idling speed............................... 6-14
Engine oil and oil filter element ............... 6-9
Engine stop switch .................................. 3-5
Engine trouble warning light.................... 3-3
FFront and rear brake pads, checking .... 6-19
Front brake lever free play, checking ... 6-19
Front fork, checking .............................. 6-26
Fuel......................................................... 3-8
Fuel consumption, tips for reducing........ 5-3
Fuel tank cap .......................................... 3-7
Fuses, replacing ................................... 6-29HHandlebar switches ................................ 3-5
Headlight bulb, replacing ...................... 6-29
High beam indicator light ........................ 3-2
Horn switch ............................................. 3-5IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-12
Indicator and warning lights .................... 3-2KKey identification number ....................... 9-1LLicense plate light bulb, replacing ........ 6-31MMain switch/steering lock........................ 3-1
Maintenance and lubrication, periodic .... 6-3
Maintenance, emission control system... 6-2
Model label ............................................. 9-2
Multi-function display .............................. 3-3NNeutral indicator light .............................. 3-2PPanels, removing and installing .............. 6-7
Parking ................................................... 5-4
Part locations .......................................... 2-1
Pass switch............................................. 3-5
SSafety information ................................... 1-1
Seat ....................................................... 3-10
Shifting .................................................... 5-2
Shift pedal ............................................... 3-6
Shock absorber assembly, adjusting .... 3-10
Sidestand .............................................. 3-11
Sidestand, checking and lubricating...... 6-25
Spark plug, checking ............................... 6-8
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch.............................................. 3-5
Steering, checking................................. 6-26
Storage.................................................... 7-3
Supporting the motorcycle .................... 6-32
Swingarm pivots, lubricating ................. 6-25TTail/brake light bulb, replacing .............. 6-30
Throttle cable free play, adjusting ......... 6-14
Throttle grip and cable, checking and
lubricating ........................................... 6-24
Tires ...................................................... 6-15
Tool kit..................................................... 6-1
Troubleshooting .................................... 6-35
Troubleshooting charts.......................... 6-37
Turn signal indicator light ........................ 3-2
Turn signal light bulb, replacing ............ 6-31
Turn signal switch ................................... 3-5VValve clearance..................................... 6-15
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-27
Wheel (front) ......................................... 6-32
U22BE0E0.book Page 1 Wednesday, December 17, 2008 11:00 AM

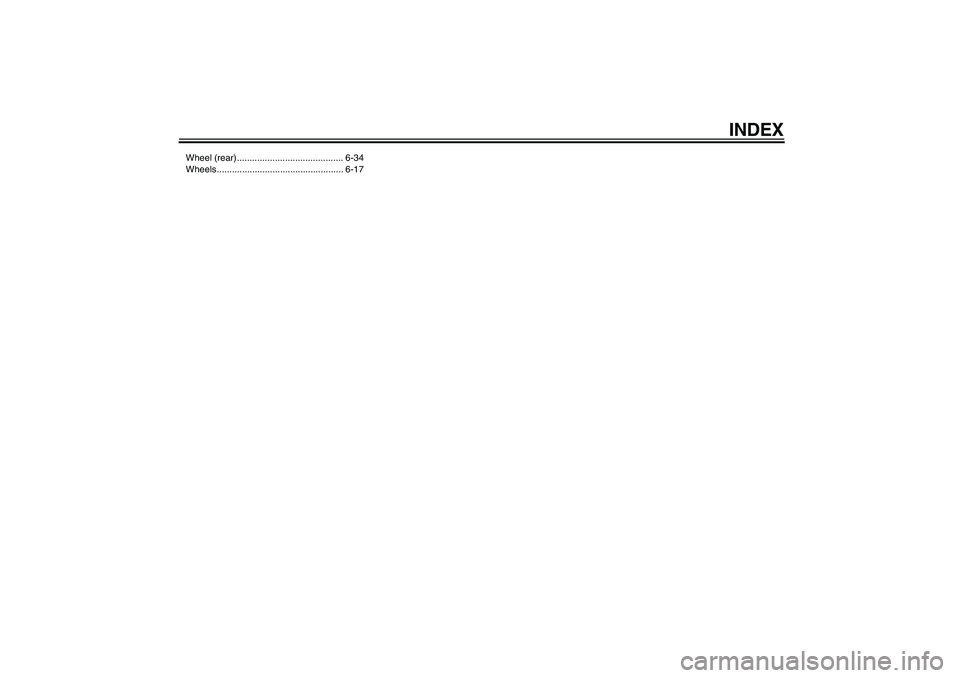

INDEX
Wheel (rear).......................................... 6-34
Wheels.................................................. 6-17
