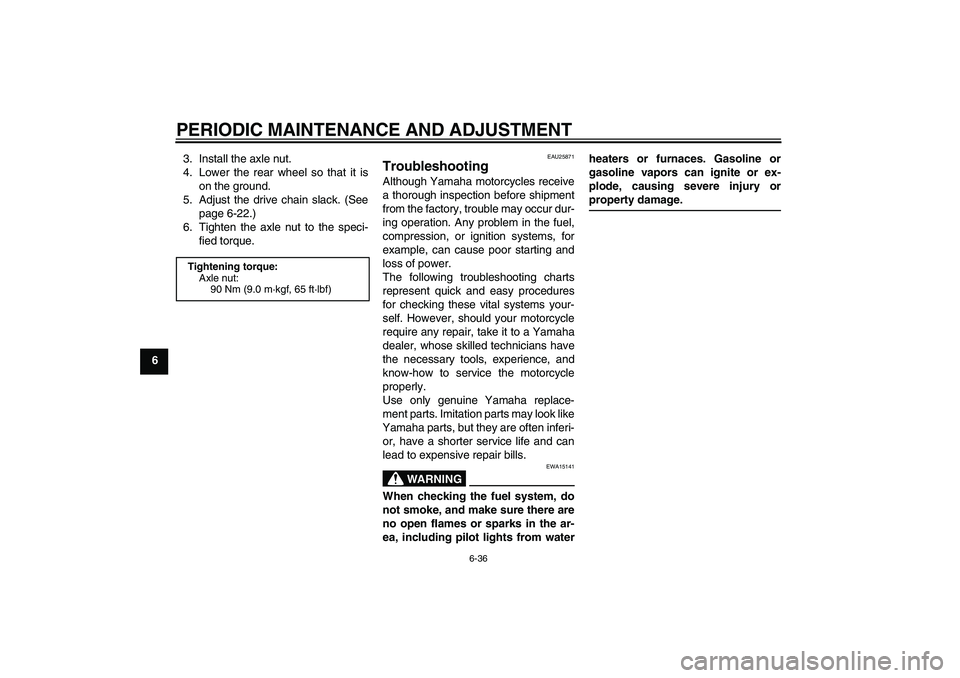

PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
63. Install the axle nut.
4. Lower the rear wheel so that it is
on the ground.
5. Adjust the drive chain slack. (See
page 6-22.)
6. Tighten the axle nut to the speci-
fied torque.
EAU25871
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
WARNING
EWA15141
When checking the fuel system, do
not smoke, and make sure there are
no open flames or sparks in the ar-
ea, including pilot lights from waterheaters or furnaces. Gasoline or
gasoline vapors can ignite or ex-
plode, causing severe injury or
property damage.
Tightening torque:
Axle nut:
90 Nm (9.0 m·kgf, 65 ft·lbf)
U22BE1E0.book Page 36 Wednesday, September 16, 2009 1:46 PM

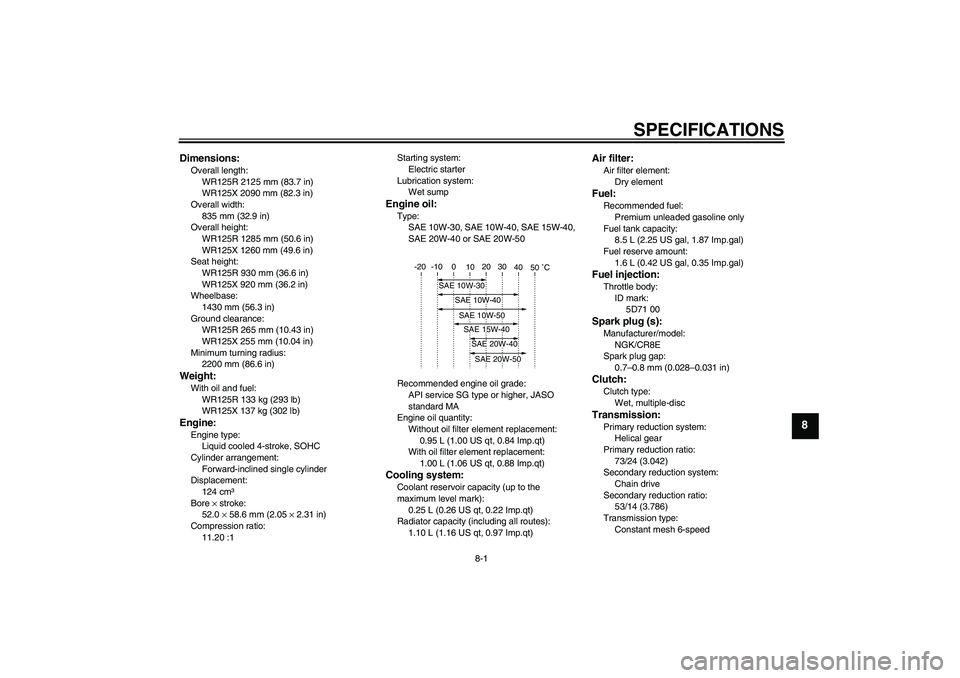

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
WR125R 2125 mm (83.7 in)
WR125X 2090 mm (82.3 in)
Overall width:
835 mm (32.9 in)
Overall height:
WR125R 1285 mm (50.6 in)
WR125X 1260 mm (49.6 in)
Seat height:
WR125R 930 mm (36.6 in)
WR125X 920 mm (36.2 in)
Wheelbase:
1430 mm (56.3 in)
Ground clearance:
WR125R 265 mm (10.43 in)
WR125X 255 mm (10.04 in)
Minimum turning radius:
2200 mm (86.6 in)Weight:With oil and fuel:
WR125R 133 kg (293 lb)
WR125X 137 kg (302 lb)Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
124 cm³
Bore × stroke:
52.0 × 58.6 mm (2.05 × 2.31 in)
Compression ratio:
11.20 :1Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE 10W-30, SAE 10W-40, SAE 15W-40,
SAE 20W-40 or SAE 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter element replacement:
0.95 L (1.00 US qt, 0.84 Imp.qt)
With oil filter element replacement:
1.00 L (1.06 US qt, 0.88 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes):
1.10 L (1.16 US qt, 0.97 Imp.qt)
Air filter:Air filter element:
Dry elementFuel:Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
8.5 L (2.25 US gal, 1.87 Imp.gal)
Fuel reserve amount:
1.6 L (0.42 US gal, 0.35 Imp.gal)Fuel injection:Throttle body:
ID mark:
5D71 00Spark plug (s):Manufacturer/model:
NGK/CR8E
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Helical gear
Primary reduction ratio:
73/24 (3.042)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
53/14 (3.786)
Transmission type:
Constant mesh 6-speed
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
U22BE1E0.book Page 1 Wednesday, September 16, 2009 1:46 PM
